PRO-ZXI 10" Mid-Bass Loudspeaker With Neodymium/Ferrite Magnets 500 Watts Rms 8-Ohm

PRO-ZXI 10" Mid-Bass Loudspeaker With Neodymium/Ferrite Magnets 500 Watts Rms 8-Ohm

Sold by AudioSellerz.com

SKU: PRO-ZXI10MBASS

PRO-ZXI 10" Mid-Bass Loudspeaker With Neodymium/Ferrite Magnets 500 Watts Rms 8-Ohm is a DS18 audio processor from DS18 built for system tuning, signal control, crossover setup, equalization, and cleaner full-system audio builds. This description helps shoppers looking for DS18 DSP, car audio processor, audio equalizer, digital sound processor, system tuning understand where it fits in a real audio system.

Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.

Audio Sellerz System Match Notes

• Use clean signal routing and proper tuning so the speakers, subwoofers, and amplifiers work together.
• For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
• If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.

DS18 PRO-ZXI10MBASS 10" Mid-Bass Loudspeaker 1000 Watts 8-Ohm

The ZXI series brings Pro Audio to a bright new level of elegance, clarity, and loudness.

These speakers were designed specifically for the car audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power thrown at efficiently allowing it to play up to extreme volumes with authority for extended periods of time.

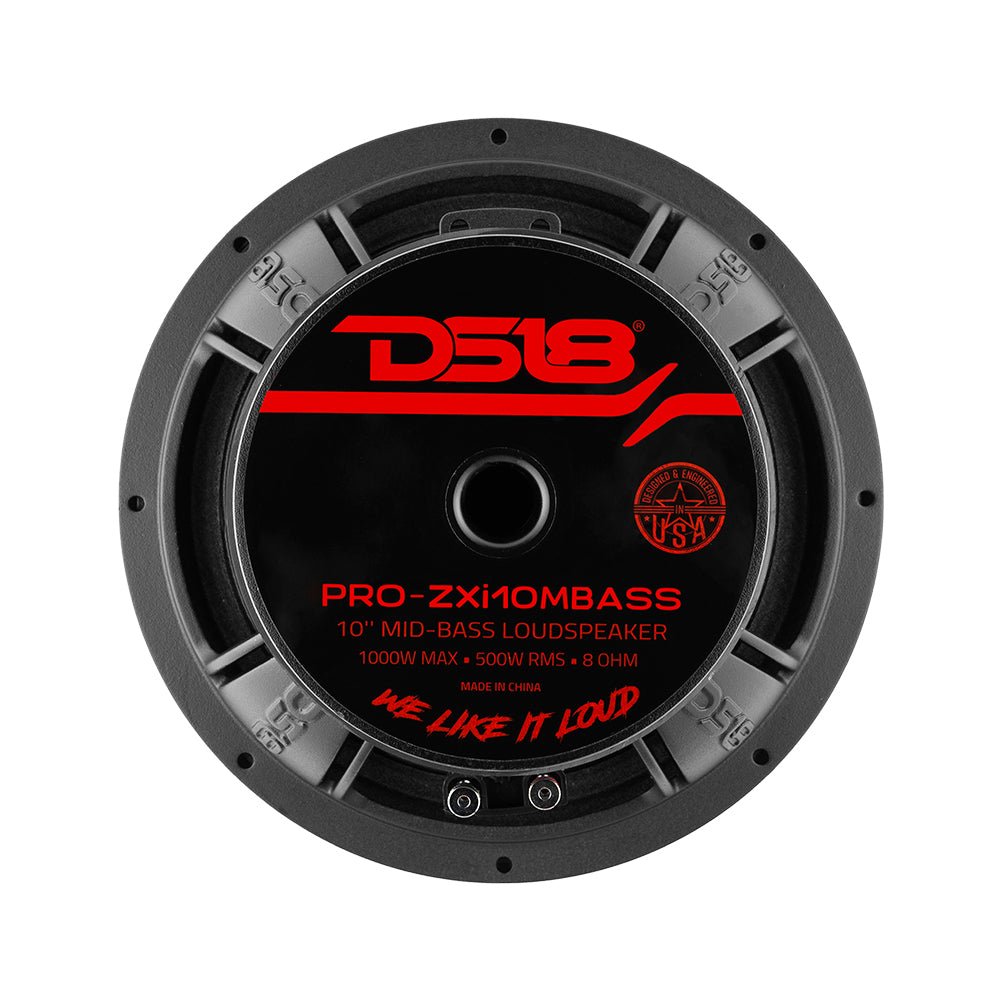

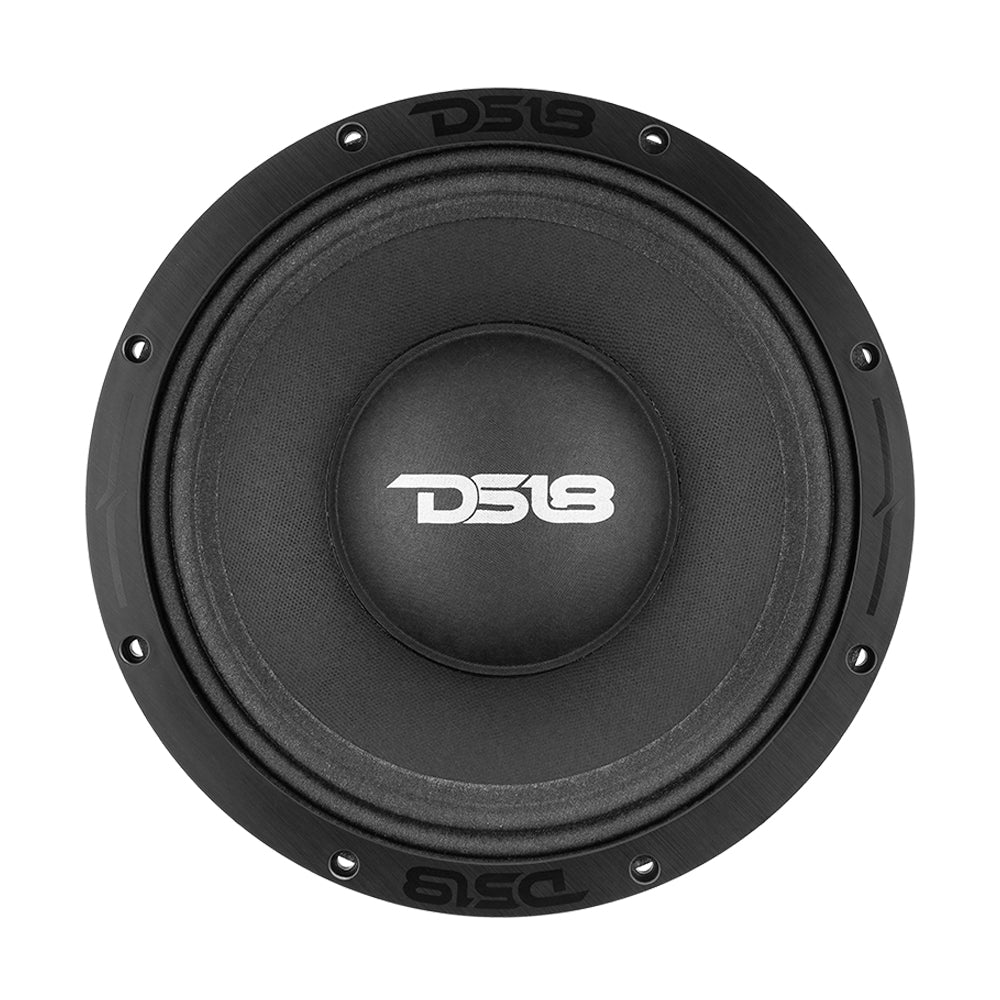

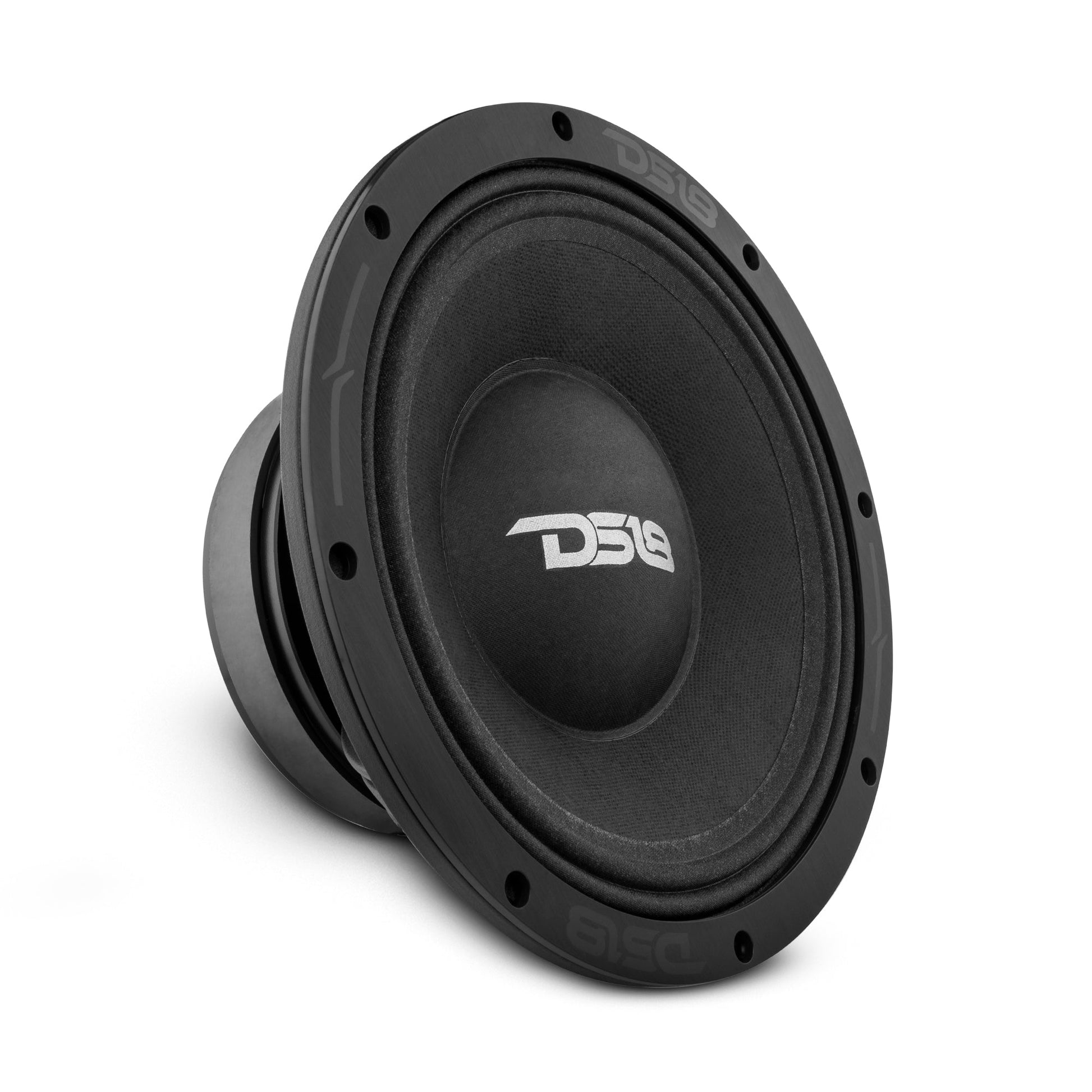

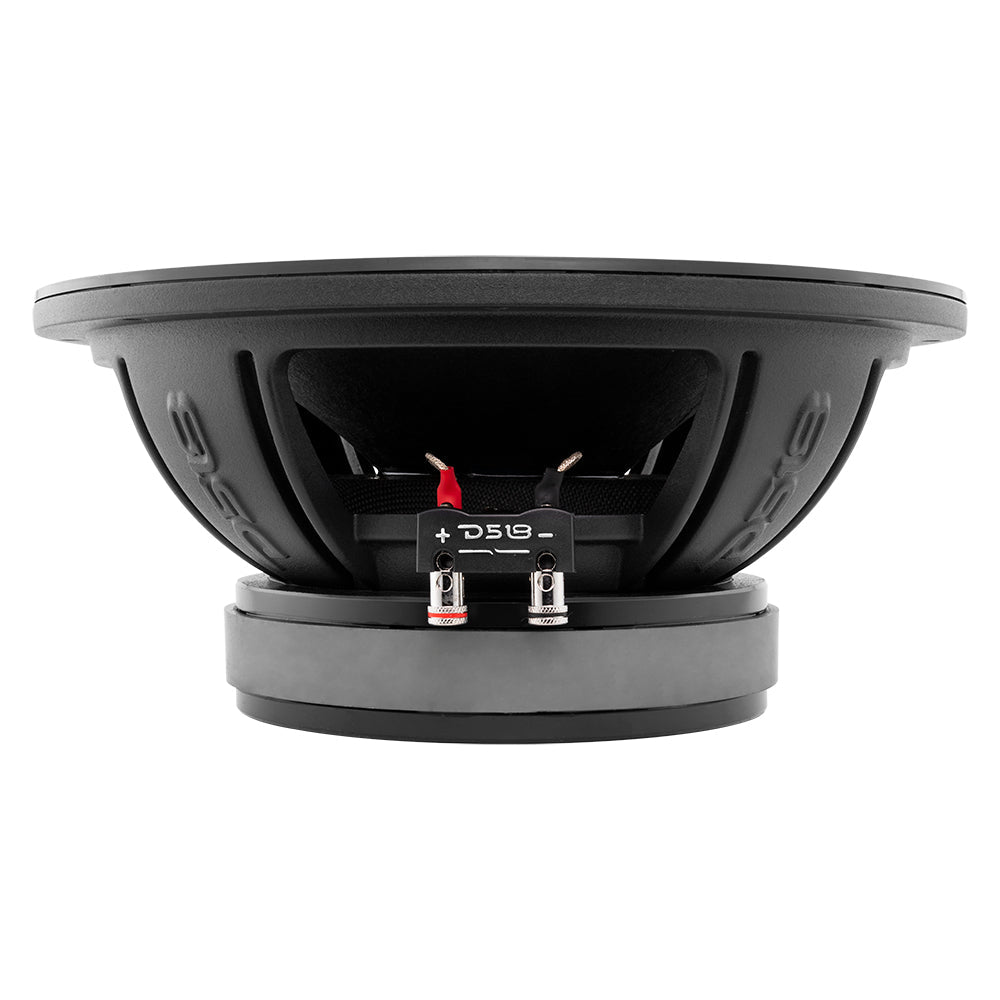

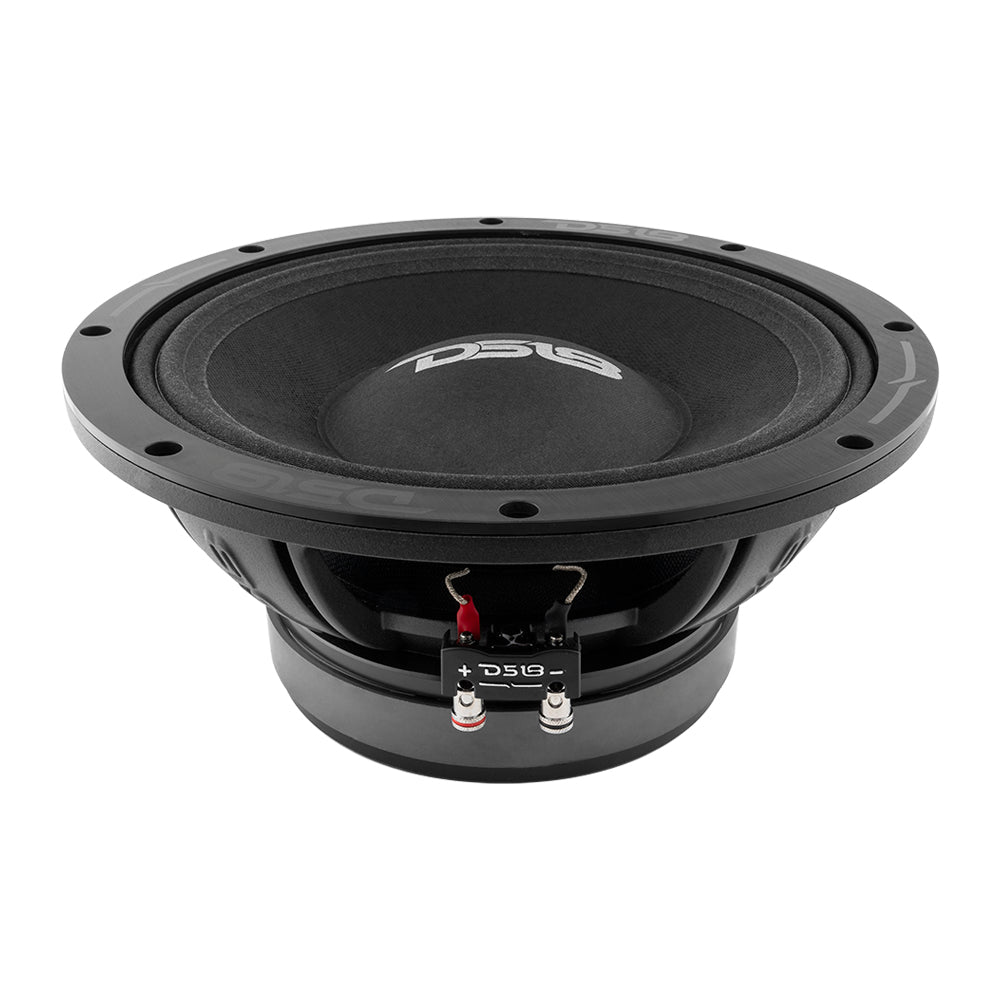

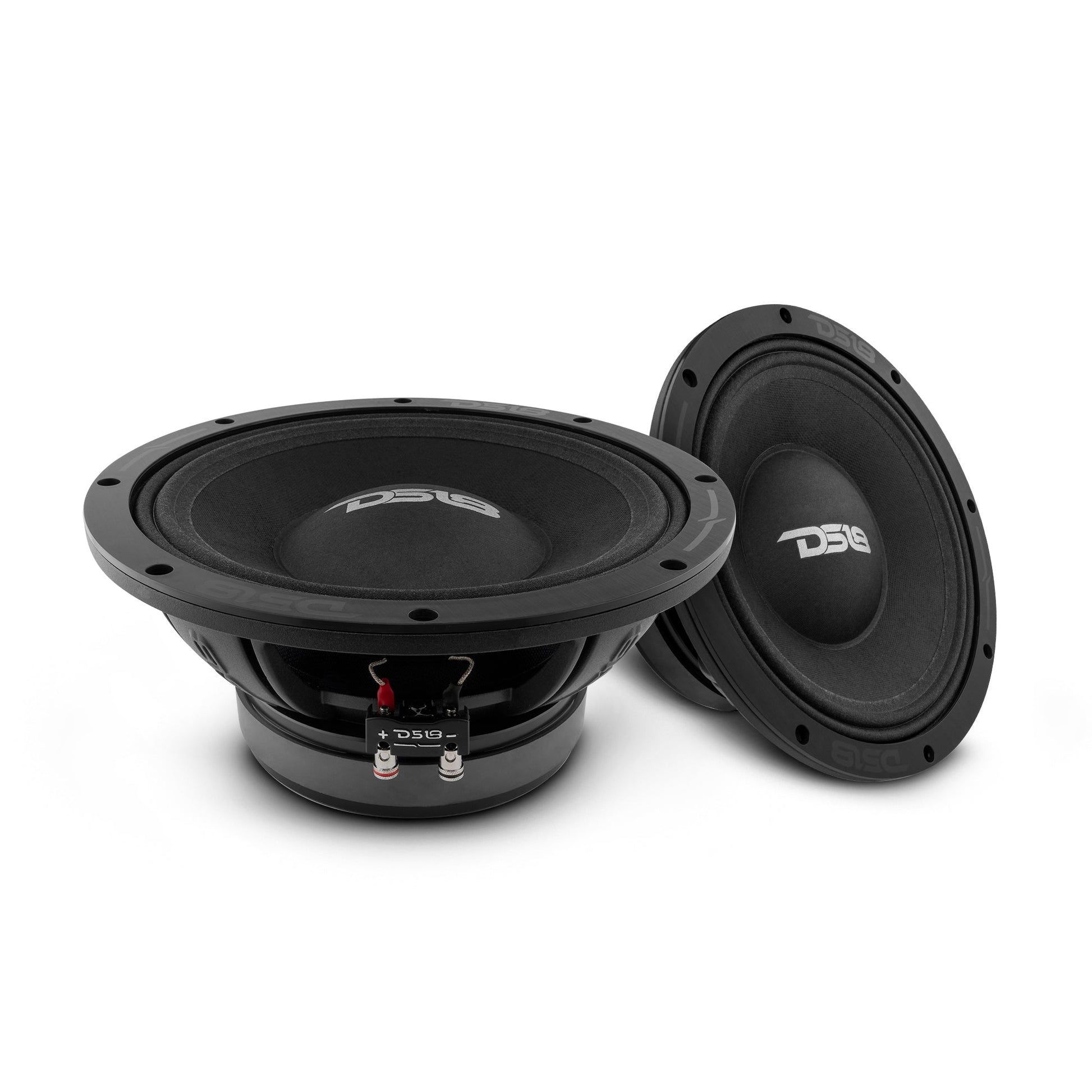

The PRO-ZX10MBASS has a beautiful black basket face with strong black on black solid cone.

This 8-Ohms Mid Bass 10" handles an enormous 500 watts RMS and 1000 watts MAX power ensuring screaming loud Mid Bass  frequencies acute and clear.

Highlights

• 10" solid cone black on black Mid Bass Speaker.
• Pro-Audio Mid Bass
• Max Power Handling: 1000 watts
• RMS Power Handling: 500 watts
• Frequency Response: 50Hz - 5.5KHz
• Voice Coil Diameter: 2.5"
• Voice Coil Material: USA Glass Fiber
• Impedance: 8-Ohm
• Sensitivity: 98dB
• Magnet Weight: 68 Oz
• Magnet Material: Ferrite
• Mounting Depth: 4.1"
• Recommended High Pass: 78Hz

Great for:

• Car Audio

• Pro Audio

• Motorcycles

• Home Studios

• Hi-Fi Installation

• Stunt Walls

• DIY Projects


Technical Details

                                                                                                                   PRO- ZXI10MBASS Product Manual

SPECIFICATIONS

Nominal Diameter	10" / 254mm
Nominal Impedance	8 ohms
RMS Power Handling	500W
MAX Power Handling	1000W
Sensitivity (1w/1m)	98 dB
Frequency Response	50Hz - 5.5KHz
Recommended HI Pass Crossover	78 Hz
Pair or single	Single
MOTOR
Voice Coil Diameter	2.5" / 63.5mm
Voice Coil Former Material	USA Glass fiber
Winding Material	JAPAN SV
Cone Material	Paper
Dust Cap Material	Paper
Surround Material	Cloth
Basket Material	Aluminum
Basket Color	Black Sandblasted
Magnet Material	Ferrite
Magnet Weight	68 Oz
Displacement Volume	1.24L / 0.043ft3

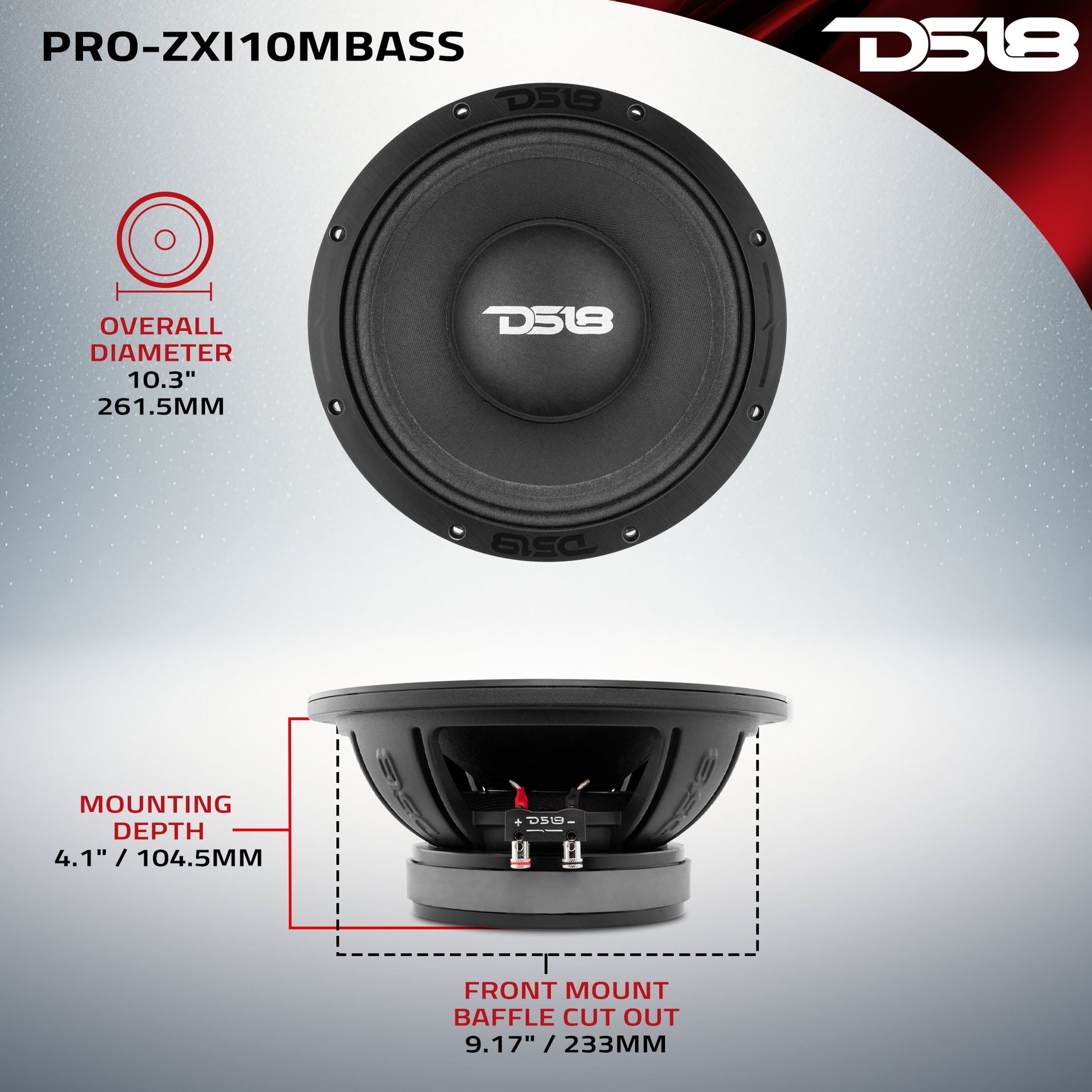

MEASUREMENT
Overall Diameter	10.3" / 261.5mm
Overall Depth	4.54" / 115.5mm
Front Mount Baffle Cutout	9.17" / 233mm
Mounting Depth	4.1" / 104.5mm
Motor Diameter	6.3" / 160mm
