DS18
PRO-X 12" Mid-Bass Loudspeaker | 500W RMS 8-Ohm
PRO-X 12" Mid-Bass Loudspeaker | 500W RMS 8-Ohm
Couldn't load pickup availability
PRO-X 12" Mid-Bass Loudspeaker | 500W RMS 8-Ohm
Sold by AudioSellerz.com
The DS18 PRO-X12MBASS is a 12" mid-bass loudspeaker from the DS18 PRO line rated at 500W RMS with an 8 ohm design. Coaxials and loudspeakers like this are where most systems start, because the speakers decide how clear the whole build sounds.
DS18 Product Details
DS18 PRO-X12MBASS 12" Mid-Bass Loudspeaker 1000 Watts 8-Ohm
If you are needing a pro audio speaker that absolutely slays the mid-bass range then the look no further than the PRO-X12MBASS mid-bass speaker. This massive 12 not only looks amazing but powers out thumping mid-bass notes at demand. This mid-bass speaker is an amazing addition to any pro audio system that needs the mid notes played with authority.
Highlights
- Massive 12 inch design will bring out maximum punchy mid-bass.
- Large 2.5" voice coil that handles 500w RMS and 1000w peak power for sharp mid-bass.
- A 40hz-5khz frequency range gives multiple tuning options for this huge mid-bass speaker to fit your systems needs.
- With a 96db sensitivity rating, you don't need huge amounts of power to get this mid-bass speaker to its optimum potential.
Technical Details
| Nominal Diameter | 12" |
| Nominal Impedance | 8 ohms |
| RMS Power Handling | 500W |
| MAX Power Handling | 1000W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 40Hz-5KHz |
| Recommended Hi Pass Crossover | 60 Hz |
| Pair or Single | Single |
| Grill Included | No |
| MOTOR | |
| Voice Coil Diameter | 2.5 |
| Voice Coil Former Material | KSV |
| Winding Material | SV |
| Cone Material | Paper |
| Dustcap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 65oz |
| Displacement Volume | 0.55L |

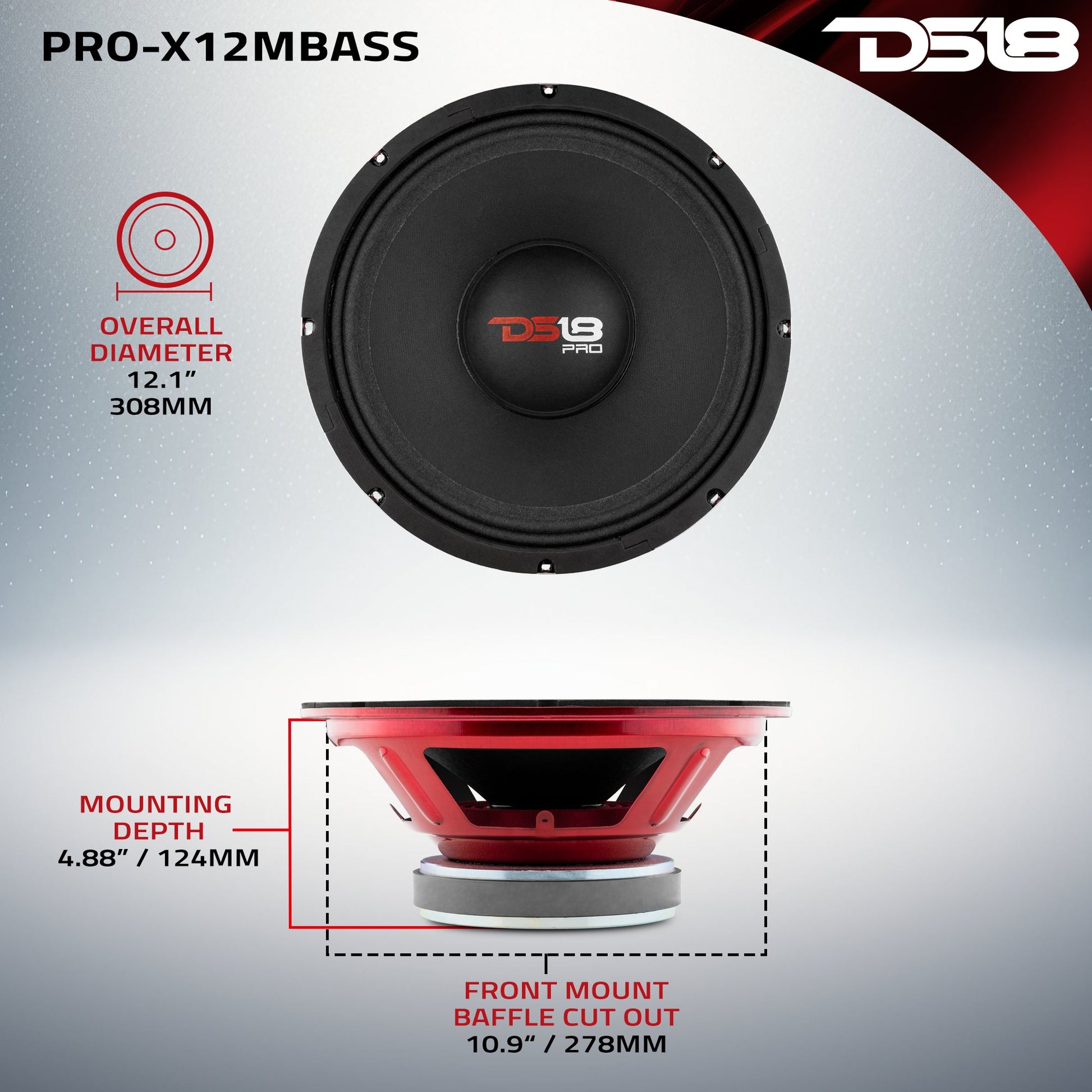

| MEASUREMENTS | |
| Overall Diameter | 12.12 |
| Overall Depth | 5.19 |
| Front Mount Baffle Cutout | 10.9 |
| Mounting Depth | 4.88 |
| Motor Diameter | 6.69" |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 500W RMS at 8 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Pro audio mids work best with a proper crossover or DSP so each driver only plays the range it was built for.
