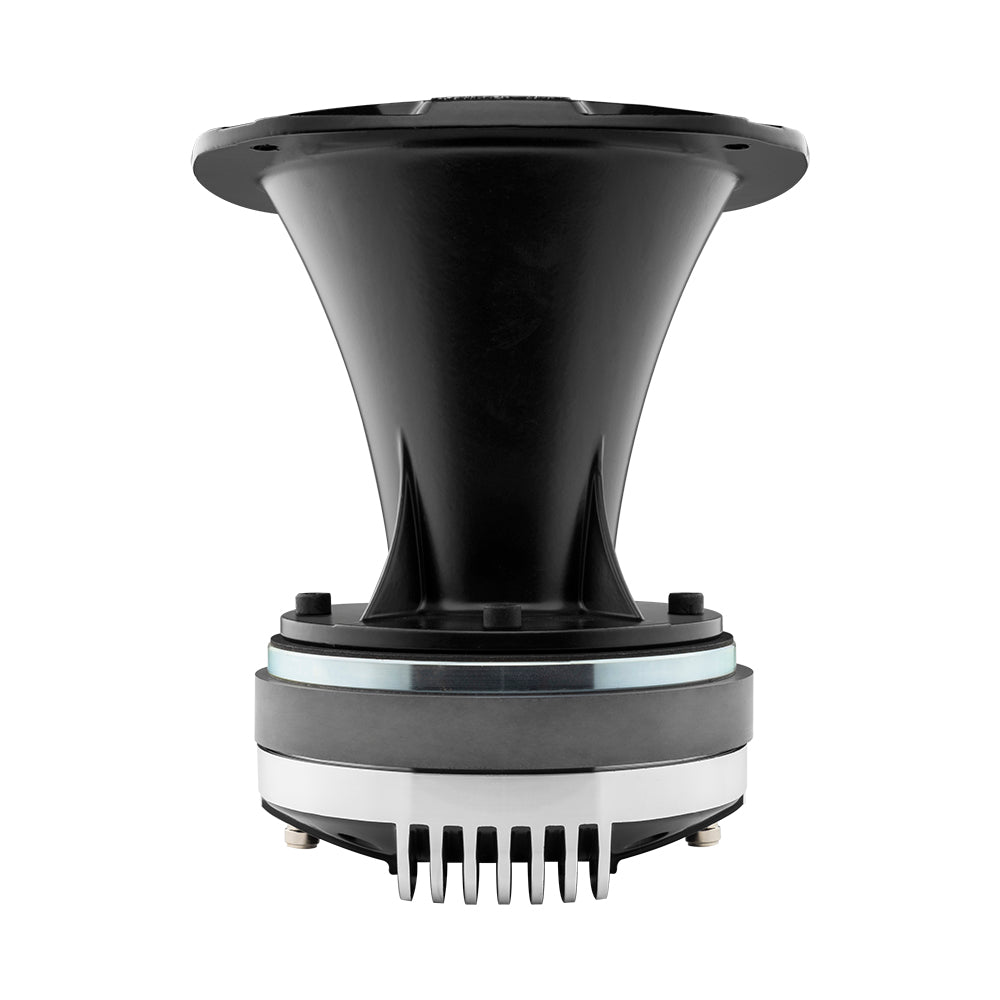

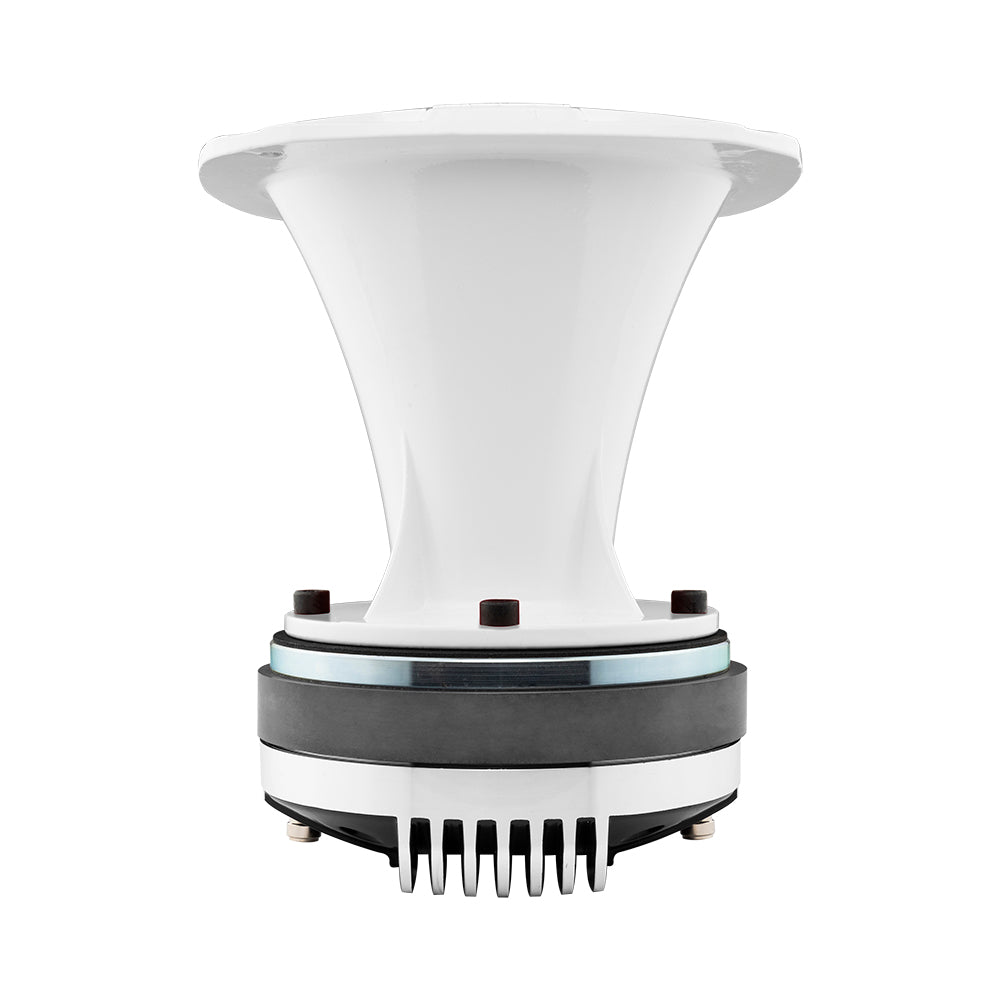

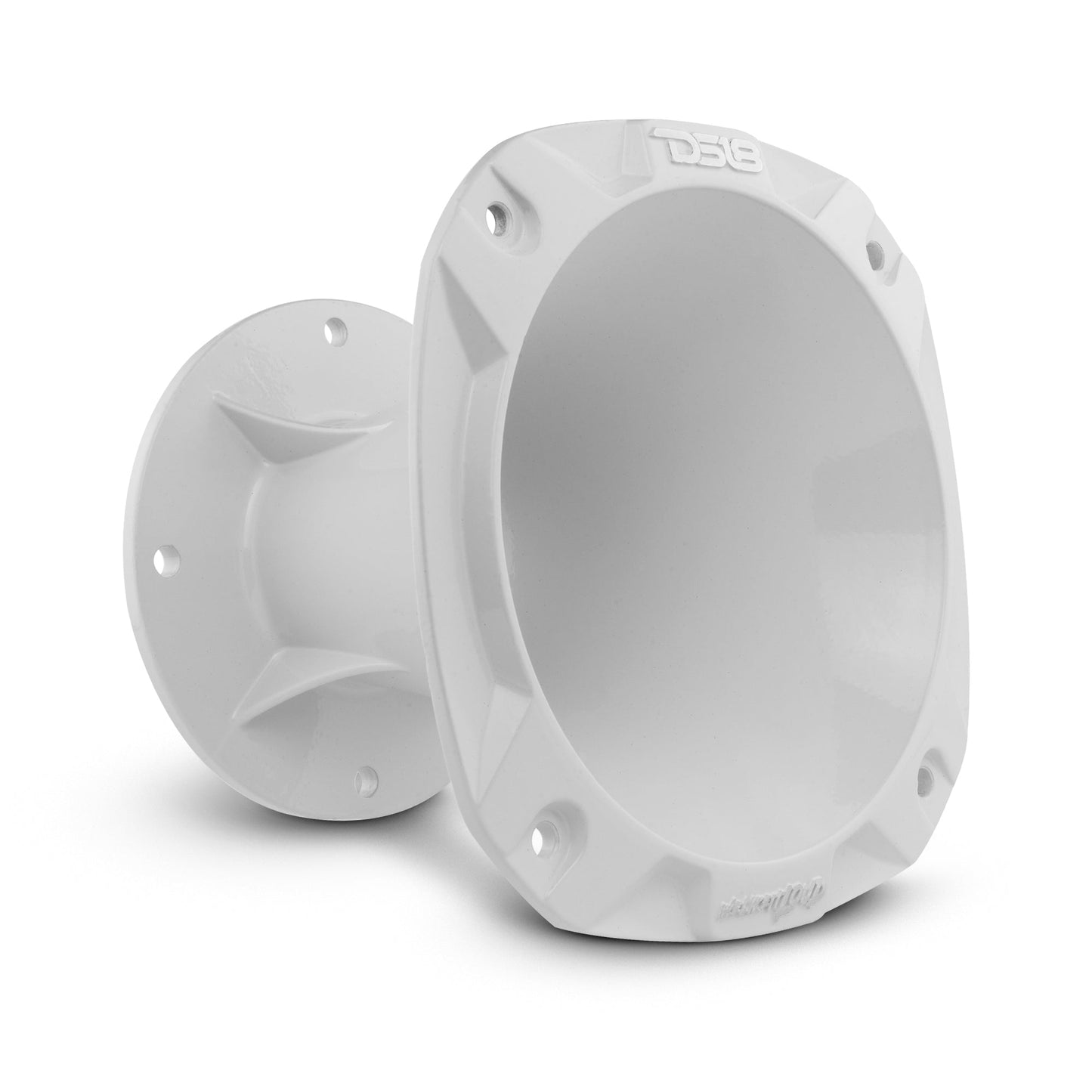

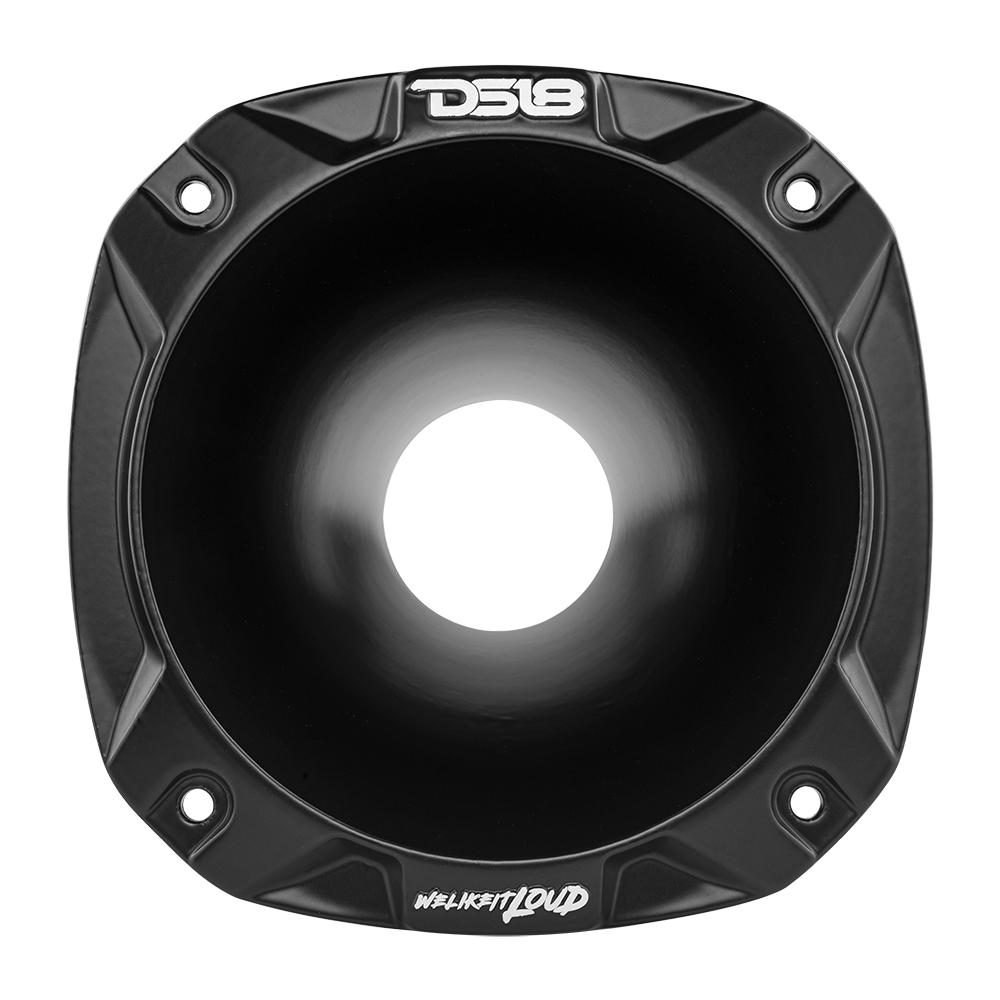

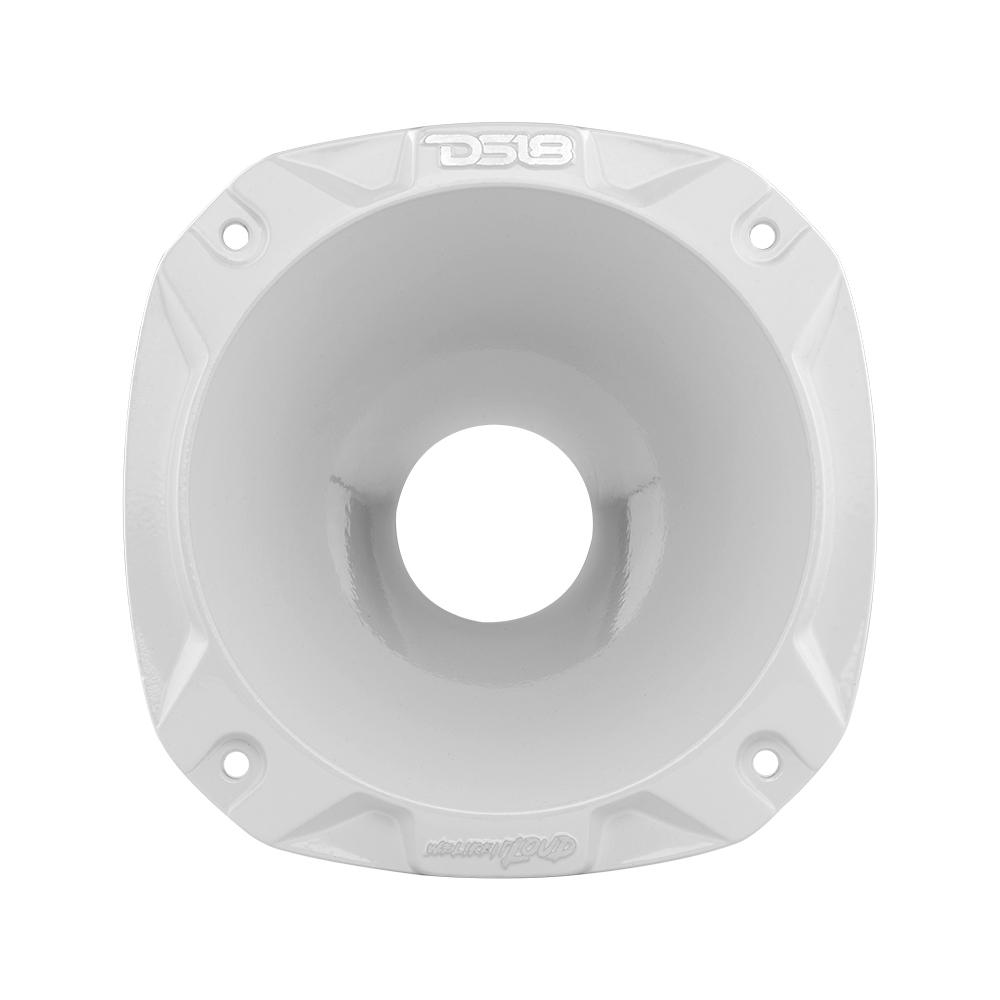

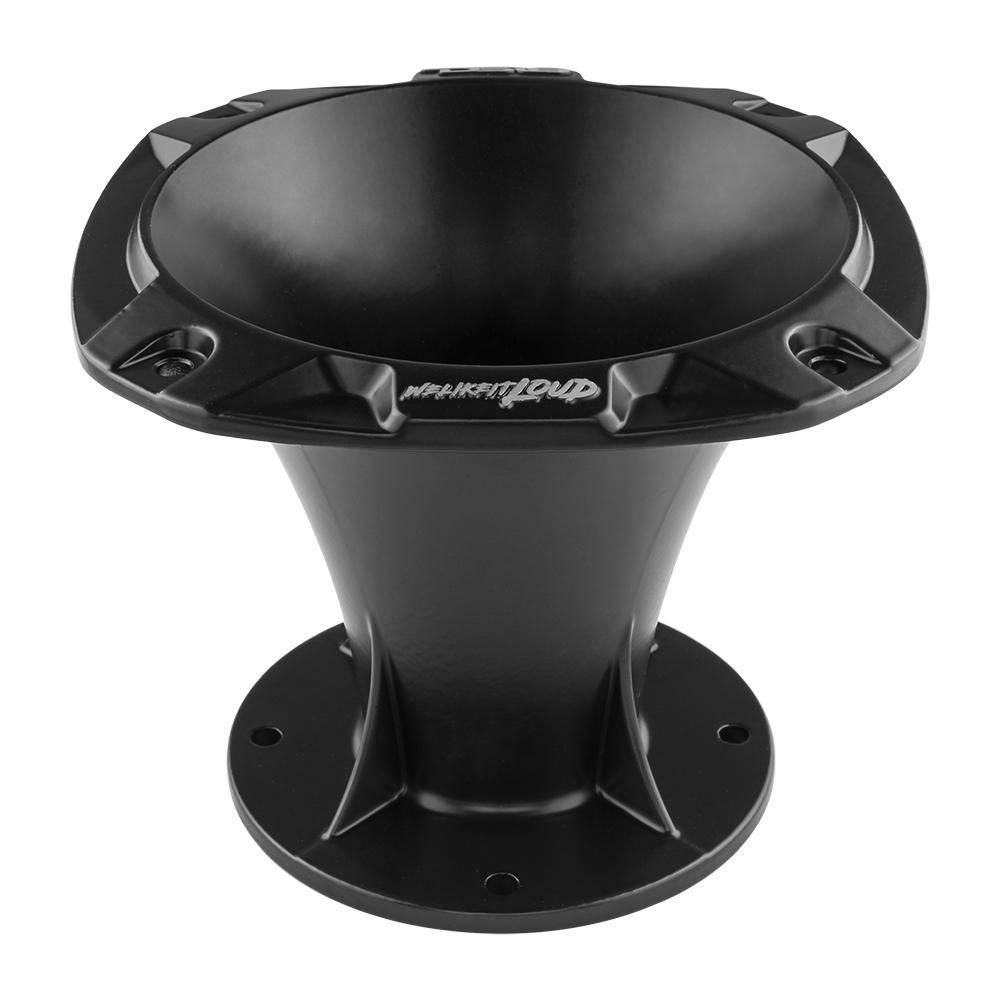

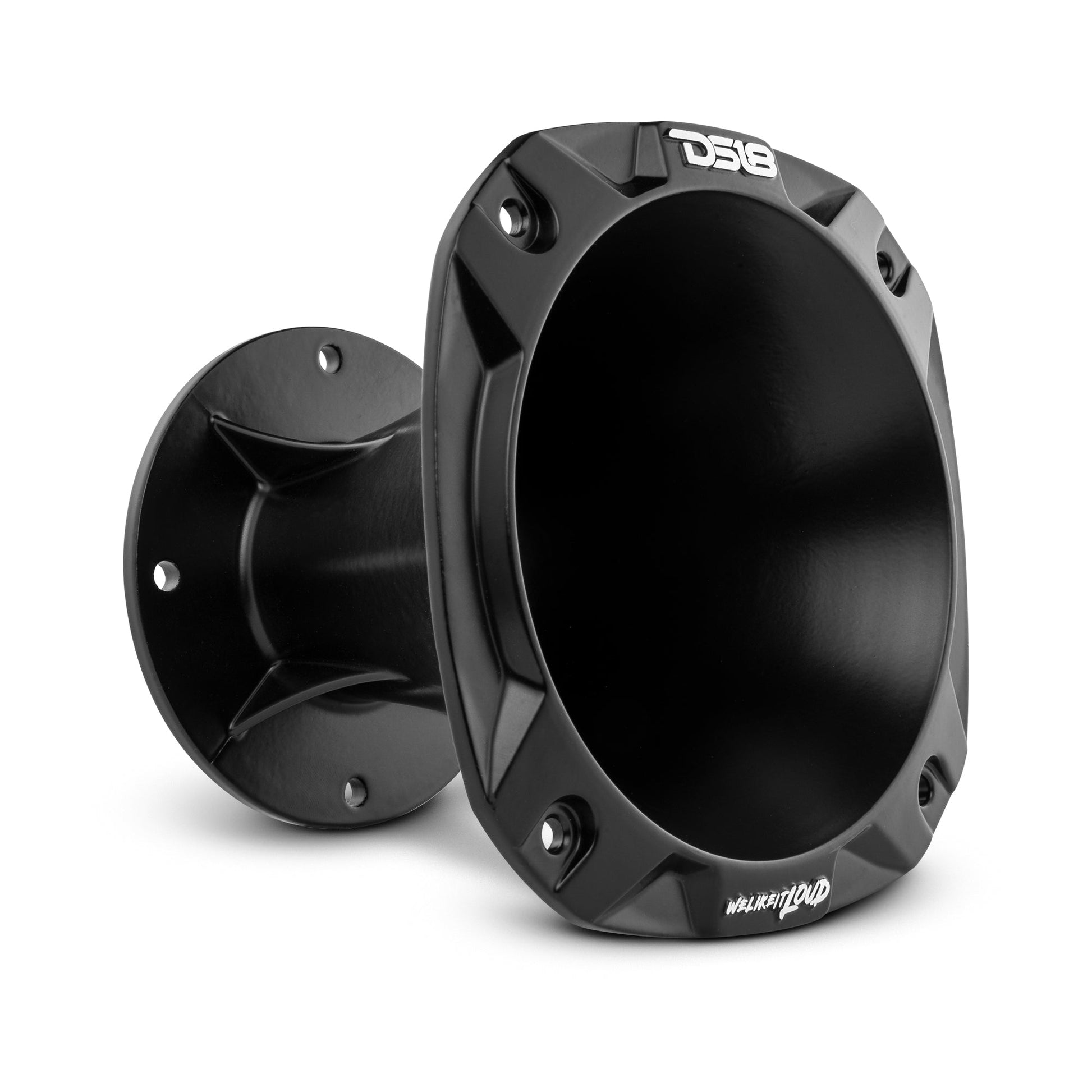

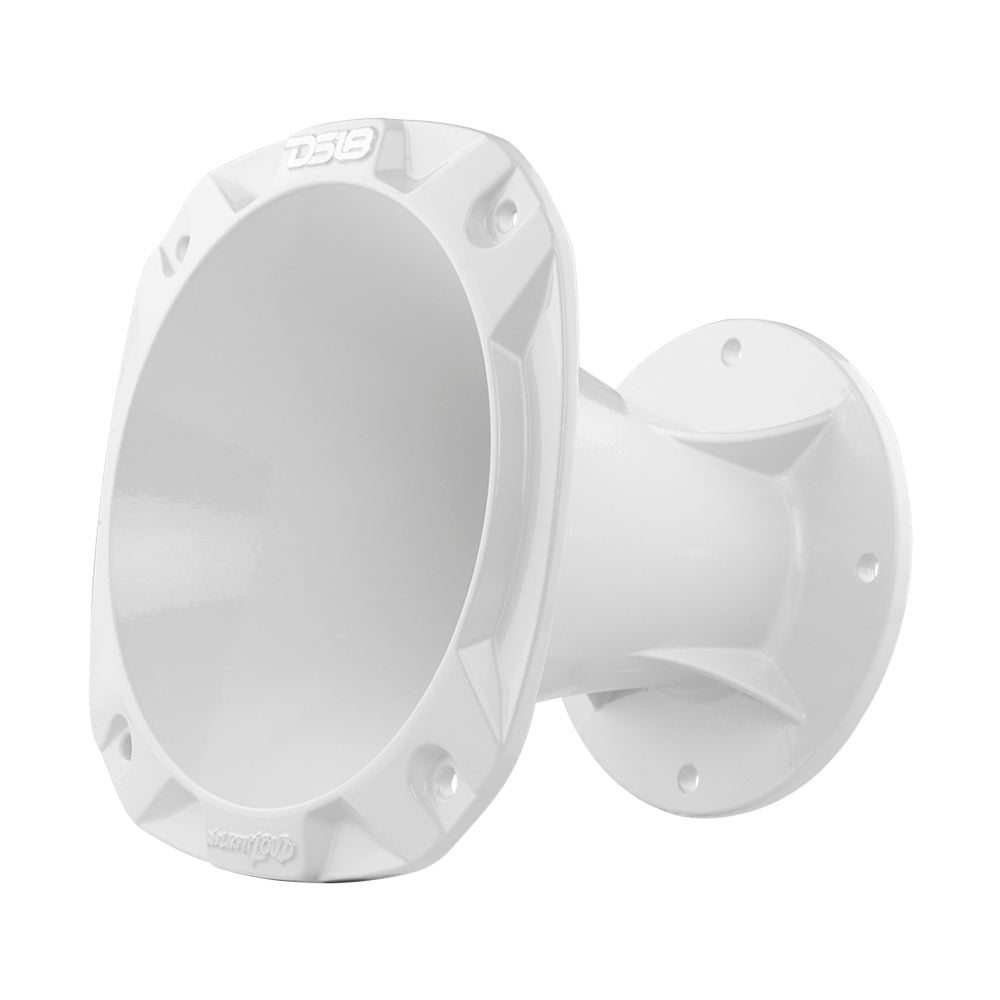

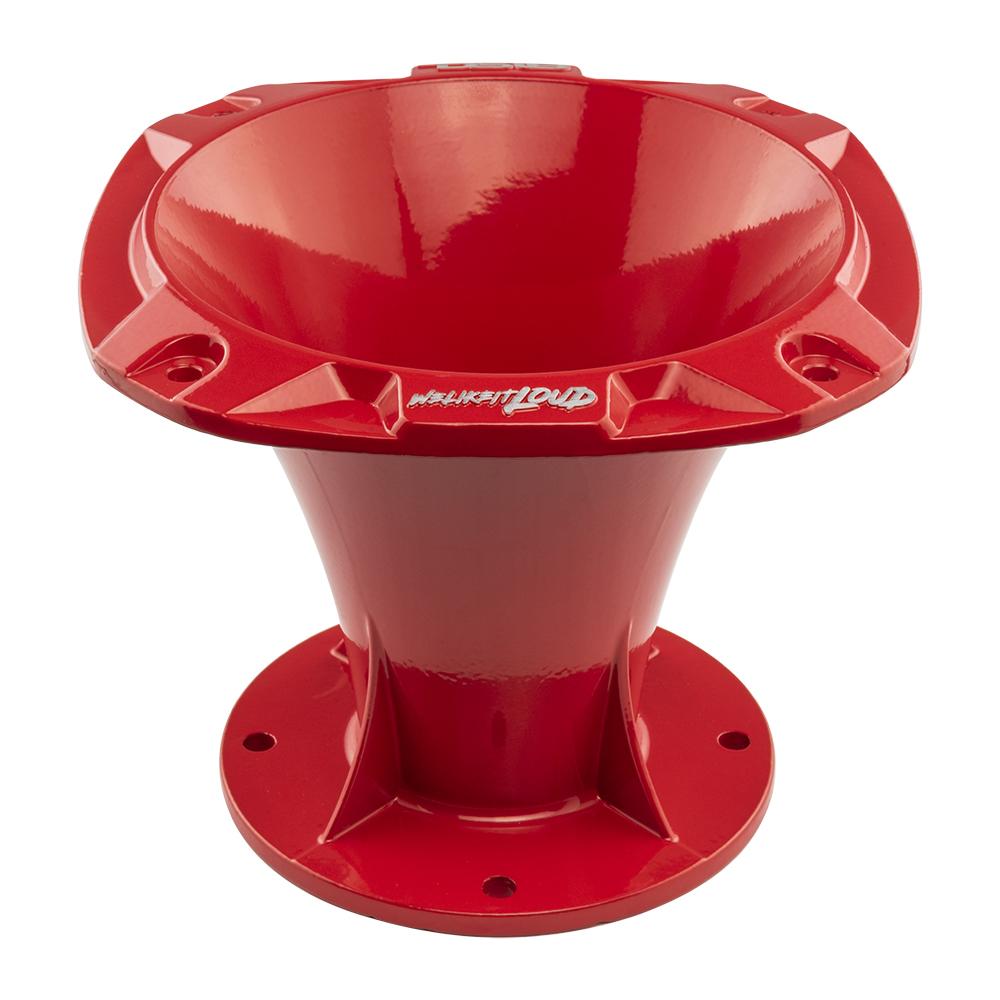

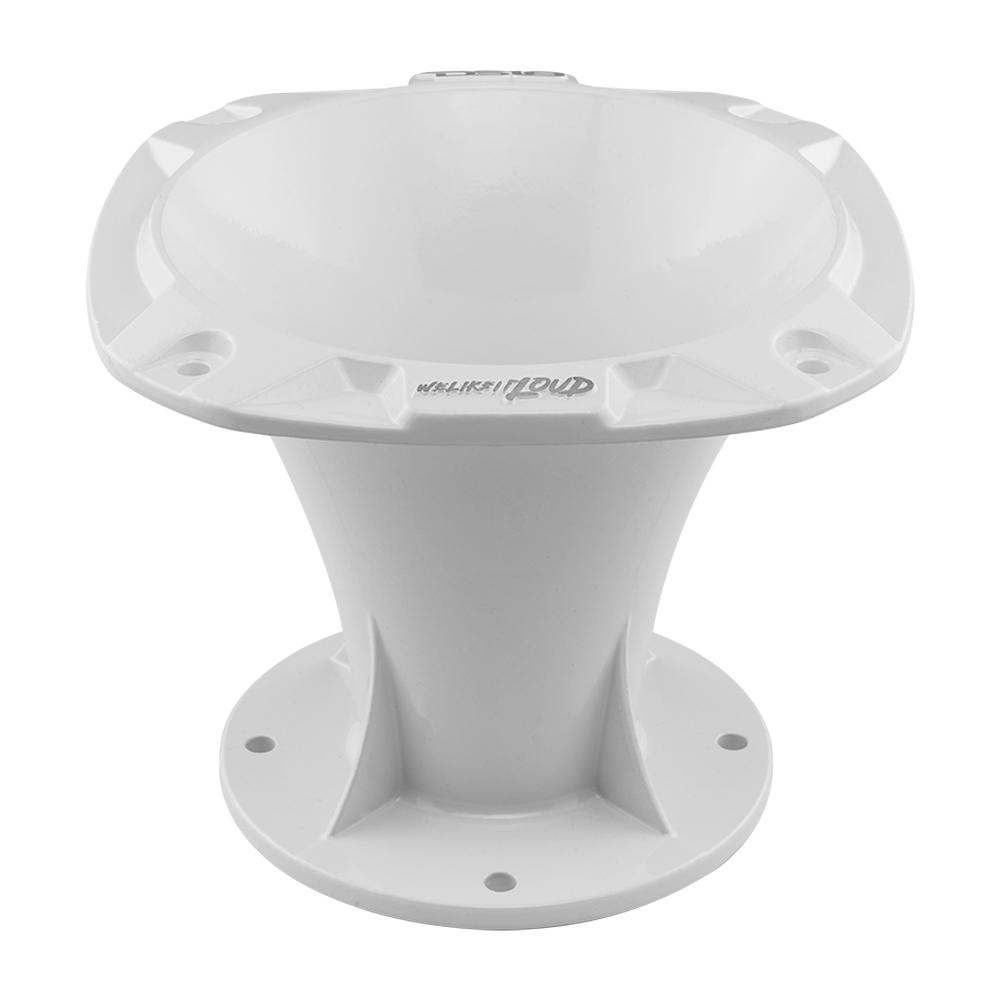

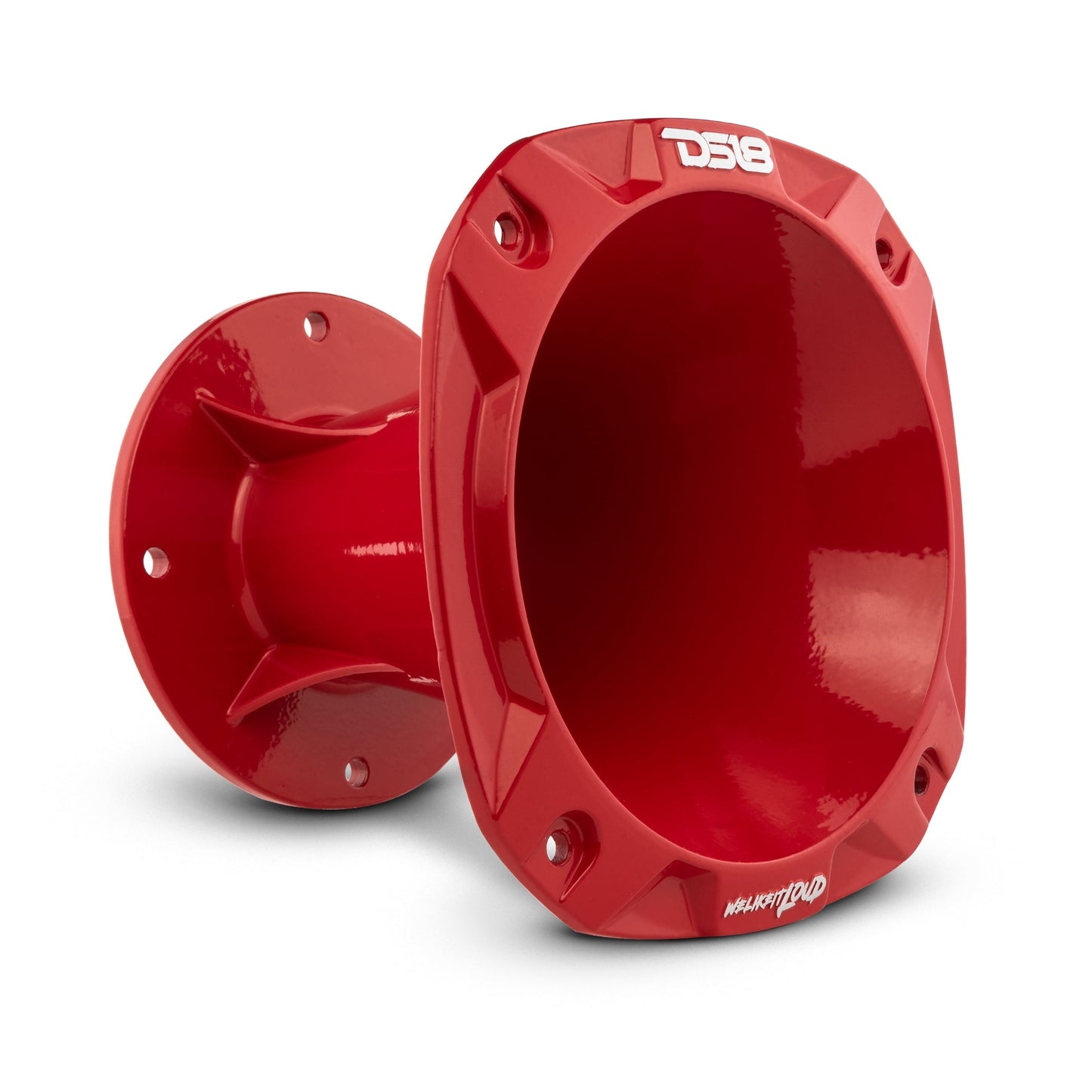

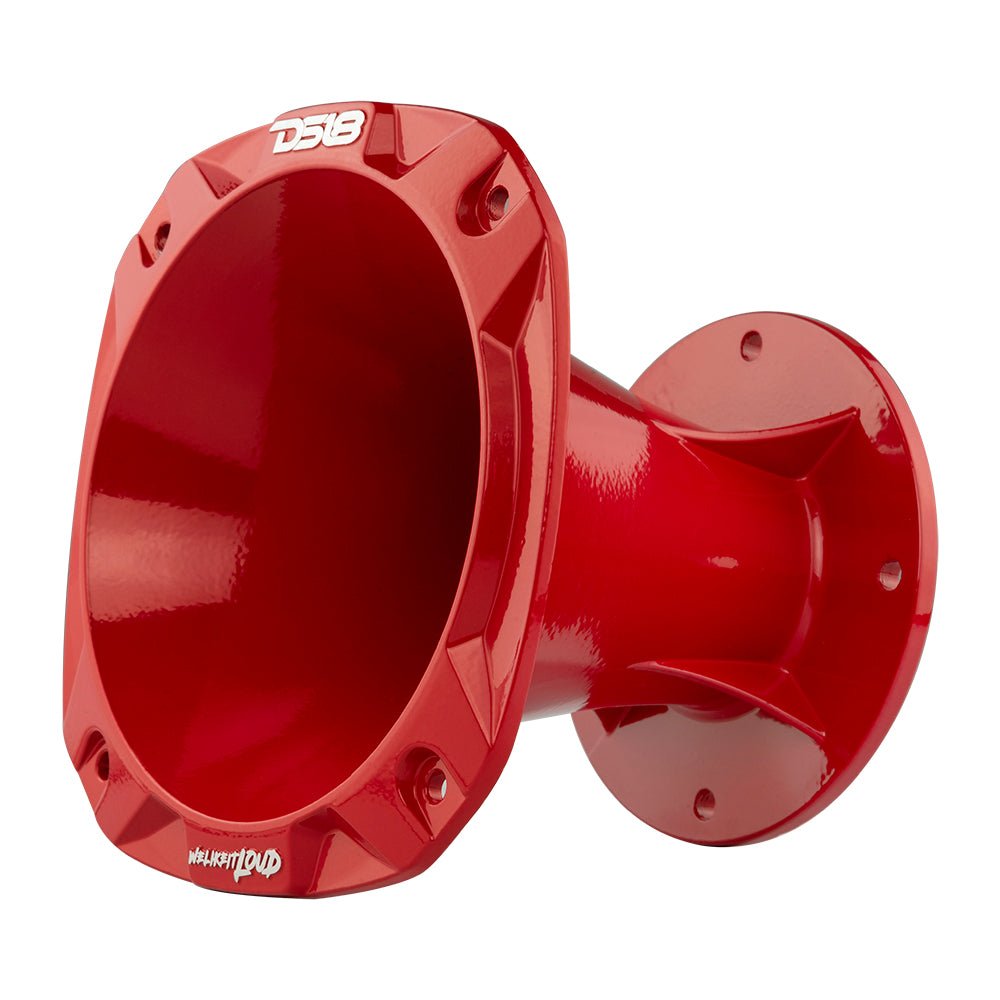

PRO Bolt On 2" 35° 4.84" Depth Aluminum Horn

PRO Bolt On 2" 35° 4.84" Depth Aluminum Horn

$34.95 USD
$34.95 USD
Sale Sold out
Shipping calculated at checkout.
Color

DS18 PRO-HA102 Bolt On 2" 35° 4.84" Depth Aluminum Horn

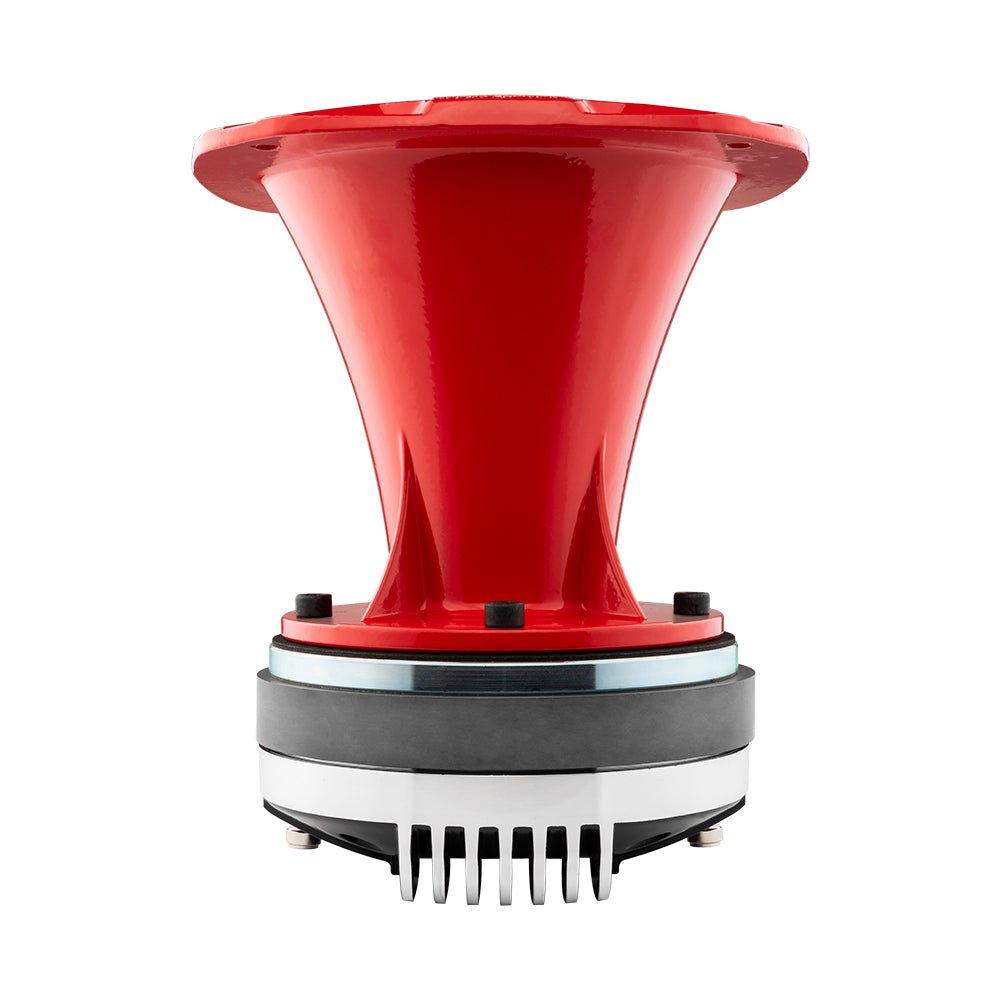

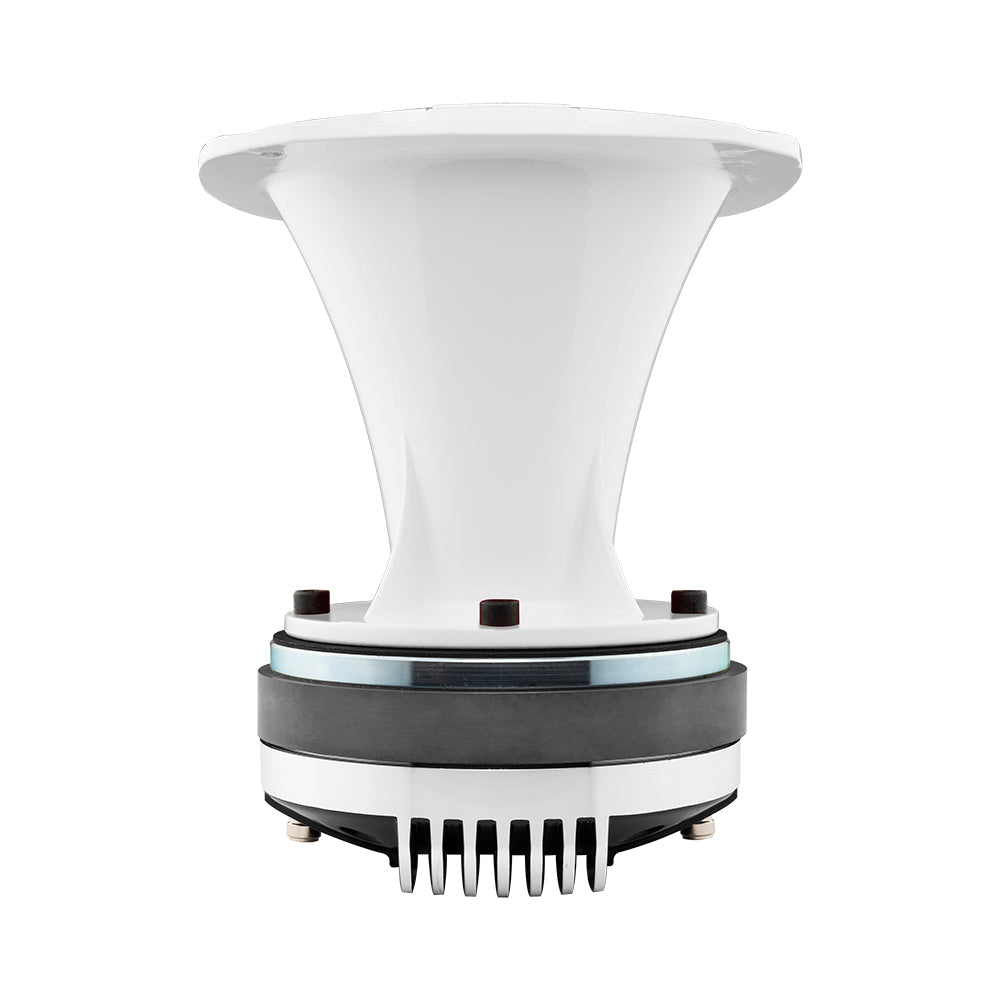

All aluminum casing with brushed DS18 logo. This throat will require a 4 bolt pattern on your driver to attach correctly. Now you can save some space while having crazy loud directional sound from your drivers.

Highlights

  • Aluminum frame with brushed DS18 logo
  • 4 bolt pattern for compatibility for most bolt on drivers
  • Installation Type: Bolt-on
  • Throat Diameter: 2" / 50.8mm
  • Nominal Horn Diameter: 6.5"
  • Sound Coverage: 35° Rounded
Technical Details
Download PRO-HA102 Product Manual

Measurements

  • Overall Diameter: 7.08" / 180mm
  • Overall Depth: 5.18’’ / 131.50mm
  • Driver Bolt Pattern: 4.05"/ 102mm x 4-0.26" / 6.8mm
  • Mounting Bolt Pattern: 6.33" / 161mm x 4- 0.21" / 5.5mm
