DS18
Polaris Slingshot Arm Rest 2 X 6.5" Enclosure With NXL-6/BK and PRO-TW1L | 2015 - Current
Polaris Slingshot Arm Rest 2 X 6.5" Enclosure With NXL-6/BK and PRO-TW1L | 2015 - Current
Couldn't load pickup availability
Polaris Slingshot Arm Rest 2 X 6.5" Enclosure With NXL-6/BK and PRO-TW1L | 2015 - Current
Sold by AudioSellerz.com
The DS18 SLG-AR6LD is a 6.5" enclosure from the DS18 NXL line. A properly sized enclosure is the difference between deep, tight bass and a sub that just rattles. Built for the DS18 marine and powersports lineup, it is meant for boats, UTVs, Jeeps and other open-air rides.
DS18 Product Details
DS18 SLG-AR6LD Polaris Slingshot Arm Rest 2 X 6.5" Enclosure
With NXL-6/BK and PRO-TW1L

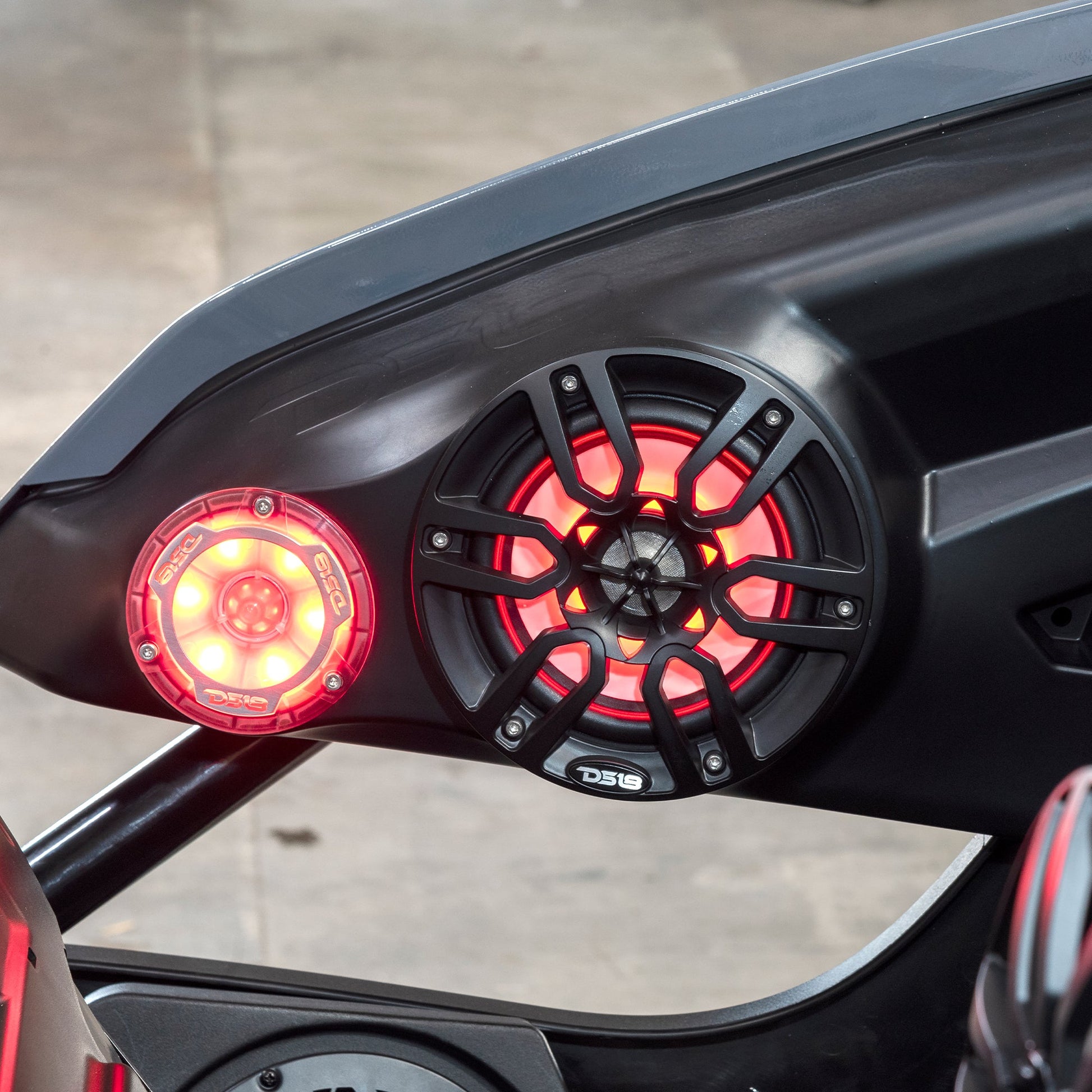

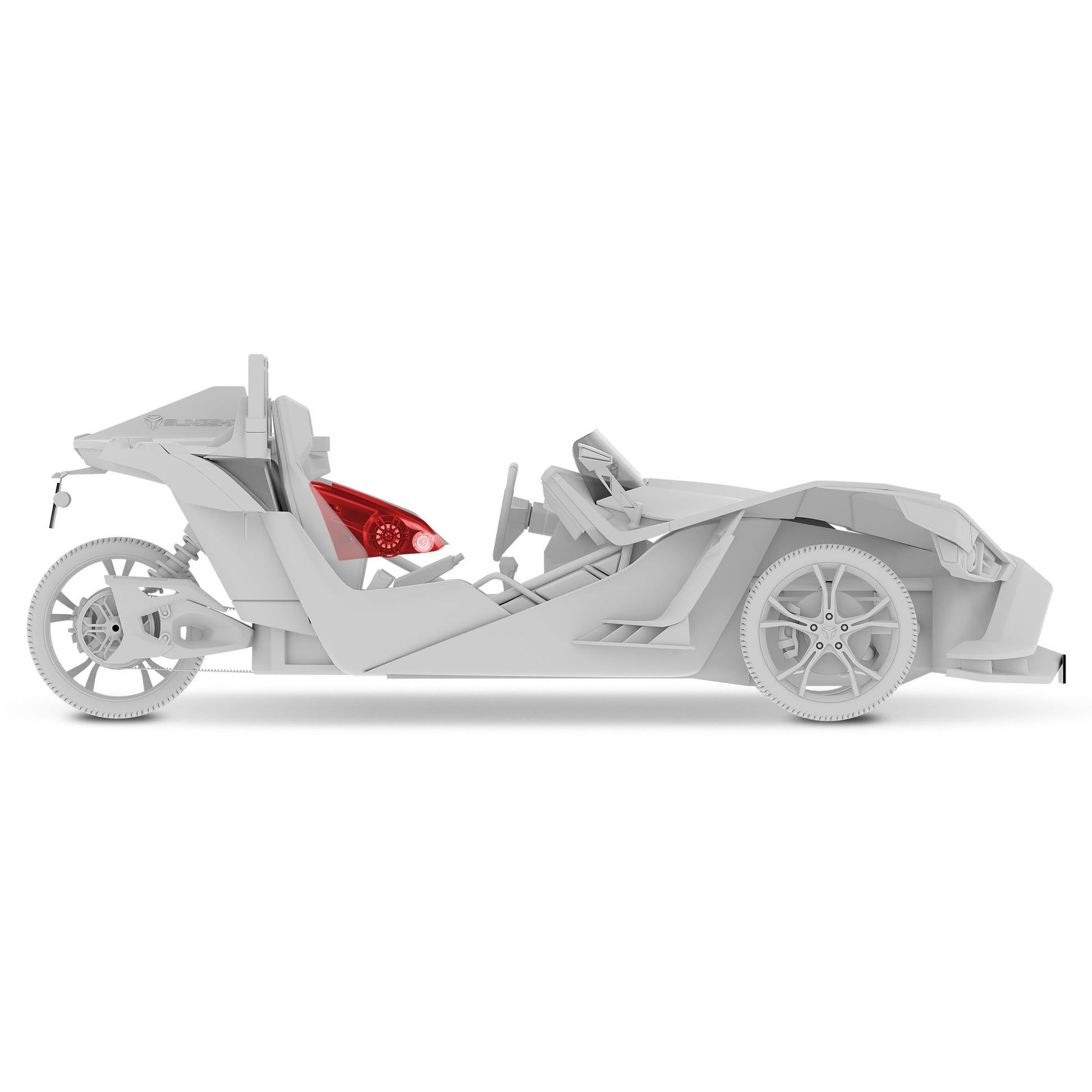

For superior stereo imaging in your Polaris Slingshot it’s important to install speakers in areas that precisely arrange the sources of your music. DS18’s SLG-AR6LD allows you to place speakers in the inside armrest of the driver and passenger side of your Slingshot!

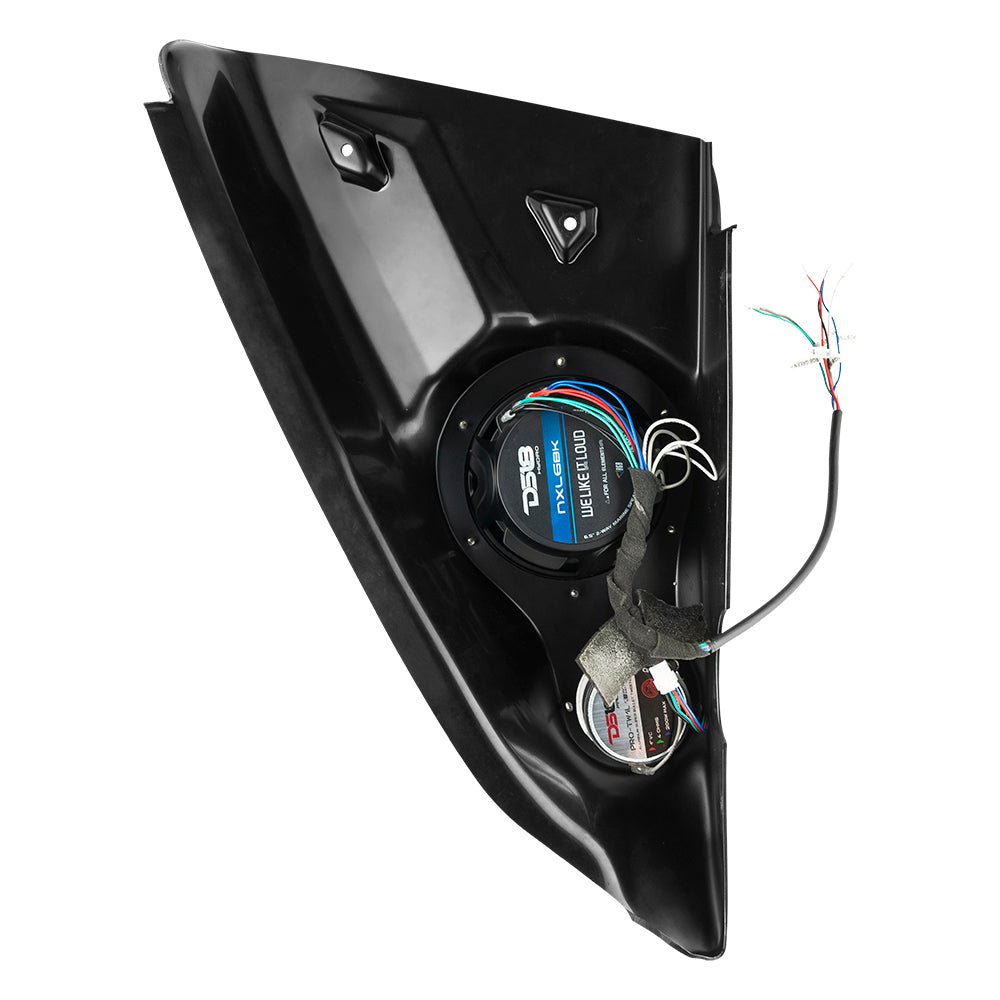

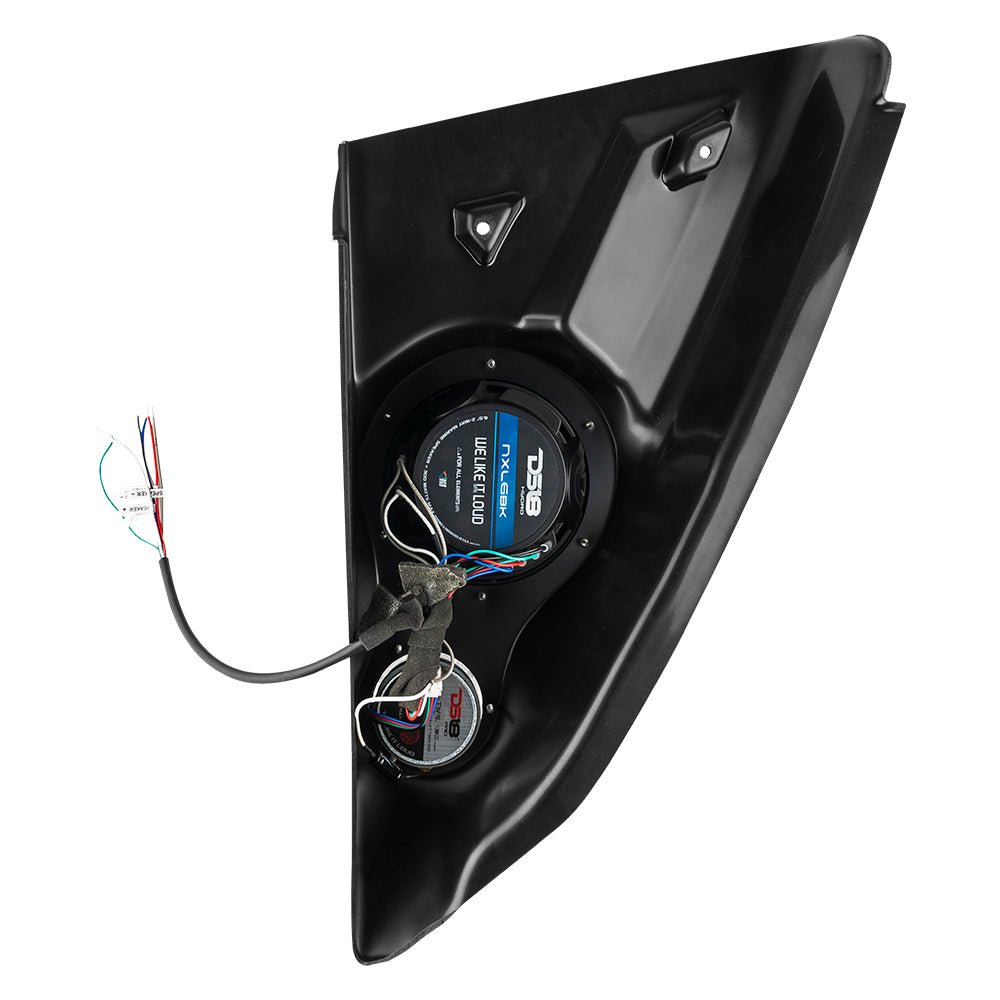

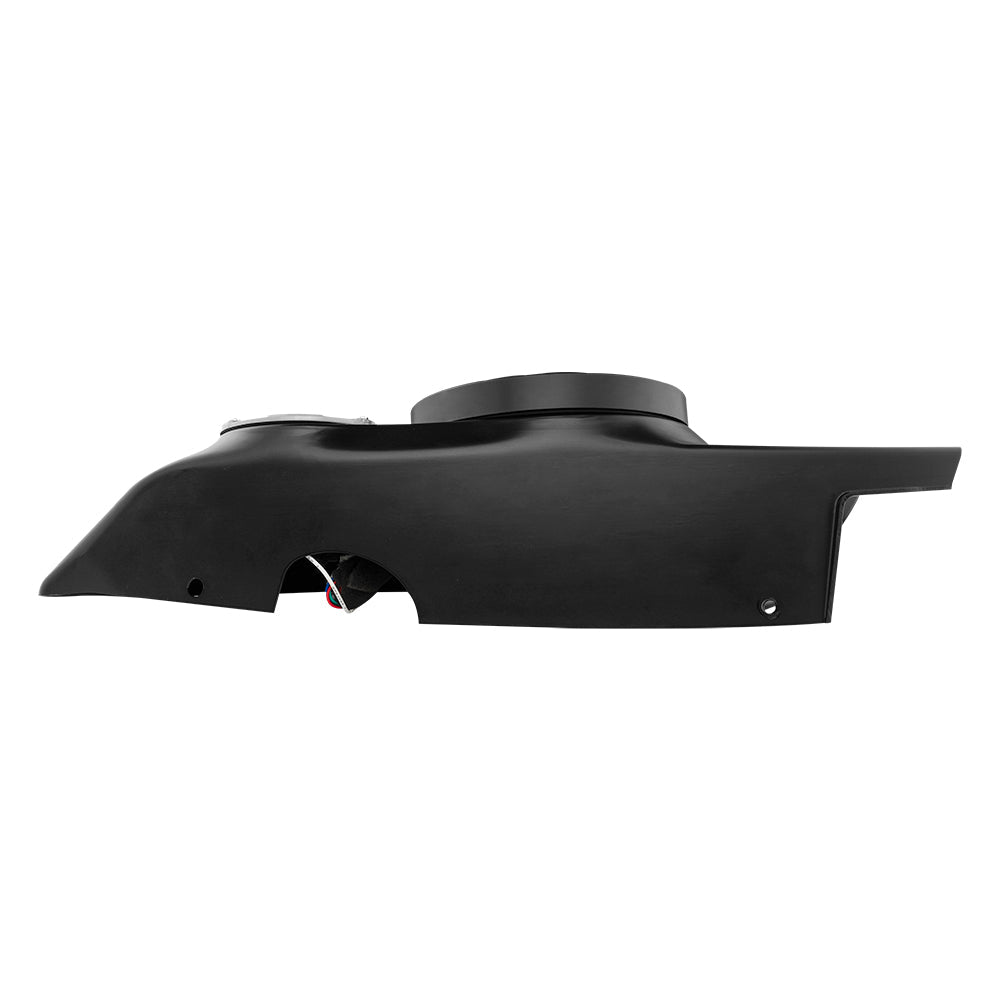

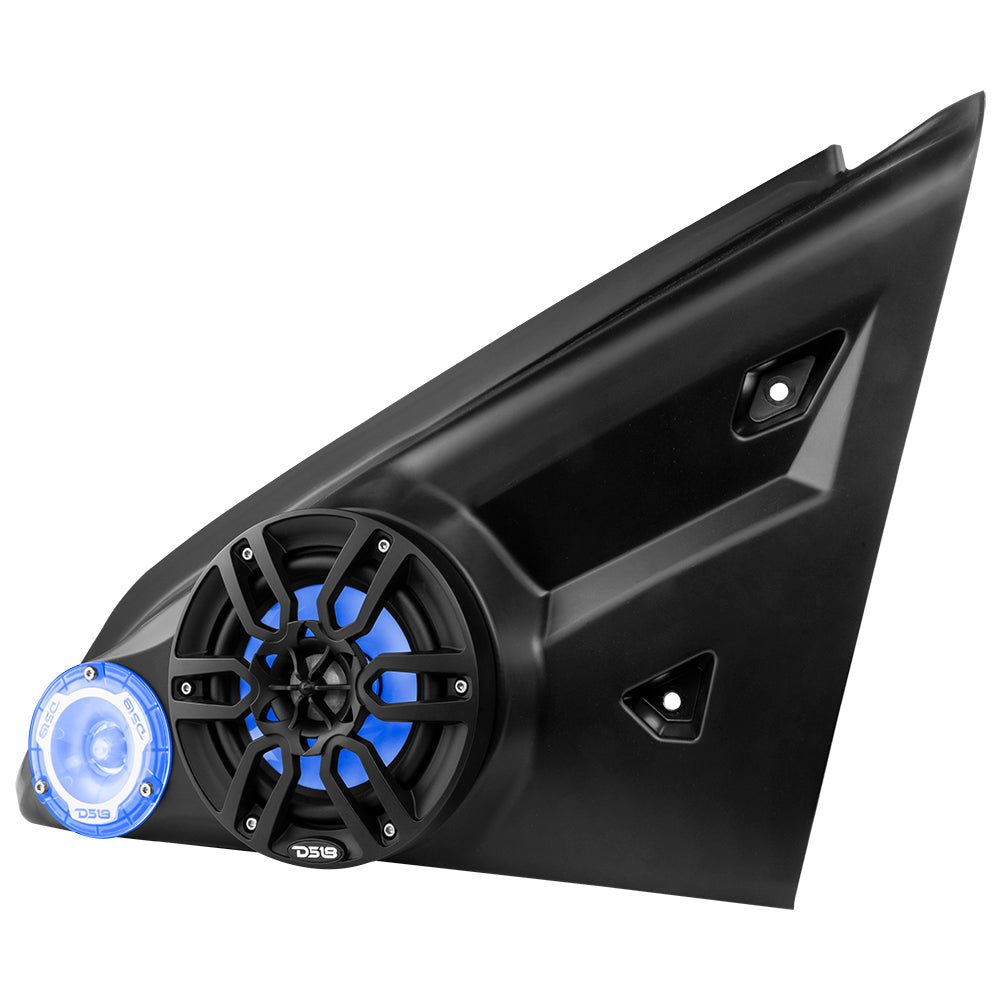

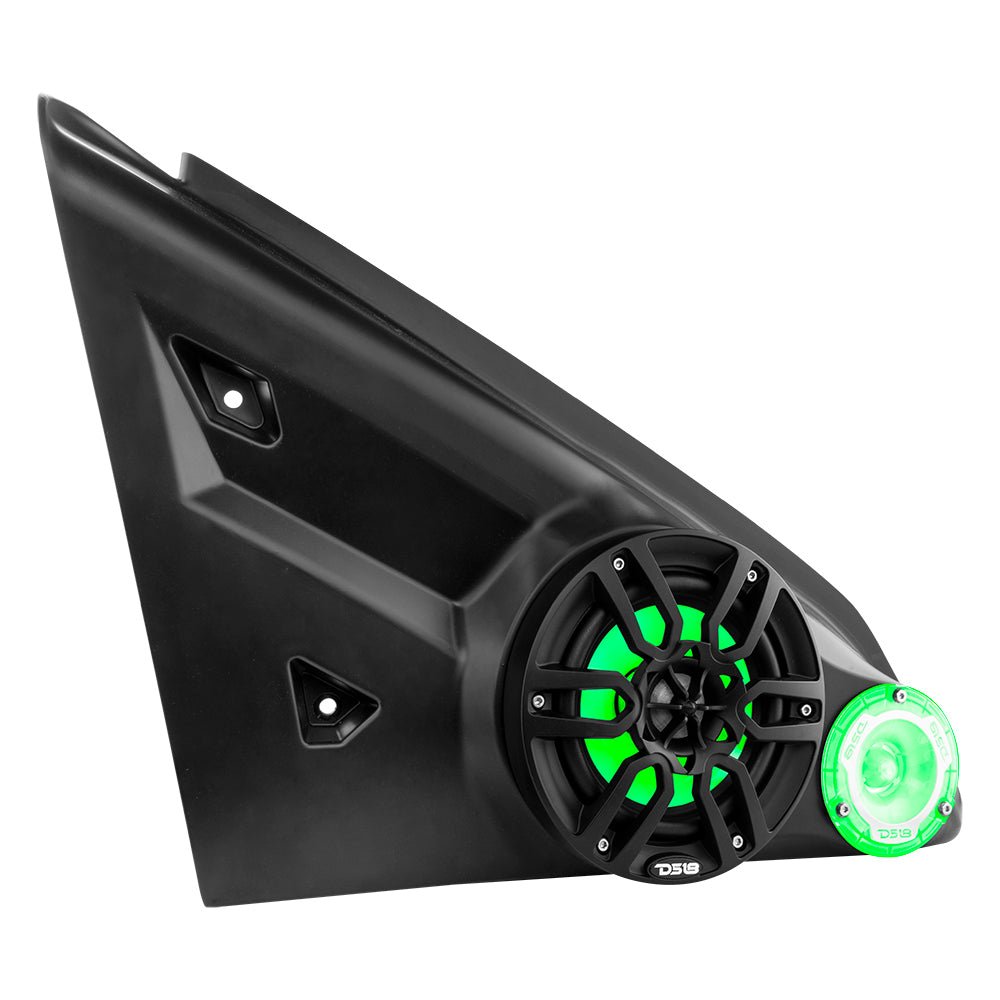

The SLG-AR6LD comes with a pair of durable Polyethylene Armrest Pods each loaded with one 6.5” Waterproof Speaker (the NXL-6BK) and a high powered 3.8” super bullet tweeter with RGB LED lights (the PRO-TW1L).
LED BTC REQUIRED FOR LIGHTING FEATURES (SOLD SEPARATELY)
The NXL-6BK is a 2-way, waterproof speaker designed to deliver amazing full range sound quality without sacrificing space or worrying about damage from moisture or the elements.
The PRO-TW1L is an EXTREMELY powerful and versatile Super Bullet Tweeter that delivers huge sound despite it’s miniature size.
AMPLIFIER REQUIRED FOR POWERING THESE COMPONENTS (SOLD SEPARATELY)
The open baffle design on these pods allow the speakers to create an impenetrable soundstage for your music!
These slingshot pods couldn’t be made without years of experience giving us the best way to supply the clearest and loudest sound while maintaining a factory look. Install these pods into your Slingshot’s sound system seamlessly through use of the factory bolts and mounting location.
Order your SLG-AR6LD for extreme sound in your extreme ride today!
Highlights
- OFC tinned wiring for more power handling and durability

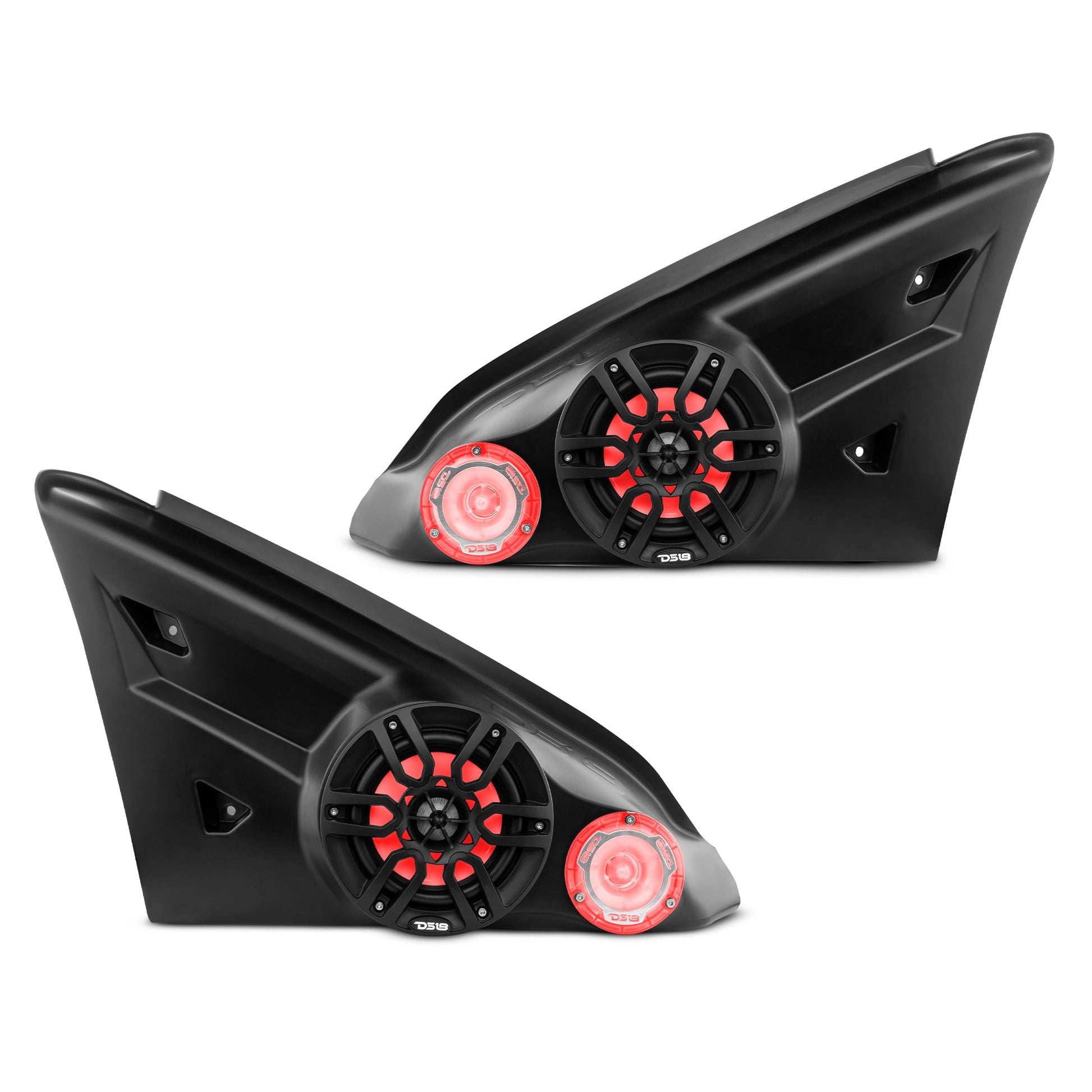

- Pods sold as a pair for Driver and Passenger Sides
- 6.5” NXL-6BK Waterproof RGB LED Speakers Included
- 3.8” PRO-TW1L Super Bullet RGB LED Tweeter Included
- Easy to install using factory bolts and mounting location
- Fits Slingshot Models from 2015 and later except SLR and R models
- Durable waterproof panels with UV Protection
- Open Baffle Speaker Pod Design
Great For
- Polaris Slingshot 2015+Later
Technical Details
| GENERAL | |
| Total Impedance | 4 Ohms |
| Load Configuration | Parallel |
| Input Wire | 6 Core OFC Tinned (2ft / 0.6m) |
| SPEAKER SPECIFICATIONS | |
| Speaker Type / Size | 6.5" Waterproof Coaxial with RGB LED |
| RMS Power Handling | 100W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 45Hz-20KHz |
| Recommended Hi Pass Crossover | 65Hz |
| Voice Coil Diameter | 1.2" / 30.5mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite with UV Protection coating |
| Magnet Material | Ferrite+Neodymium |
| Magnet Weight | 14oz + 0.32oz |
| TWEETER SPECIFICATIONS | |
| Speaker Type / Size | 3.8" Super Bullet with RGB LED |
| RMS Power Handling | 60W |
| MAX Power Handling | 120W |
| Sensitivity (1w/1m) | 103dB |
| Frequency Response | 3.5KHz-20KHz |
| Recommended Hi Pass Crossover | 4KHz |
| Voice Coil Diameter | 1” / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Aluminum |
| Magnet Material | Ferrite Y30 |
| Magnet Weight | 8 Oz |
| BOX SPECIFICATIONS | |
| Box Type | Front Bafle |
| Box Material | Polyethylene (PE) |
| Finish Material | Black |
| UV Protection | Yes |
| Waterproof Rating | IP65 |
| MEASUREMENT | |
| Overall Height | 12.66" / 321.6mm |
| Overall Width | 26.51" / 673.4mm |
| Overall Depth | 5.94" / 150.9mm |
Setup Tips From Audio Sellerz
- Check that the sub size, count and mounting depth match this enclosure before ordering.
- Measure the space where the box will go before you order. Most fitment problems come from not measuring first.
- Seal the terminal cup and any gaps so the box performs the way it was designed.
