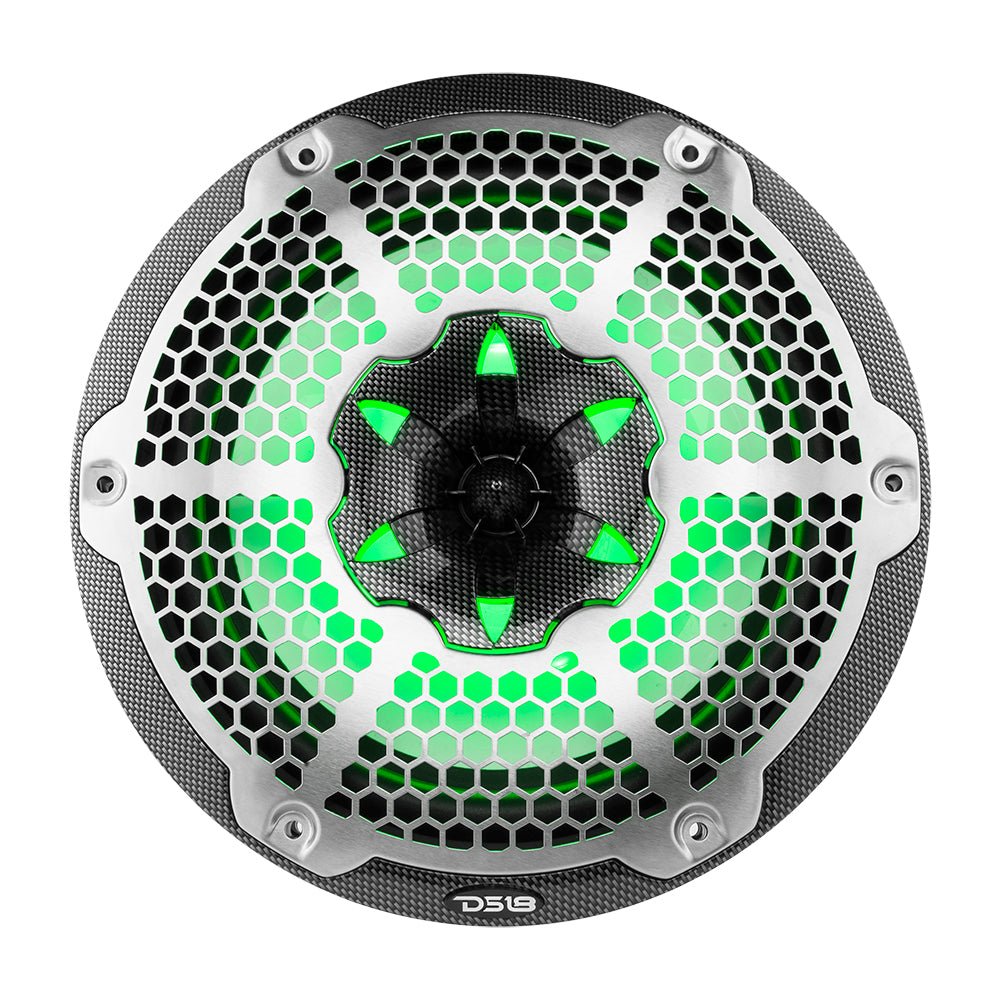

NXL 10" 2-Way Coaxial Marine Speaker With LED RGB Lights 200 Watts Rms 4-Ohm -Black Carbon Fiber
NXL 10" 2-Way Coaxial Marine Speaker With LED RGB Lights 200 Watts Rms 4-Ohm -Black Carbon Fiber
Couldn't load pickup availability
NXL 10" 2-Way Coaxial Marine Speaker With LED RGB Lights 200 Watts Rms 4-Ohm -Black Carbon Fiber
Sold by AudioSellerz.com
SKU: CF-10M
NXL 10" 2-Way Coaxial Marine Speaker With LED RGB Lights 200 Watts Rms 4-Ohm -Black Carbon Fiber is a DS18 speaker upgrade from DS18 built for louder mids and highs, door speaker upgrades, custom panels, motorcycles, Jeeps, marine systems, and powersports builds. This description helps shoppers looking for DS18 marine audio, DS18 speakers, DS18 car audio speakers, DS18 Pro audio speakers, DS18 midrange speakers, loud door speakers understand where it fits in a real audio system.
Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.
Audio Sellerz System Match Notes
- Check mounting depth, impedance, RMS power, amplifier match, crossover settings, and the install location before ordering.
- For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
- If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.

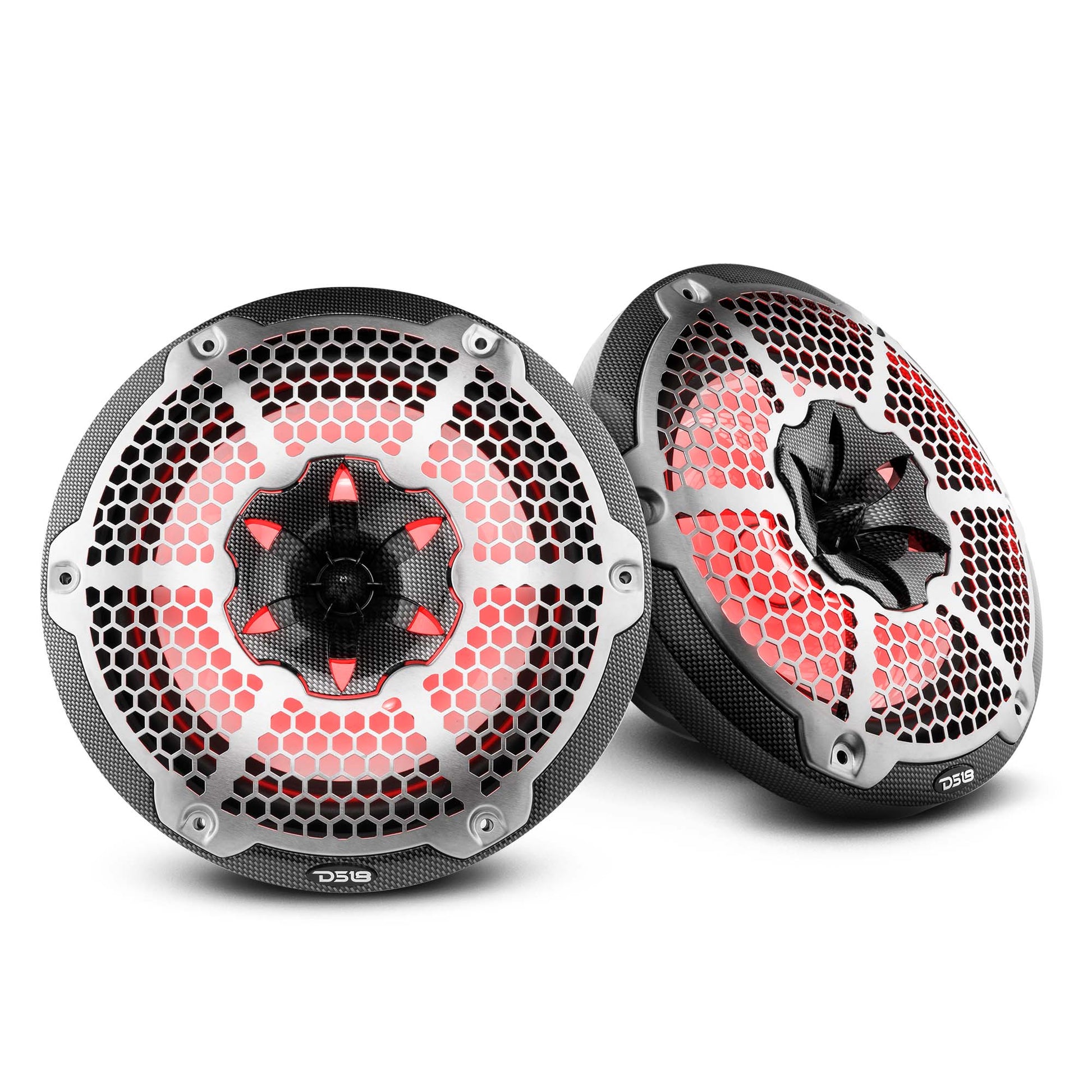

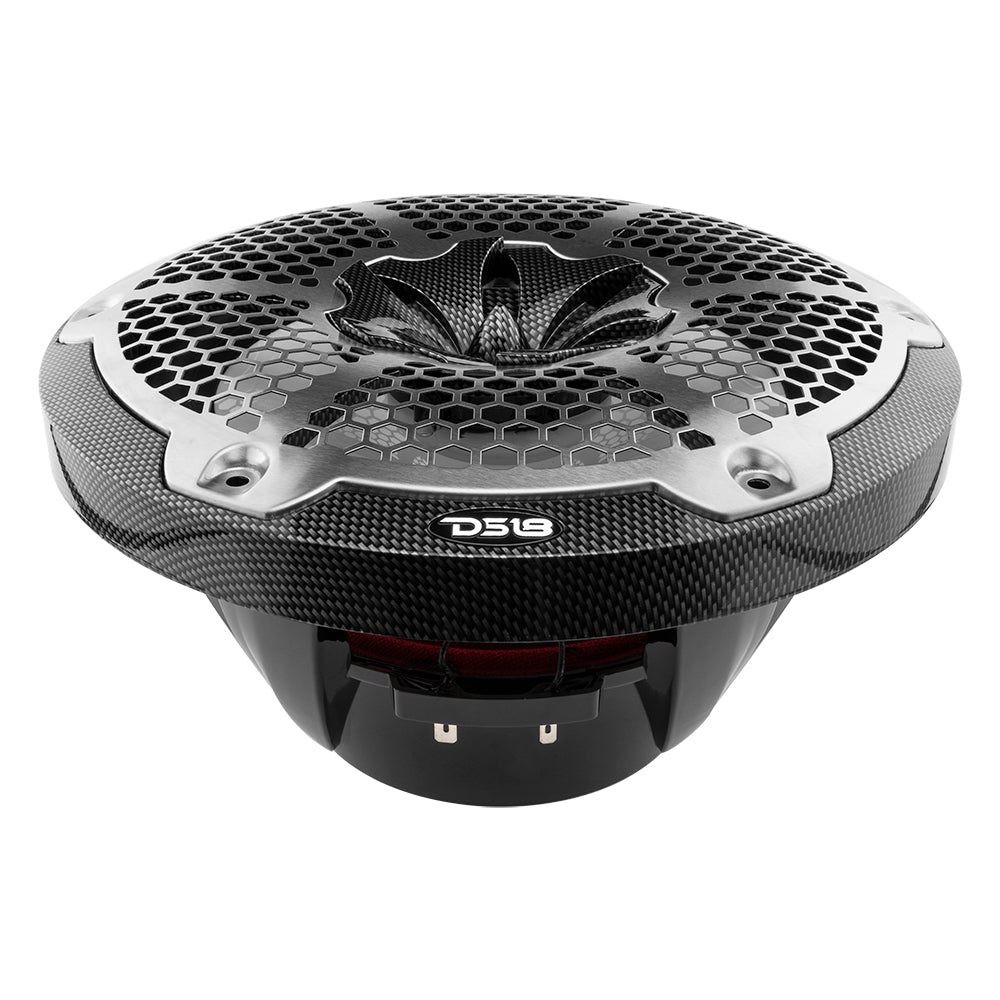

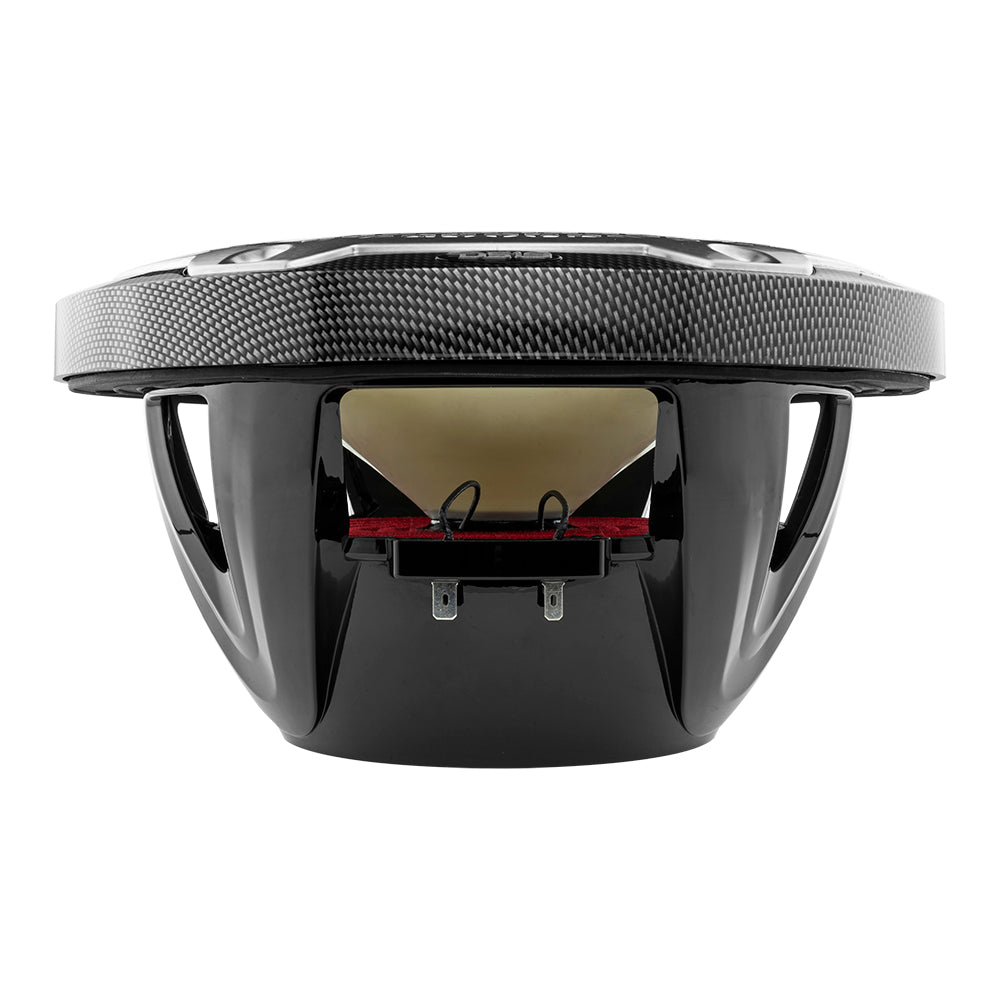

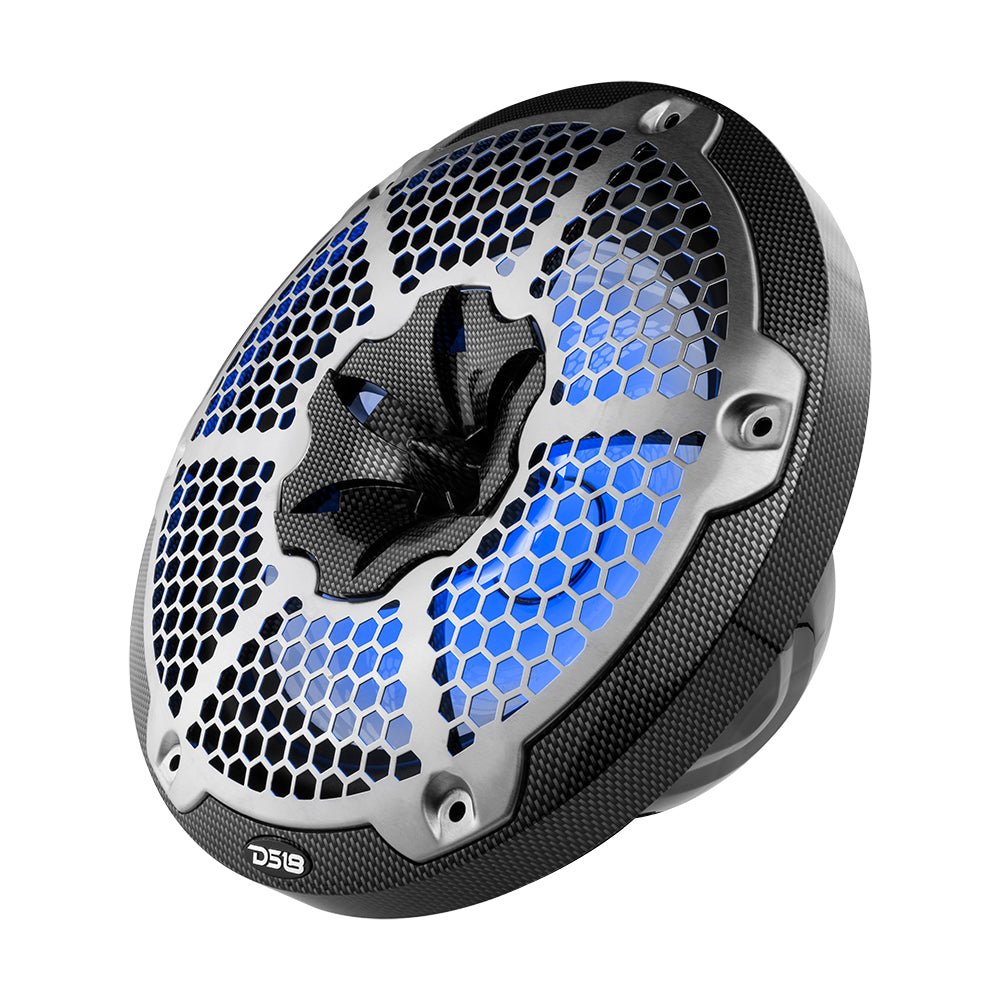

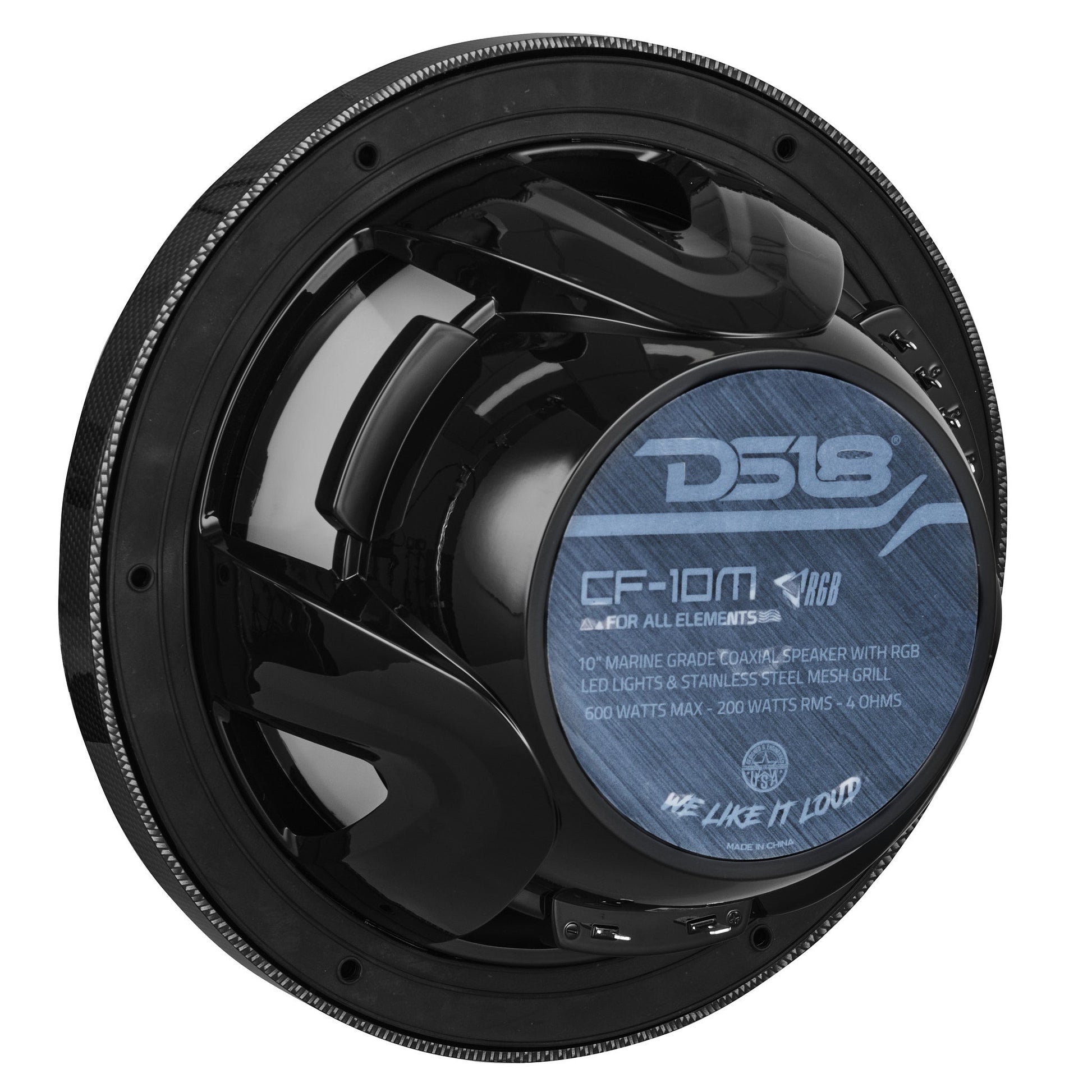

DS18 CF-10M HYDRO 10" 2-Way Marine Speakers with Bullet Tweeter And Integrated RGB LED Lights Carbon Fiber
DS18 continues to dominate the marine scene with our innovative brand of marine speaker, the CF-10M.
This line of marine speakers is a true sight to see! They come in 2-way configurations and carry an IP65 waterproof rating, so you know they are durable for the elements. Each speaker comes with carbon fiber laminate with protective layers coating it.
They come with their own integrated RGB lighting on the metal mesh grill that shines down on the waterproof cones to complete your color scheme perfectly. These speakers produce a very full and rich sound that is very hard to replicate in open air environments like out on the water, but DS18 does it flawlessly.
With these 10 inch speakers, you can make sure you get the complete sound you crave and have perfect acoustical music on your command.
Highlights
- DS18 Hydro design to withstand extreme elements and keep you playing.
- RGB LED design to brighten up your system through the night all while displaying whatever color you want with our (sold separately) LED BTC.
- Integrated tweeter along with mid range woofer so you get an amazing range of frequencies and very high sound quality.

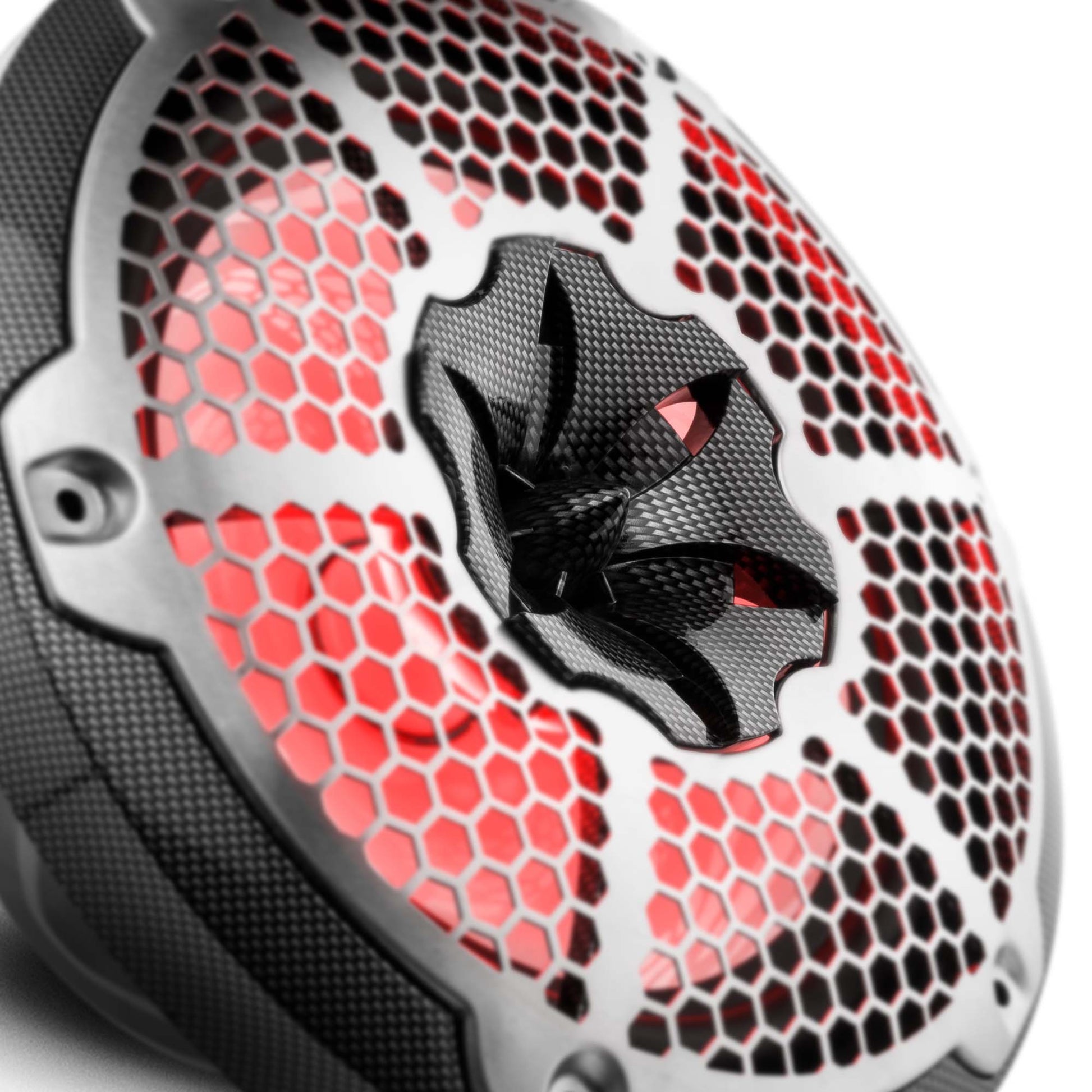

- Exclusive metal mesh grill design for ultimate protection.




Technical Details
| Specifications | |
| Nominal Diameter | 10" / 254mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 200W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 94.3dB |
| Frequency Response | 35Hz-20Khz |
| Recommended HI Pass Crossover | 50Hz |
| Body / Features | |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, RGB integrated |
| Grill Type | Injection Molded Composite with 316 Stainless Steel mesh |
| Sold in Pair | Yes |
| Color / Finish | Carbon Fiber Texture / Gloss |
| Woofer Specifications | |
| Voice Coil Diameter | 1.5" / 38.6mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite with UV Protection coating |
| Magnet Material | Ferrite (Y35) + Neodymium (N35) |
| Magnet Weight | 50oz + 0.56oz |
| Tweeter Specifications | |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | PEN |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 0.51oz |

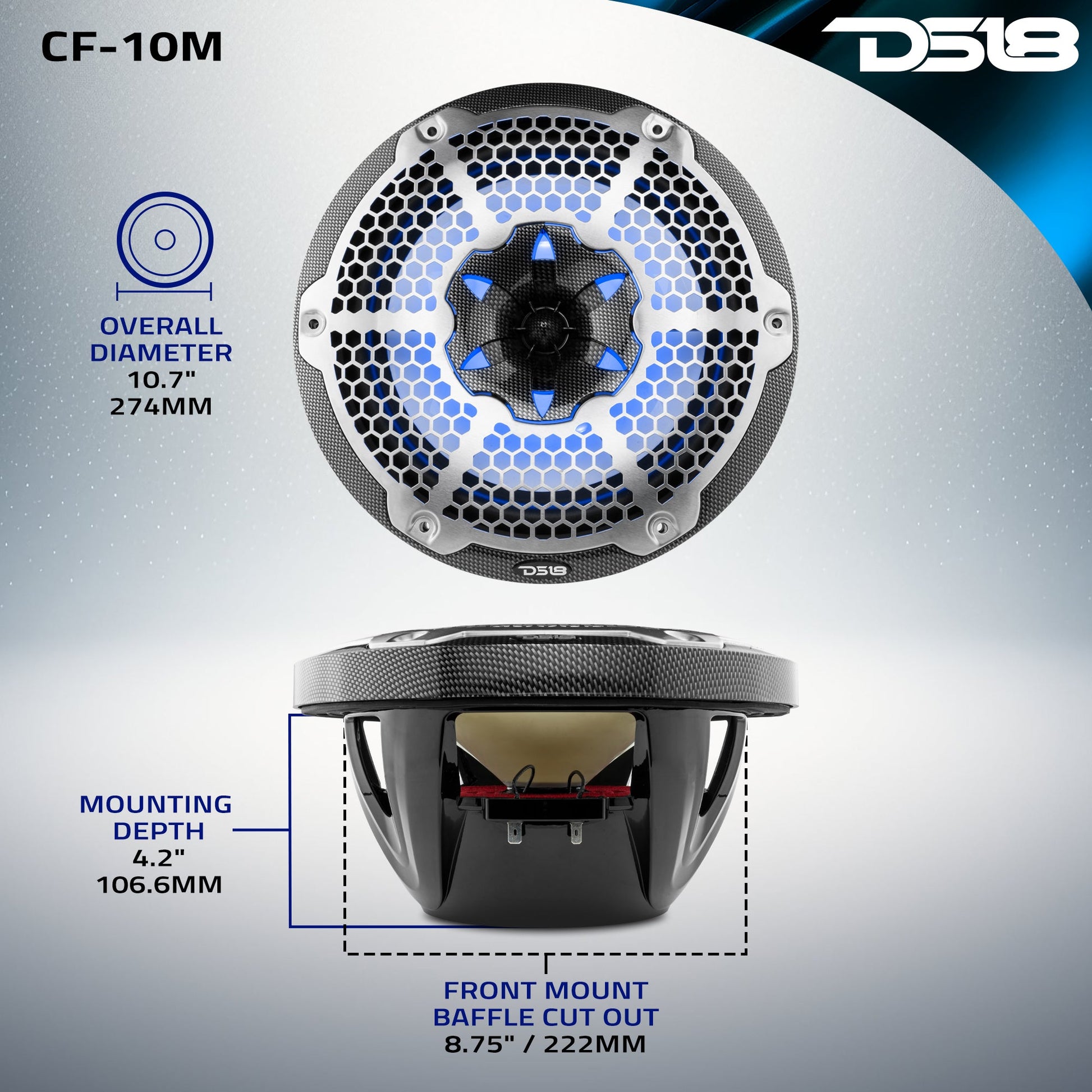

| Speaker Measurement | |
| Overall Diameter | 10.7” / 274mm |
| Overall Depth | 5.7” / 144.7mm |
| Front Mount Baffle Cutout | 8.75" / 222mm |
| Mounting Depth | 4.2″ / 106.6mm |
| Motor Diameter | 5.3” / 135mm |
