NEO Elite 3.5 Subwoofers

Sold by AudioSellerz.com

The DC Audio NEO Elite 3.5 Subwoofers product page is built for customers comparing a DC Audio subwoofer or DC Audio subwoofer series for a real car audio bass system. All original sizes, voice-coil options, power information, dimensions, construction details, and build notes remain listed below for accurate system matching.

Customers may search for this model using phrases such as DC Audio NEO Elite 3.5 Subwoofers, DC Audio subs, car audio subwoofer, bass subwoofer, or a DC Audio subwoofer for a ported or sealed enclosure. The correct choice depends on the exact size and options selected, the intended power, the box, and the final impedance presented to the amplifier.

Original Product Details

**HAND BUILT IN THE USA**

BUILD TIME 7-14 DAYS

NEO Elite 3.5 Subwoofer Line

2024 Cone Change : Now Comes Stock with LR Cone / Surround

3500 Watts RMS 6000 Watts Peak

Available in 12,15 and 18" Models

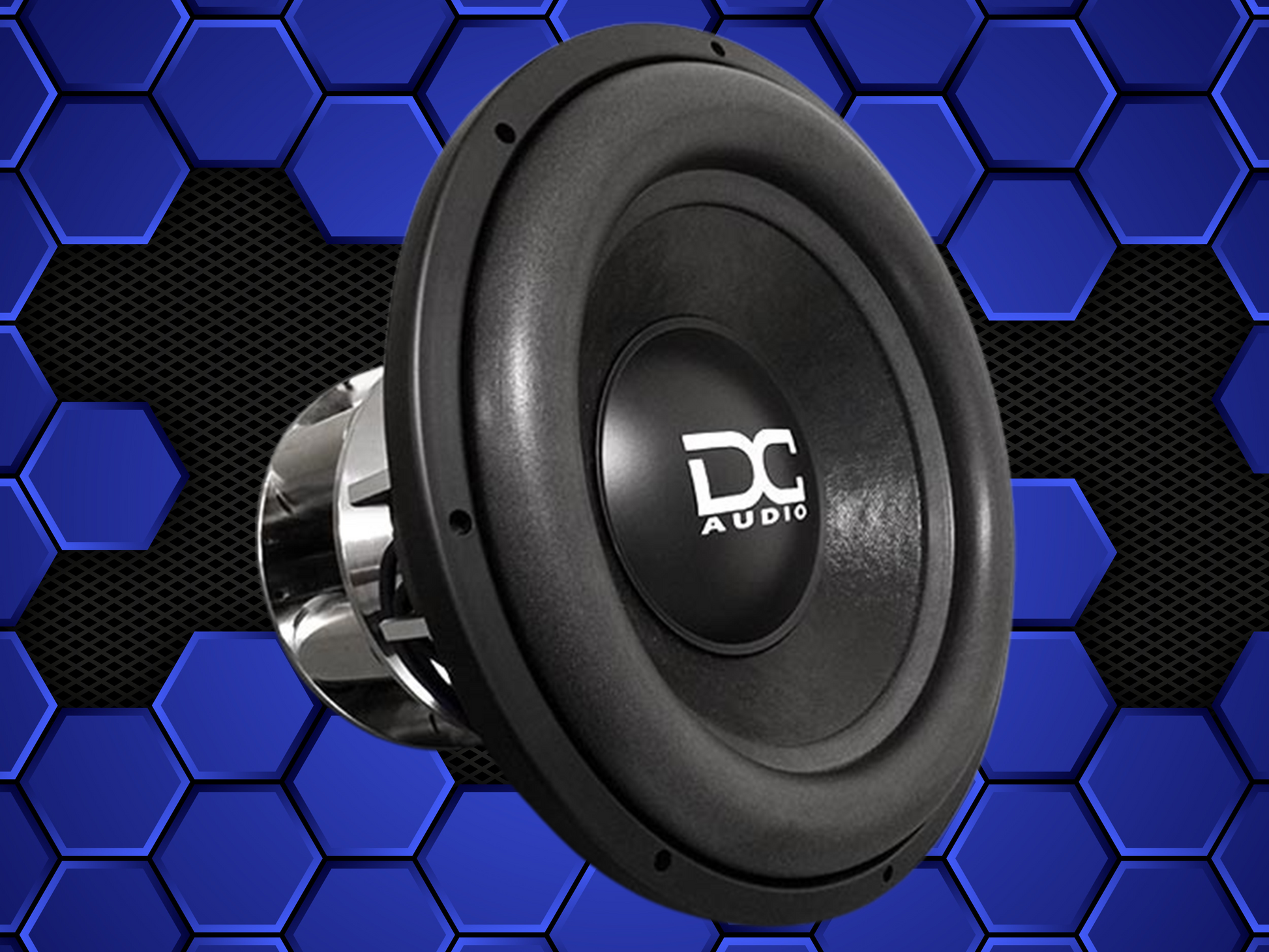

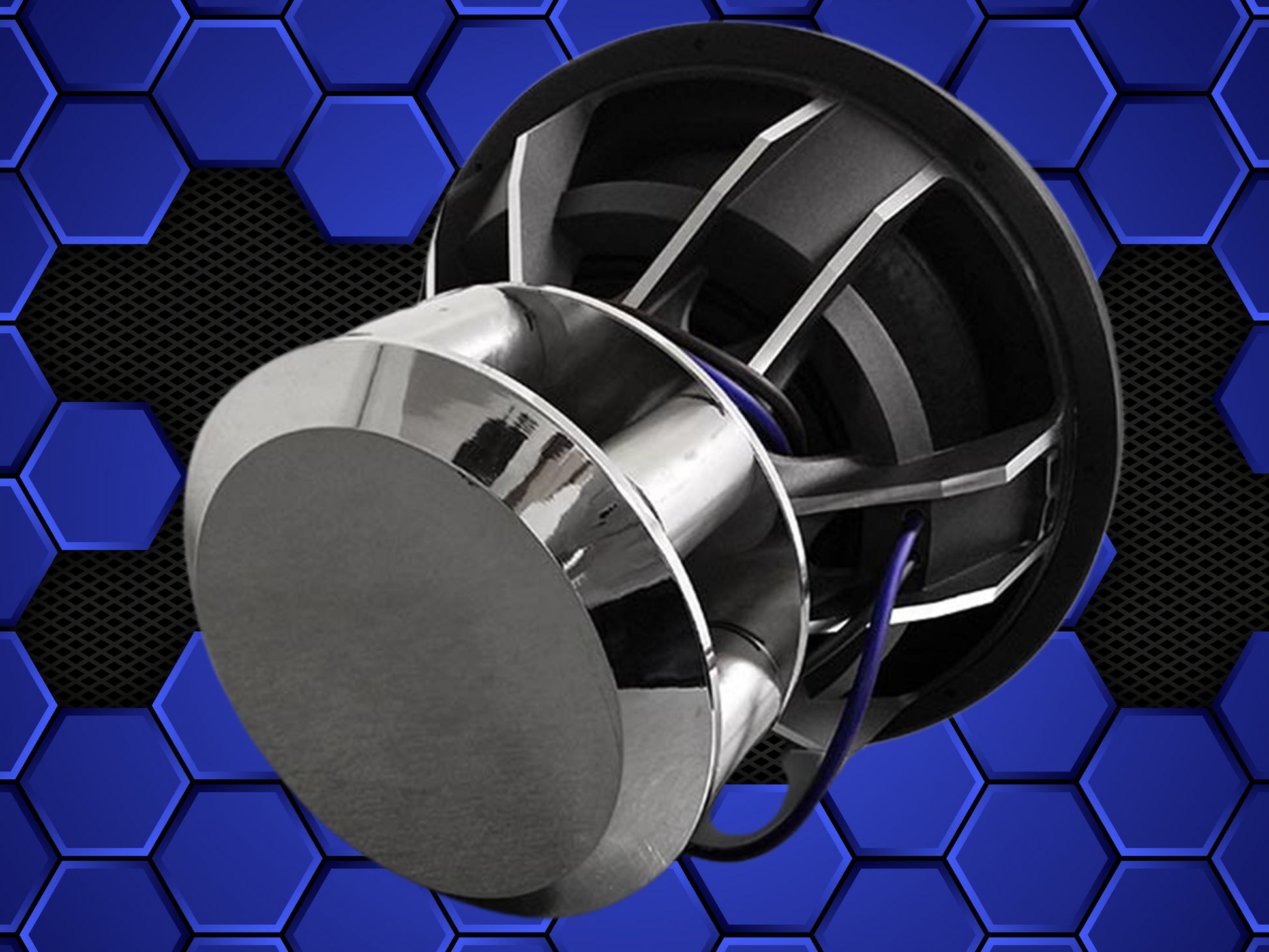

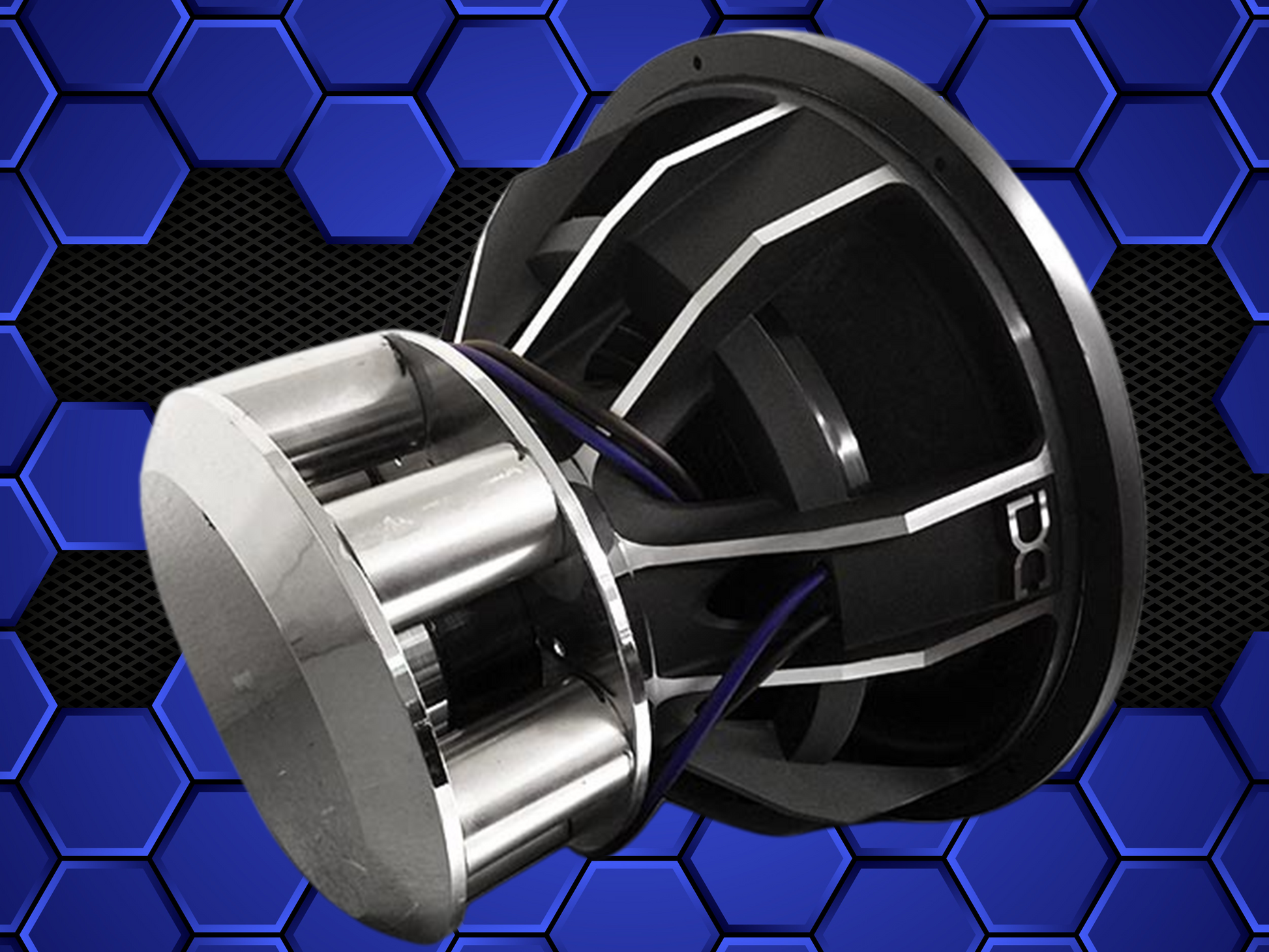

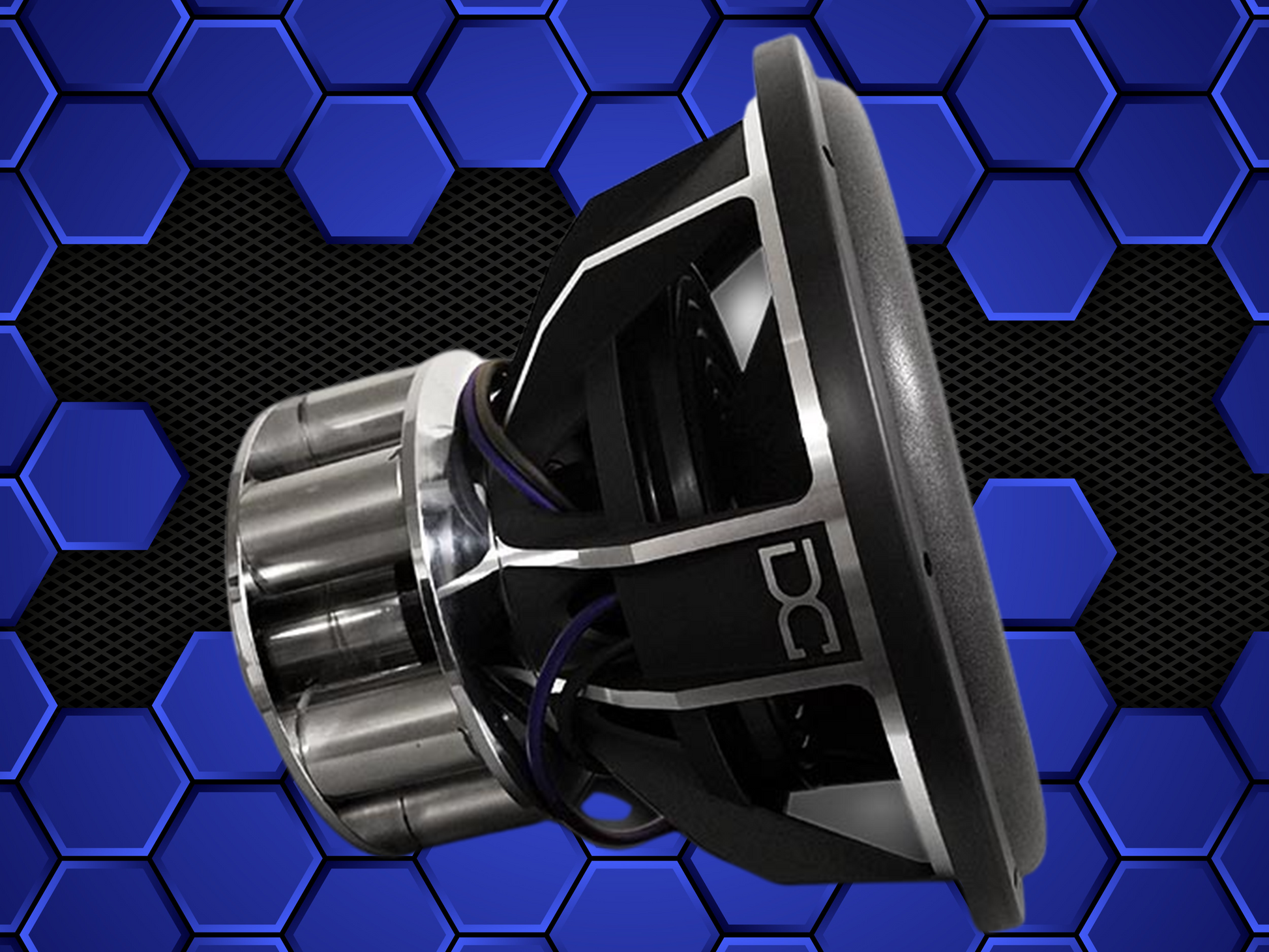

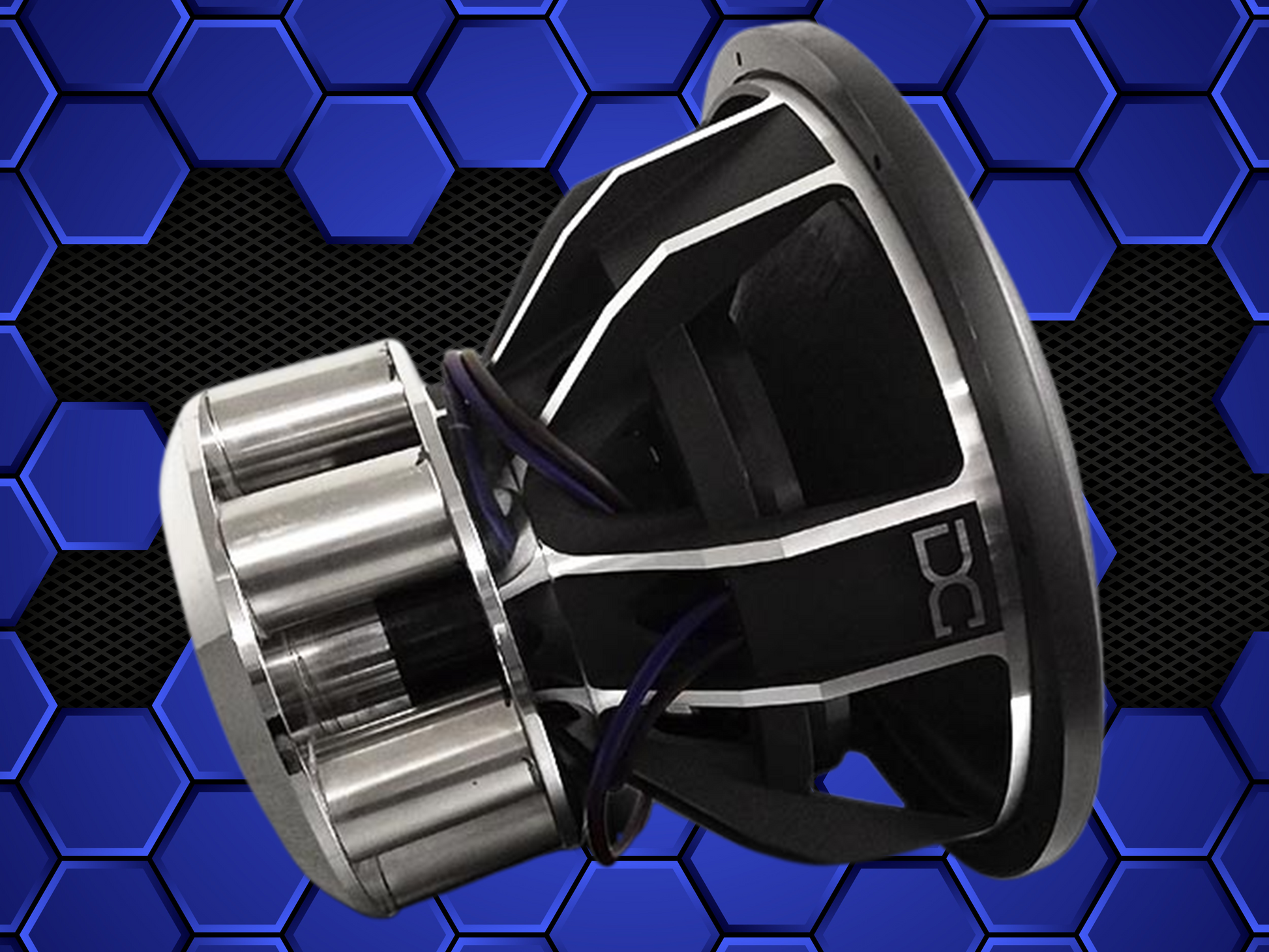

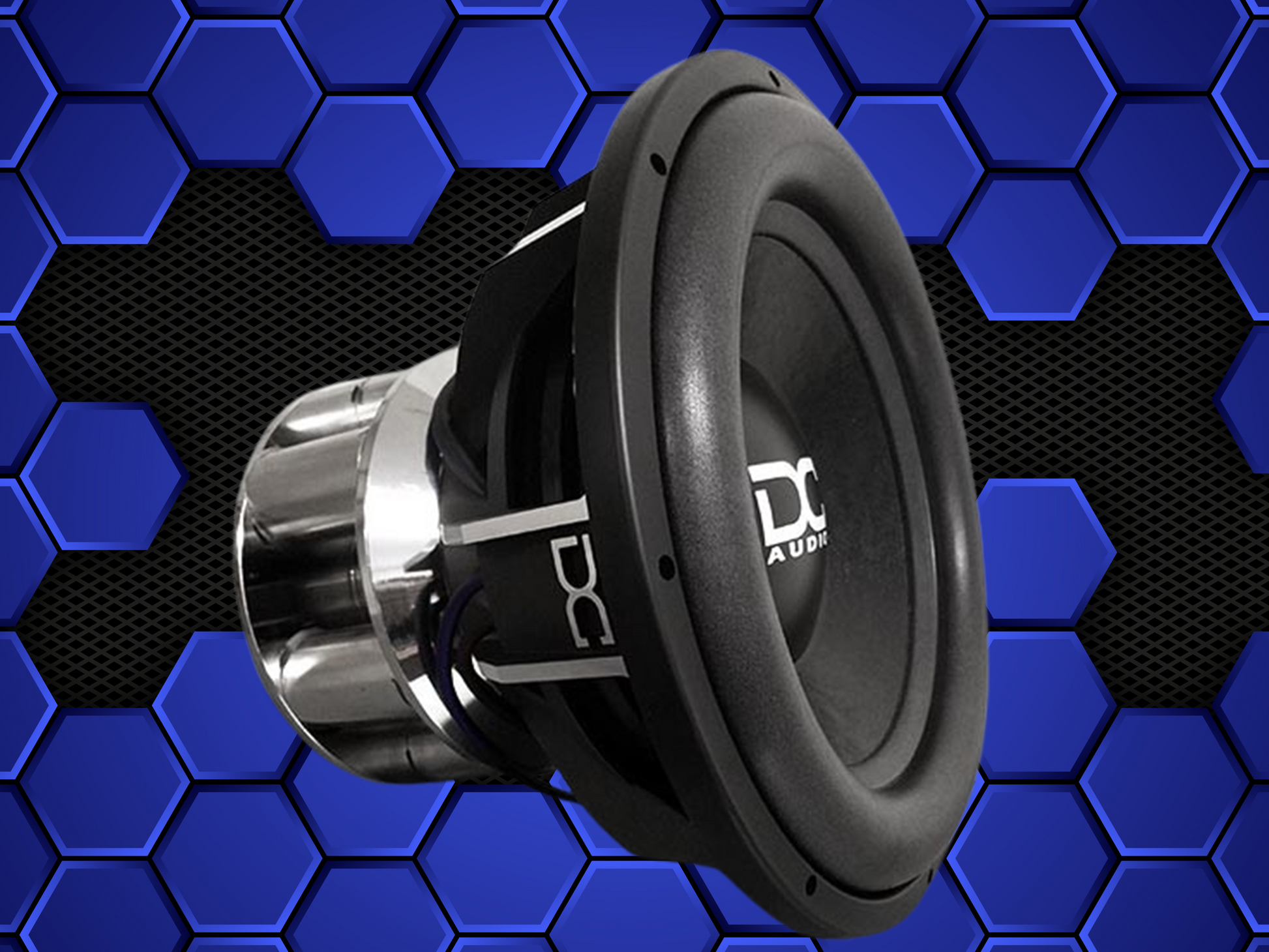

The Neo Elite is DC Audio’s 3.5” Coil Neo powered subwoofer. Why, because people asked for it and we thought it would be a fun project, that’s exactly what it turned out to be. The Neo Elite is a subwoofer that’s happy doing SPL but is even more suited for high power ground pounder applications. If you're in the market for a subwoofer that can take a lot of power get loud and crush lows, then this could be the one for you. The Neo Elite comes with a Large flat wound 3.5” Coil, 10” Spaced Spiders, The DC Frame, 6 columns of NEO, multi tensile leads sewn to the top spider and a High-Performance cone and surround.

Extremely strong kraft pulp fiber reinforced cone

Wide Long Throw foam surround

Dome propylene dust cover with White DC logo

10” OD Spaced Spiders

Extra heavy duty sewn tinsel lead wire

Cast DC Series aluminum black frame / no invert mount

FEA analyzed and optimized motor assembly – Fully CNC machined

Rubber mounting gasket

8 AWG OFC Direct leads

3.5” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum former

Click HERE to get a Subwoofer Box

T/S Parameters

	15"	18"
Mounting Depth	12"	13"
Mounting Hole Diameter	14.25"	16.90"
Outside Driver Diameter	15.7"	18.5"
VC Diameter	3.5"	3.5"
Displacement	.23 ft	.26ft
Power Handling rms/peak	3500/6000	3500/6000
Ohm Options	d.7/d1/d2/d4	d.7/d1/d2/d4
Sd	815 cm	1159 cm
Vas	N/A L	L
Cms	N/A um/n	um/n
Mms	N/A g	g
Fs	N/A Hz	Hz
Bl	N/A N/A	N/A
Re	N/A Ohm	Ohm
Le	N/A mH	mH
Qms	N/A
Qes	N/A
Qts	N/A
Xmax	34mm	34mm
Ref SPL @1 watt	N/A db	db
Suggest Sealed Box	N/A ft	N/A ft
Suggested Ported Box	3.0 ft	5.5 ft
