GEN-X Class D 1-Channel Amplifier | 600W RMS @ 1-Ohm

DS18 G1800.1D  Monoblock Class D 1-Channel Car Audio Amplifier 1800 Watts

The Gen-X series has always been a DS18 staple with the public and been in countless system builds over the many years it was released.

We have completely redesigned the Gen-X series from the ground up to meet and audio enthusiasts high standards and complete their goals for the system of their dreams with great power, reliability, and efficiency.

The G1800.1D has a power rating of 600W RMS and 1800W MAX at the minimum 1 ohm load it was designed for, giving you pure and clean power on demand.

This amp has the power to drive your subwoofers but also not take up much space because of the new compact design and technology that will keep your amp playing cool and loud.

Key Features

• Small and powerful design so you can power your subs with great efficiency and power without taking up much space
• Integrated low pass filter and bass boost to help you get the perfect bass response you are looking for.
• High quality terminals that look great and will transfer your power and signal with no loss.

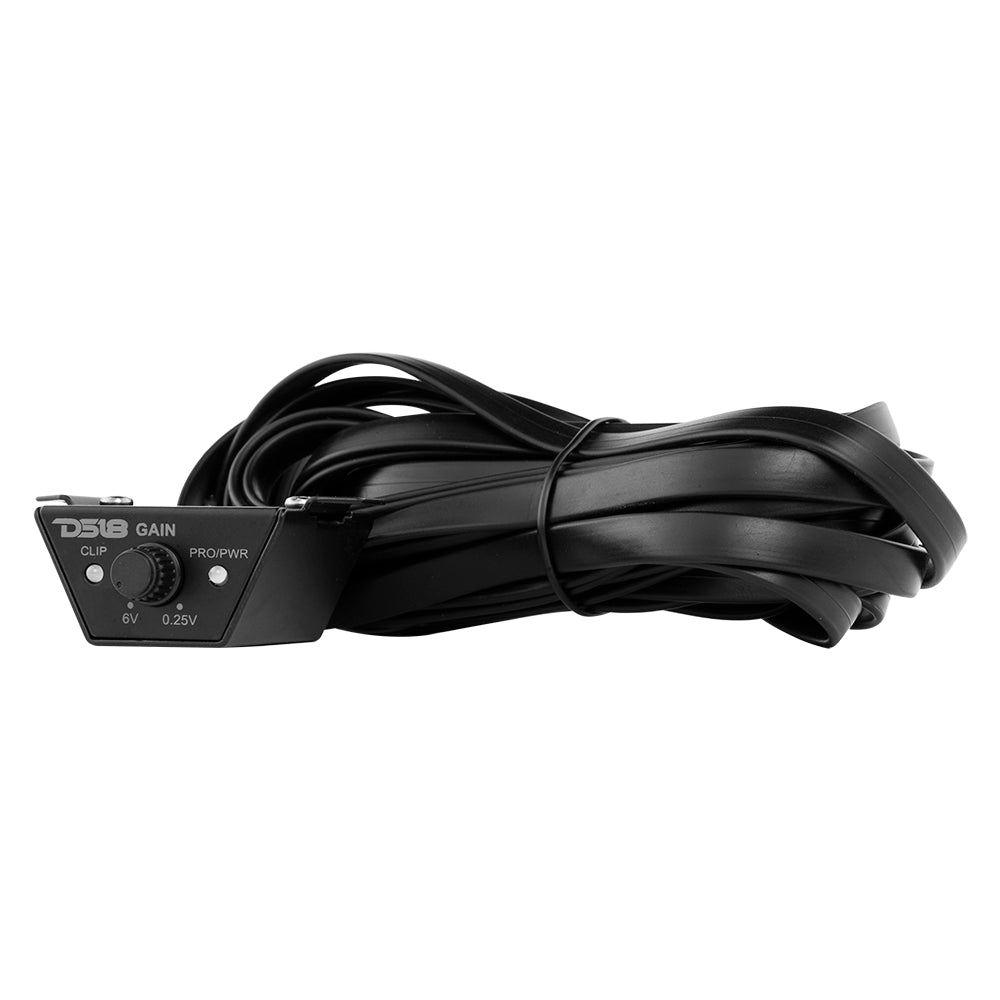

• Included bass knob so you can adjust the volume of your subwoofer easily with a turn of a dial.

Highlights

• Digital Class D Subwoofer Monoblock
• MAX Wattage: 1800w Peak
• RMS Wattage: 600 Watts RMS @ 1 ohm, 400 Watts RMS @ 2 ohms, 250 Watts RMS @ 4 ohms
• Frequency Response: 10-500Hz
• Signal to Noise Ratio: >93dB
• Efficiency at 4 ohms: 90%
• Total Harmonic Distortion: 0.001%
• Input Range: .25-6v
• Selectable X-over: LPF Fixed
• Bass Boost- 0-12dB
• Phase: 0-180
• Power and Ground Terminal: 4 GA
• Minimum Impedance: 1 ohm

Great For:

• Car Audio
• Pro Audio
• Motorcycles
• Hi-Fi installation
• Off-Road
• DIY Projects

Technical Details

Download Product Manual
