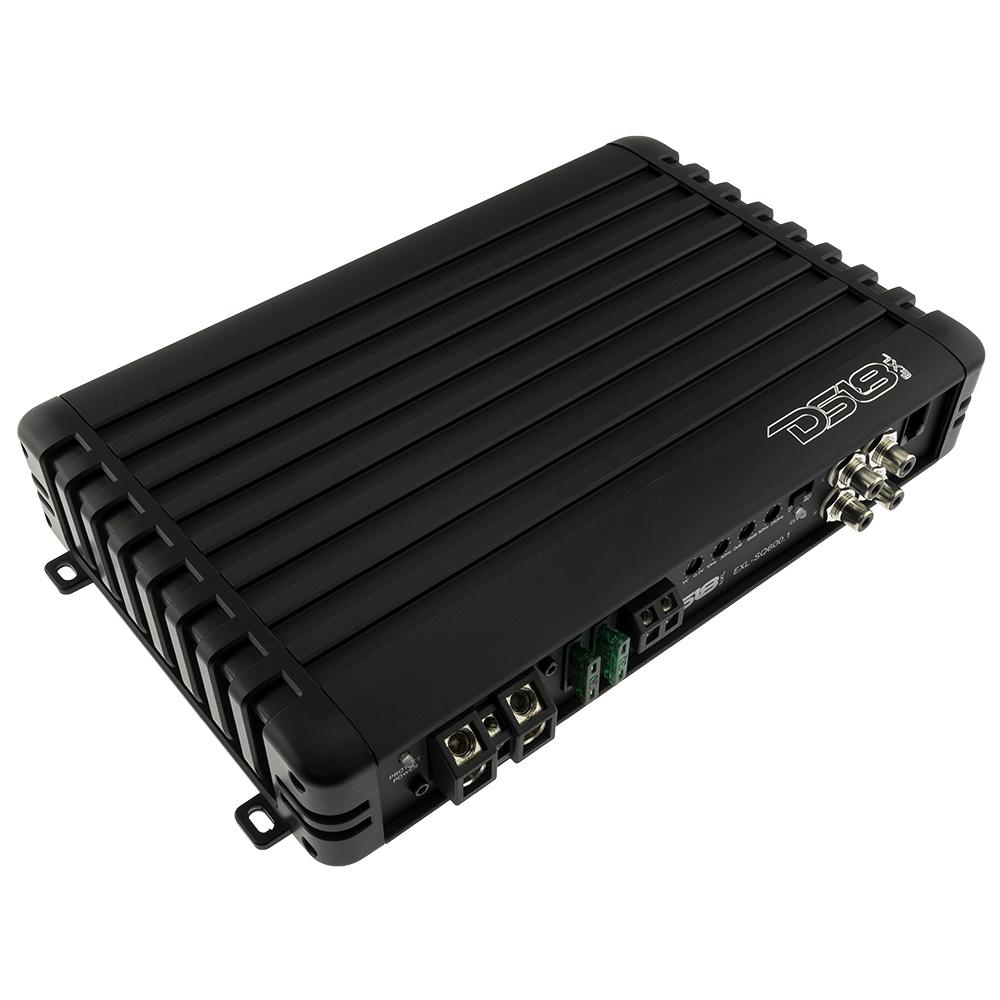

EXL Sound Quality Class D Monoblock Car Amplifier 1200 Watts
EXL Sound Quality Class D Monoblock Car Amplifier 1200 Watts
Couldn't load pickup availability
EXL Sound Quality Class D Monoblock Car Amplifier 1200 Watts
Sold by AudioSellerz.com
SKU: EXL-SQ600.1D
EXL Sound Quality Class D Monoblock Car Amplifier 1200 Watts is a DS18 amplifier from DS18 built for powering subwoofers, mids, highs, full-range speakers, motorcycles, marine systems, Jeeps, and powersports audio. This description helps shoppers looking for DS18 amp, DS18 amplifier, car audio amplifier, DS18 4 channel amp, monoblock amplifier understand where it fits in a real audio system.
Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.
Audio Sellerz System Match Notes
- Match the amplifier to the speaker or subwoofer RMS power, final ohm load, wire size, fuse protection, and vehicle electrical support.
- For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
- If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.
|
The EXL-SQ line of amps are DS18’s highest end sound quality amps that are available today. Customers demanded a dynamic product that has extremely high sound quality and come in a multitude of power options to easier fit the ever-growing power demands of the audio enthusiast’s needs. These amps are the epitome of sound quality and audio precision. These amps come in a multitude of sizes that include 2 channel, 4 channel, and monoblocks of all sizes from 160w to 3000w RMS! All these amps have built in protection and heatsink boasts a sleek design. The amps have sets of crossovers to further tune your system to perfection while the tiffany style RCA jacks receive the highest quality signal. |
Specifications
Download EXL-SQ600.1D Product Manual
| Model: | EXL-SQ600.1D |
| Class: | D |
| Number of Channels: | 1 |
| Frequency Response: | 20Hz - 500Hz |
| Max Power: | 1200W |
| 1 Ohm RMS Power (14.4V) Per Channel: | 600W |
| 2 Ohm RMS Power (14.4V) Per Channel: | 400W |
| 4 Ohm RMS Power (14.4V) Per Channel: | 250W |
| Speaker Impedance Range: | 1-4 Ohms |
| Input Sensitivity: | 0.2-5V |
| Low Pass Filter: | 50Hz - 250Hz |
| Fuse Size: | 2 x 30A |
| Signal-to-Noise Ratio: | >90dB |
| THD: | 0.07% |
| Bass Boost: | 0dB - 18dB |
| Product Dimensions (L x W x H): | 264 x 170 x 51mm |
