EXL 6.5" 2-Way Component Speaker System | 150W RMS 4-Ohm
Sold by AudioSellerz.com
The DS18 EXL-SQ6.5CX is a 6.5" component speaker system from the DS18 EXL line rated at 150W RMS with a 4 ohm design. It is built for clean, loud midrange and highs that cut through road noise.
DS18 Product Details
DS18 EXL-SQ6.5CX 6.5" 2-Way Component Car Speaker System 500 Watts 4-Ohm

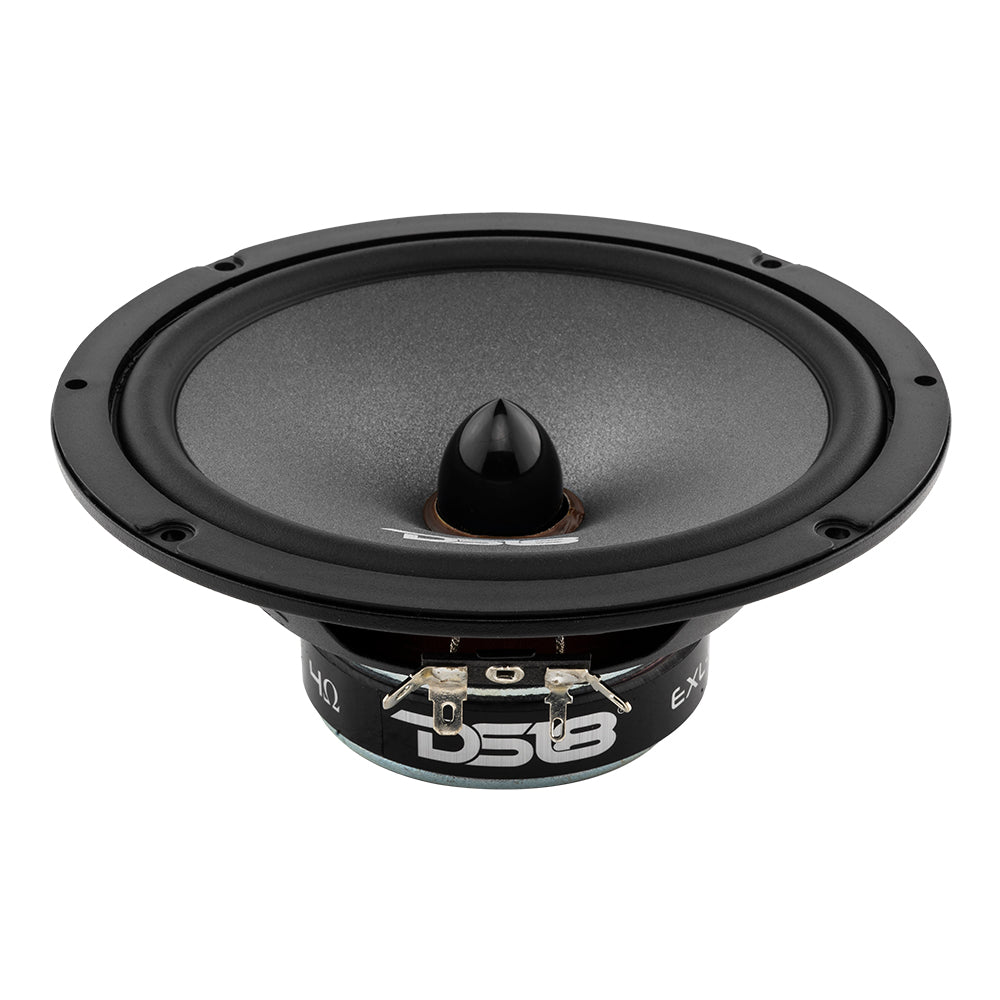

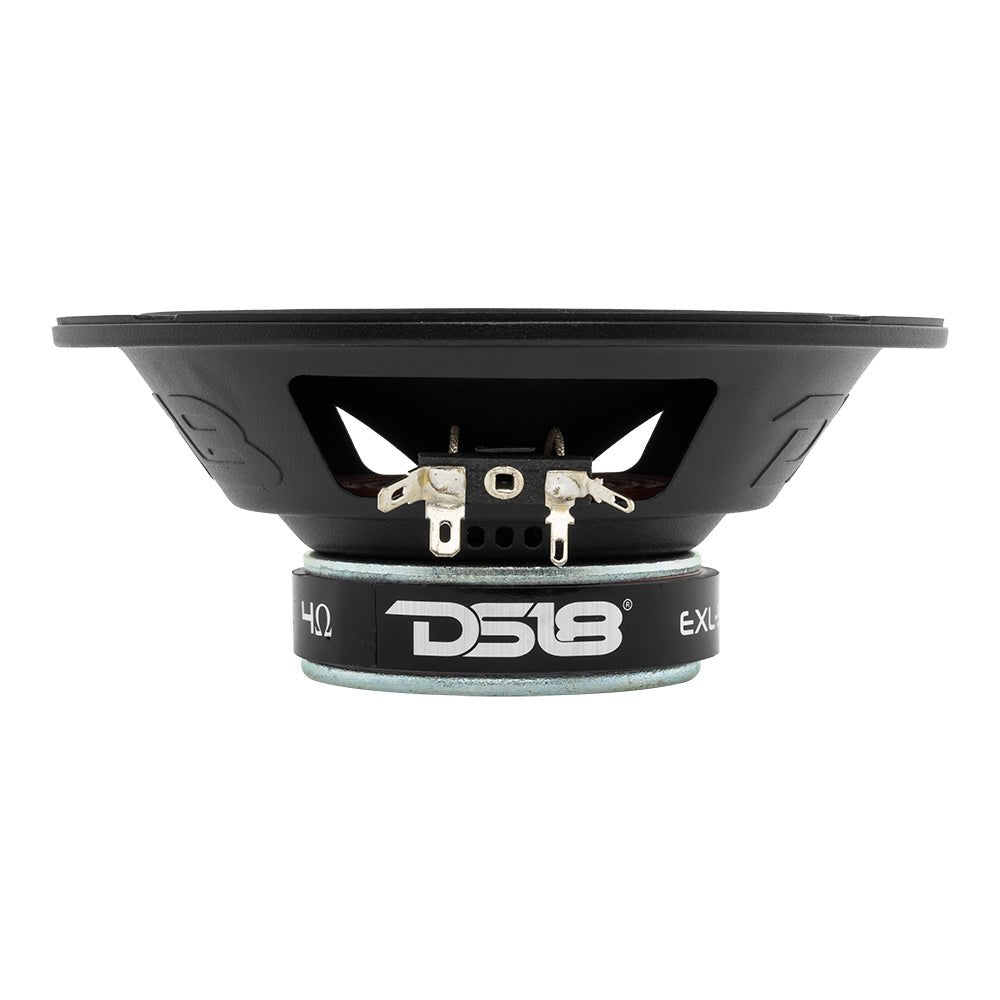

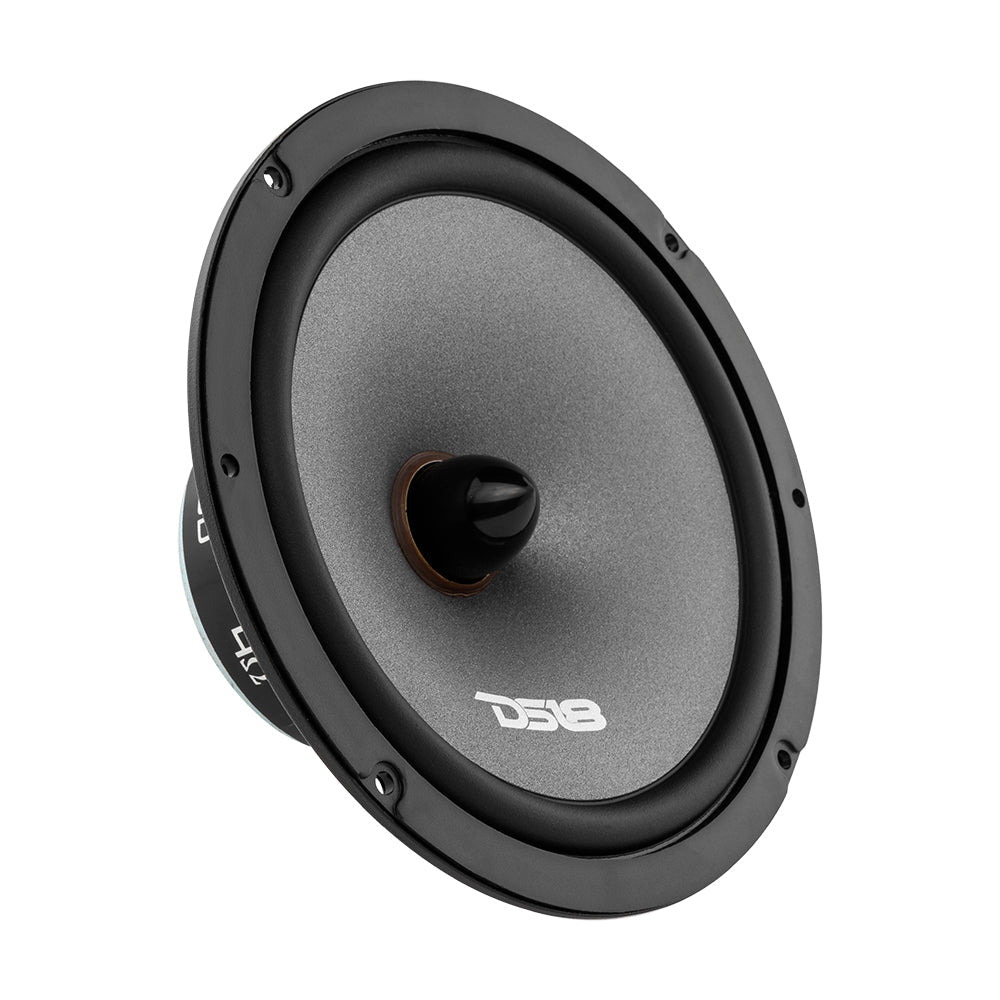

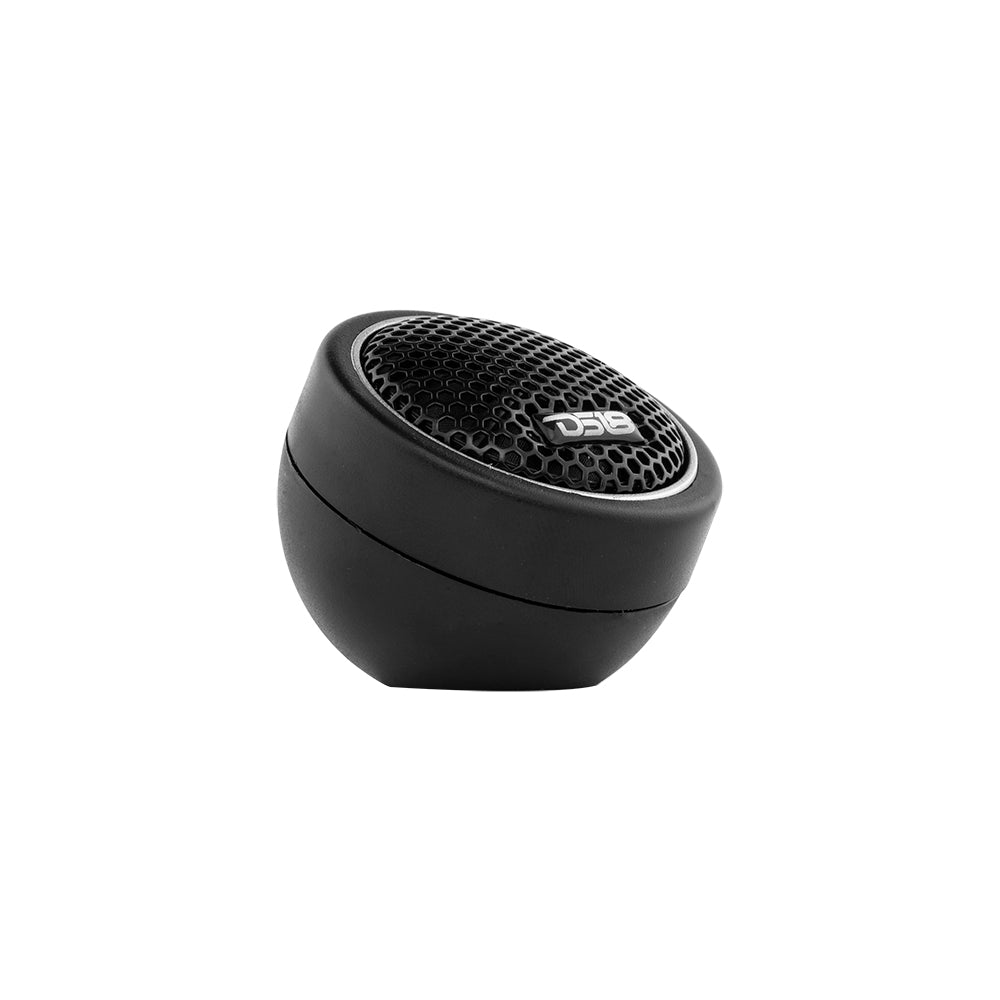

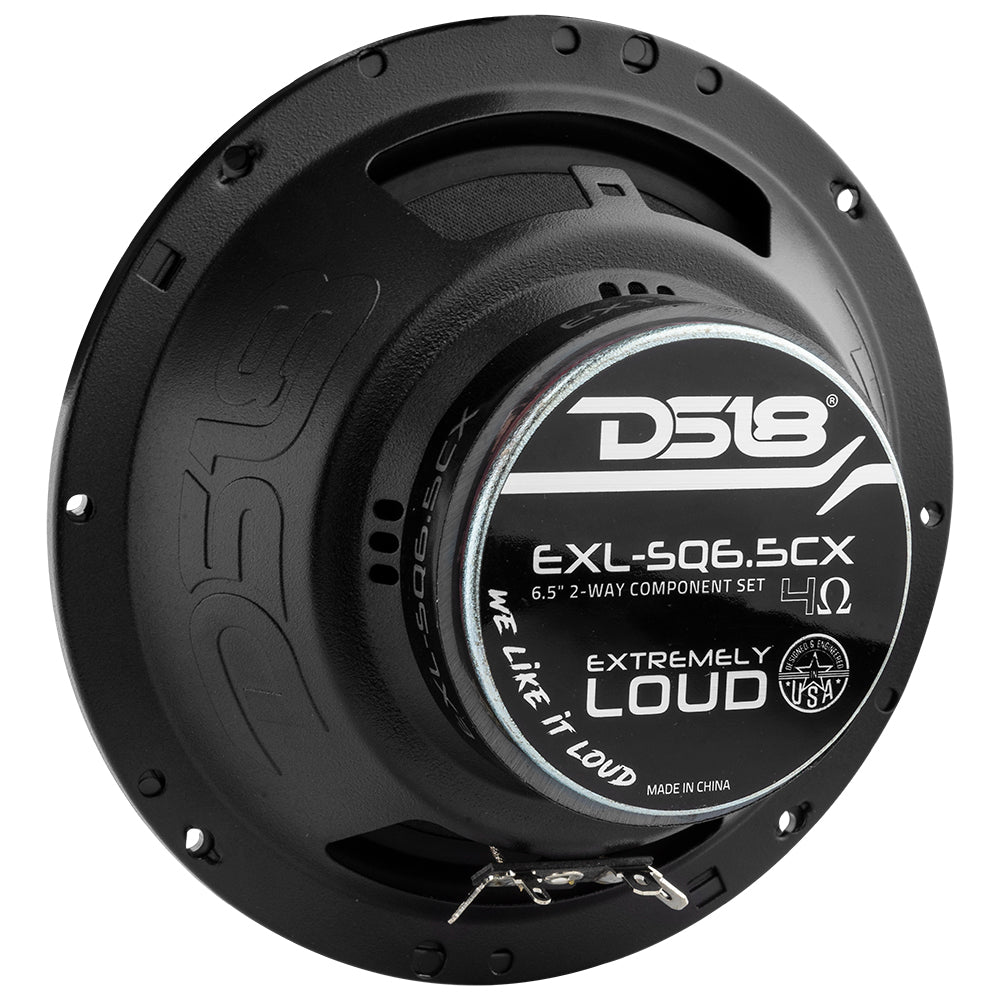

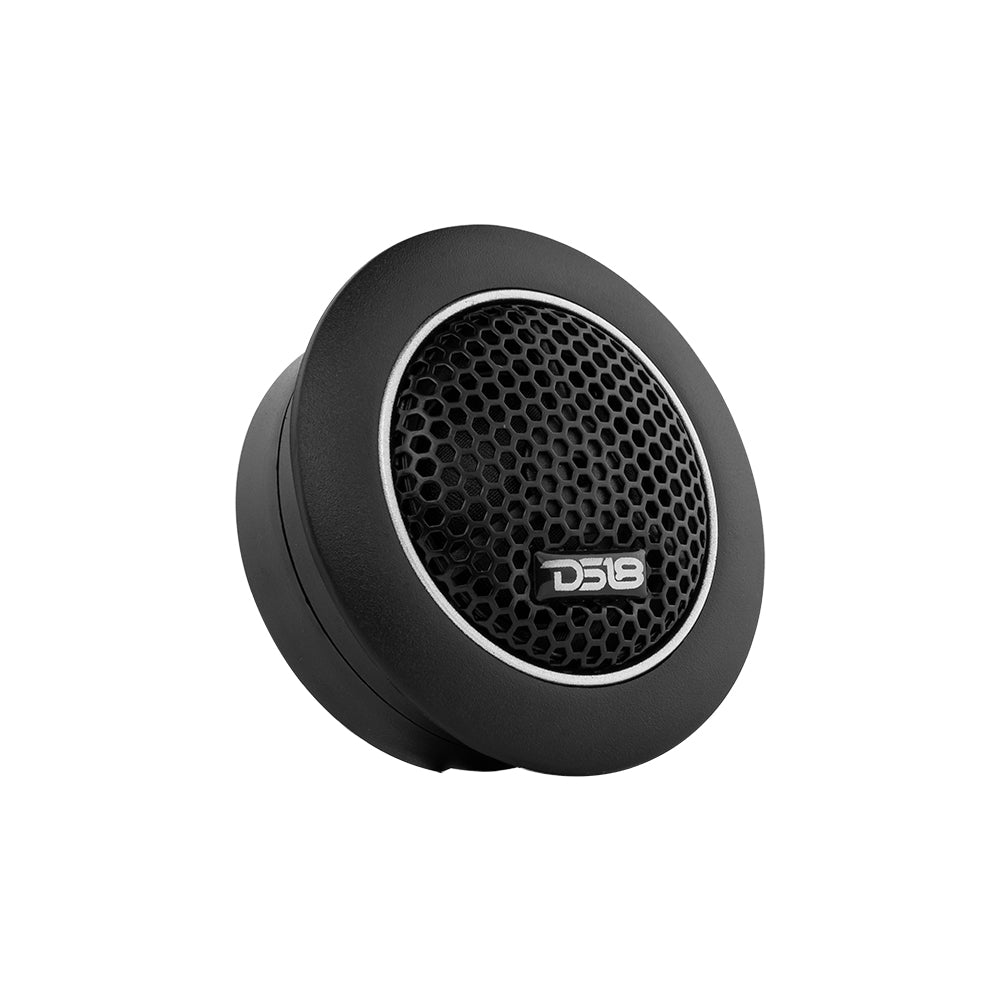

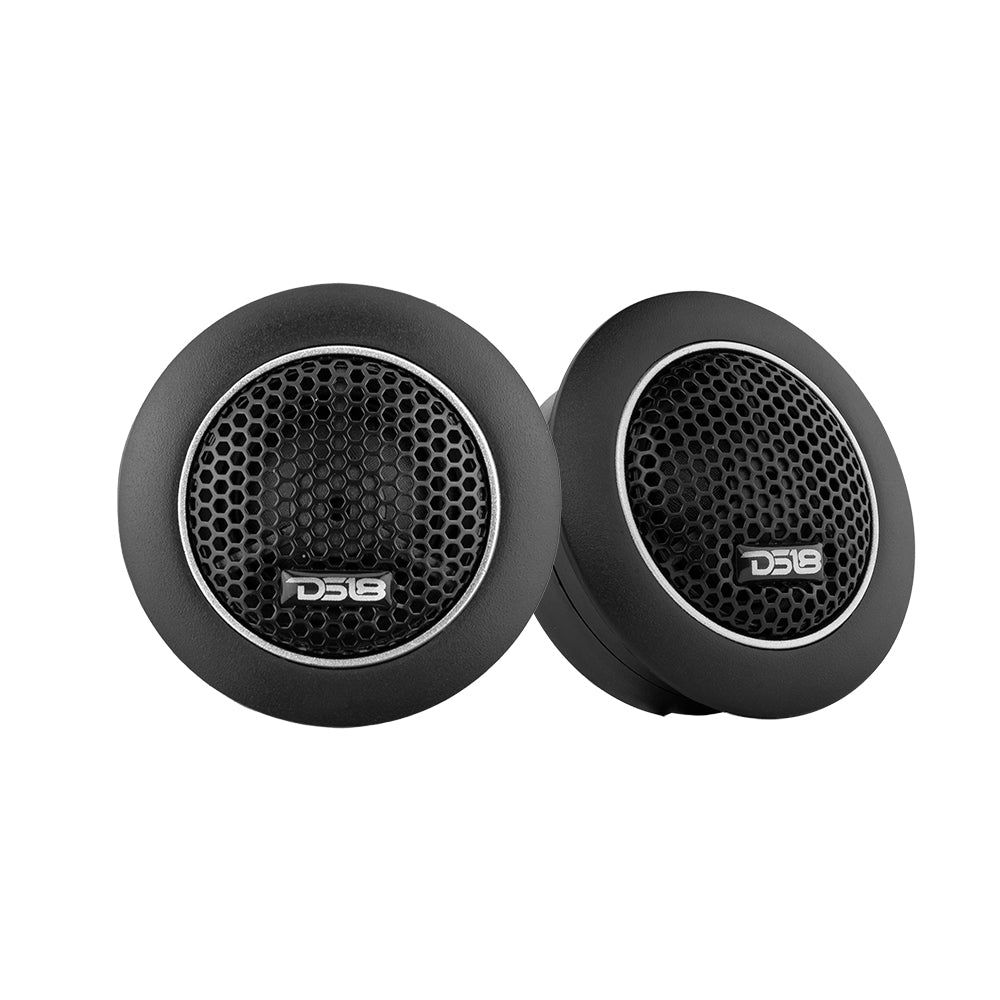

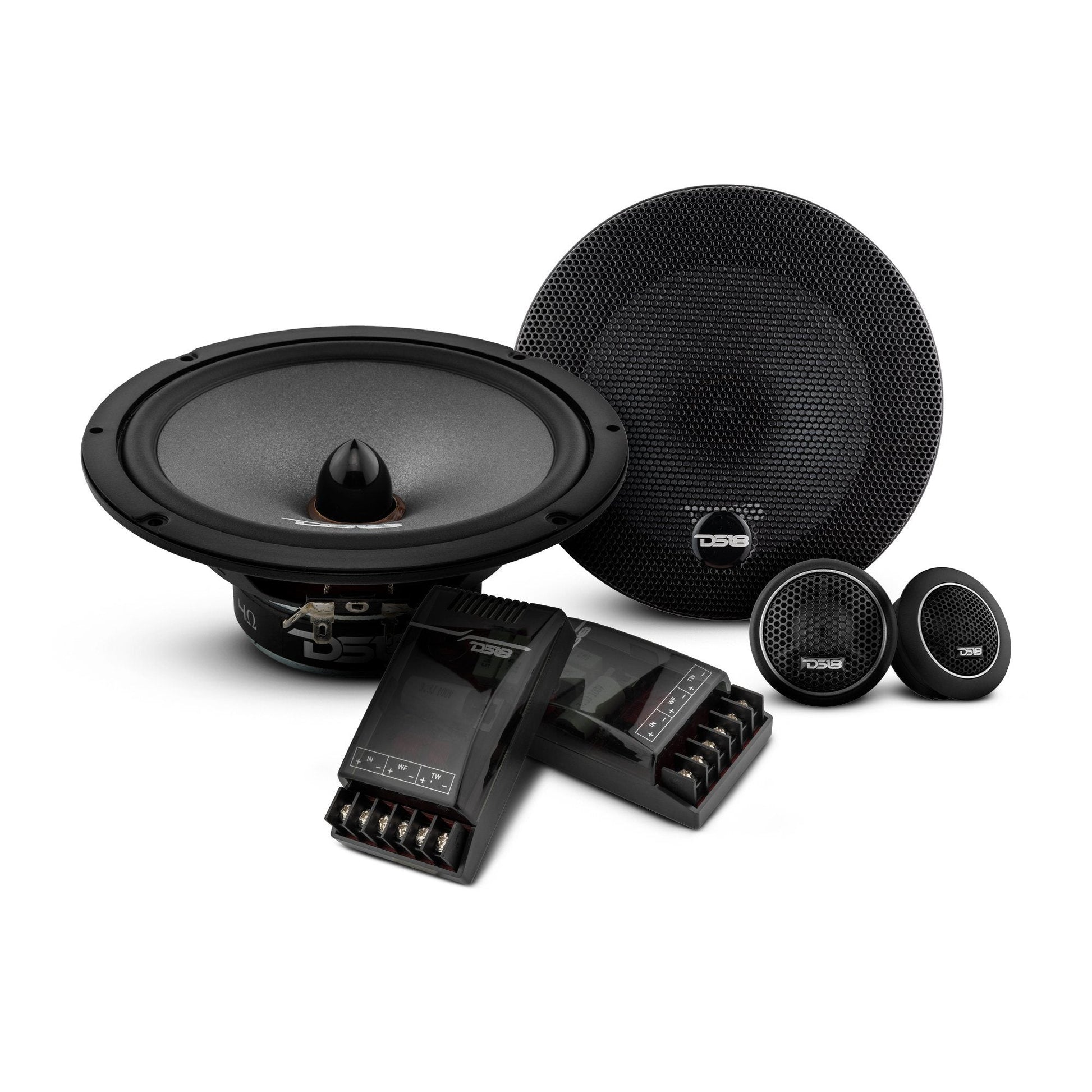

The EXL-SQ line is known for both it's high volume all while giving amazing overall sound quality. We innovatively and intuitively make it a very versatile audio line that will bring you loud and clear music on demand. This component set includes a pair of 6.5" woofers , a pair of 1" tweeters and, a pair of 2-way crossovers which can handle 500w Max power combined per pair. They have an 84 dB sensitivity rating, so you do not need a lot of power to bring these speakers to extremely high volumes. The included 2-way passive crossover will get your frequency just right for the best sound available that has been perfectly matched for these combined speakers. This component set are an amazing choice for your average every day enthusiast to extreme audiophile.
Highlights
- Highly durable and extremely loud design built for the average to extreme audio systems.
- Strong high quality cone helps give higher sensitivity and produce overall more sound when on lower power.
- Component design will bring a full range of frequencies to your ears and with great sound quality.

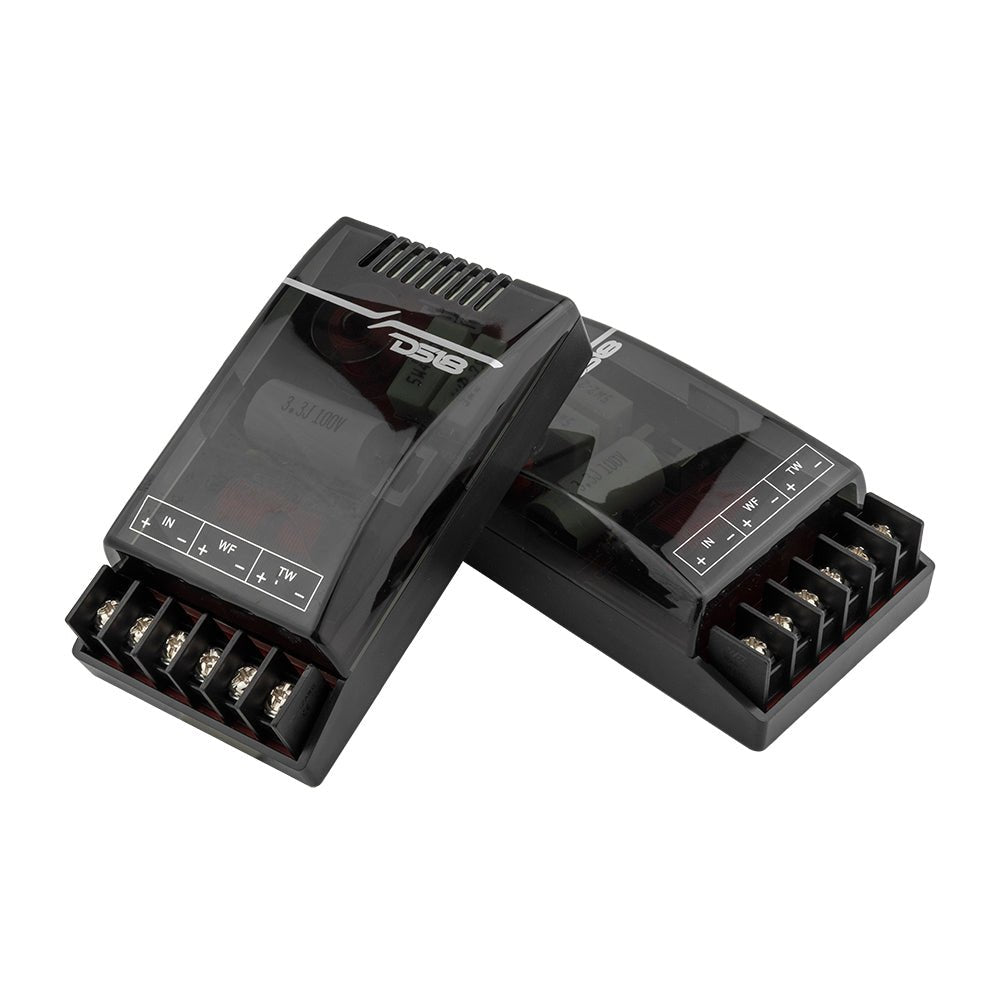

- The added component 2-way passive crossover was made to extract the perfect crossover frequencies for these components which takes away the guesswork of setting your crossovers.
Technical Details
| SPEAKER DESIGN: | 2 - WAY |
| RMS POWER: | 150W |
| MAX POWER: |
500W |
| RATED IMPEDIANCE: |
4 OHMS |
| SENSITIVITY: |
87 DB |
| FREQUENCY RESPONSE: |
31.5 HZ - 20 KHZ |
| WOOFER: | 6.5" |
| VOICE COIL DIAMETER: |
1" / 25.4 mm |
| VOICE COIL MATERIAL: |
SV |
| CONE MATERIAL: |
FIBER WEAVE PAPER |
| SURROUND MATERIAL: | BUTYL RUBBER |
| BASKET MATERIAL: | STEEL |
| MAGNET MATERIAL: | FERRITE |
| MAGNET WEIGHT: | 11.2 OZ |
| MOUNTING CUTOUT: | 5.62" / 143 MM |
| MOUNTING DEPTH: |
2.44" / 62MM |

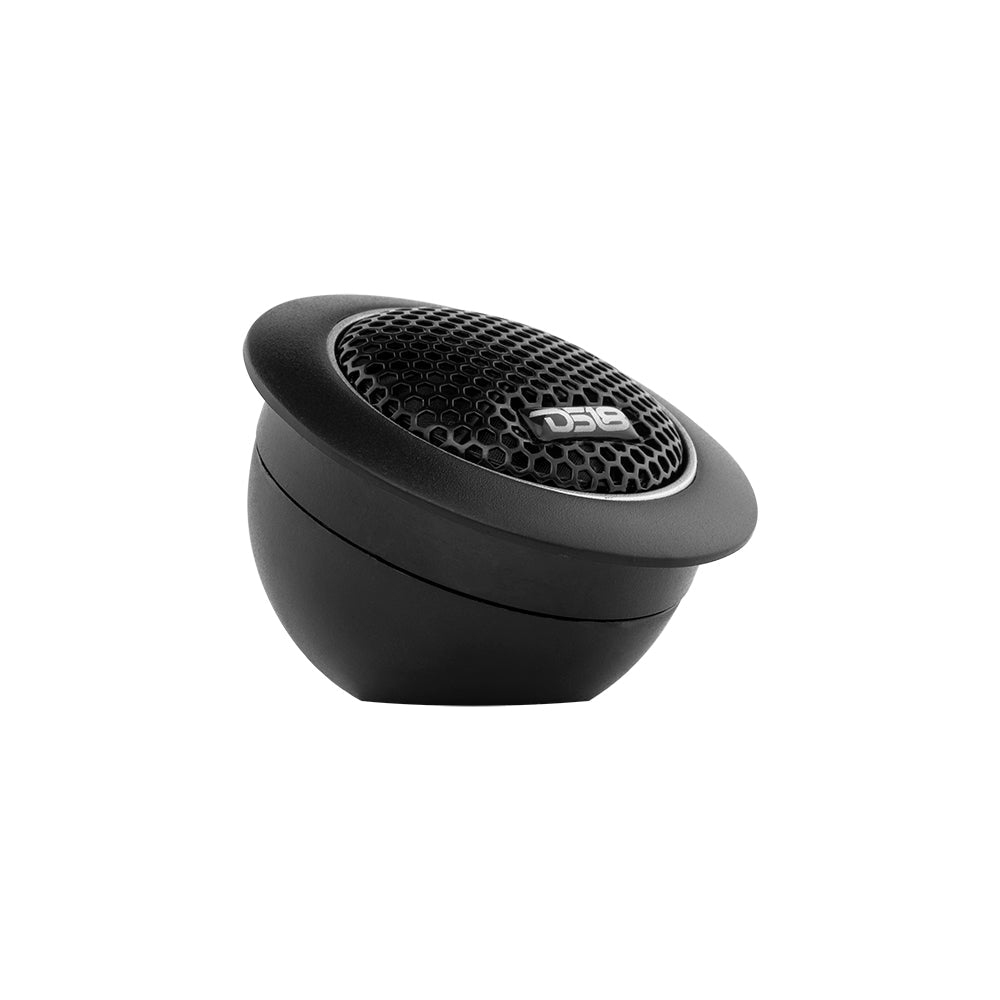

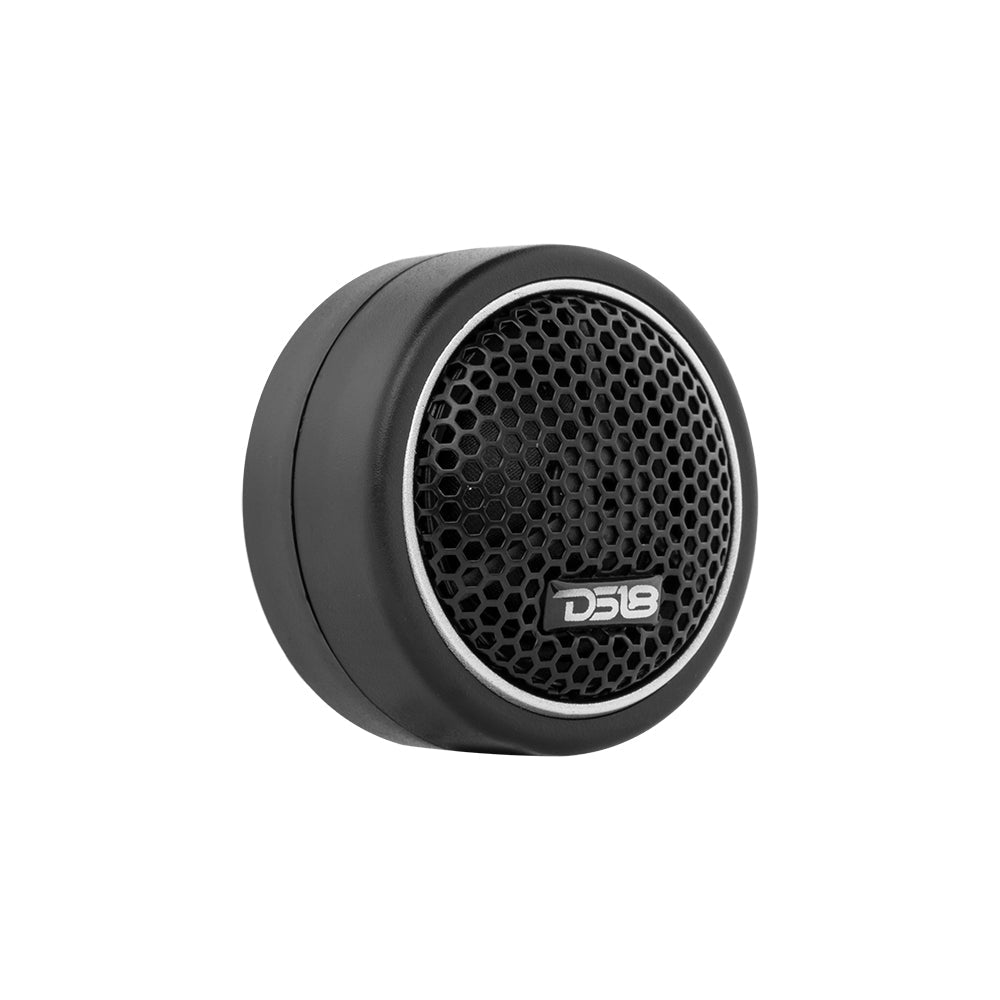

| TWEETER: | 1.69" / 63 MM |
| VOICE COIL DIAMETER: |
1" / 25.4 MM |
| VOICE COIL MATERIAL: |
SILK |
| MAGNET MATERIAL: | NEODYMIUM |
| MAGNET WEIGHT: |
.33 OZ |
| CROSSOVER: | 2-WAY PASSIVE |
| POWER HANDELING: | 300 W |
| TERMINAL TYPE: | SCREW TYPE |
| ADJUSTMENTS: | TWEETER ATT. |
| CUT-OFF SLOPE: | WF:6DB / TW:12DB/OCT |

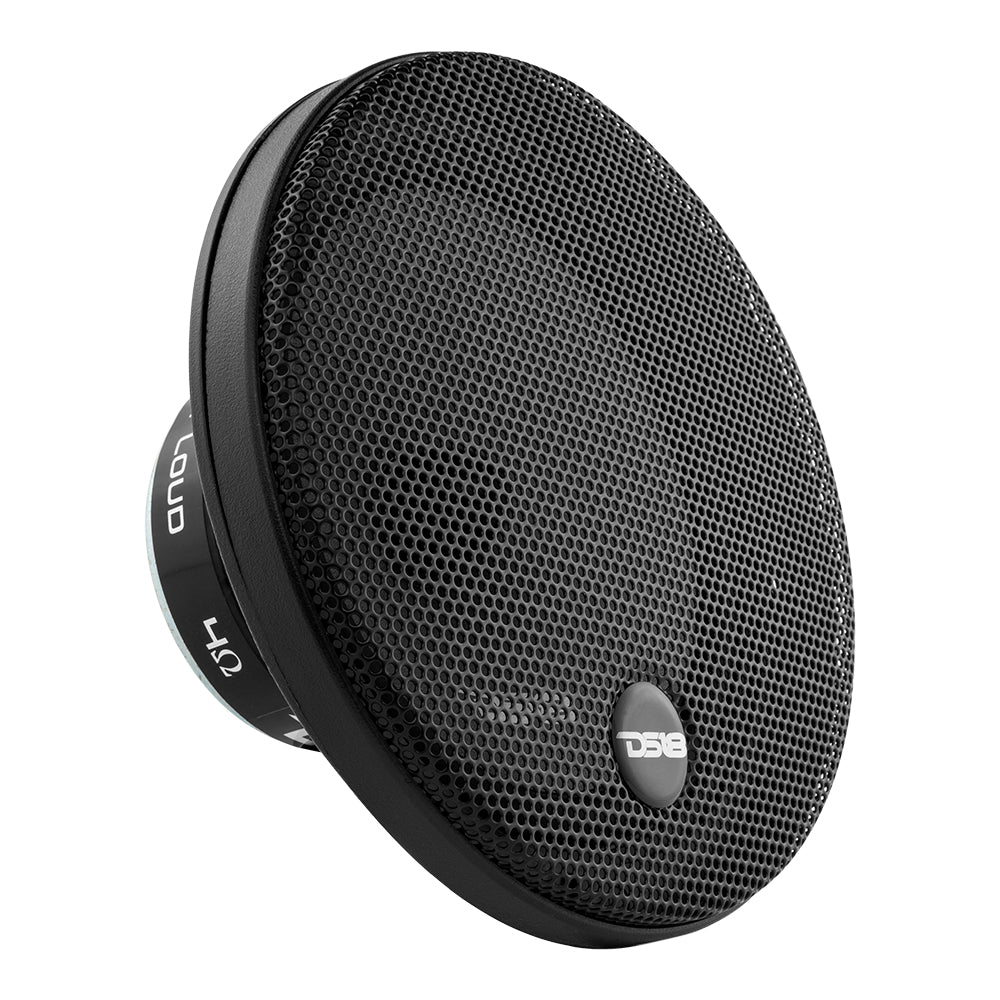

| GRILLS: | YES |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 150W RMS at 4 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.
- Check the size and mounting depth against your vehicle before ordering. Some vehicles need speaker adapters or harnesses.
