The DS18 EXL-SQ4.0 is a 4" coaxial speaker from the DS18 EXL line rated at 60W RMS with a 3 ohm design. Coaxials and loudspeakers like this are where most systems start, because the speakers decide how clear the whole build sounds.
DS18 Product Details
DS18 EXL-SQ4.0 Glass Fiber 4" 2-Way Coaxial Car Speaker with 260 Watts 3-Ohm
|
When you seek sound quality, it is best to have an idea of what to look for. Sensitivity, frequencies, woofer, tweeter, surround materials, and power handling are all important key factors. EXL SQ Coaxial Speaker brings it all with black glass fiber cone, rubber surround, advanced PEI dome tweeter, NEO magnets, die-cast baskets, 1" BASV voice coils, 3 Ohms impedance strontium-magnets and aluminum basket. Highlights
|
Technical Details
| Model: | EXL-SQ4 |
| Type: | Coaxial |
| Size: | 4" |
| RMS Power: | 60 W |
| MAX Power: | 260 W |
| Frequency Response: | 115Hz - 22KHz |
| Impedance: | 3 ohms |
| Sensitivity: | 85dB |
| Materials | |
| Frame: | Aluminum |
| Surround: | Rubber edge |
| Cone: | Black Fiber Glass |
| Magnet: | Strontium |
| Voice Coil Wire: | BASV |
| Diameters | |
| Voice Coil Size: | 0.5" / 13mm |
| Woofer Magnet Weight: | 9 oz |
| Tweeter Size: | 0.8" / 20.3mm PEI Dome |
Setup Tips From Audio Sellerz
- Power it with an amplifier channel rated close to its 60W RMS at 3 ohms, then set the gain carefully instead of turning it all the way up.
- Use a high-pass filter so deep bass goes to the subwoofer. The speakers will play louder and cleaner without it.

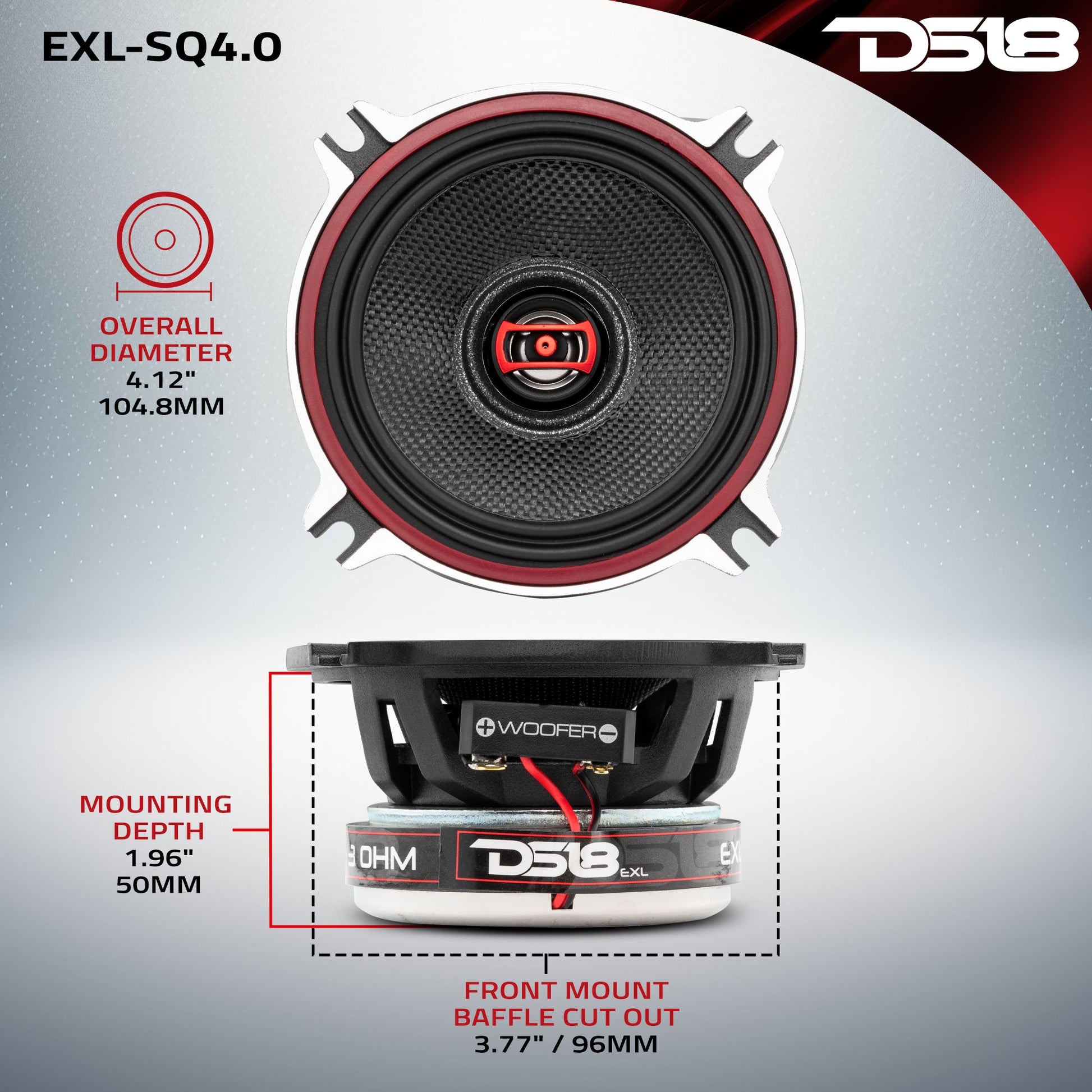

- Check the size and mounting depth against your vehicle before ordering. Some vehicles need speaker adapters or harnesses.
