DS18
Dual 8" Loaded High End Aluminum Subwoofer Enclosure 300 Watts Rms
Dual 8" Loaded High End Aluminum Subwoofer Enclosure 300 Watts Rms
Couldn't load pickup availability
Dual 8" Loaded High End Aluminum Subwoofer Enclosure 300 Watts Rms
Sold by AudioSellerz.com
The DS18 SQ82 is an 8" loaded subwoofer enclosure from DS18 rated at 300W RMS. The box has as much to do with how bass sounds as the sub itself.
DS18 Product Details
DS18 SQ82 8" Car Audio Subwoofer plus 8" Passive Subwoofer in High End Aluminum Enclosure 1200 Watts
Specially designed for vehicles that want to add great bass but have very little to no room for large subs and boxes.
The SQ82 incorporates a 8 inch subwoofer with an 8 inch passive woofer to help enrich the tone and bass levels in a compact enclosure that contains a special design to help extend and elaborate the bass for your music!
This subwoofer requires an external amp to feed it the 300 watts RMS it needs at 4 ohms.

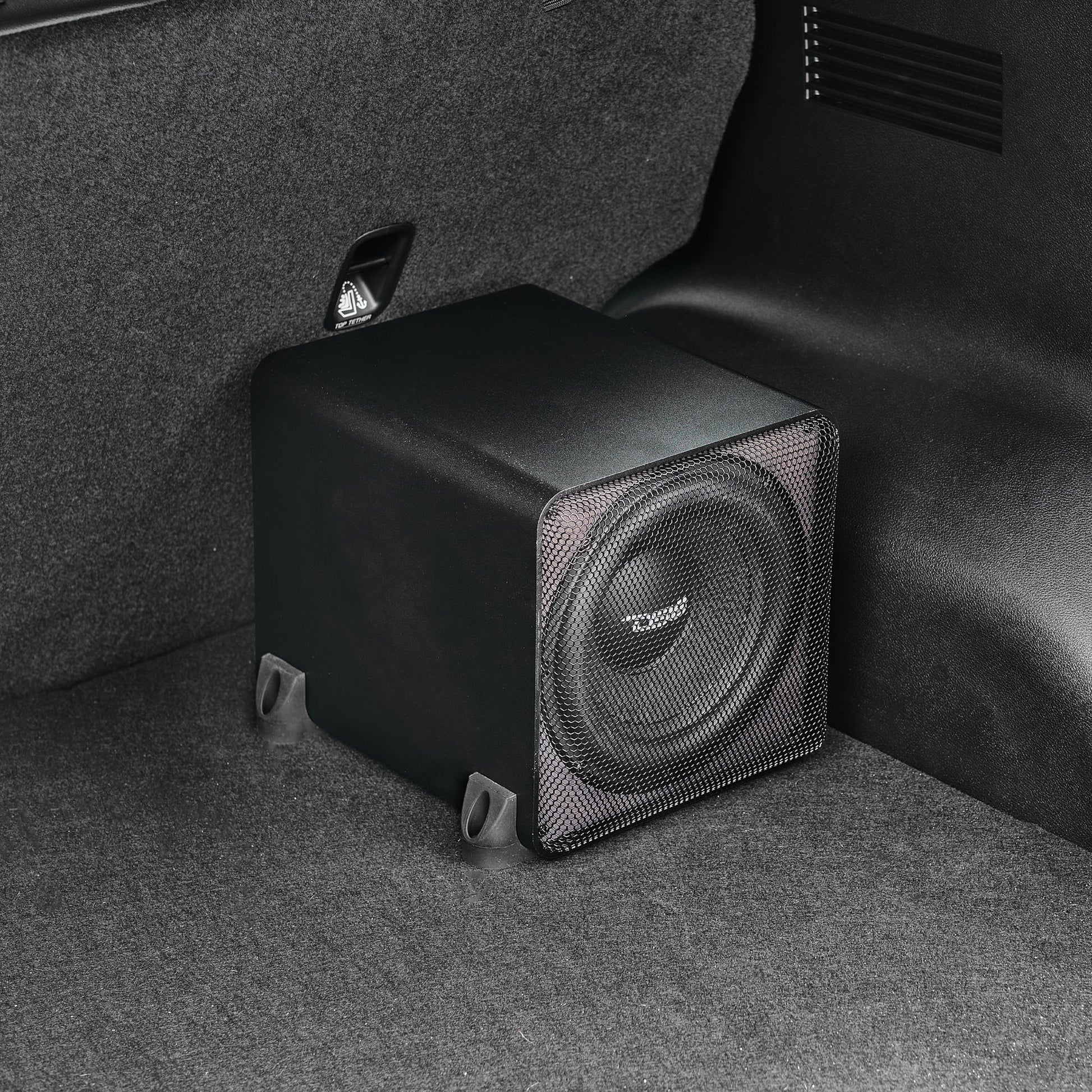

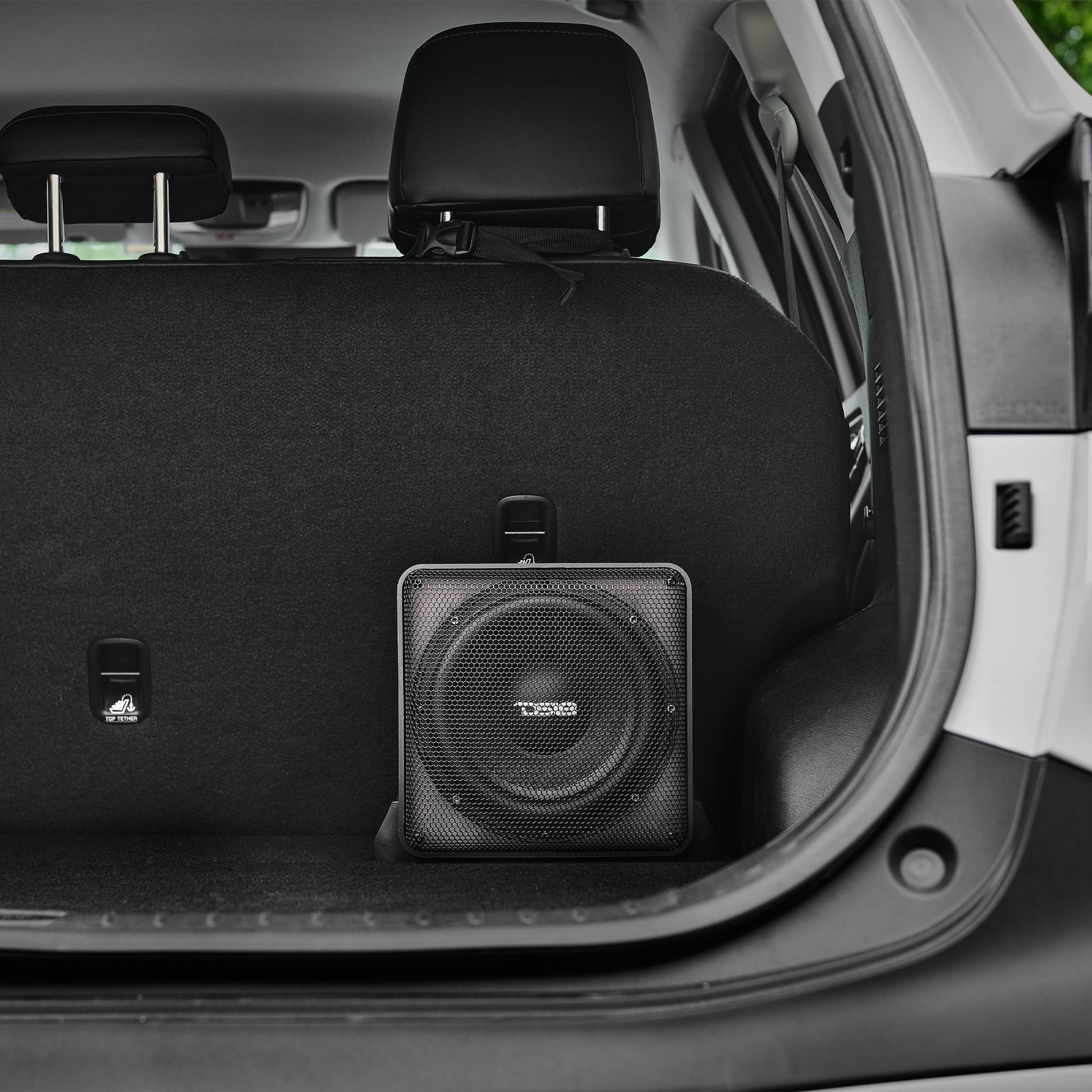

This small unit can fit behind most conventional car seating, rear cubby, or small sized storage compartments so you can have clear and vibrant bass even if you have no room.
When powered with 300w RMS you will be sure to get great vibes every time you hear the bass drop.
Highlights
- Add bass where there was none before easily! Compact design that is made to fit behind most front or rear seats or wherever there is room. The options are endless!
- Specially designed 8 inch active with 8 inch passive subwoofer made to maximize bass response in spaces that are not typically designed for subwoofers.
Key Features
- Subwoofer
- 8" active + 8" passive subwoofer
- Max Power Handling: 1200 watts
- RMS Power Handling: 300 watts
- Frequency Response: 30-350Hz
- Voice Coil Diameter: 1.52"
- Voice Coil Material: Copper
- Impedance: 4 ohms
- Sensitivity: 83 dB
- Magnet Weight: 32 Oz
- Magnet Material: Ferrite
- Box:
- Box Material: Aluminum
- Box Tuning: 50Hz
- Box Type: Sealed / Passive
- Internal Volume: .38 ft3
- Dimensions: (LxWxH) 12x9x9"
Good for:
Car Audio
Pro Audio
Home Solutions
DIY Projects
Technical Details
| SPECIFICATIONS | |
| Speaker Type / Size | 8" + 8" Passive |
| Total Impedance | 4 + 4 ohm |
| Total RMS Power Handling | 300W |
| Total MAX Power Handling | 1200W |
| Sensitivity (1w/1m) | 83dB |
| Frequency Response | 30-350Hz |
| SPEAKER SPECIFICATIONS | |
| Voice Coil Diameter | 1.52" / 38.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non-Press Cone |
| Dust Cap Material | Paper |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 32 Oz / 914 g |
| MEASUREMENT | |
| Overall Height | 9" / 230mm |
| Overall Width | 9" / 230mm |
| Overall Depth | 12" / 304mm |
Setup Tips From Audio Sellerz
- This enclosure is listed as loaded, so the subwoofer is installed. Check the impedance and power in the details to match the amp.
- Measure the space where the box will go before you order. Most fitment problems come from not measuring first.
- Seal the terminal cup and any gaps so the box performs the way it was designed.
