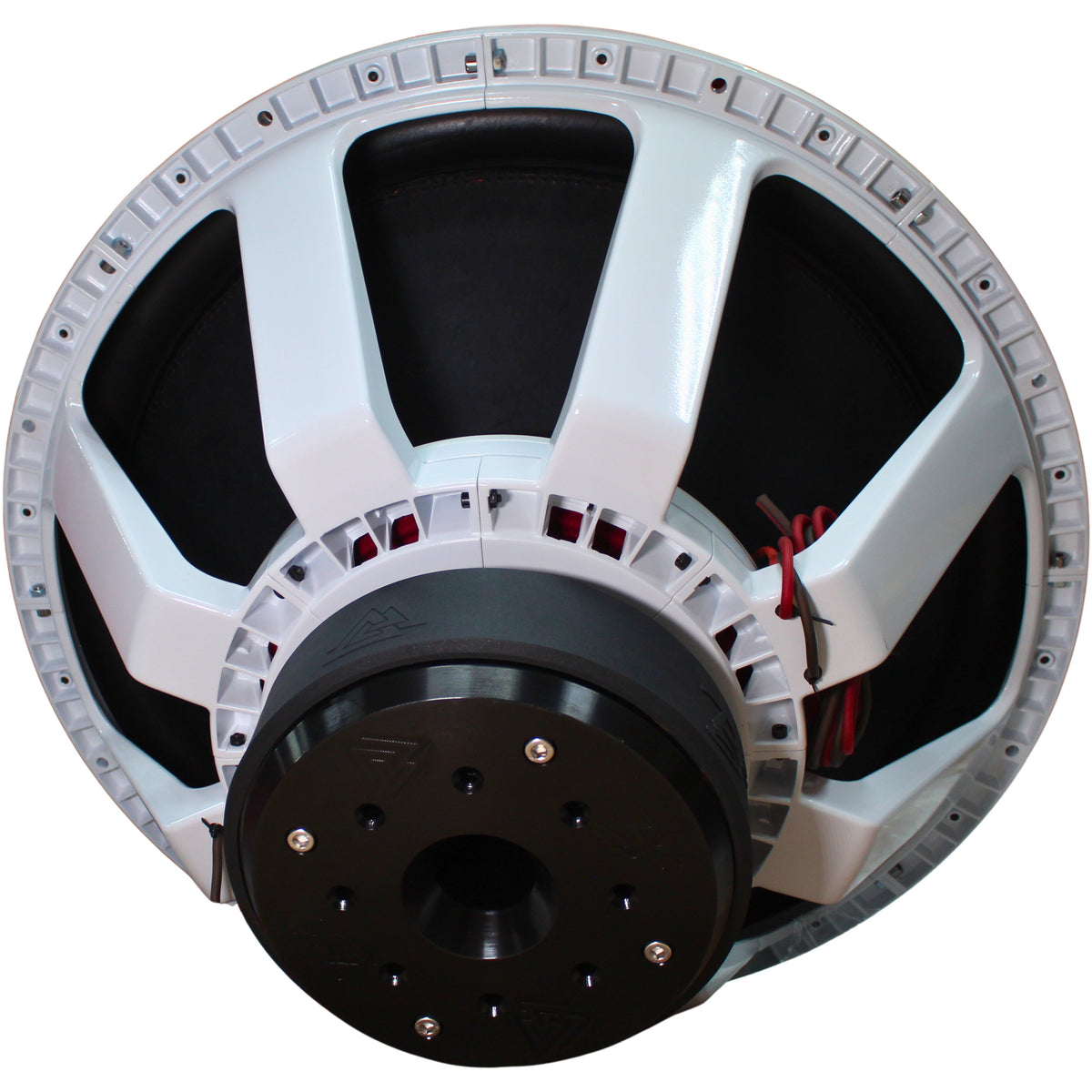

B2 Audio Subwoofer 33" 10000 Watts RMS 1-Ohm DVC / X2SIX-33

• Unmatched Power: With 10KW RMS and 20KW peak power, this subwoofer delivers extraordinary bass that can handle the most demanding audio needs.
• Massive Size: The impressive 33" size of the subwoofer ensures maximum air displacement for deep, resonant bass that you can feel.
• Dual Voice Coil (DVC) Efficiency: The 1-Ohm DVC configuration provides superior wiring flexibility and power handling capabilities.
• Premium Build Quality: Constructed with high-grade materials, the X2SIX V2 Series is designed for durability and long-lasting performance.
• Versatile Integration: Despite its massive size and power, this subwoofer is engineered to fit a variety of setups, offering adaptability without compromising performance.

B2 Audio X2SIX V2 Series 33" 10000 Watts RMS 1-Ohm DVC Subwoofer / X2SIX-33

**DISCLAIMER: This item is large and heavy, it must ship on a pallet. When purchasing this item, please call us to find out what is required to get this item shipped to you**

This Listing Includes:

• (1) X2SIX-33 Subwoofer

Description:

Unleash unparalleled power and performance with the B2 Audio X2SIX V2 Series 33" 10KW RMS/20KW Peak 1-Ohm DVC Subwoofer. Designed for audiophiles who demand the absolute best, this subwoofer redefines the limits of car audio. Boasting an astounding 10KW RMS and a staggering 20KW peak power, it delivers earth-shattering bass that will transform any vehicle into a rolling concert hall. The 1-Ohm dual voice coil (DVC) configuration provides maximum flexibility and efficiency, making this subwoofer a true powerhouse in any setup. Crafted with the finest materials and precision engineering, the B2 Audio X2SIX V2 is built to dominate.

Features:

• Resonance Frequency: Designed with a natural frequency of 20 Hz, this subwoofer delivers deep, powerful bass that enhances your music experience.


• Winding Material: Constructed with high-quality aluminum winding material for optimal performance and durability.

Specifications:

• RMS Power Handling: 10000 Watts


• Max Power Handling: 20000 Watts


• Nominal Impedance: DVC 1-Ohm


• Voice Coil Diameter: 6" / 152.4 mm Aluminum


• Frequency Response: 10 Hz - 500 Hz


• Sensitivity: 98.5 dB (2.83V)


• Cone Material: RNPP


• Surround Material: U Shaped Foam


• Magnet Material: Ferrite


• Magnet Weight: 2000 Oz / 125 lb / 56.7 kg

Thiele & Small Parameters

• Free Air Resonance (Fs): 20 Hz


• Resistance (Re): 1.58 Ohm


• Mechanical Factor (Qms): 8.05


• Electrical Factor (Qes): 0.65


• Total Factor (Qts): 0.603


• Equivalent Volume (Vas): 753.2 L


• L Efficiency: 0.894 %


• Compliance (Cms): 31.1 um/N


• Moving Mass (Mms): 2012 G


• Excursion Max (Xmax): 37 mm (one way)


• BL^2/RE: 390.86


• SD: 4129 cm^2


• Le (1 KHz) 3.6 mH


• EBP: 30.77

Measurements:

• Overall Diameter: 33.25" / 844.55 mm


• Mounting Diameter: 30.29" / 769.3 mm


• Bolt Pattern Diameter: 31.5" / 800.1 mm


• Overall Depth: 17.48" / 444 mm


• Mounting Depth: 15.55" / 395 mm


• Weight: 161 lb / 73.0284 kgs

Package Dimension:

• Weight: 224.872 lb / 102 kgs


• Dimensions: 36.7 x 36.7 x 21.7 in / 930 x 930 x 550mm

Enclosure Suggestions:

Sealed:

• 408 L / 14.41 ft^3


• Qtc/F3 0.694 / 32.7 Hz

Ported Compact:

• 600 L / 21.2 ft^3


• Port Area: 236.2 in^2


• Port Length : 35.4"


• FB: 25 Hz

Ported:

• 1000 L / 35.3 ft^3


• Port Area: 236.2 in^2


• Port Length: 32.3"


• FB: 20 Hz
