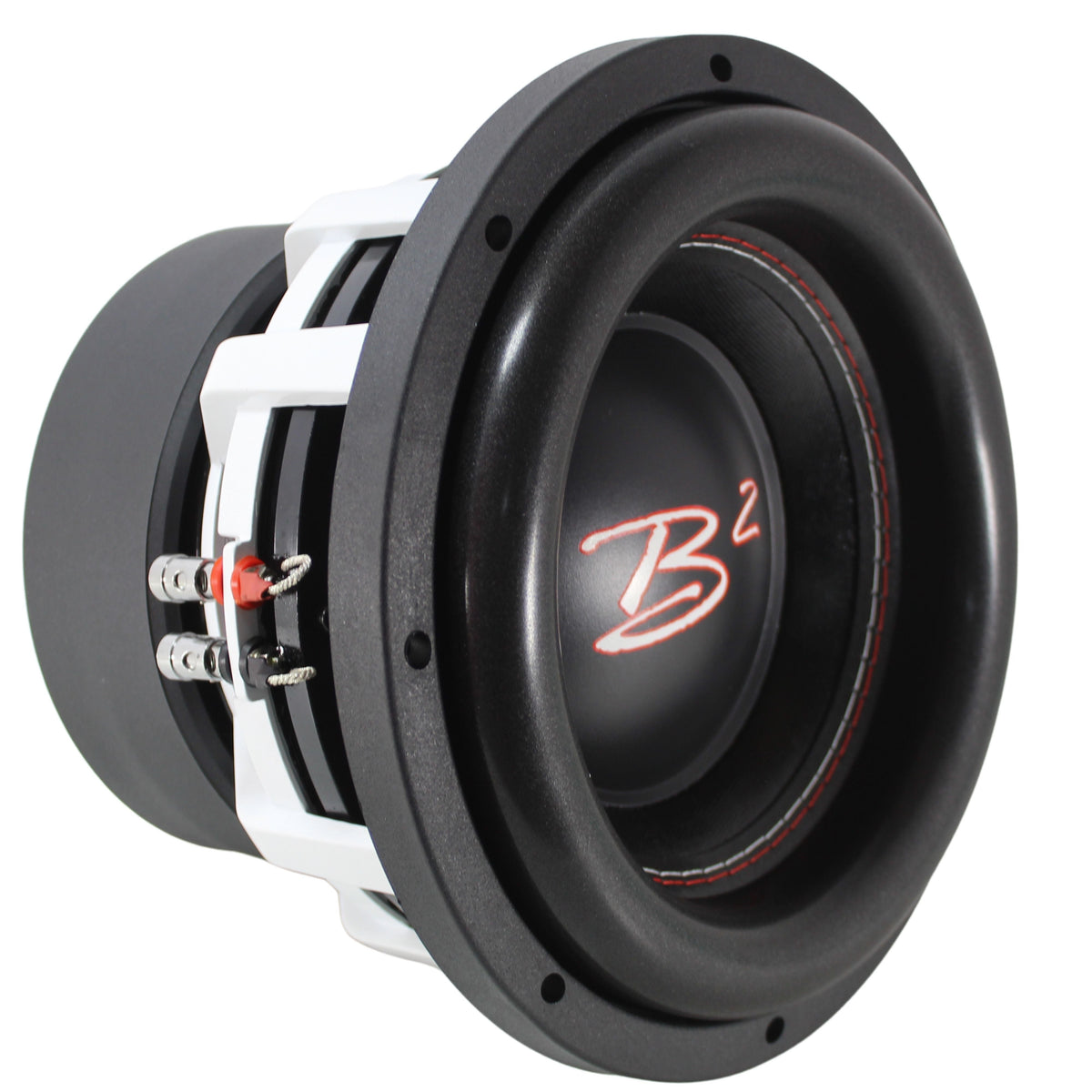

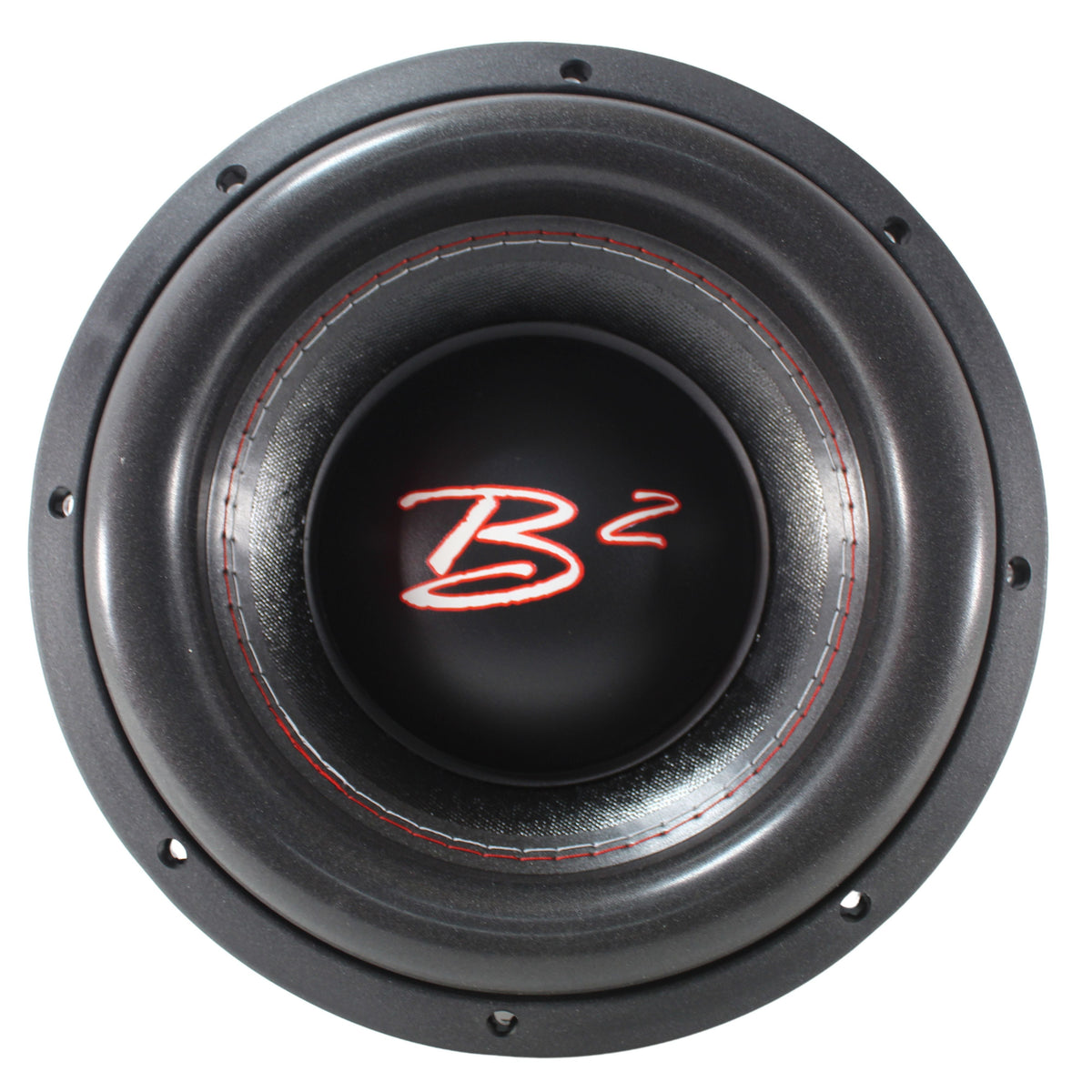

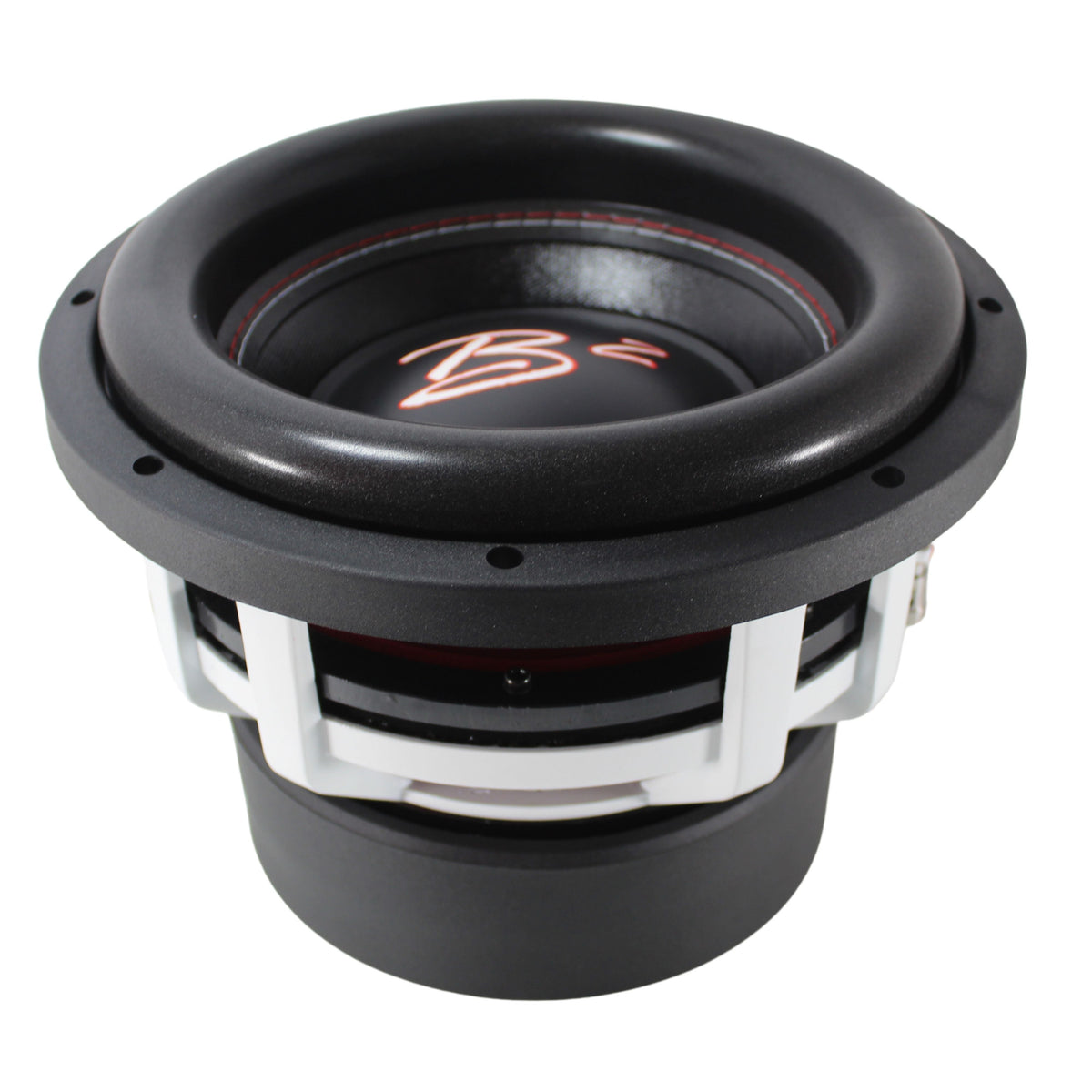

B2 Audio RIOT Series V2 10" 1000 Watt RMS Dual 4-Ohm 3" Voice Coil Subwoofer

B2 Audio RIOT Series V2 10" 1000 Watt RMS Dual 4-Ohm 3" Voice Coil Subwoofer

Sold by AudioSellerz.com

The B2 Audio RIOT Series V2 10" 1000 Watt RMS Dual 4-Ohm 3" Voice Coil Subwoofer is a car audio subwoofer from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• 1000W RMS / 3000W Peak Power - Built to deliver hard-hitting bass with outstanding control and reliability for daily listening or high-output demo systems.

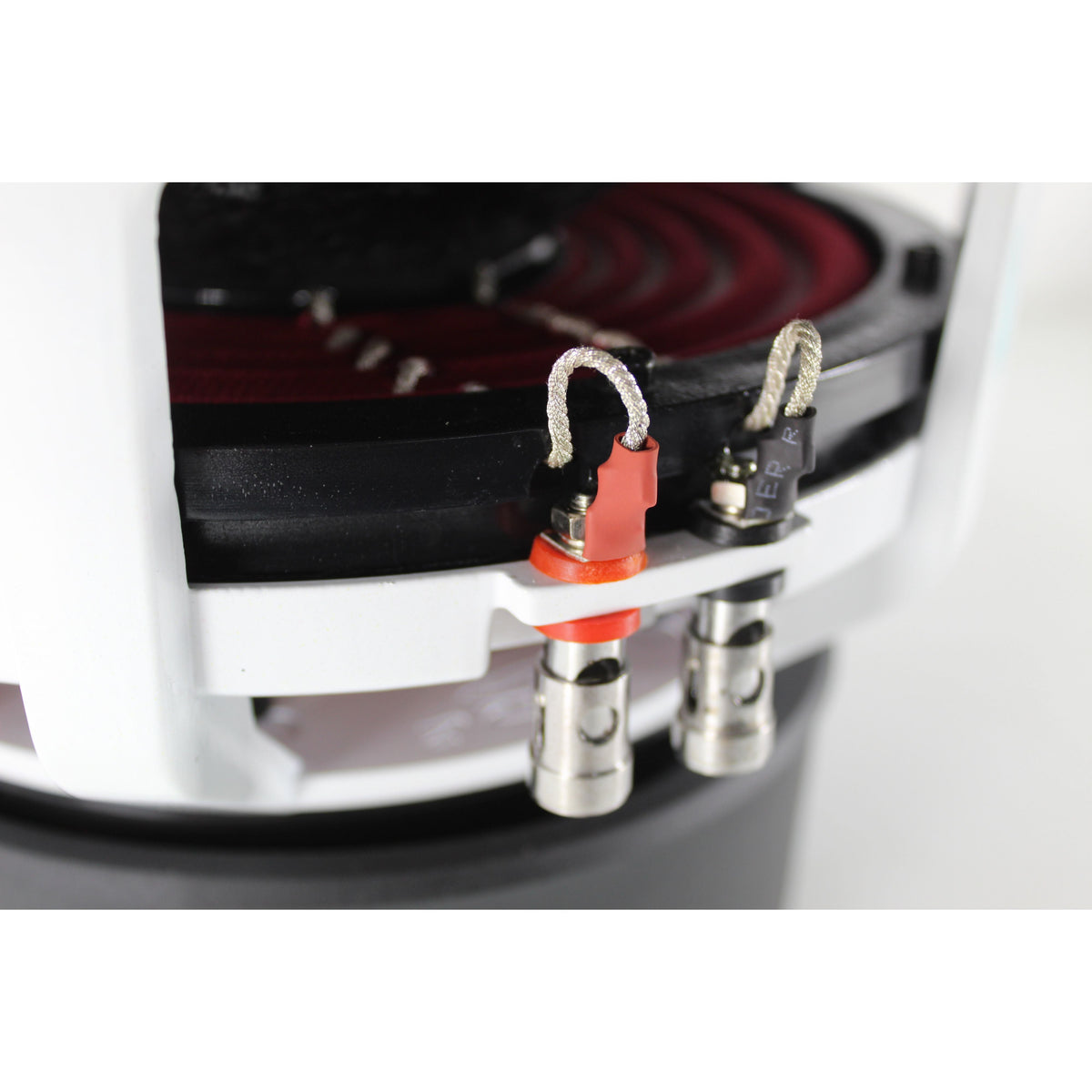

• Dual 4-Ohm Voice Coil Configuration - Flexible wiring options allow for 2-ohm or 8-ohm final impedance, making amplifier matching simple and versatile.
• High-Excursion 3" Voice Coil & 18mm XMAX - Engineered for deep, low-frequency extension with impressive excursion while maintaining clean, accurate bass response.
• Heavy-Duty 240 oz Motor Structure - Massive magnet assembly provides excellent power handling, improved efficiency, and precise cone control under demanding conditions.
• Works in Sealed or Ported Enclosures - Optimized for sealed, compact ported, standard ported, or 4th-order bandpass enclosures to fit a wide range of custom car audio builds.

B2 Audio 10" 1000 Watts RMS 3" Voice Coil Dual 4-Ohm Riot Series Subwoofer

This Listing Includes:

• (1) B2 Audio 10" Riot Series Subwoofer

The B2 Audio Riot Series 10" Subwoofer redefines performance and power with a compact design and robust features. With 1000 Watts RMS and a peak power handling of 3000 Watts, this subwoofer is engineered for dynamic, deep bass. It boasts a dual 4-ohm impedance configuration and a powerful 3-inch voice coil, providing versatility and optimized sound quality. Built with a 240 oz magnet and advanced materials, the Riot subwoofer delivers precise low-frequency performance while ensuring durability. Whether you're upgrading your car audio system or building a custom setup, this subwoofer is the ultimate choice for high-performance sound enthusiasts.

Specifications

• Sensitivity: 80.1 dB (1w/1m)


• Nominal Impedance: Dual 4-Ohm


• Voice Coil Diameter: 3"


• Power Handling: 1000 Watts RMS


• Peak Dynamic Power: 3000 Watts


• XMAX One Way: 18mm


• VAS: 16.9 L


• FS: 30.9 Hz


• QES: 0.76


• QMS: 6.64


• QTS: 0.68


• CMS: 110 um/N


• MMS: 241.7 g


• BL^2/RE: 62.5

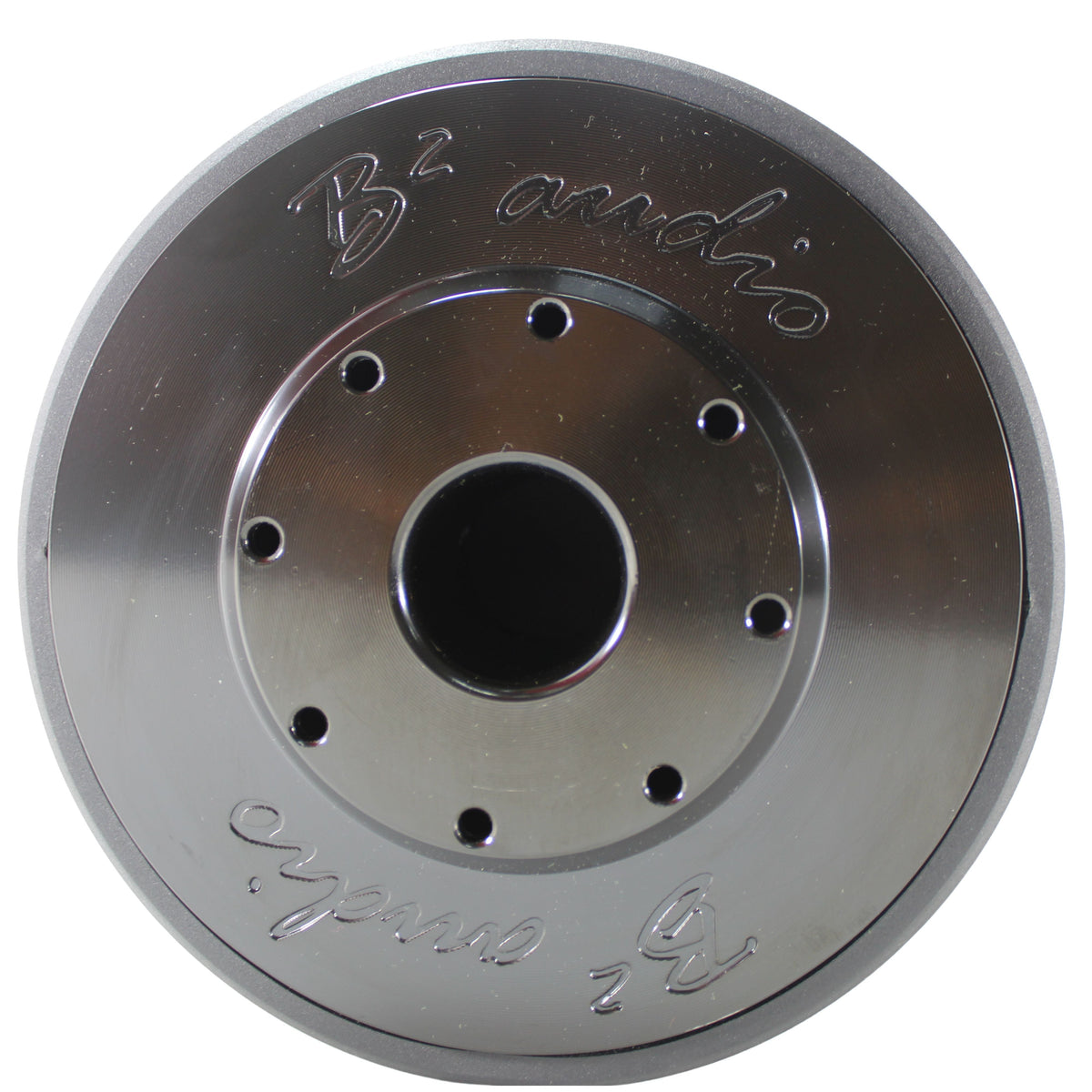

• Magnet: 240 Oz


• Displacement: 3.7L / 0.13cu.ft

Dimensions

• Overall Diameter: 10.82" / 275 mm


• Overall Depth: 8.07"


• Front Mount Baffle Cutout: 9.25"


• Mounting Depth: 6.81"


• Motor Diameter: 7.40"


• Weight: 24.25 LBS

Enclosure Suggestions

Sealed

• 20 L / 0.706 cu. ft Qtc 1.1 / Qtc 0.682 / Fb 42 Hz

Ported Compact

• 35L / 1.24 cu.ft / Port Area: 12 sq in. / Port Length: 15.7" / FB: 38 Hz

Ported

• 50 L / 1.76 cu/ft / P: 12 sq in. / L: 15.7" / FB: 32 Hz

BP 4th

• 3:1 Ratio
