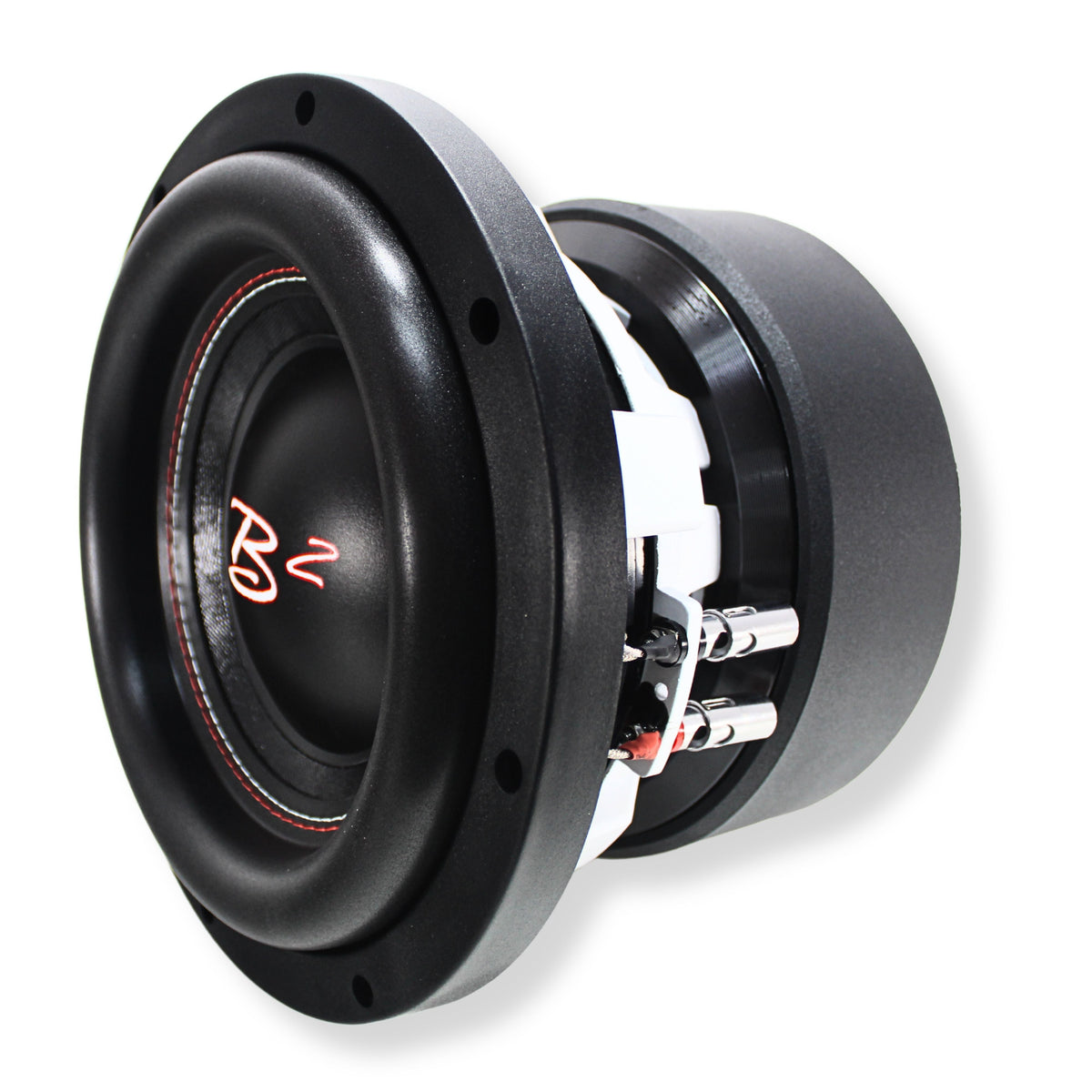

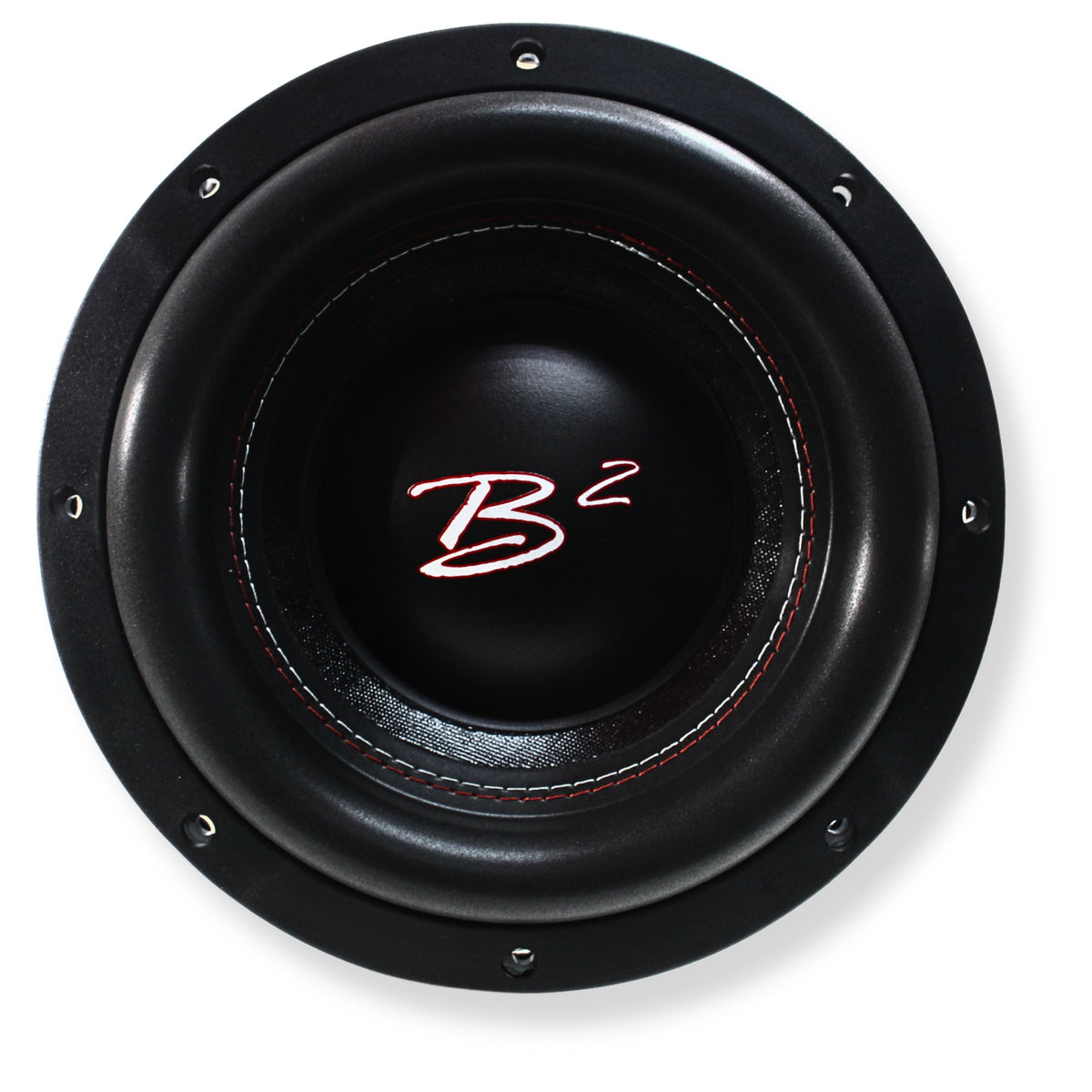

B2 Audio RAGEXL Series 10" 1500 Watt RMS Dual 2-Ohm Voice Coil Subwoofer

B2 Audio RAGEXL Series 10" 1500 Watt RMS Dual 2-Ohm Voice Coil Subwoofer

Sold by AudioSellerz.com

The B2 Audio RAGEXL Series 10" 1500 Watt RMS Dual 2-Ohm Voice Coil Subwoofer is a car audio subwoofer from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• Apocalyptic Power: Brace yourself for an onslaught of 1500 Watts RMS, unleashing a cataclysmic wave of bass that shakes the very foundations of reality.
• Sonic Fury: Experience the relentless assault of sound with precision-engineered dual 2-ohm voice coils, delivering thunderous lows and spine-chilling clarity.
• Unleash the Beast: Dominate the audio landscape with unrivaled flexibility, thanks to dual 2-ohm voice coils that empower you to customize your setup for maximum impact.
• Built to Conquer: Crafted with uncompromising attention to detail, this subwoofer is a testament to durability and resilience, ready to withstand the most punishing environments.
• Elevate Your Experience: Prepare to be transported to the edge of sensory overload as the B2 Audio RAGE XL Series 10" Subwoofer pushes the boundaries of intensity, delivering an audio experience that transcends the ordinary.

B2 Audio RAGEXL Series 10" 1500 Watt RMS Dual 2-Ohm Voice Coil Subwoofer

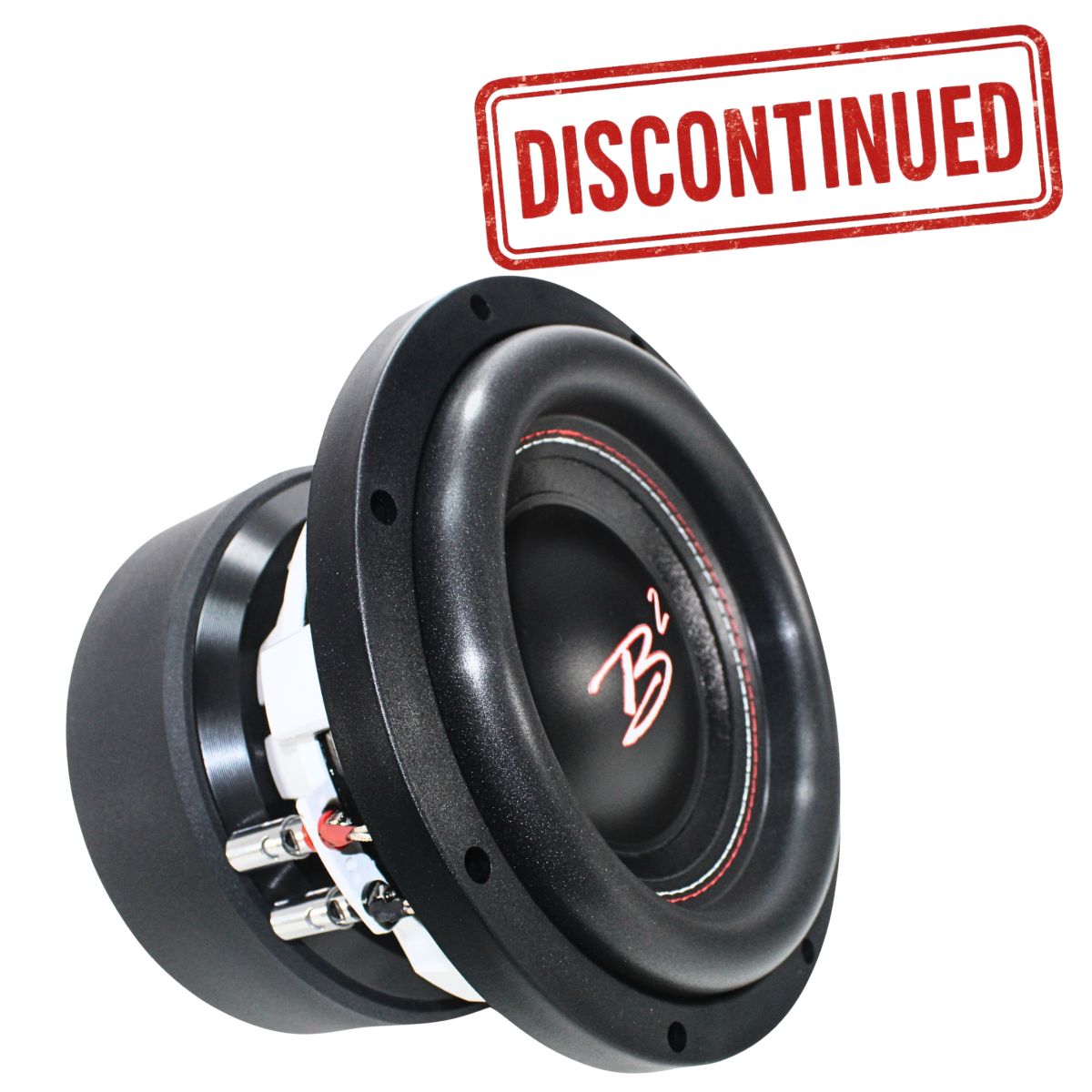

*This one’s been discontinued, but we’ve got you covered. Check out the B2-RAMPAGE10-D2.

This Listing Includes:

• (1) B2 Audio RAGE XL 10" Subwoofer

Prepare to be consumed by the unbridled fury of sound unleashed by the B2 Audio RAGE XL Series 10" 1500 Watt RMS Dual 2-Ohm Voice Coil Subwoofer. This is not just another speaker; it's a relentless force of nature, engineered to dominate the audio landscape with its sheer power and precision.

Featuring an uncompromising 1500 Watt RMS power handling capability, this subwoofer delivers bone-rattling bass and spine-tingling lows that reverberate through your soul. Its dual 2-ohm voice coils provide unparalleled flexibility, allowing you to fine-tune your audio setup to perfection.

Crafted with meticulous attention to detail and built to withstand the most demanding conditions, the B2 Audio RAGE XL Series Subwoofer is a testament to innovation, performance, and uncompromising quality.

Get ready to unleash the beast and experience audio like never before with the B2 Audio RAGE XL Series 10" Subwoofer - where power meets passion, and intensity knows no bounds.

Features:

• 1500W RMS / 6000W peak dynamic power for extreme low-frequency output


• Dual 2-ohm voice coils for flexible wiring and amplifier matching

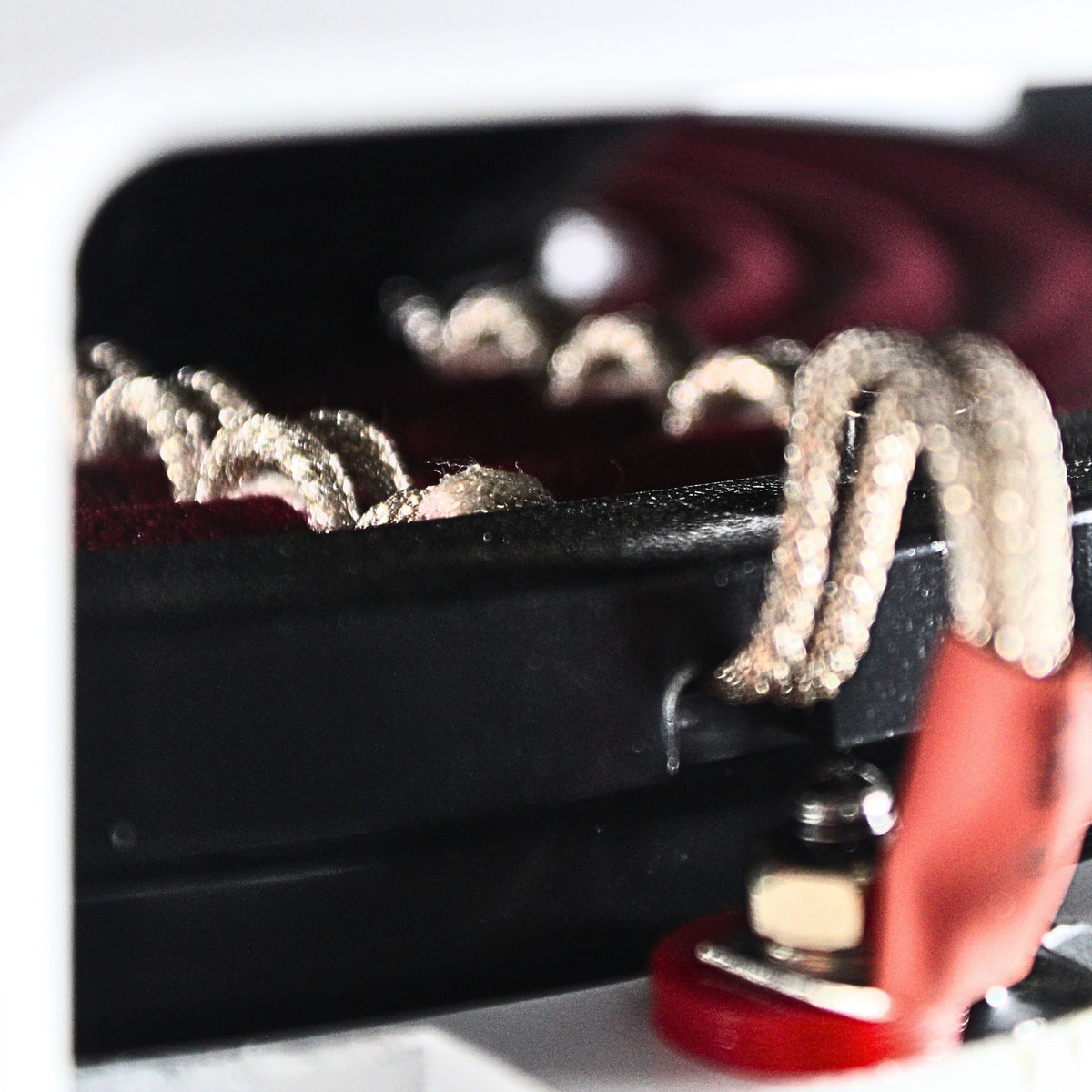

• 3" high-temp voice coil built for heavy power and long-term durability

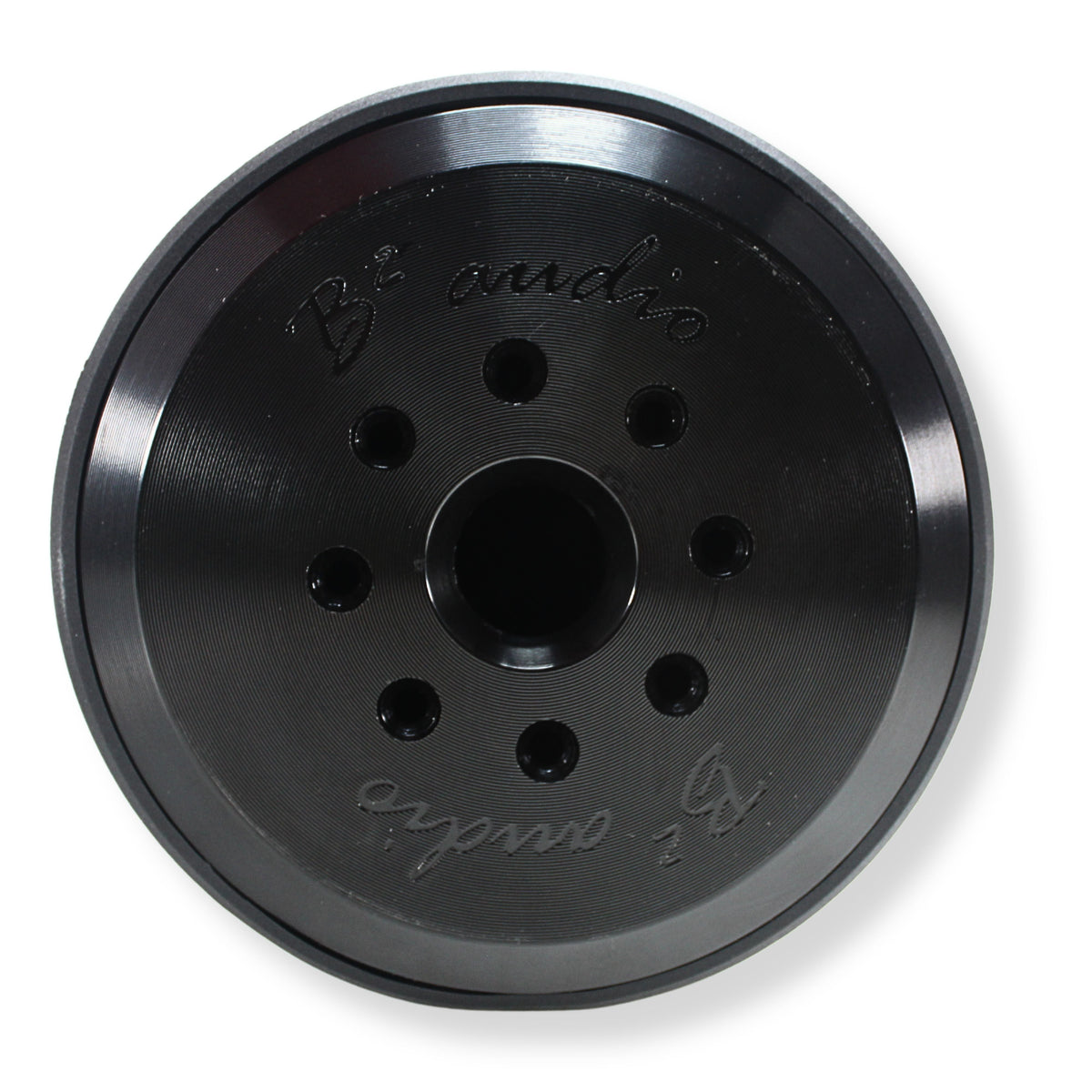

• Massive 560 oz ferrite motor delivers powerful motor force and deep control


• Long-excursion suspension with 28 mm Xmax for chest-hitting bass


• Designed for sealed, compact ported, and high-output ported enclosures


• Strong, high-performance cone and surround engineered for precision

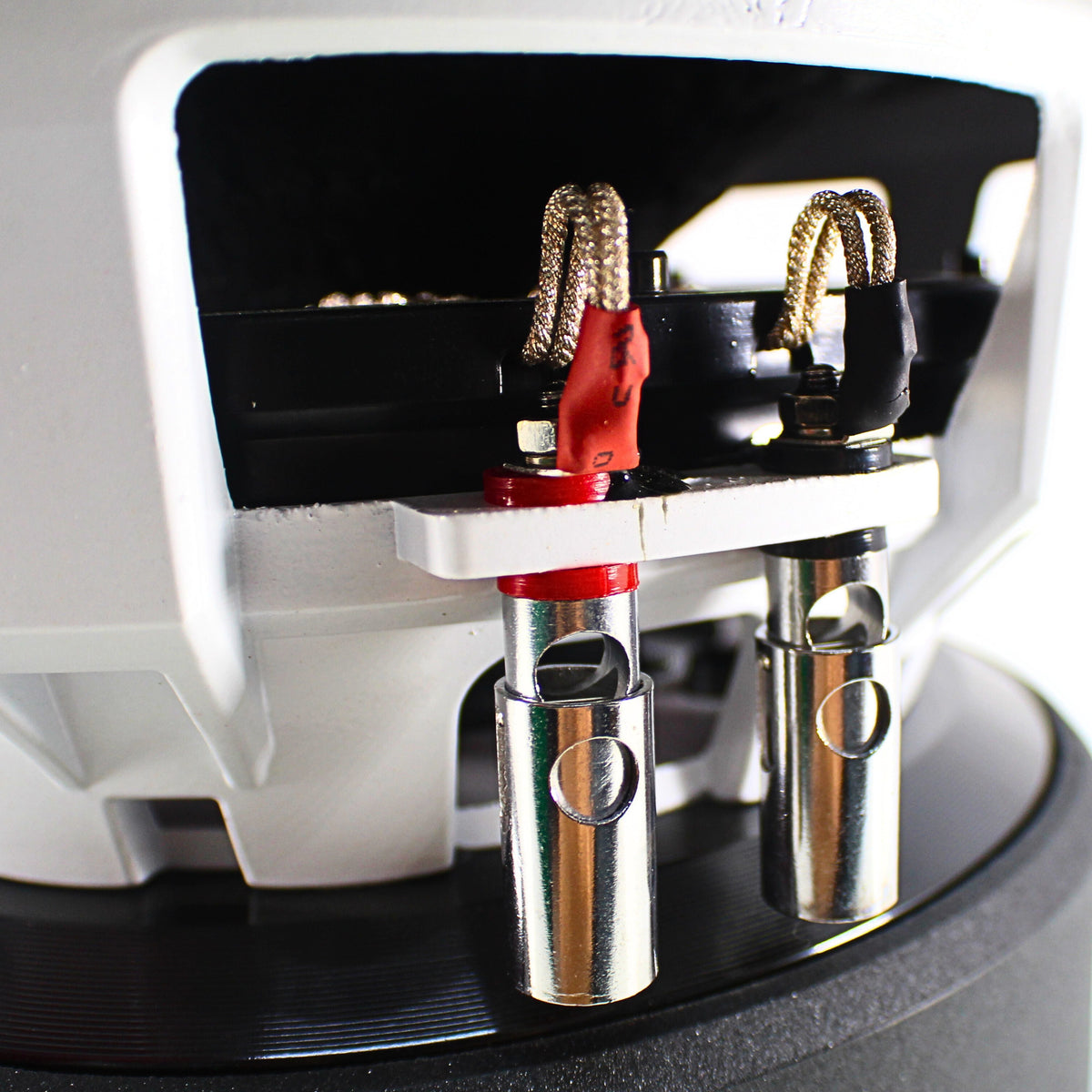

• 4-gauge push terminals for secure, high-current connections


• Ideal for high-powered daily builds, demo vehicles, and competition-ready setups

Specifications:

• RMS Power Handling: 1500 Watts


• Peak Dynamic Power: 6000 Watts


• Push Terminal Wire Gauge: 4 Ga


• Nominal Impedance: Dual 2-Ohm


• Voice Coil Diameter: 3"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 91.2 dB


• Magnet Weight: 560 Oz


• Displacement Volume: 5.7 L / .186 cu.ft

Thiele & Small Parameters

• Free Air Resonance (Fs): 34.8 Hz


• Resistance (Re): 2-Ohm


• Mechanical Factor (Qms): 6.63


• Electrical Factor (Qes): 0.38


• Total Factor (Qts): 0.359


• Equivalent Volume (Vas): 8.8 L


• Excursion Max (Xmax): 28 mm

Measurements:

• Overall Diameter: 10.83" / 275 mm


• Mounting Diameter: 9.25" / 235 mm


• Bolt Pattern Diameter: 10.04" / 255 mm


• Overall Depth: 8.63" / 220 mm


• Mounting Depth: 7.13" / 181 mm

Enclosure Suggestions:

Sealed:

• 20 L / 1.06 cu.ft


• Qtc: 0.376

Ported Compact:

• 40 L / 1.41 cu.ft


• P.A.: 12 sq.in


• Length: 13.5"


• FB: 38 Hz

Ported:

• 55 L / 1.94 cu.ft


• Port Area: 12 sq.in


• Length: 12.9"


• FB: 33 Hz
