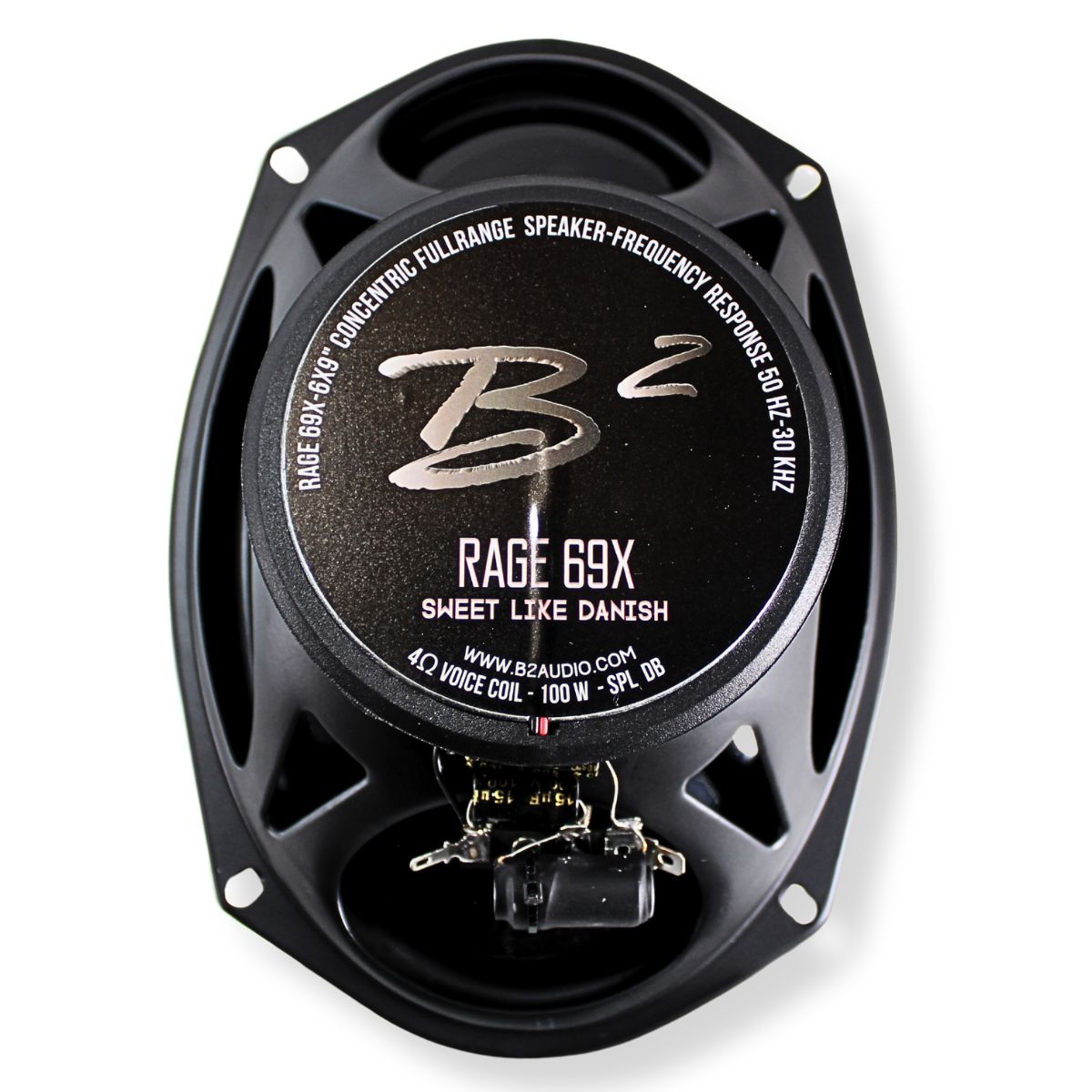

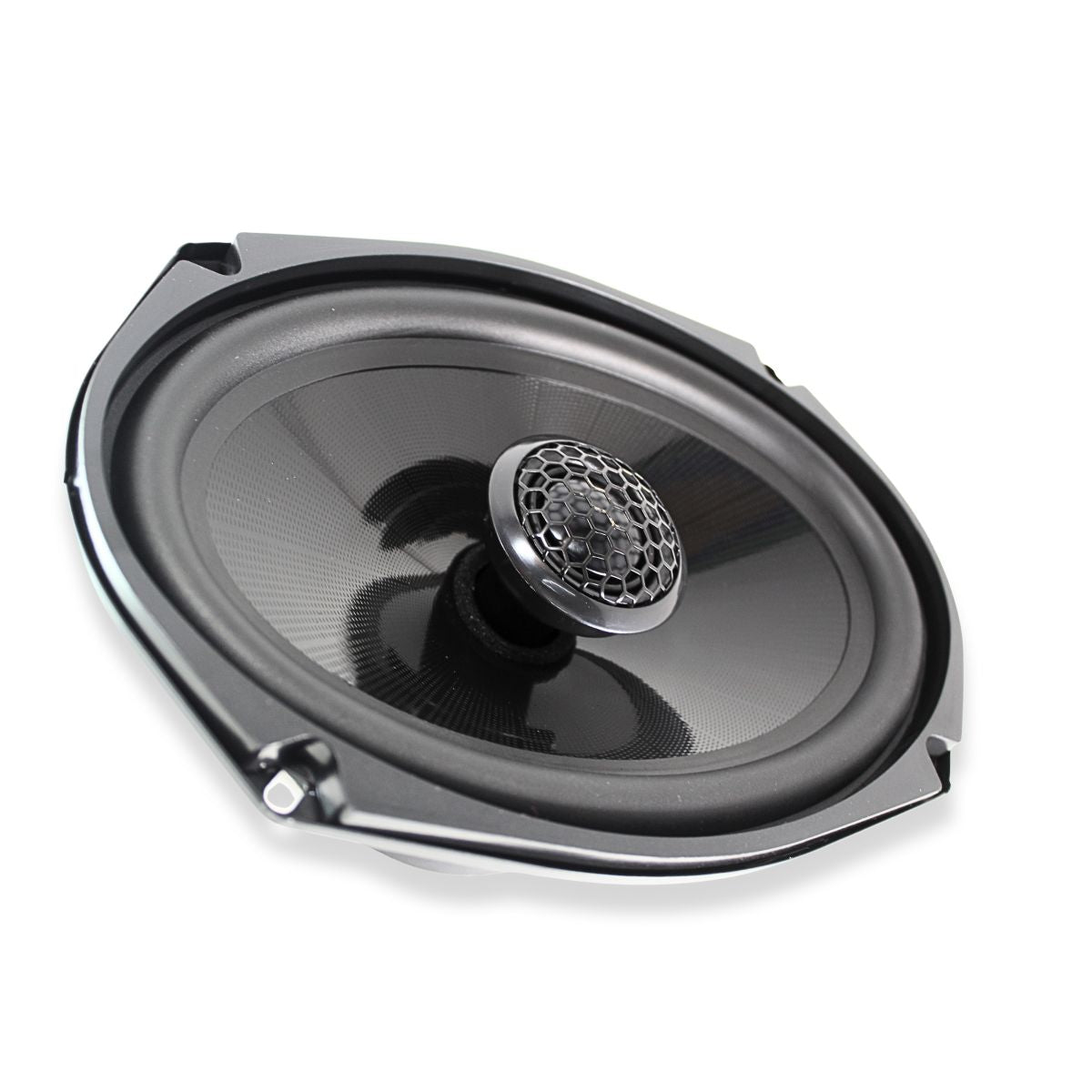

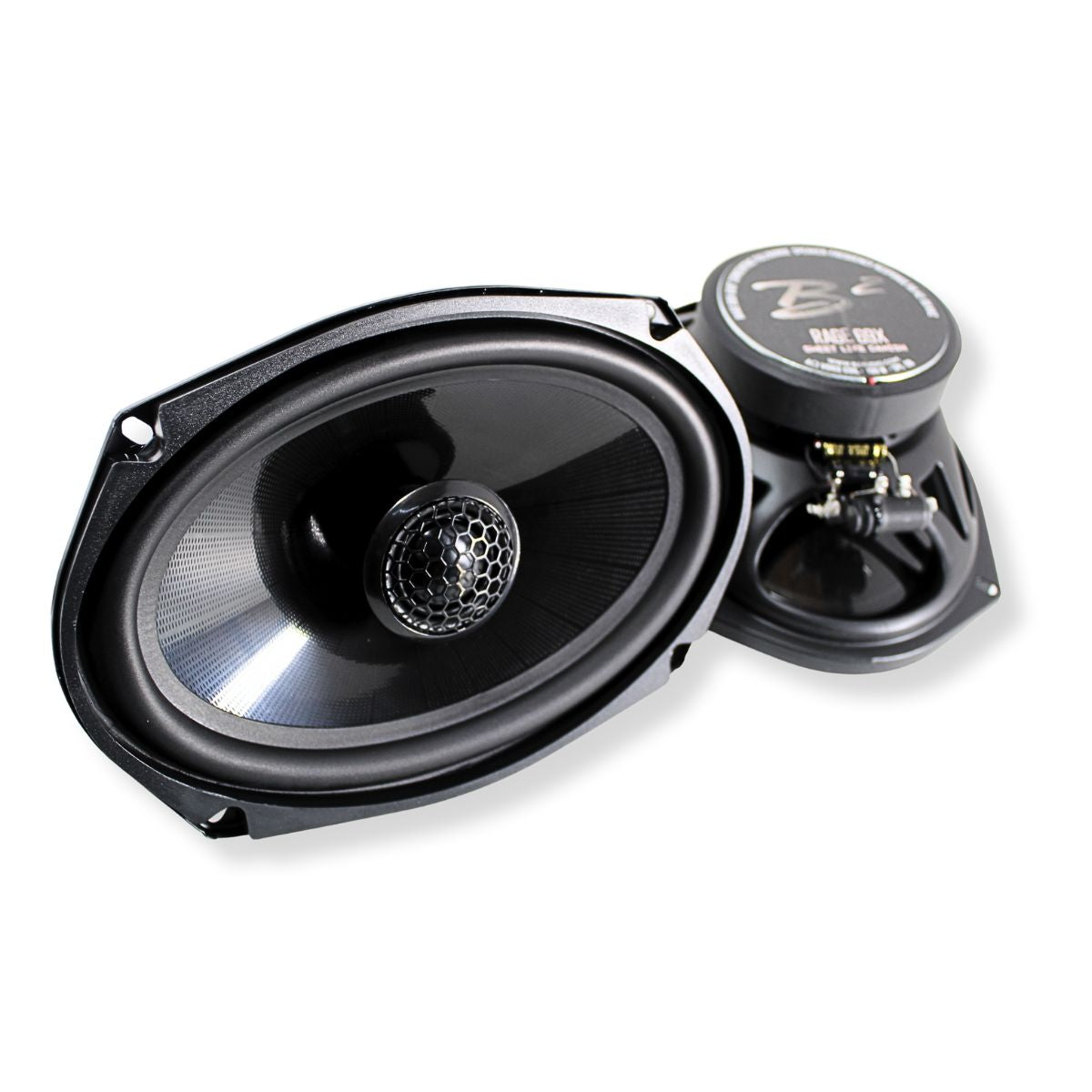

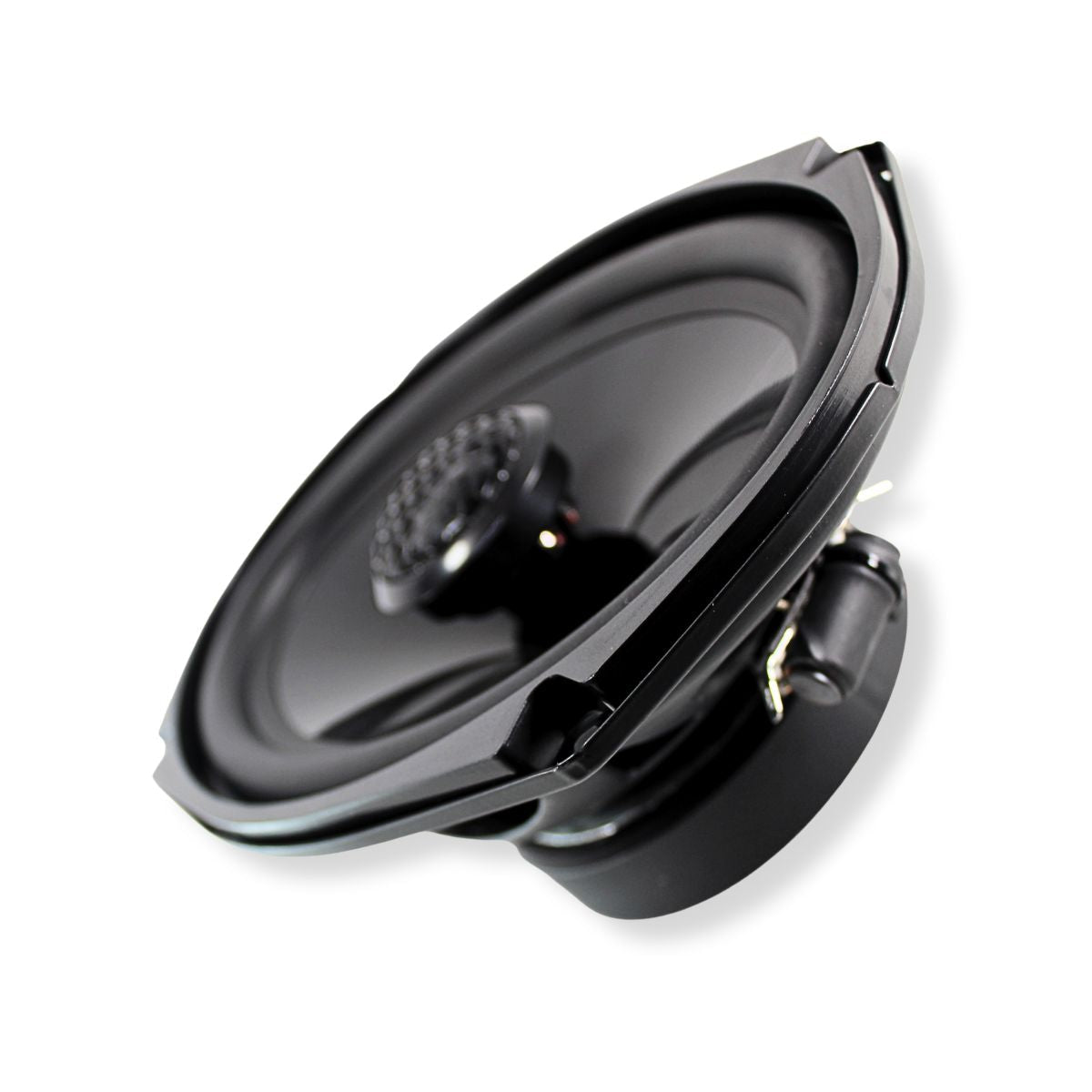

B2 Audio RAGE Series Pair of 6x9" 4-Ohm 100 Watt RMS Coaxial Mid To High End Speakers RAGE69X

B2 Audio RAGE Series Pair of 6x9" 4-Ohm 100 Watt RMS Coaxial Mid To High End Speakers RAGE69X

Sold by AudioSellerz.com

The B2 Audio RAGE Series Pair of 6x9" 4-Ohm 100 Watt RMS Coaxial Mid To High End Speakers RAGE69X is a car audio speaker product from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

• Coaxial Full Range: The innovative Coaxial design ensures a uniform sound field, delivering consistent and high-quality audio performance across all listening positions.
• Robust Power Output: With an RMS wattage of 100 watts, these speakers provide powerful and clear sound, ensuring an immersive audio experience.
• Wide Frequency Range: Covering from 50 Hz to 30 KHz, the speakers capture a full spectrum of sound, from deep bass to crisp highs, for detailed music reproduction.
• Optimal 4-Ohm Impedance: Designed with a 4-ohm impedance, these speakers work efficiently with various amplifiers, optimizing power usage and sound quality.
• 6x9 Speaker Size: The 6x9" size provides a balanced sound output, making these speakers ideal for upgrading car audio systems or custom audio installations.

B2 Audio RAGE69X 6x9" 4-Ohm 100W RMS Coaxial Speakers Pair – RAGE Series

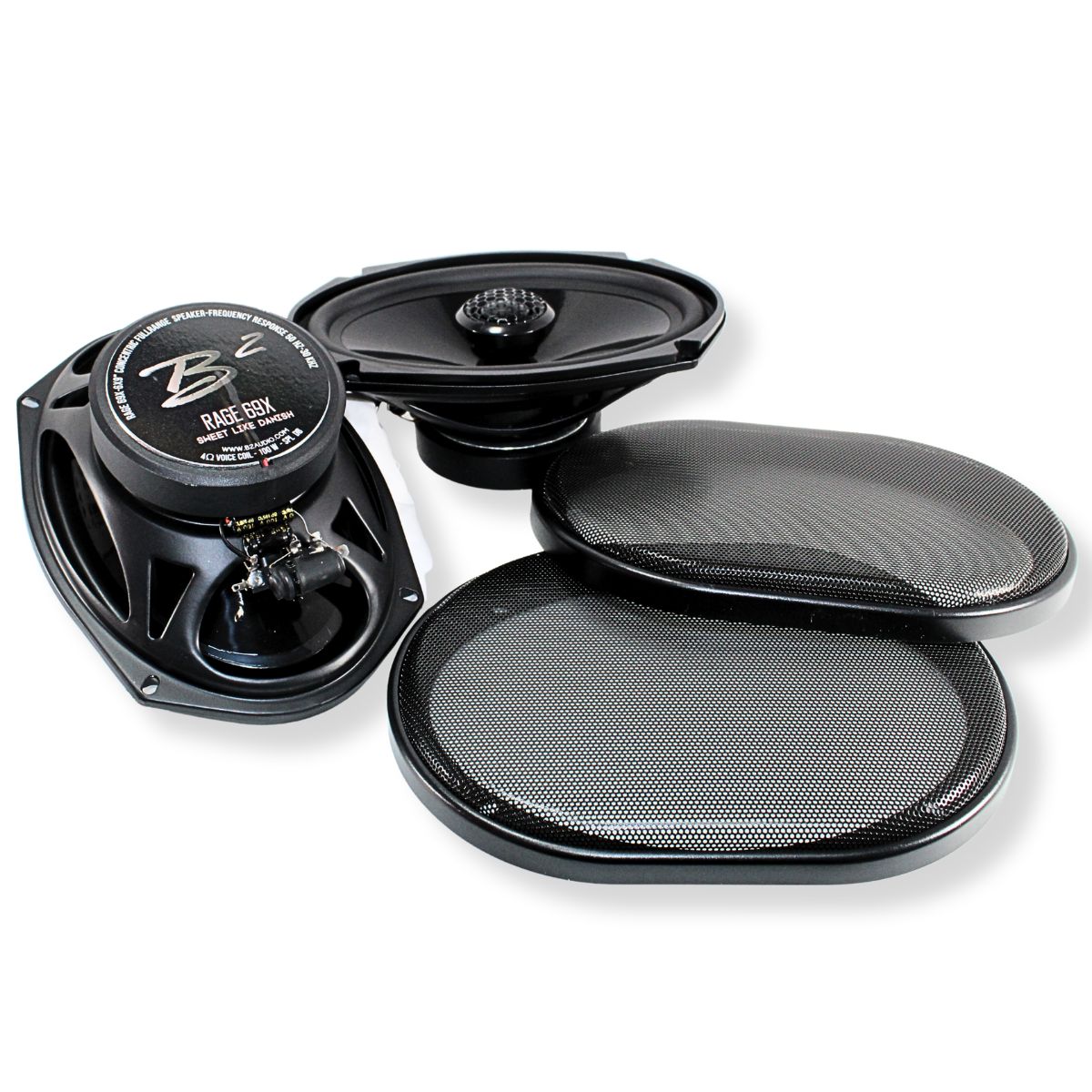

This Listing Includes:

• (2) B2 Audio RAGE 6x9"" 100W Coaxial Speakers

Description:

The B2 RAGE Series 6x9" 100W 4-Ohm SVC Coaxial Full Range Speaker Set is engineered to elevate your audio experience with unparalleled clarity and power. Perfect for car audio enthusiasts and custom installations, these speakers deliver dynamic and immersive sound. Featuring a robust 100-watt RMS power output and a wide frequency response from 50 Hz to 30 KHz, the B2 RAGE Series captures every detail of your music, from deep, resonant bass to sparkling highs. The innovative Coaxial full-range design ensures uniform sound distribution, making every seat the best seat in the house. With a 4-ohm impedance, these speakers are optimized for efficiency and compatibility with various amplifiers, providing superior sound quality in any setup.

Features:

• Resonance (natural) Frequency: 55 Hz


• Winding Material: CCA


• Magnet Type: Neo / Ferrite


• Cone Material: IMWRP


• Surround Type: U Shaped Rubber

Specifications (Per Speaker):

• RMS Power Handling: 100W


• Maximum Power Handling: 300W


• Nominal Impedance: 4-Ohm


• Voice Coil Diameter: 1" / 25.4 mm


• Magnet Weight: 20.6 OZ


• Frequency Response: 50 Hz - 30 KHz


• Sensitivity: 90 dB

Thiele and Small Parameters:

• Free Air Resonance (Fs): 55 Hz


• Resistance (Re): 3.4 Ohm


• Mechanical Factor (QMS): 6.43


• Electrical Factor (Qes): 0.93


• Total Factor (Qts): 0.815


• Equivalent Volume (Vas): 24.26 L


• BL Factor (BL): 5.17 T/M


• Moving Mass (Mms): 20.9 G


• Excursion Max (Xmax): 5 mm


• SD: 210.5 cm^2


• Efficiency: 0.44 %


• Le (1 KHz): 0.461 mH


• EBP: 59.1

Measurements (Per Speaker):

• Overall Diameter: 6.5 x 9.21" / 165.1 x 233.934 mm


• Mounting Diameter: 5.55 x 8.35" / 140.97 x 212.09 mm


• Bolt Pattern Diameter: diagonal 7.69" or 4.5 x 6.2" / diagonal 195.326 mm or 114.3 x 157.48 mm


• Overall Depth: 3.3" / 83.82 mm


• Mounting Depth: 2.87" / 72.898 mm


• Sold as: (Pair)
