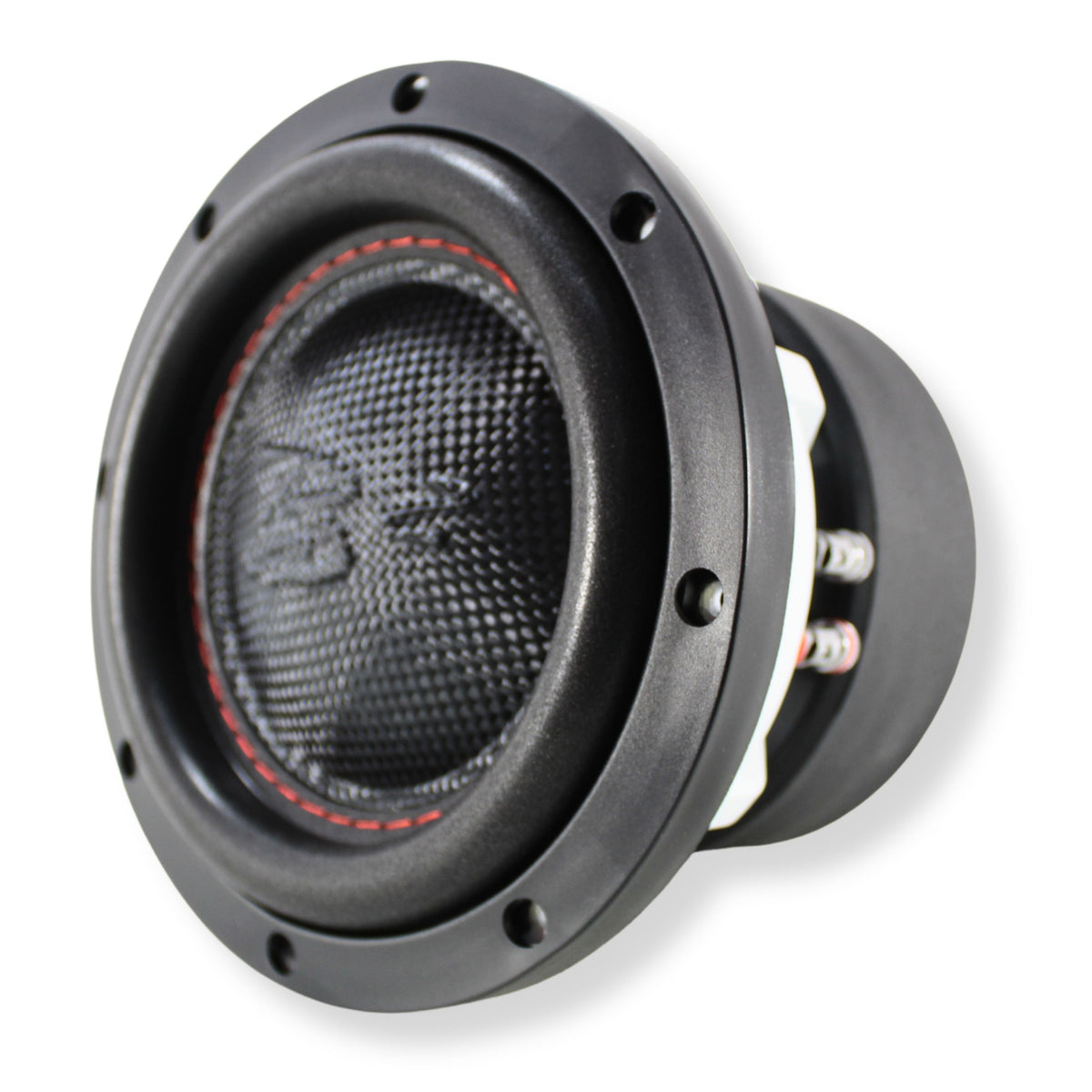

B2 Audio RAGE Series 6" Dual 2" Voice Coil 2-Ohm 350W RMS Subwoofer RAGE6-D2

B2 Audio RAGE Series 6" Dual 2" Voice Coil 2-Ohm 350W RMS Subwoofer RAGE6-D2

Sold by AudioSellerz.com

The B2 Audio RAGE Series 6" Dual 2" Voice Coil 2-Ohm 350W RMS Subwoofer RAGE6-D2 is a car audio subwoofer from B2 Audio, sold by Audio Sellerz. This page keeps the supplied product details and specifications intact so you can review the actual model information before ordering. Use the product details below to confirm power, impedance, dimensions, fitment, included parts, and other specifications that apply to this exact B2 Audio model.

B2 Audio Product Details & Specifications

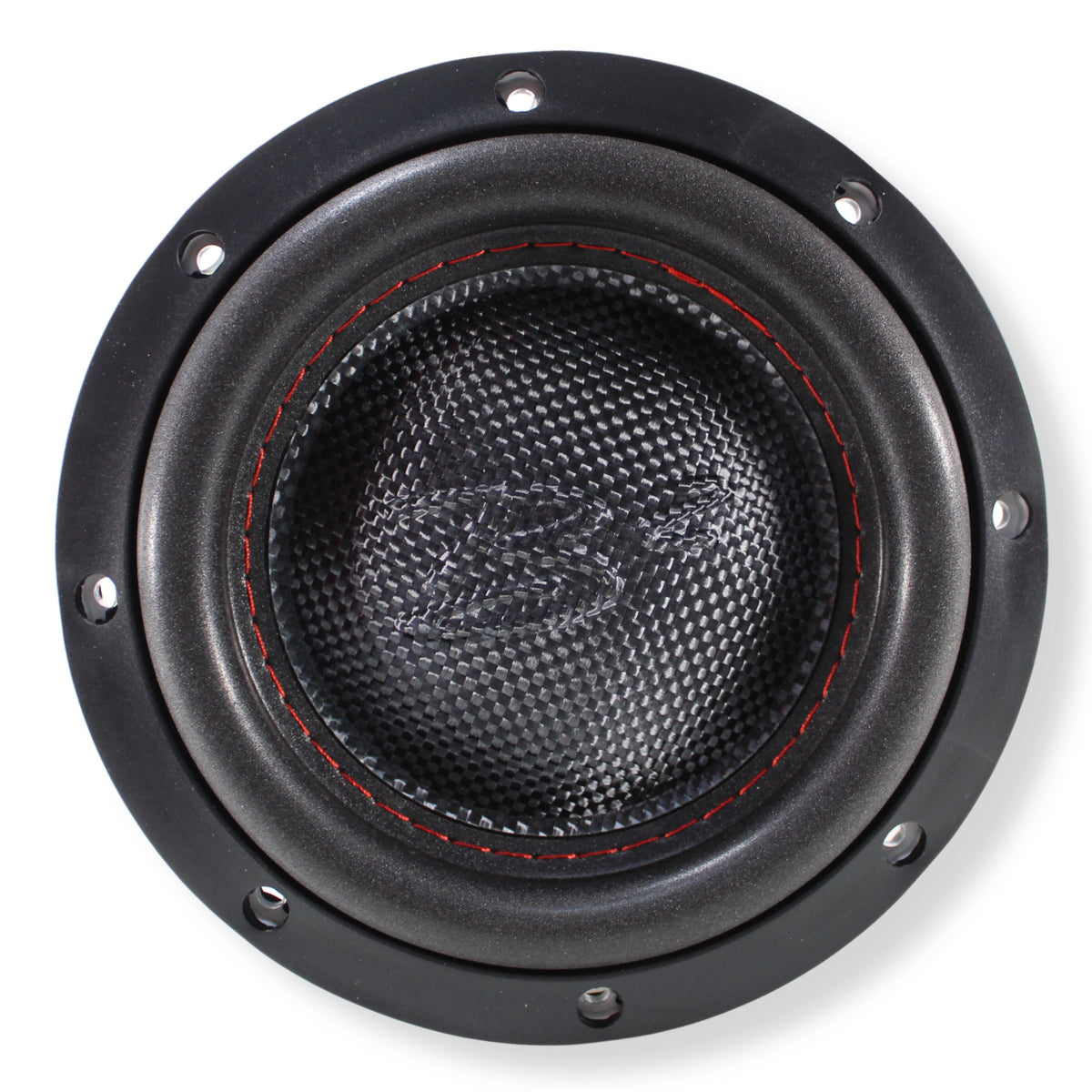

• Custom Carbon Fiber Dustcap: The new protruding logo on the carbon fiber dustcap adds rigidity and strength to the cone, ensuring stable performance even at high volumes.

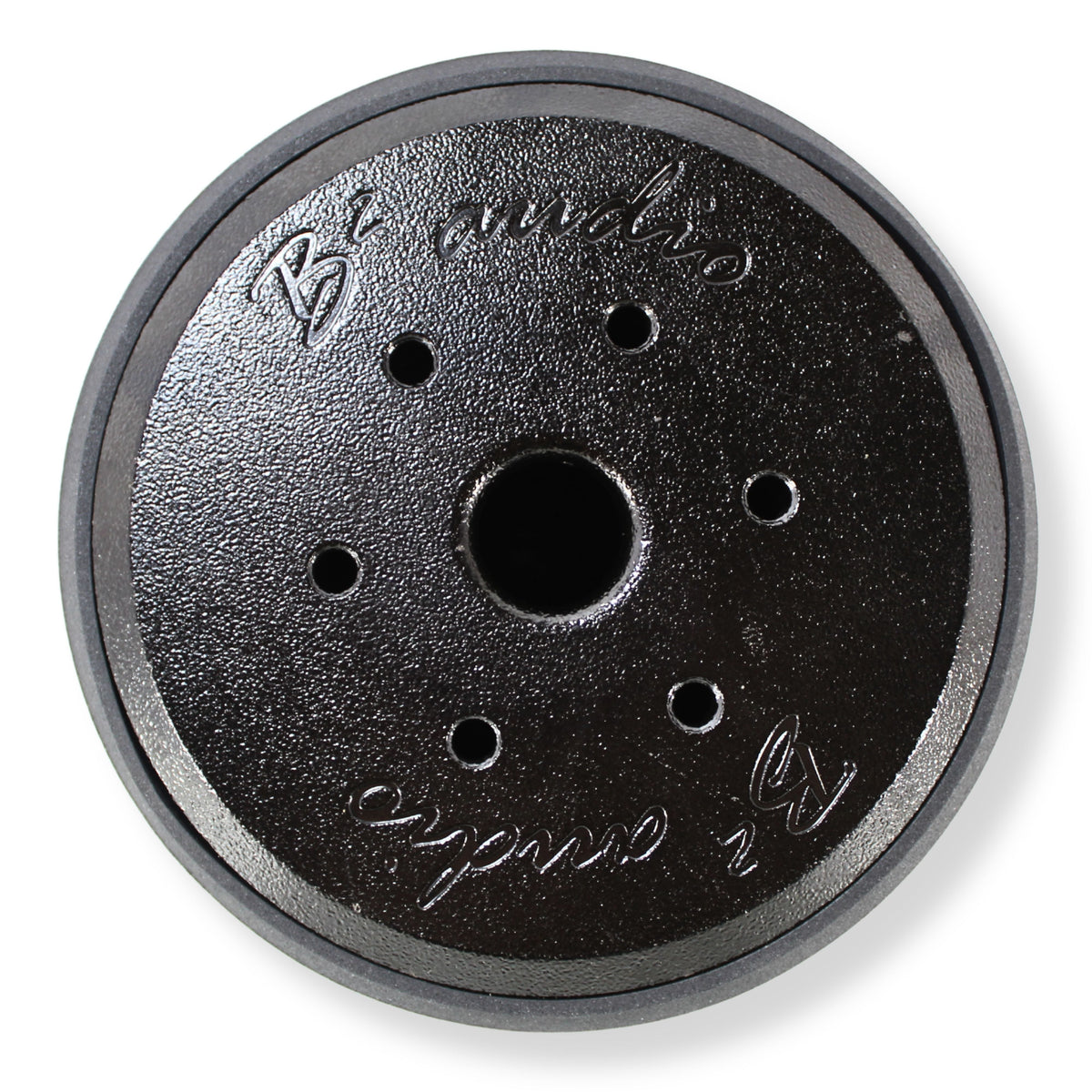

• Enhanced Subwoofer Performance: The RAGE subwoofer features a redesigned Bolted down spider and additional pole vents for increased power handling and minimized mechanical noise.
• Dual Voice Coil Configuration: Dual 2-Ohm impedance allows for versatile wiring options, making it compatible with various amplifier setups.
• Premium Construction: Built with quality materials and a 2" voice coil diameter, this subwoofer offers durability and longevity for long-term use.
• Powerful Audio Output: With a frequency response of 10 Hz to 500 Hz and a power handling of 350 Watts RMS, this subwoofer delivers deep, impactful bass.

B2 Audio RAGE Series 6" Dual 2" Voice Coil 2-Ohm 350W RMS Subwoofer RAGE6-D2

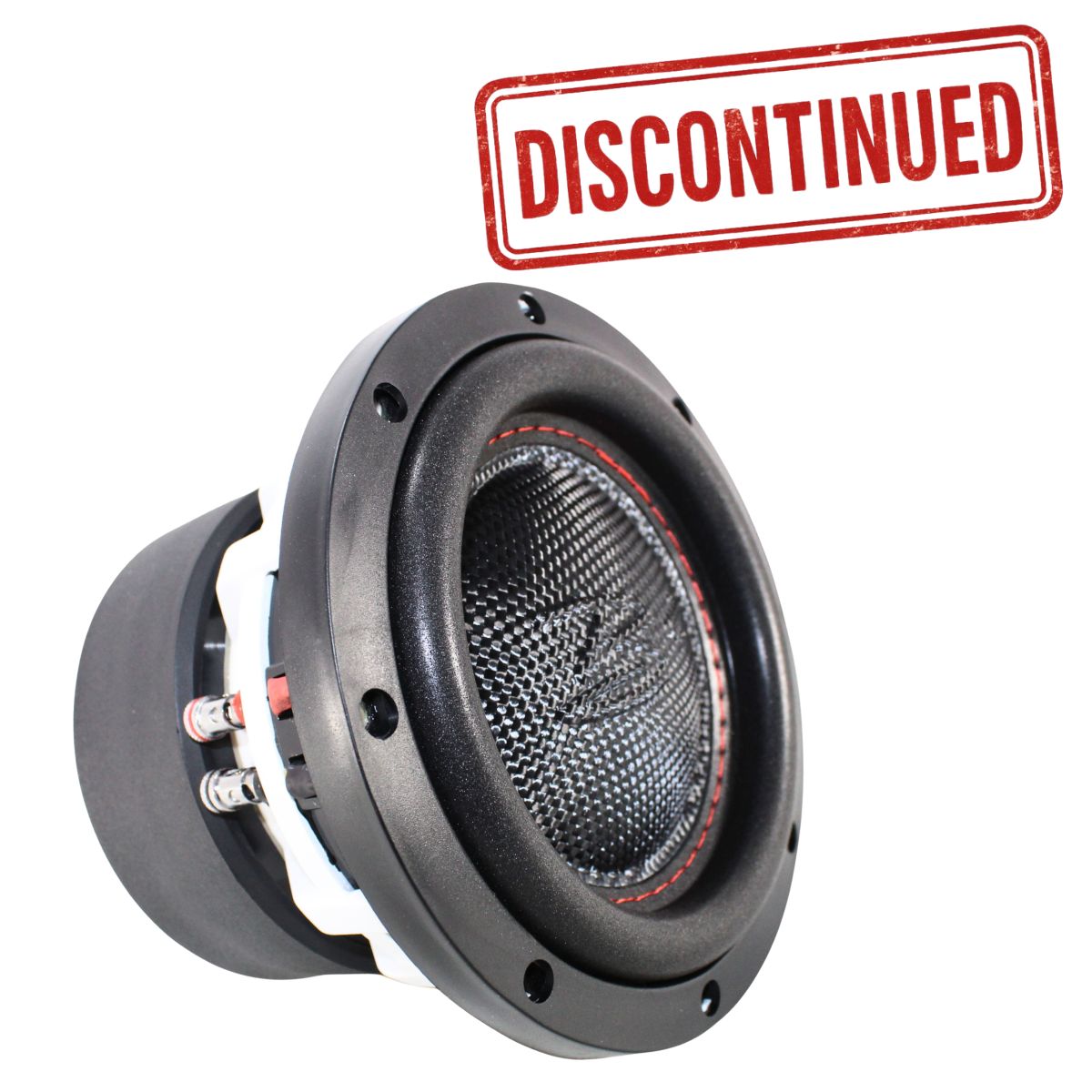

*This one’s been discontinued, but we’ve got you covered. Check out the B2-RAMPAGE6-D2.

This Listing Includes:

• (1) 6" DVC 2-ohm  RAGE Subwoofer

Experience powerful, precise bass with the B2 Audio RAGE6-D2 6" Dual Voice Coil Subwoofer. With its robust construction and versatile impedance options, this subwoofer delivers deep, impactful bass across a wide frequency range. With a peak power handling of 700W and sensitivity of 86.2 dB, it ensures impressive performance in any audio setup.

Features

• Compact Yet Powerful: 6" subwoofer designed for tight installs without compromising output.


• Dual 2-Ohm Voice Coils: Allows for flexible wiring configurations and optimized amplifier matching.


• 350W RMS / 700W Max: High power handling for serious bass performance in a compact form.

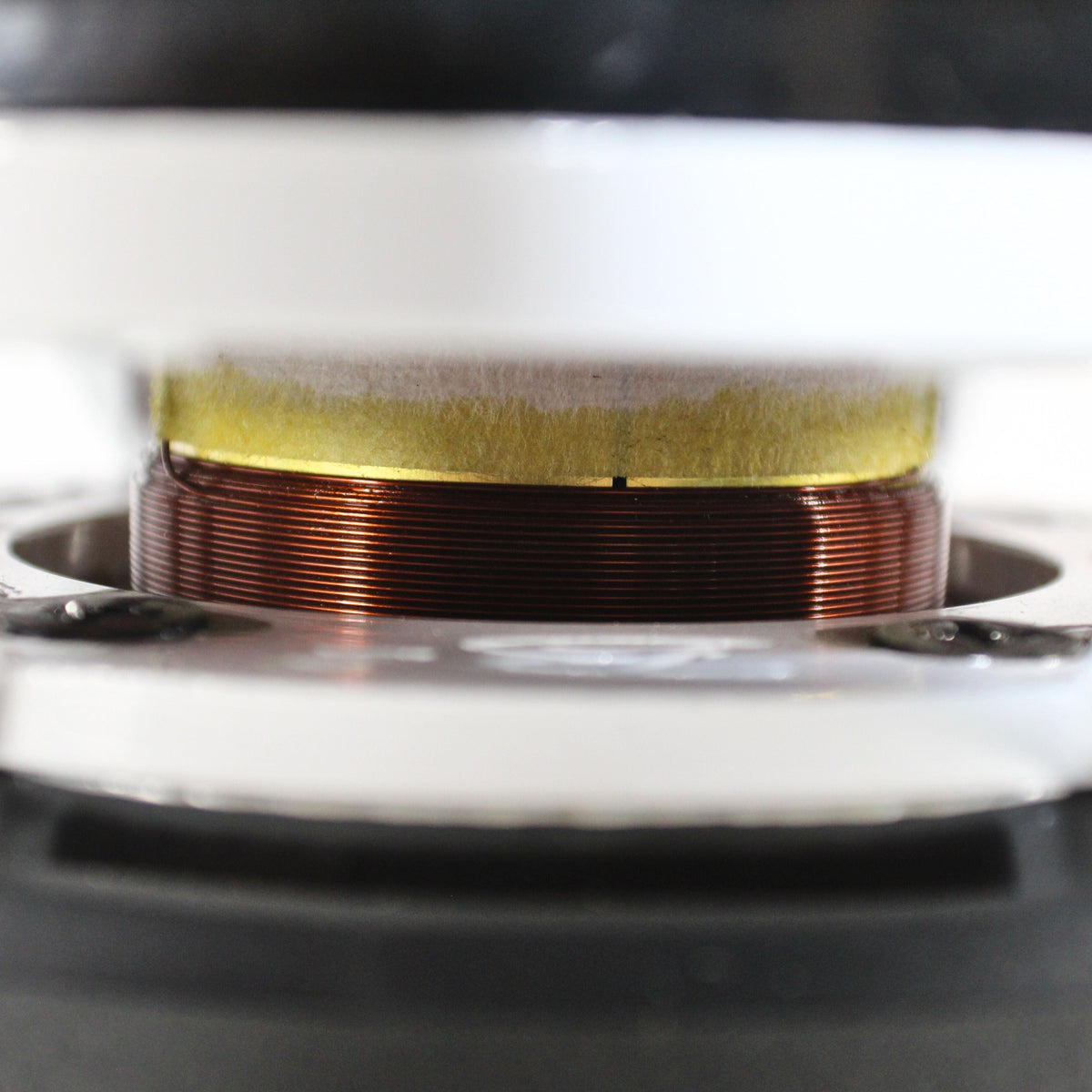

• 2" Copper Voice Coil: Maintains thermal stability and high efficiency during demanding playback.


• Heavy-Duty 140 oz Magnet: Delivers controlled cone movement and stronger motor force.


• Versatile Enclosure Options: Supports sealed, ported compact, and full ported designs for tailored sound.


• Wide Frequency Range: Reaches from 10 Hz to 500 Hz for full low-end coverage.

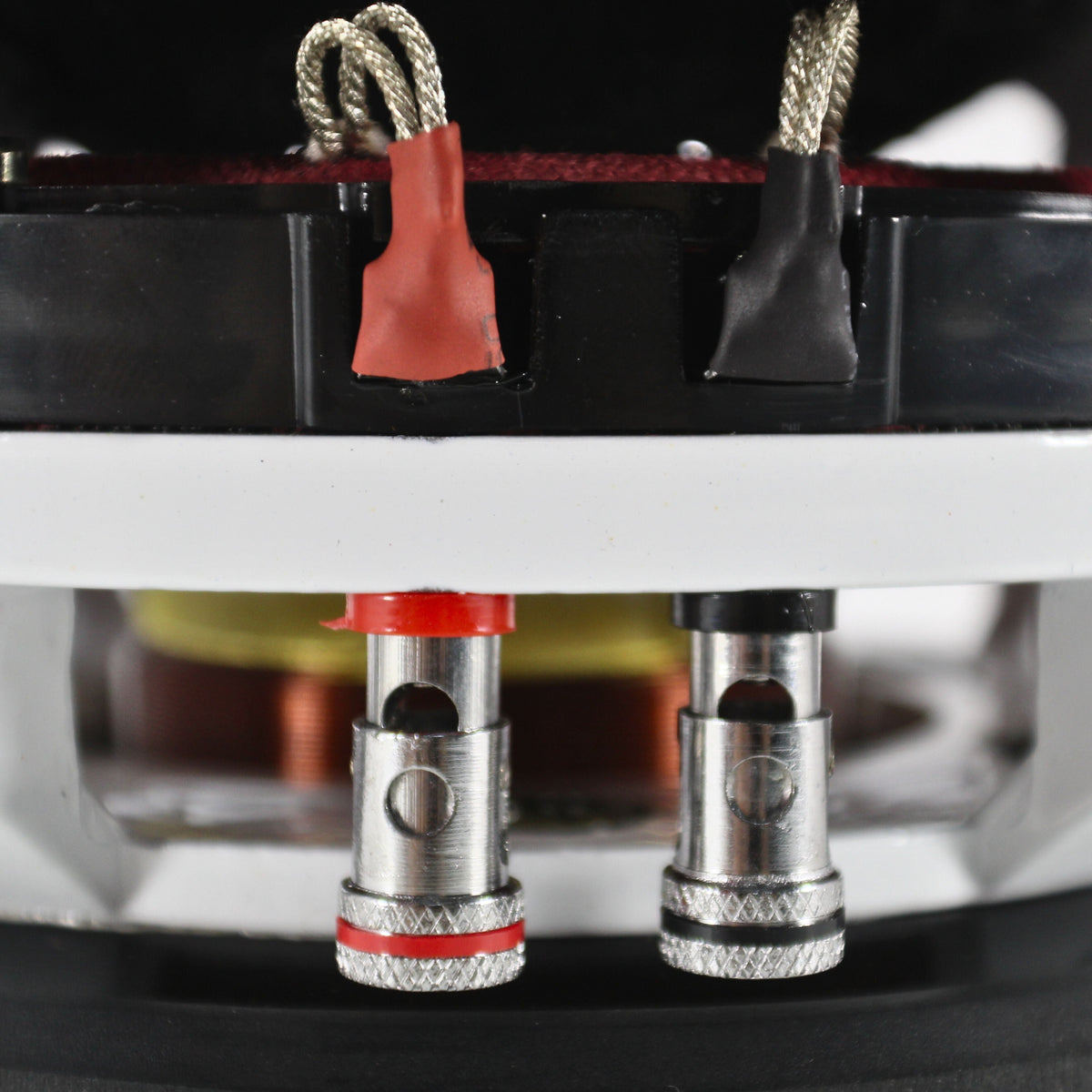

• Custom Terminals: 12 AWG push terminals support secure, high-current connections.


• Optimized Suspension Design: 15 mm of excursion and compliant suspension deliver clean, punchy bass.


• Ideal for Tight Installs: Perfect for custom builds, under-seat installs, or stealth enclosures.

Specifications:

• RMS Power Handling: 350W


• Max Power Handling: 700W


• Nominal Impedance: Dual 2 Ohm


• Voice Coil Diameter: 2"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 86.2 dB


• Magnet Weight: 140 oz


• Displacement Volume: 1.6 L / 0.056 cu.ft


• 12 AWG Wire Inputs For Push Terminals

Thiele & Small

• Free Air Resonance (Fs): 44.9 Hz


• Resistance (Re): 1.9 ohm


• Mechanical Factor (Qms): 6.17


• Electrical Factor (Qes): 0.53


• Total Factor (Qts): 0.49


• Mechanical Resistance (Rms): 2.77


• Equivalent Volume (Vas): 3.3 L


• Compliance (Cms): 130 um/N


• BL Factor (BL): 54.6 TM


• Moving Mass (Mms): 100 g


• Excursion Max (Xmax): 0.59" / 15 mm

Measurements:

• Overall Diameter: 7.08" / 180mm


• Mounting Diameter: 6.42 / 163mm


• Front Mount Baffle Cutout: 5.98" / 152mm


• Overall Depth: 5.43" / 138mm


• Mounting Depth: 4.60" / 117mm

Enclosure Suggestions:

Sealed:

• 5 L / 0.178 cu.ft


• Qtc 0.405

Ported Compact:

• 12 L / 0.42 cu.ft


• Port: 2"


• Length : 9.43" / 24cm


• FB: 42 Hz

Ported:

• 18 L / 0.636 cu.ft


• Port: 3"


• Length: 14.17" / 36cm


• FB: 42hz
