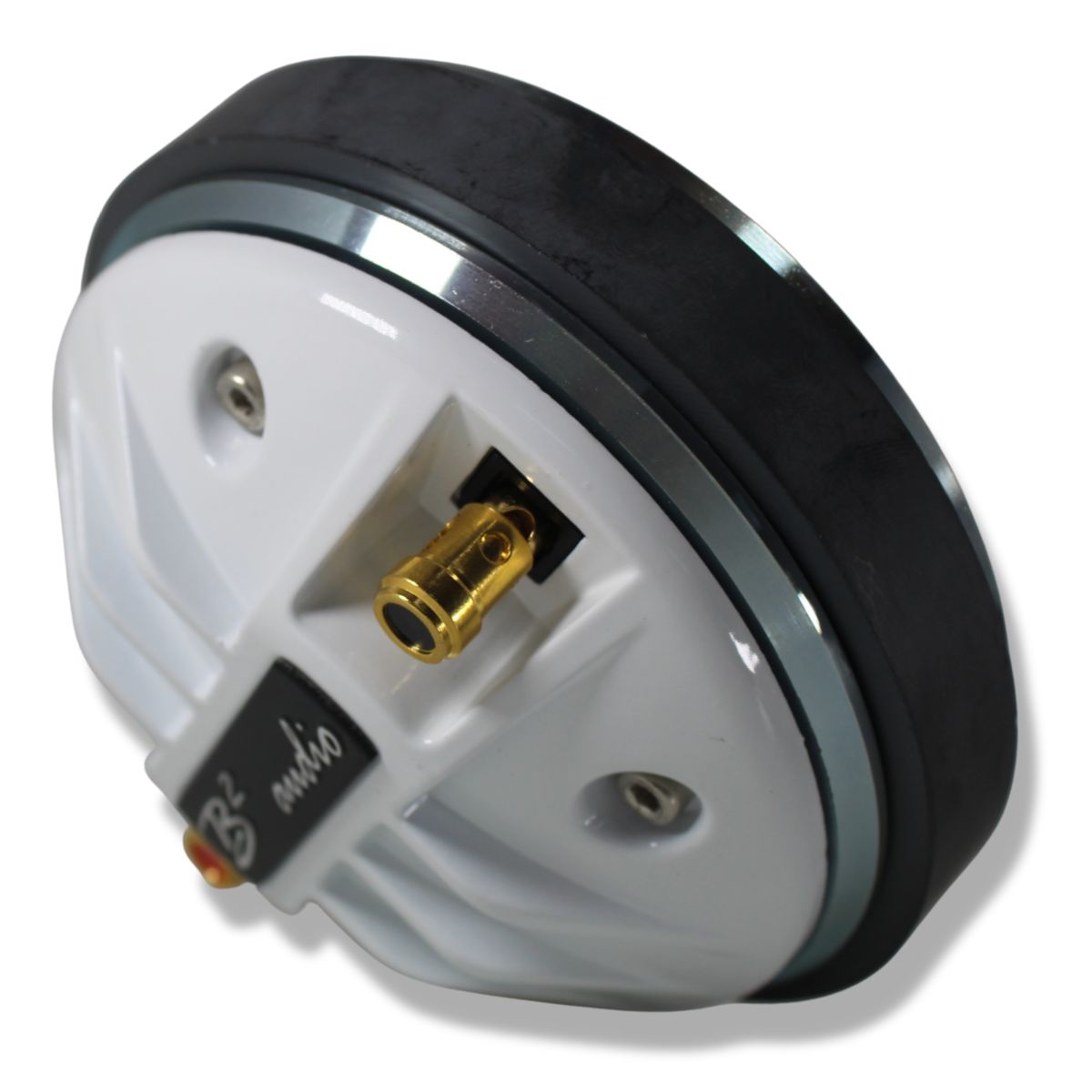

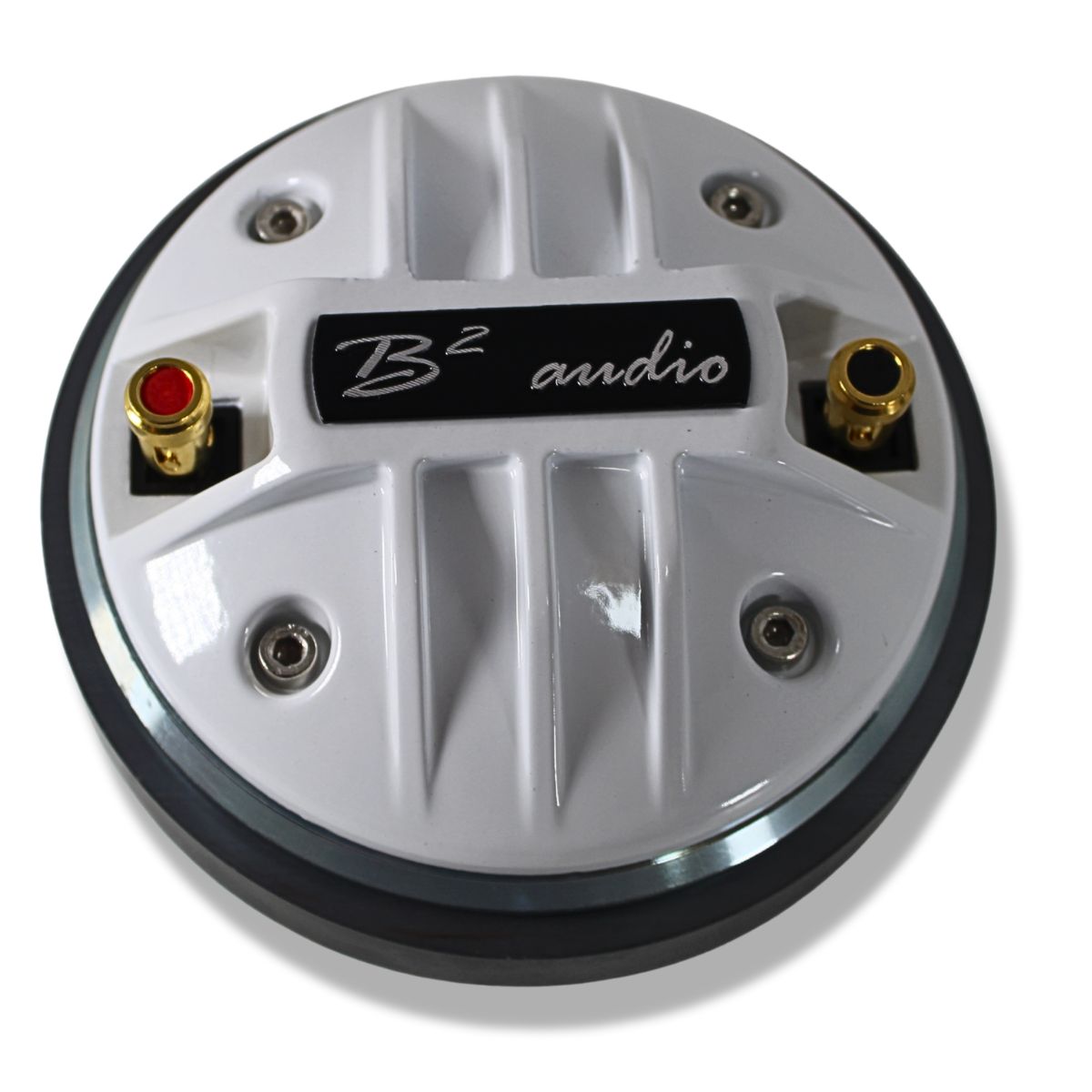

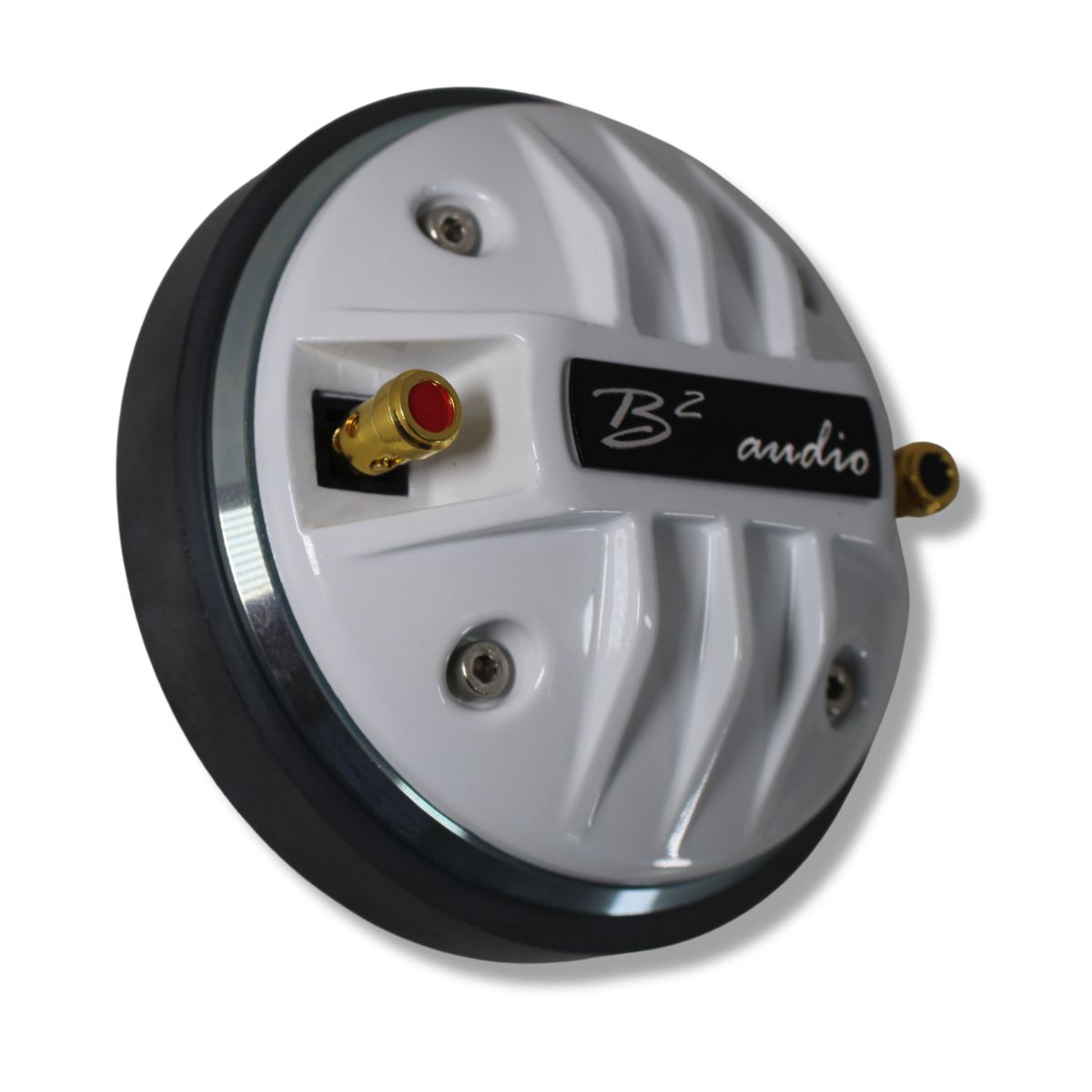

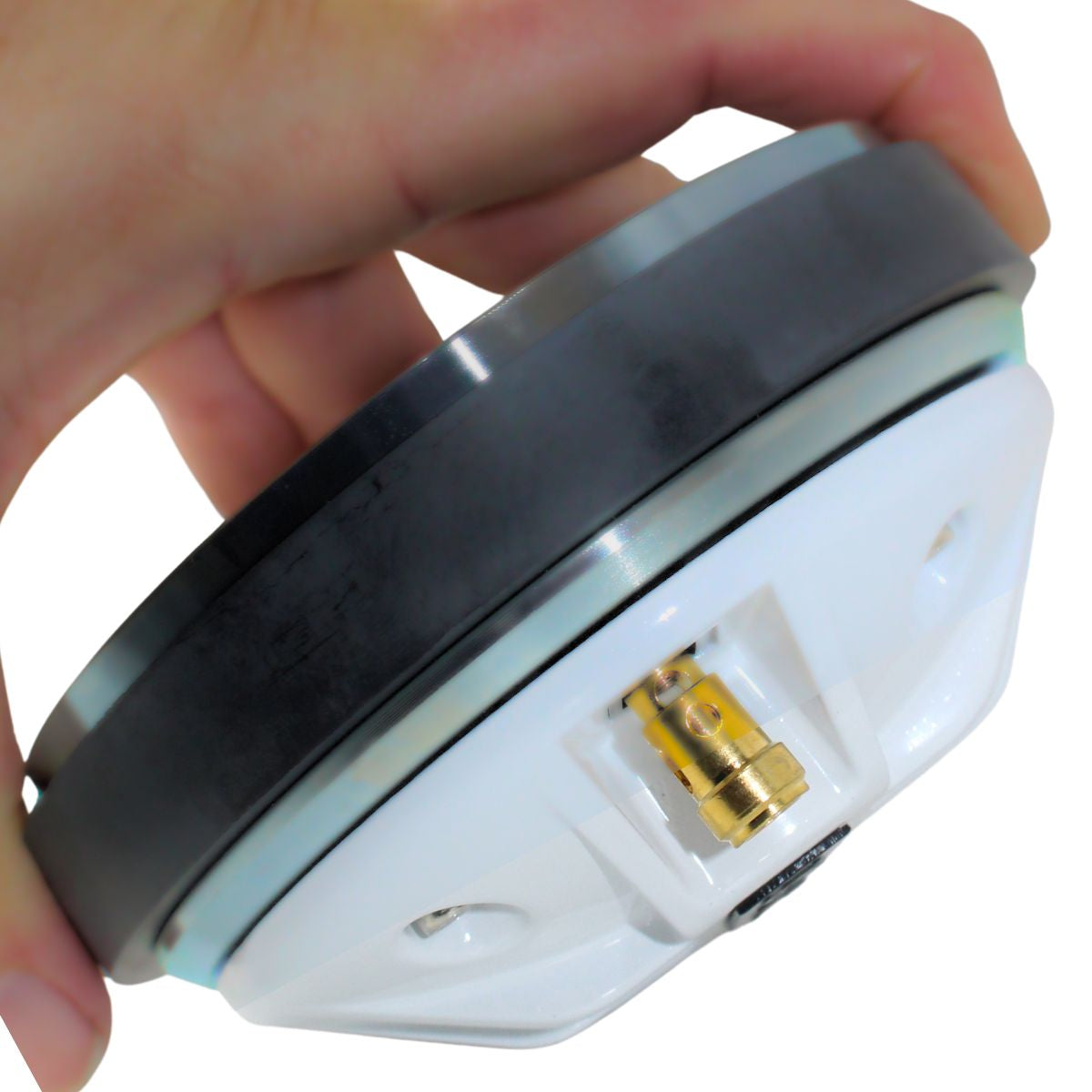

B2 Audio Bolt On Compression Driver RAGE CDR-44 200W RMS 4 Ohm

• High-Power 1.75" Compression Driver: Engineered for serious output with a large 1.75" titanium diaphragm and powerful ferrite motor, delivering crystal-clear highs even at extreme volume.
• 200W RMS / 400W Max Power Handling: Built to handle heavy daily use, this driver offers massive power capability for pro-audio door builds, pods, arrays, and high-SPL systems.
• Wide Frequency Range: 1.5 kHz–20 kHz Produces smooth, detailed upper midrange and sparkling highs with excellent projection and clarity across a wide bandwidth.
• Bolt-On 4-Bolt Mounting Pattern: Compatible with standard M5 bolt-on horns (including the B2-RAGECDH-44), ensuring a secure fit, stronger performance, and optimal dispersion.
• High Efficiency & Precision Control: CCA-wound voice coil and 106 dB sensitivity deliver clean detail, strong efficiency, and stable performance under demanding audio conditions.

B2 Audio 200W RMS 4 Ohm 1.75" VC 1" Throat Bolt On Compression Driver RAGE CDR-44

This Listing includes:

• (1) B2-RAGECDR-44 1.75" Driver

Meet the next-level heavy-hitter in the RAGE high-frequency lineup. The B2 Audio RAGECDR-44 is a full-size, bolt-on compression driver built for extreme output, incredible clarity, and serious durability. Compared to the shallow CDR and CDR-V2 models, the CDR-44 steps into a higher class — offering a larger 1.75" titanium diaphragm, more robust ferrite motor, and far greater power handling for demanding pro-audio-style builds.

Engineered to deliver crisp, controlled highs from 1.5 kHz up to a piercing 20 kHz, this driver thrives in setups where volume, projection, and detail are non-negotiable. The ferrite motor provides raw strength and stability, while the CCAW coil ensures efficient heat dissipation under heavy load. Whether you're running large door panels, pro audio pods, or multi-driver high-output arrays, the RAGECDR-44 provides the authority and precision needed to dominate the upper frequency spectrum.

Pair it with the B2-RAGECDH-44 bolt-on horns (sold separately) for optimized dispersion and maximum impact.

Features

• High-Output Design – Built for extreme volume and clarity with a powerful ferrite motor.


• Titanium Diaphragm – Delivers crisp, detailed highs with long-term durability.


• Large 1.75" Voice Coil – Handles serious power while maintaining precision.


• Bolt-On Mounting – Compatible with 4-bolt horns, including the upcoming B2-RAGECDH-44.


• Efficient CCAW Winding – Improved heat dissipation for cleaner performance at high output.


• Wide Frequency Range – Plays smoothly from 1.5 kHz to 20 kHz with excellent projection.


• Pro-Audio Grade Construction – Ideal for large mids/highs arrays, door builds, and open-air systems.

Specifications:

• Throat Diameter: 1" / 28.0 mm


• Max Power: 400 Watts


• RMS Power Impedance: 200 Watts


• Impedance: 4-Ohms


• Frequency Response: 1.5 Khz-20 Khz


• Capacitors are not included, we recommend using 33 F Capacitors for best performance (~1,200 Hz cutoff at 4 Ohm)


• Sensitivity(1w/1m): 106 dB


• Voice Coil Diameter: 44.4mm/1.75"


• Winding Material: CCAW


• Magnet: Ferrite


• Diaphragm type: Titanium

Dimensions:

• Overall Diameter: 4.53"

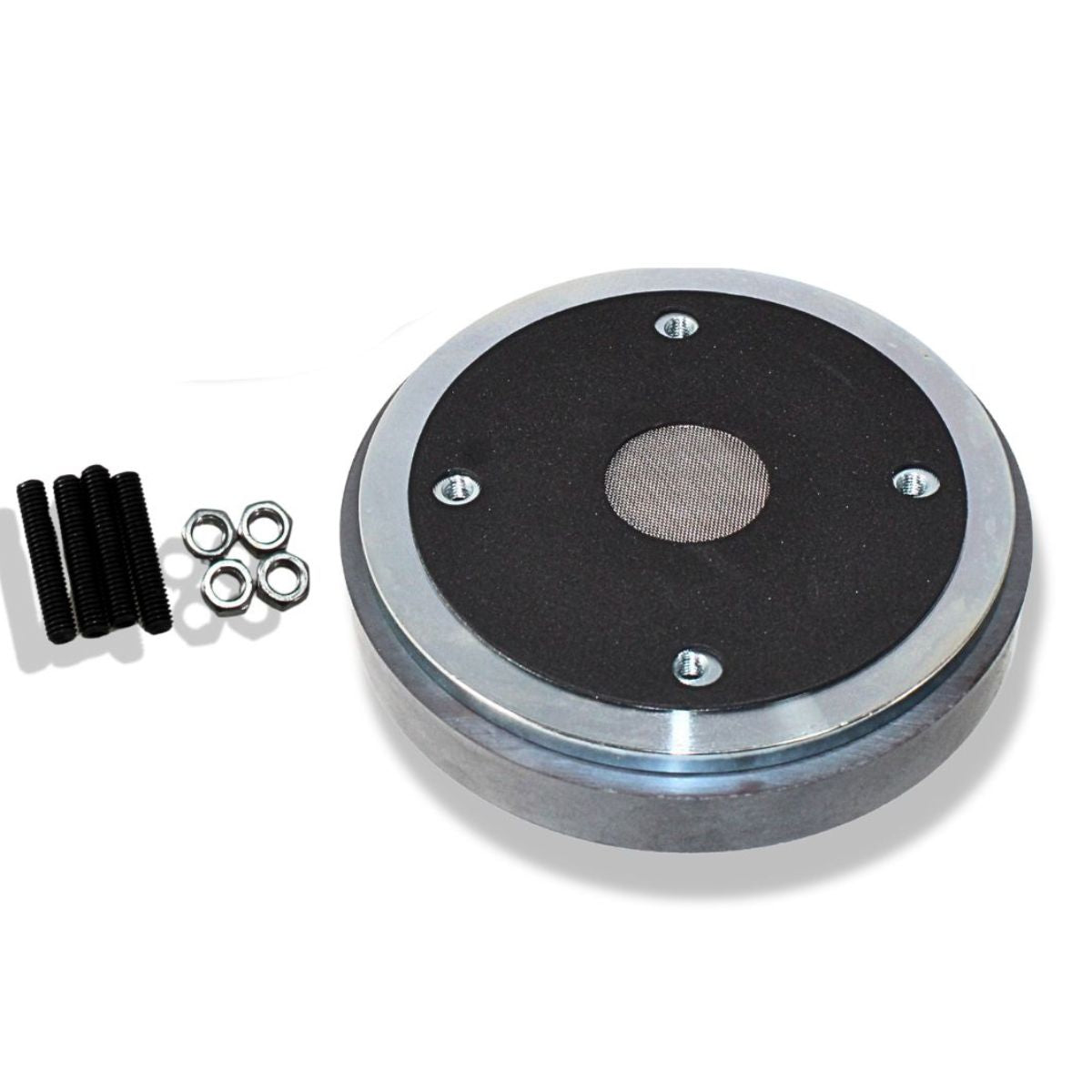

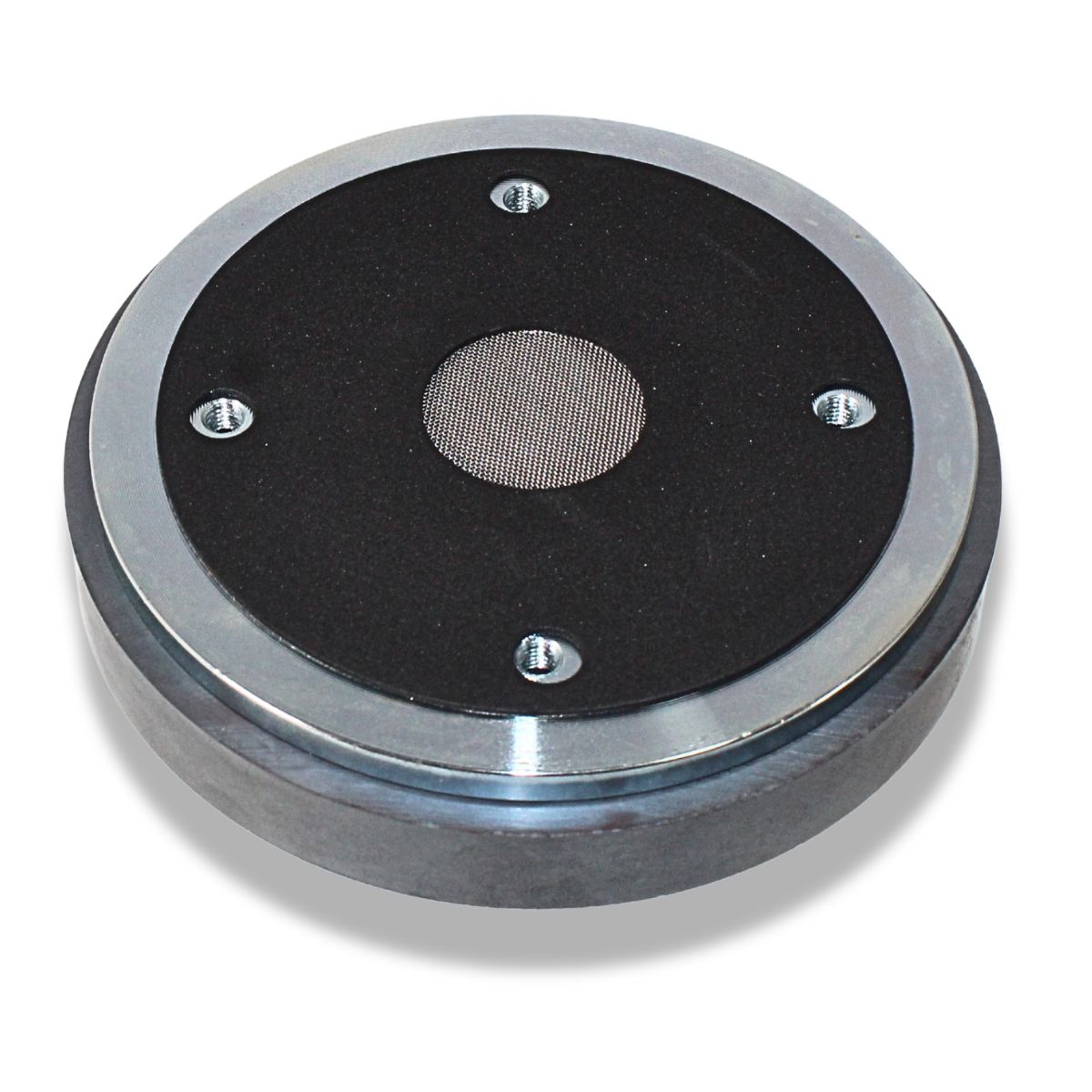

• Bolt Circle Diameter: 4 holes/75mm apart/M5 bolts


• Depth: 2.07"
