6.9" Touchscreen Double-DIN Headunit with DVD, Bluetooth, USB and Mirror Link

6.9" Touchscreen Double-DIN Headunit with DVD, Bluetooth, USB and Mirror Link

$257.95 USD
$0.00 USD $257.95 USD
Sale Sold out
Shipping calculated at checkout.

DS18 DDX6.9 6.9" Double-Din Digital Media Receiver Player,CD/DVD, Touchscreen, Bluetooth, USB, Mirror Link

DDX6.9 Double DIN Multimedia Receiver with 6.9-inch touch screen 1080p
Bigger and bolder than ever is DS18s new revision of our long line of amazing head units.

This receiver shares a lot of the characteristics that its little brothers share except one HUGE difference: We have upgraded the screen size from 6.2 inches to a whopping 6.9 inches with this huge screen! Now you and everyone in the vehicle can enjoy the crisp visuals along with goose bump worthy sound quality.

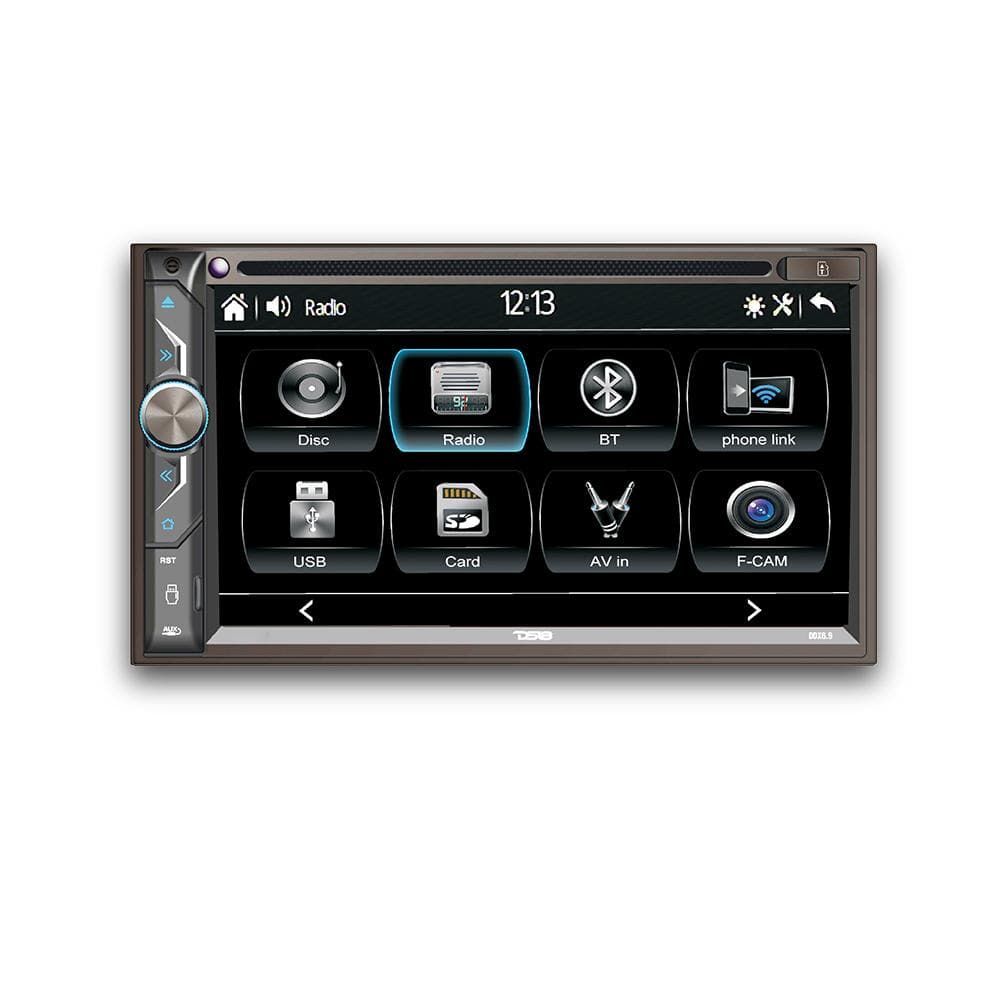

Maneuvering through the options is quite easy with the touch screen controls and will give you flawless and absolute control over all the media you are wanting to hear.

This receiver will include everything you need to bring your multimedia dreams into full fruition with Mirror Link, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations. Apps are also easily downloadable when you hook your head unit up to your cellular hot spot. The SD reader can use memory cards up to 64GB.

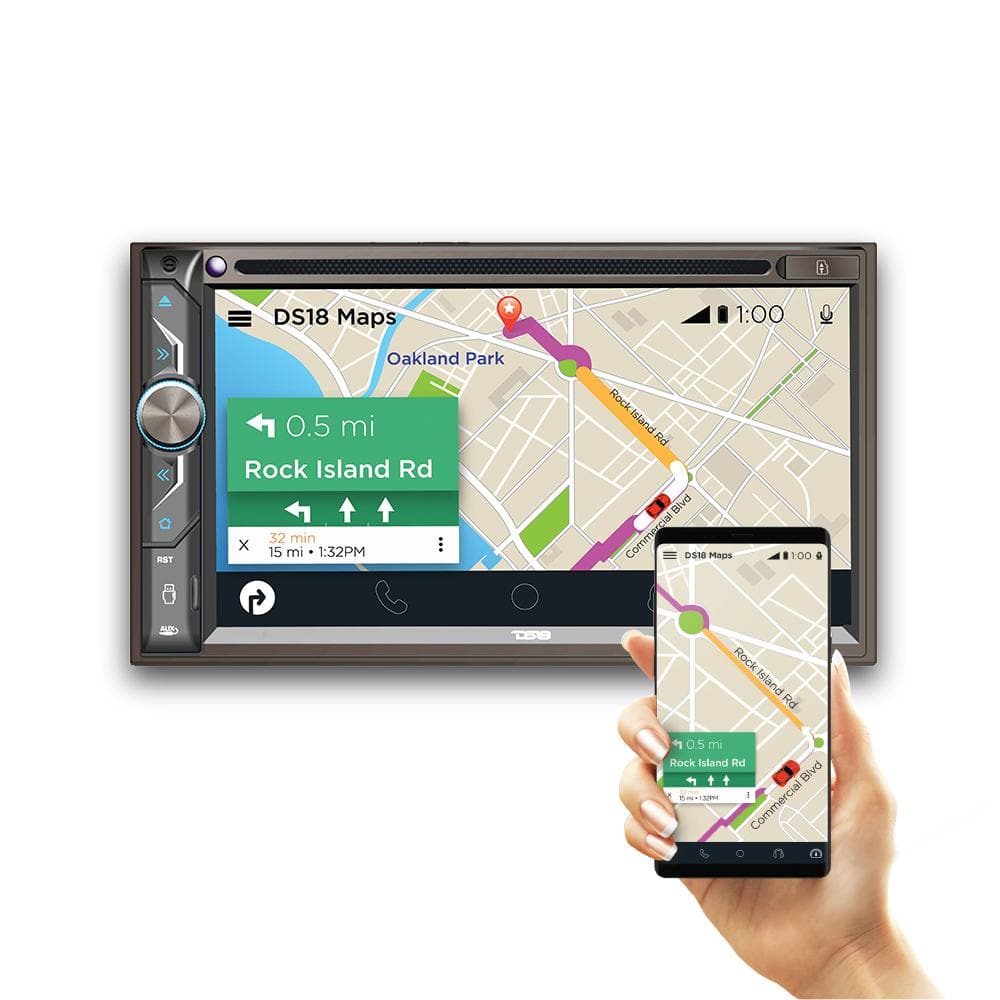

Your music can be set easily to your preferences with the easy to use and detailed manual and the DDXRC app equalizer can get you the sound that is specific to your tastes with easy access and settings. Mirror link is also easily set up in just a few steps so you can mirror all media from your phone to your device.

(PLEASE REMEMBER DO NOT WATCH MOVIES IN MOTION, WAIT UNTILL THE CAR IS PARKED)

There is plenty of power behind this versatile receiver. At 4 ohms this unit offers 4x15 watts RMS and 40x4 Max power which is generally enough to power all entry level speakers, but to get the maximum output from this amp, you will need amplifiers and higher quality speakers to handle the power. The PRE-AMP outputs will deliver a maximum of 4.5 volts so you can be reassured that you will have enough output voltage for your amplifiers to get the clearest and distortion free sound available. Also 3 sets of preamp outputs (SUB, Front, and Rear) will be there for you to configure to your specific setup.

Highlights

  • 6.9-inch (16:9) 1080p (1024x600 pixels) double din touchscreen to maximize your viewing in a small space.
  • Full 16 Band EQ and Subwoofer LPF accessible via our DS18 DDXRC app on google play.
  • 4.5A preamp outputs (Front, and Rear)
  • Built in Wi-Fi, Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections (1 front and 2 rear)

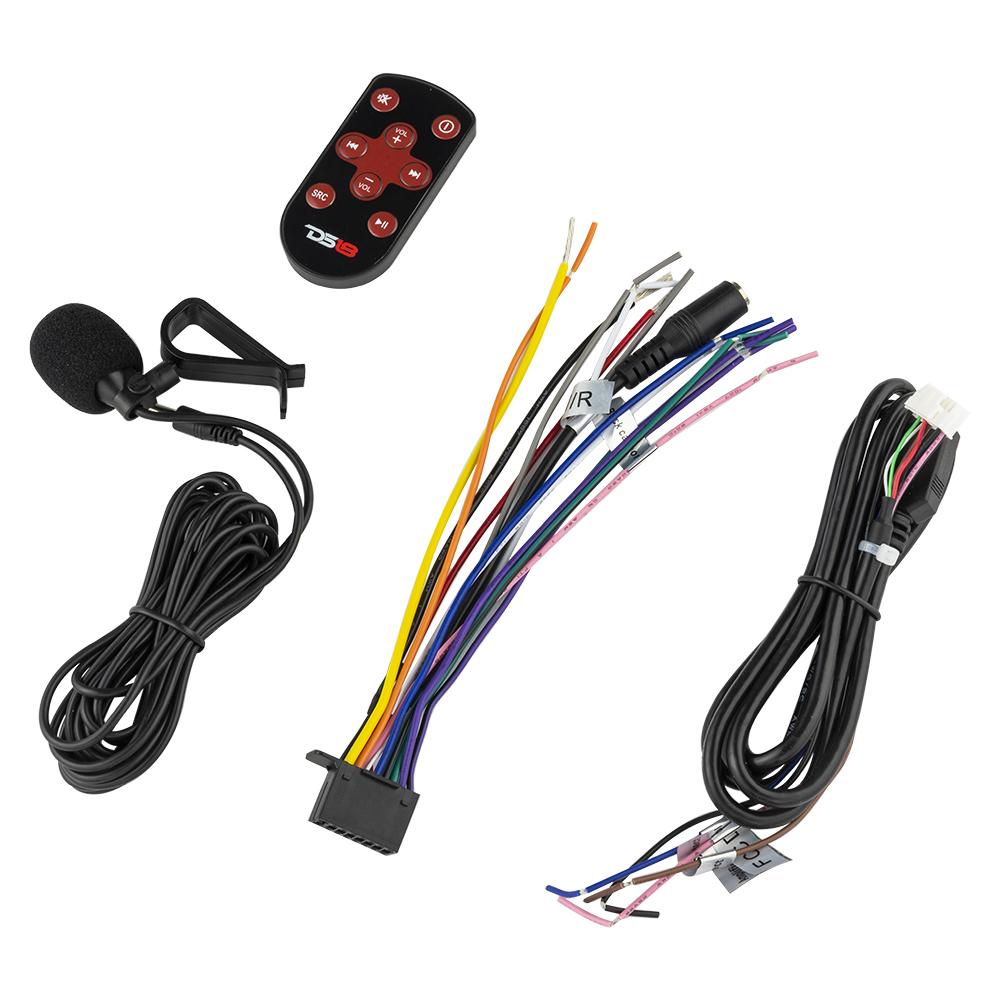

  • Wireless remote control for easy operation.
  • RCA inputs so you can view external sources video easily via source.
  • MIC in options for easy phone operation and built in controls.
  • APP control with the DS18 DDXRC app easily found on Google Play or the Apple store.
  • Camera Inputs included so you can plug and play most types of back up cameras.
  • Apple and Android compatible.
  • Reads DVDs when car is in parked mode.

    •

    Technical Details
    Download DDX6.9 Manual



    General
    Rated power source: 14.4V DC (10.8V to 15V operation)
    Maximum Current Consumption: 10 Amp
    Dimensions (W x H x D): Chassis: 178mm x 100mm x 165mm Bezel frame: 170mm x 96mm x 5mm Weight: 1.52 Kg
    Display
    Screen Size / Aspect Ratio: 9 inch / Wide 16:9
    Pixels 1024 x 600
    Display Type: IPS / WSVGA / Capacitive Touch Screen
    Temperature Operation: -20o C to +60o C (14o F to 140o F)
    Audio
    Maximum Power Output: 40W x 4 Ch / 4 ohms
    Continuous Power Output: 15W x 4 Ch / 4 ohms
    Pre-output Level: 4.5 Volts (Front, Rear) 7 Volts (Subwoofer)
    Equalizer: 10 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz,

    16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz,
    250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz,
    5KHz, 8KHz, 12.5KHz, 16KHz)

    Gain: +/- 12dB
    Audio Control: Volume / Balance / Fader / Subwoofer Level
    Tuner
    Frequency Range: FM: 87.5 ~ 107.9 KHz AM: 530 ~ 1710 KHz
    Presets Memory: 30 Stations (18 FM/12 AM)
    Region: Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
    Sensitivity Adjustment: LOC (On/Off) / ST (On/Off)
    DVD Player
    Format Files Supported: DVD-V, VCD, SVCD, MP3, WMA, DivX, MPG4
    Region Number: 1 / Multi Region Selectable
    Usable Discs: CD, CD-R, CD-RW, DVD-R, DVD-RW, DVD-RDL
    USB / SD Player
    Type / Class: V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
    Format Files Supported: RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
    Resolution Supported: 1080P Video
    Memory Size Reader: up to 64 Gb
    Max Current Supply: 1.5 Amp (USB)
    Number of USB Ports: 2 (1 x Front, 1 x Rear)
    Connectivity
    Bluetooth Version / Services: V4.1 / Audio Streaming / Hands Free calls
    Wi-Fi: Built-in
    Camera Input: RCA Analog Video up to HD 720p (Front/Rear)
    Video Output: Dual RCA (1 Volt/75 ohm)
    A/V Aux Input: Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
    Microphone: 3.5mm Jack external MIC Input
    Remote Control: Frontal IR Receptor / Wired Input / CAN-Bus Protocol
