4 x 5.35" Super Bullet Tweeter 250 Watts 1.5" Aluminum 4-Ohm Vc
Sold by AudioSellerz.com
The DS18 PRO-TWX5 is a 5.35" tweeter from the DS18 PRO line with a 4 ohm design. A good tweeter adds the detail and sparkle that mids and midbass can't reproduce on their own.
DS18 Product Details
DS18 PRO-TWX5 4 x 5.35" Super Bullet Tweeter 500 Watts 1.5" Aluminum 4-Ohm Vc

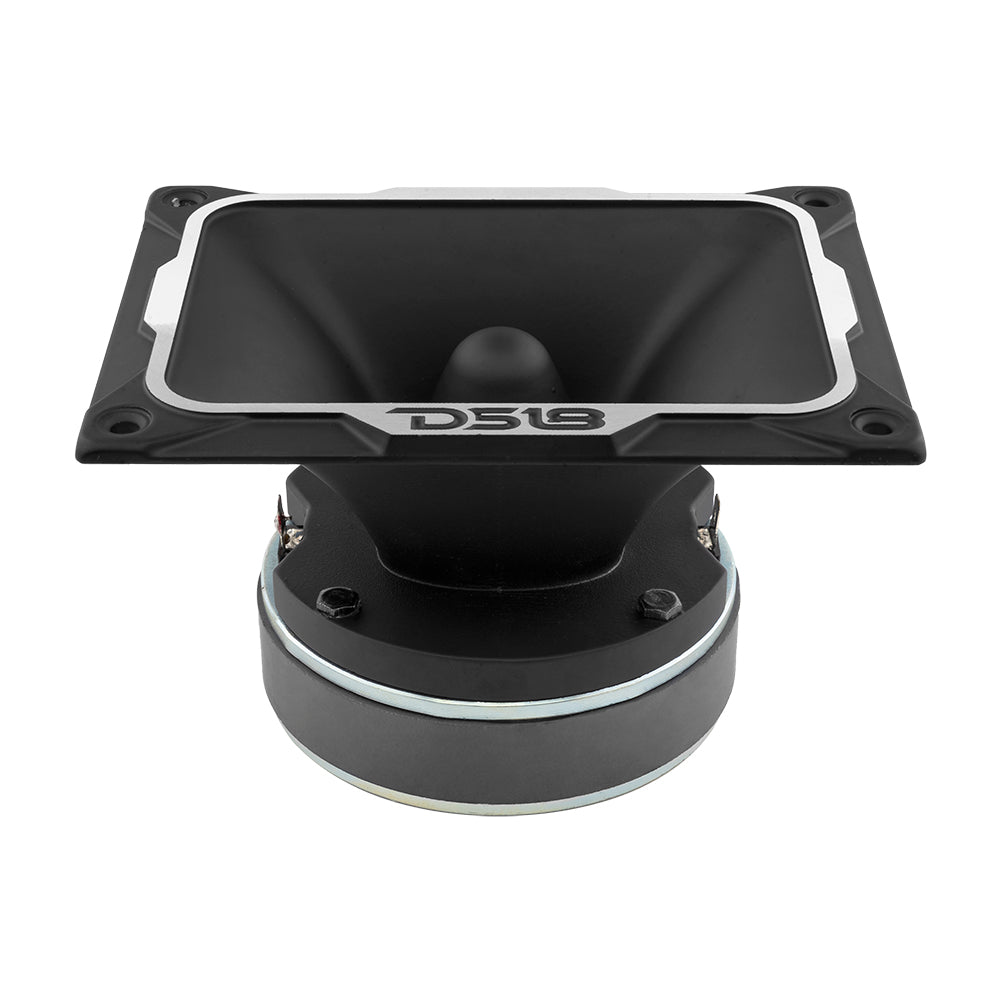

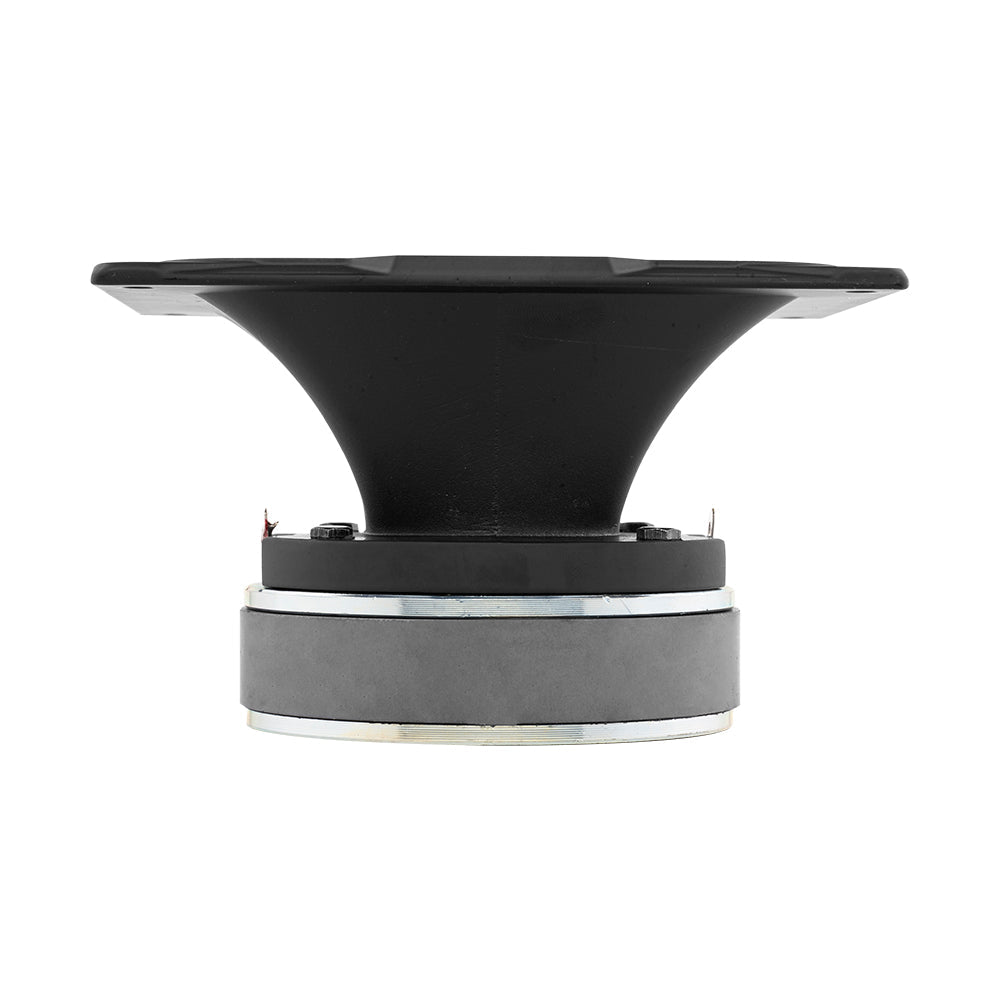

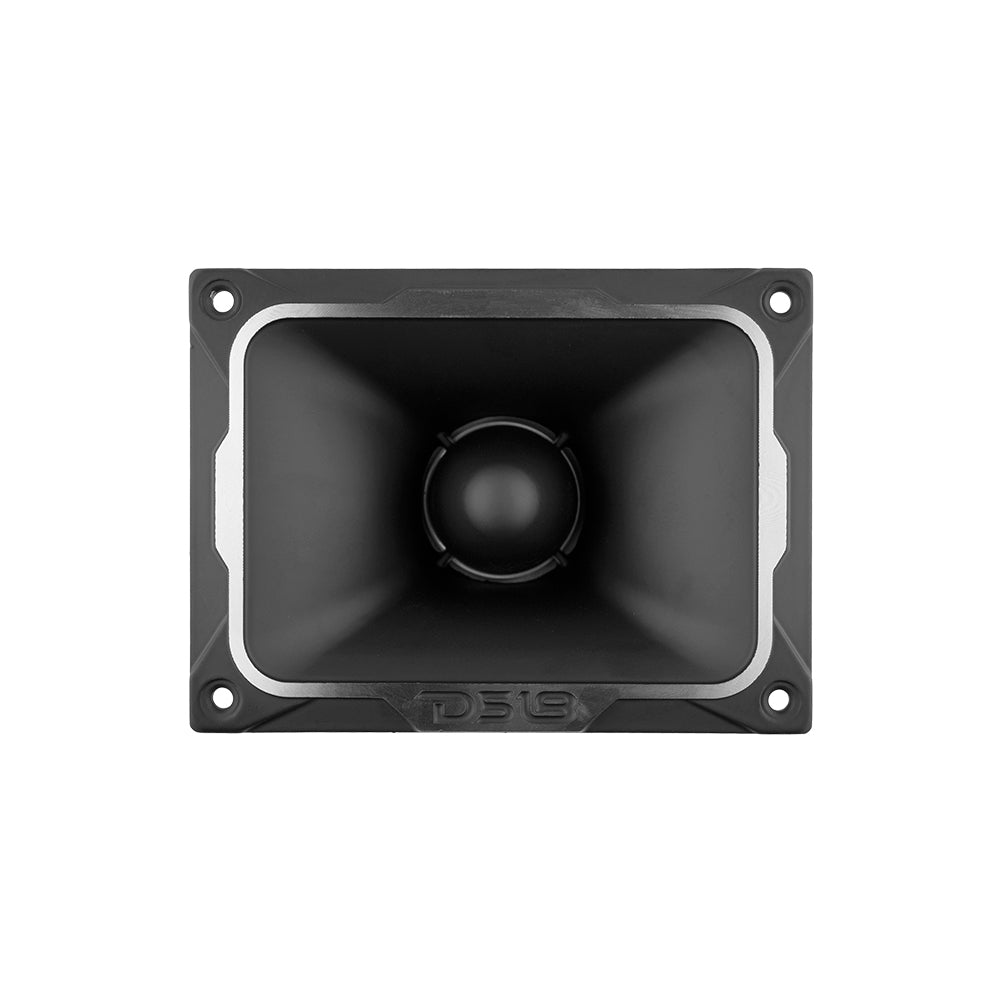

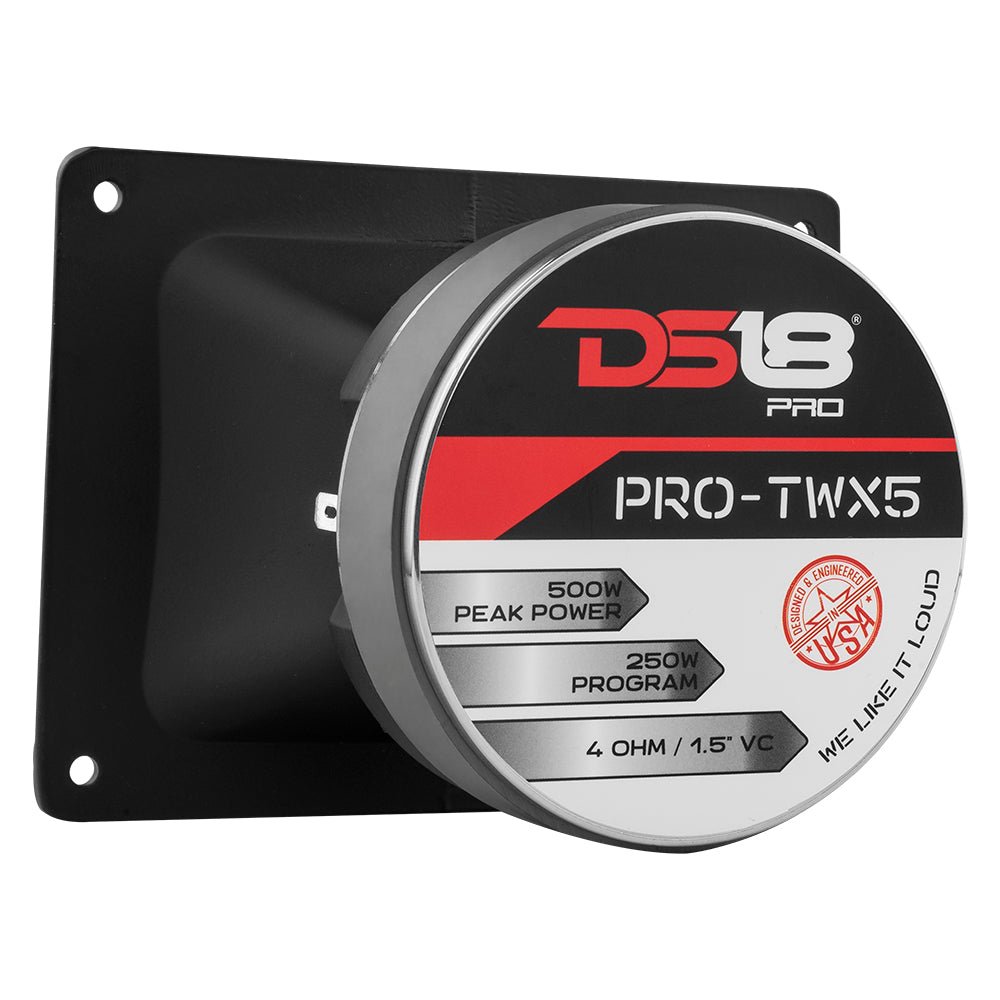

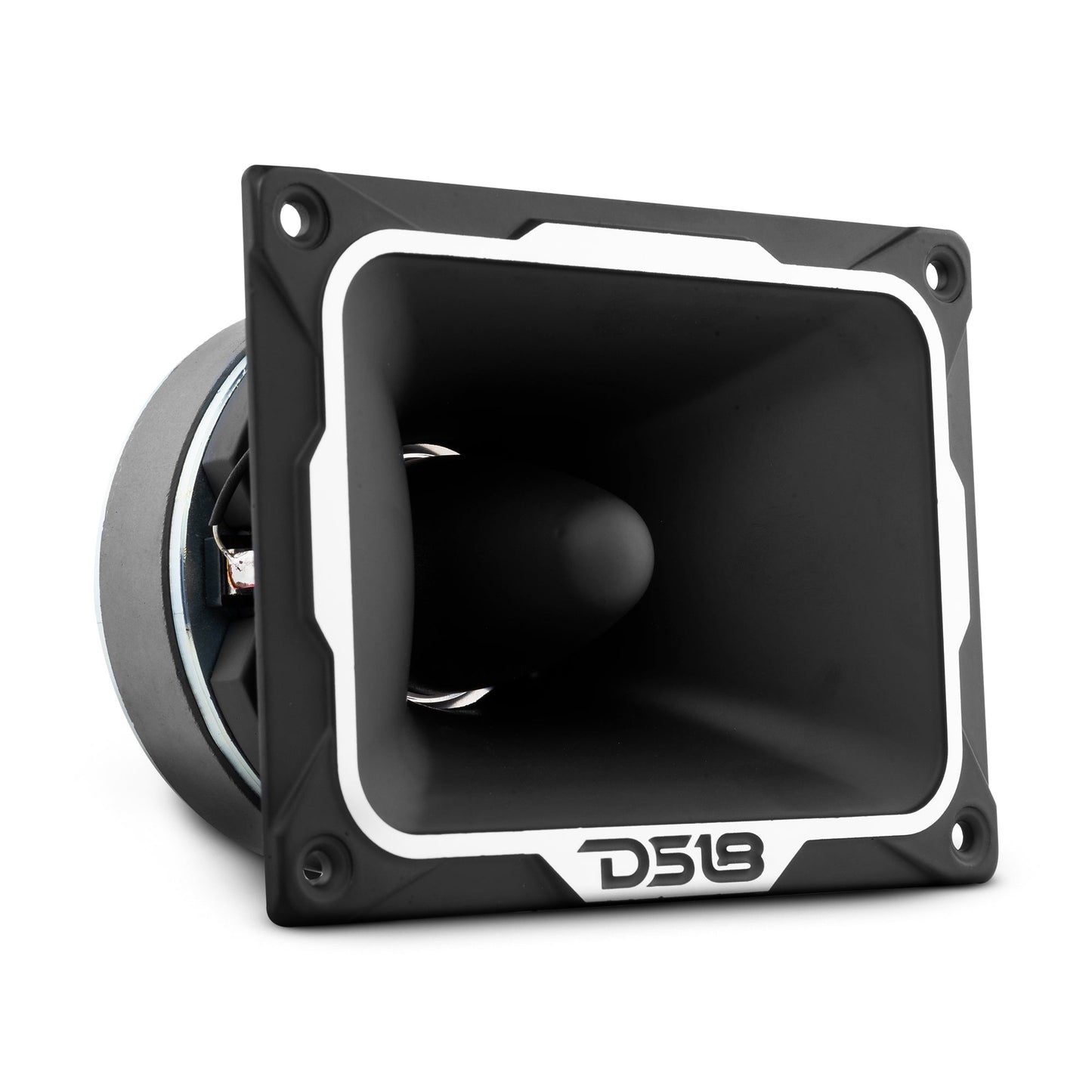

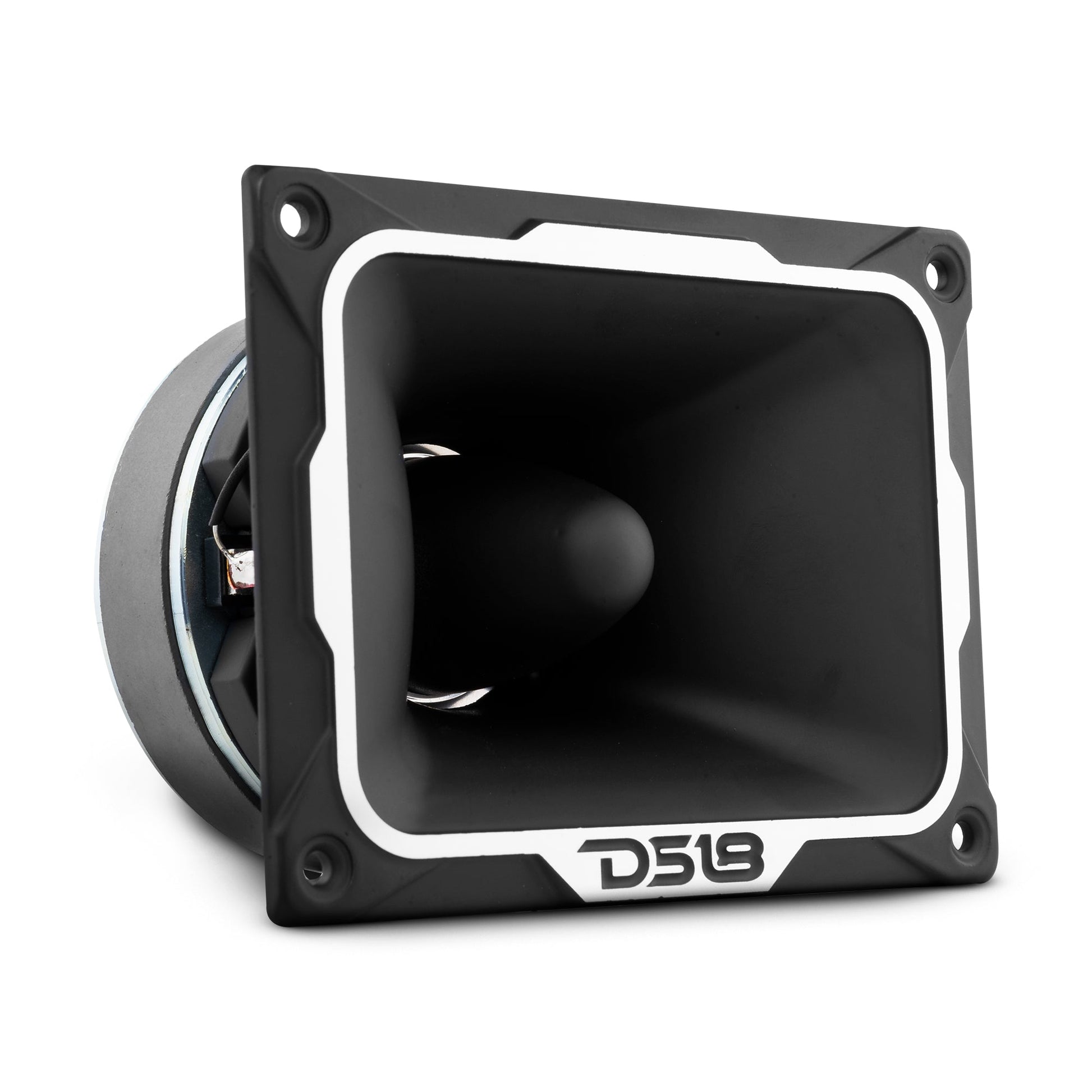

DS18's new 4 ohms super tweeter is sleek and refined after many years of testing and development. These aluminum housings hold a titanium 1.5 inch voice coil rated for 250w RMS and 500w Max power with a ferrite motor structure. With a 107dB sensitivity rating, these tweeters do not need a lot of power to get extremely loud. These tweets have a range of 3KHz to 20KHz so you will be sure you wont miss one crack of the high hat!
Highlights
- Award winning DS18 super tweeter design that has been seen in countless shows and competitions in some of the loudest vehicles in the world.
- High powered super tweeter made to emphasize extreme high notes with amazing precision and clarity.
- Easily disassembled so you can change your voice coil in the go in minutes.
- Various sizes signified by their respective model number so you can fit the largest tweeter you can in the space you have available for the loudest volume.
Technical Details
| Model: | PRO-TWX5 |
| Type: | Super Bullet Tweeter |
| Nominal Diameter | 4x5.35" |
| Peak Power Handling | 500 Watts |
| Program Power Handling | 250 Watts |
| AES Power Handling | 125 Watts |
| Voice Coil Diameter: | 1.5" |
| Sensitivity: | 107 dB |
| Impedance: | 4 Ohms |
| Frequency Response: | 3KHz - 20KHz |
| Package Quantity: | 1 |
| Magnet | Ferrite |

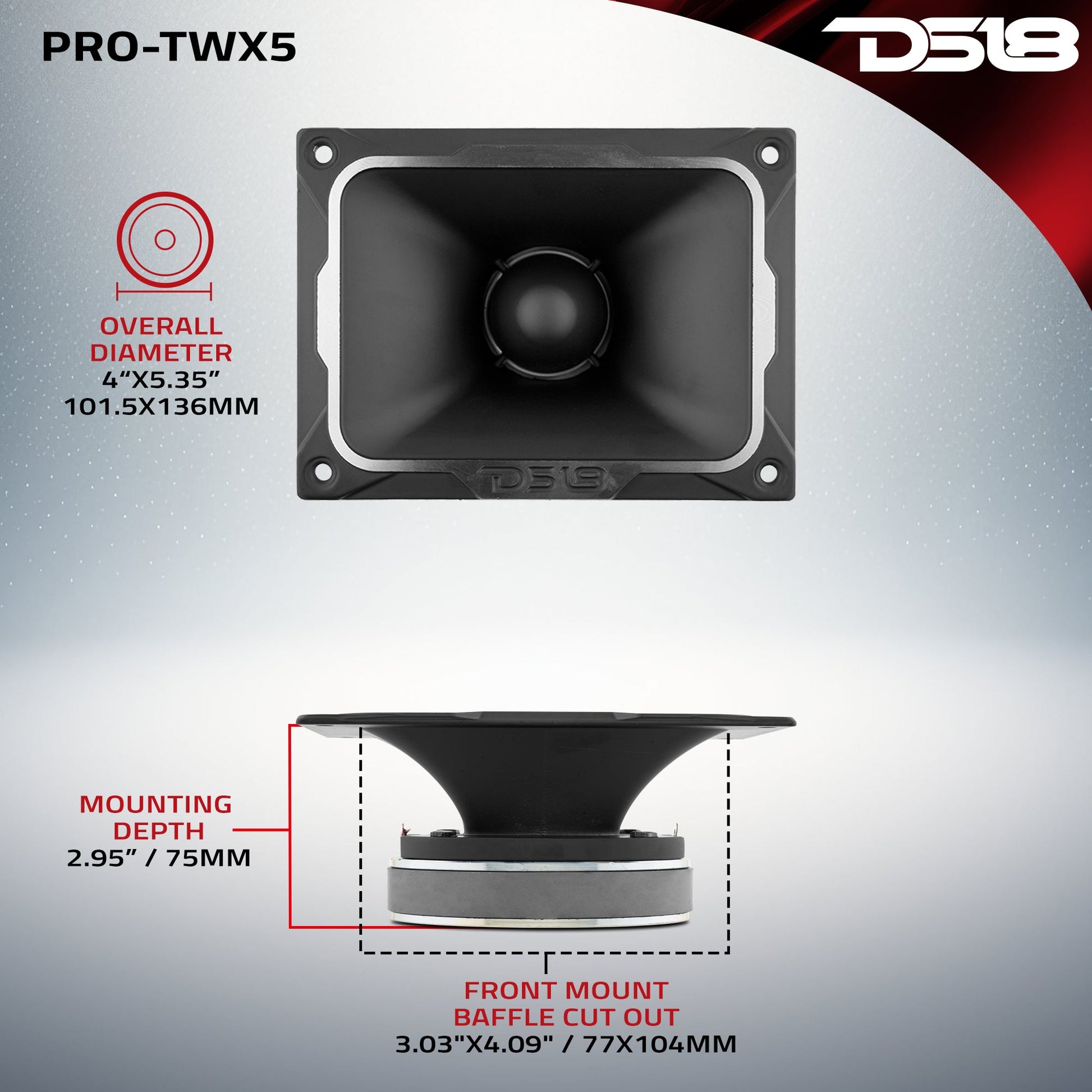

| Measurement | |
| Overall Width | 4" x 5.35" |
| Overall Depth | 3.17" |
| Front Mount Baffle Cutout | 3.03"x4.09" |
| Mounting Depth | 2.95" |
Setup Tips From Audio Sellerz
- Never run a tweeter full range. Use a high-pass filter or crossover set to the manufacturer recommendation.
- Aim tweeters toward the listening position when you can. Small angle changes make a big difference in how they sound.
