DS18

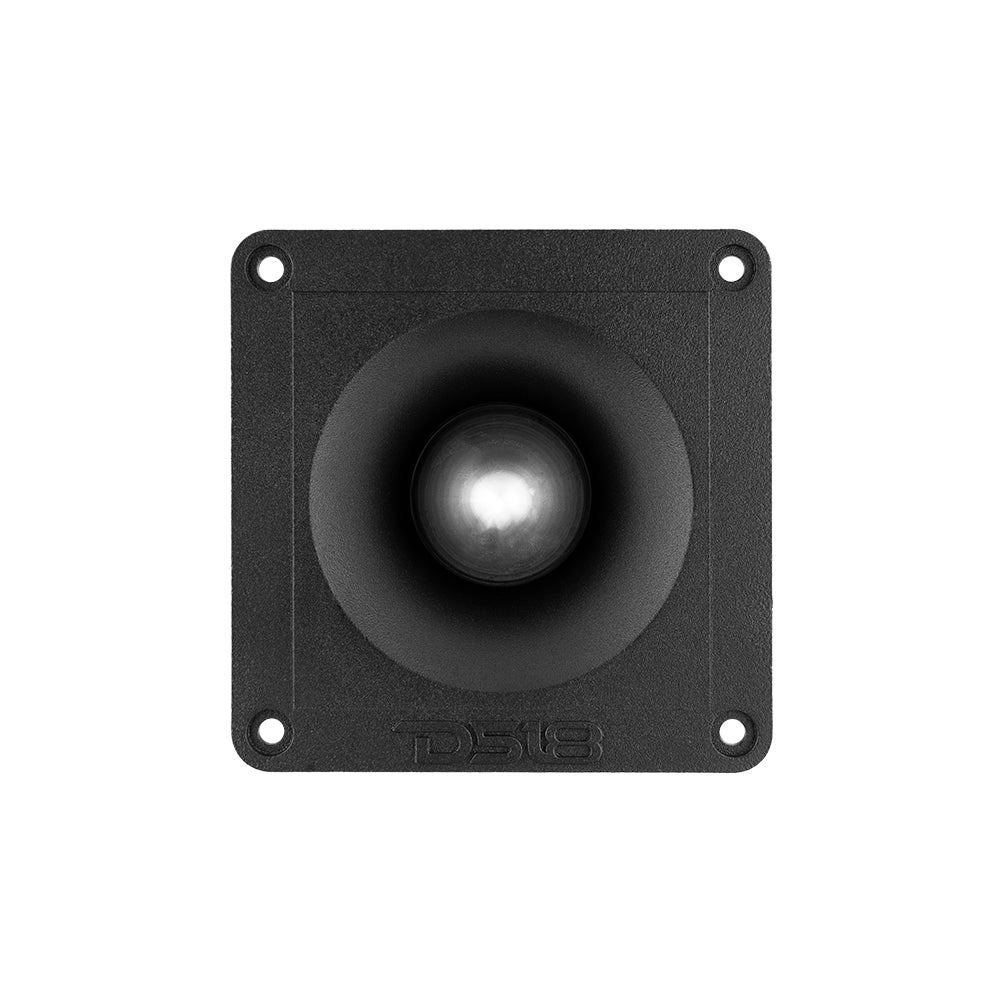

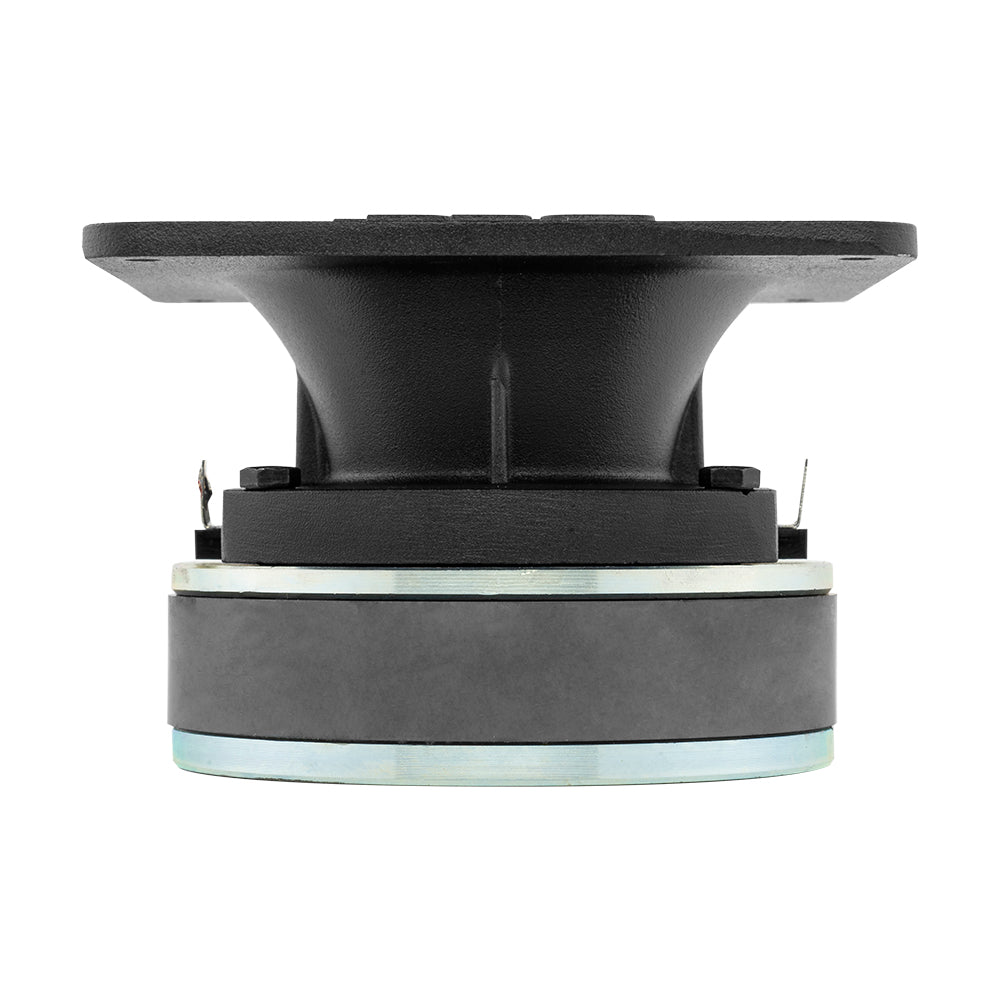

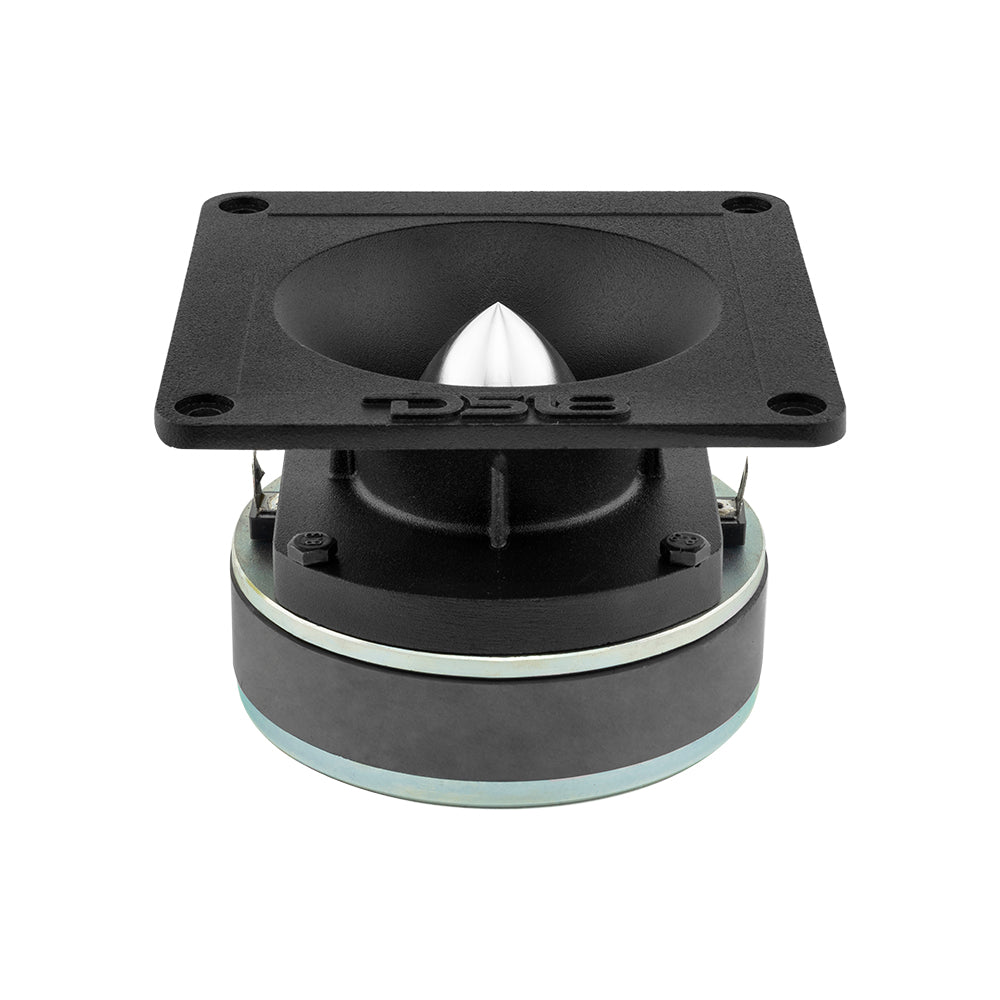

4" x 4" Super Bullet Tweeter 240 Watts 1.5" Titanium 8-Ohm Vc
4" x 4" Super Bullet Tweeter 240 Watts 1.5" Titanium 8-Ohm Vc
Couldn't load pickup availability
4" x 4" Super Bullet Tweeter 240 Watts 1.5" Titanium 8-Ohm Vc
Sold by AudioSellerz.com
The DS18 PRO-TWX6 is a 4" tweeter from the DS18 PRO line with an 8 ohm design. Tweeters handle the top end of the system, so they decide how clear vocals and cymbals sound.
DS18 Product Details
DS18 PRO-TWX6 4" Super Bullet Tweeter 480 Watts 1.5" Aluminum 8-Ohm Vc
DS18's new 8 ohm super tweeter is sleek and refined after many years of testing and development. These square aluminum housings hold a titanium 1.5 inch voice coil rated for 240w Program power and 480w MAX power with a ferrite motor structure. With a 112db sensitivity rating, these tweeters do not need a lot of power to get extremely loud. These tweets have a range of 1.7KHz to 20KHz so you will be sure you wont miss one crack of the high hat!
Highlights
- Sturdy 4x4 aluminum throat for easy mounting and aesthetic symmetrical look.
- 112db sensitivity with a 240w program and 480w peak power rating.
- Mounting depth of 2.5 inches so they will clear most door panel locations with minimal fabrication work.
- Silver bullet resonator helps clear and loud frequencies to carry through the air.
Technical Details
| Nominal Diameter | 4x4" / 102x102mm |
| Nominal Impedance | 8 Ohms |
| Peak Power | 480 watts |
| Program Power | 240 watts |
| AES Power | 120 watts |
| Sensitivity (1w/1m) | 112dB |
| Frequency Response | 1.7KHz-20KHz |
| Recommended Hi Pass Crossover | 2.5Hz |
| Motor: | |
| Voice Coil Diameter | 1.5" / 38mm |
| Voice Coil Former Material | KSV |
| Winding Material | SN |
| Diaphragm Material | Titanium |
| Body Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 15 oz |
| Measurements: | |
| Overall Diameter | 4x4" / 102x102mm |
| Front Mount Baffle Cutout | 3.5" / 90mm |
| Overall Depth | 2.7"/ 69mm |
| Mounting Depth | 2.5" / 65mm |
| Motor Diameter | 3.5" / 90mm |
Setup Tips From Audio Sellerz
- Never run a tweeter full range. Use a high-pass filter or crossover set to the manufacturer recommendation.
- Aim tweeters toward the listening position when you can. Small angle changes make a big difference in how they sound.
