DS18
3" High Compression Neodymium Hybrid Driver/Tweeter 100 Watts 1" Polyester 4-Ohm Vc
3" High Compression Neodymium Hybrid Driver/Tweeter 100 Watts 1" Polyester 4-Ohm Vc
Couldn't load pickup availability
3" High Compression Neodymium Hybrid Driver/Tweeter 100 Watts 1" Polyester 4-Ohm Vc
Sold by AudioSellerz.com
The DS18 PRO-TWN2PL is a 3" tweeter from the DS18 PRO line with a 4 ohm design. A good tweeter adds the detail and sparkle that mids and midbass can't reproduce on their own.
DS18 Product Details

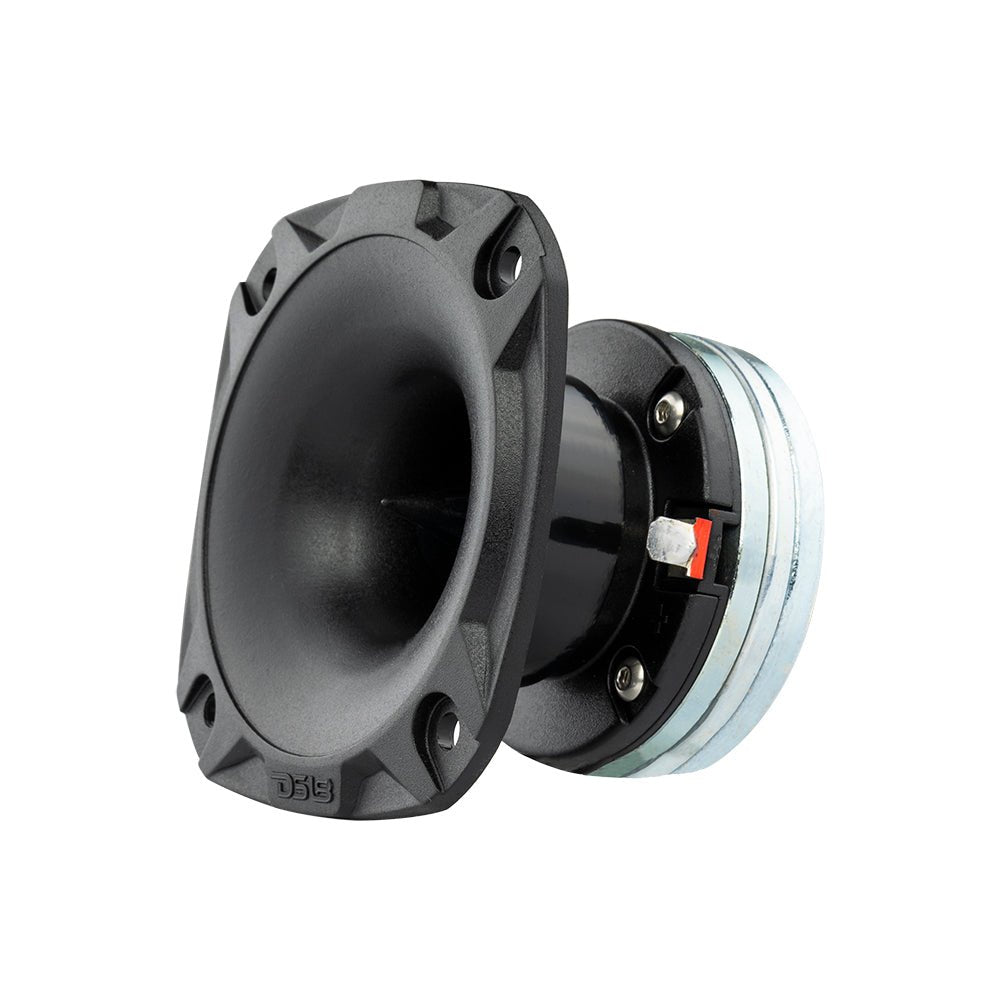

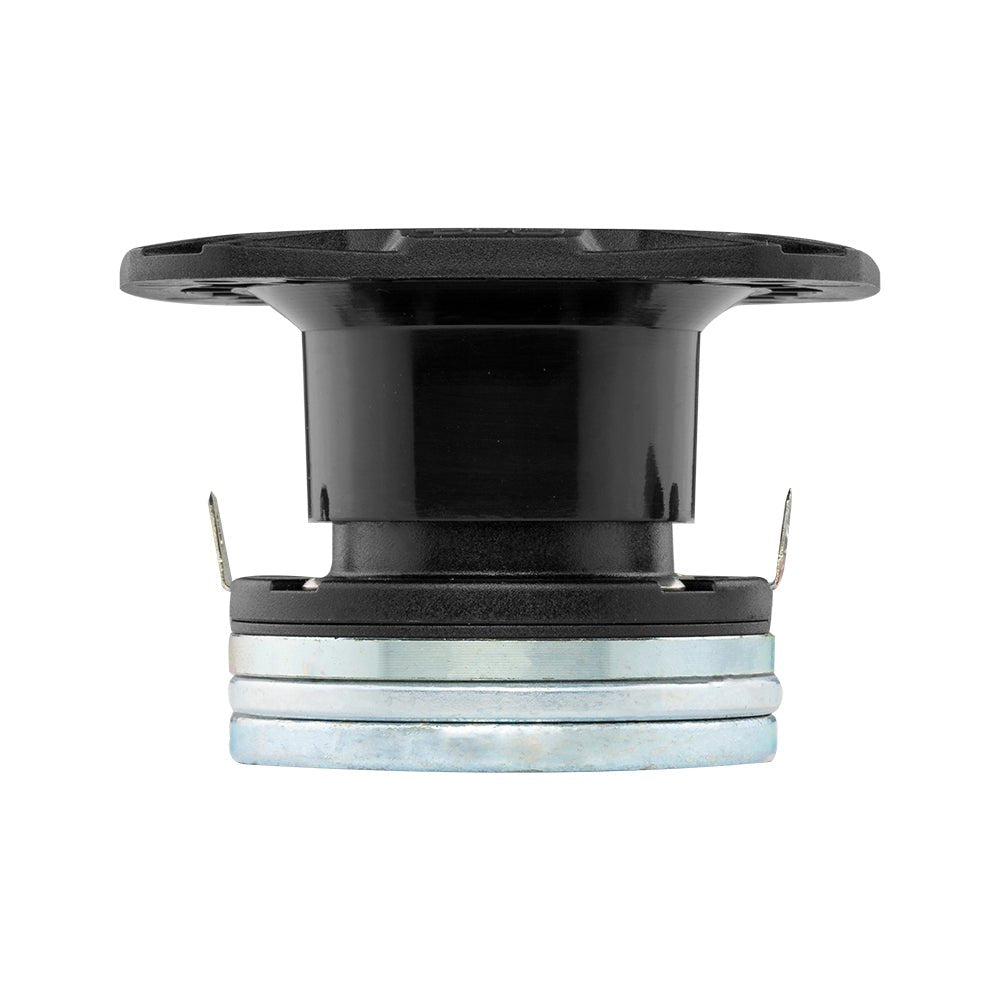

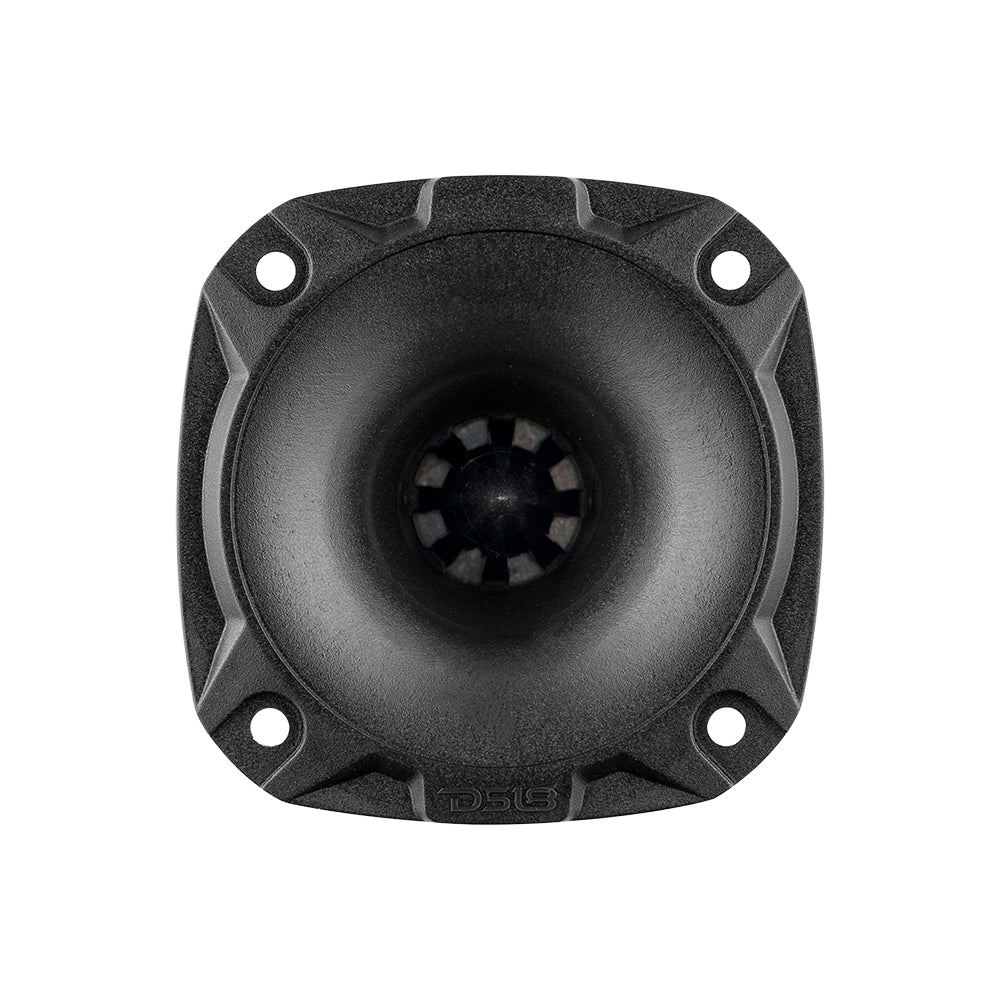

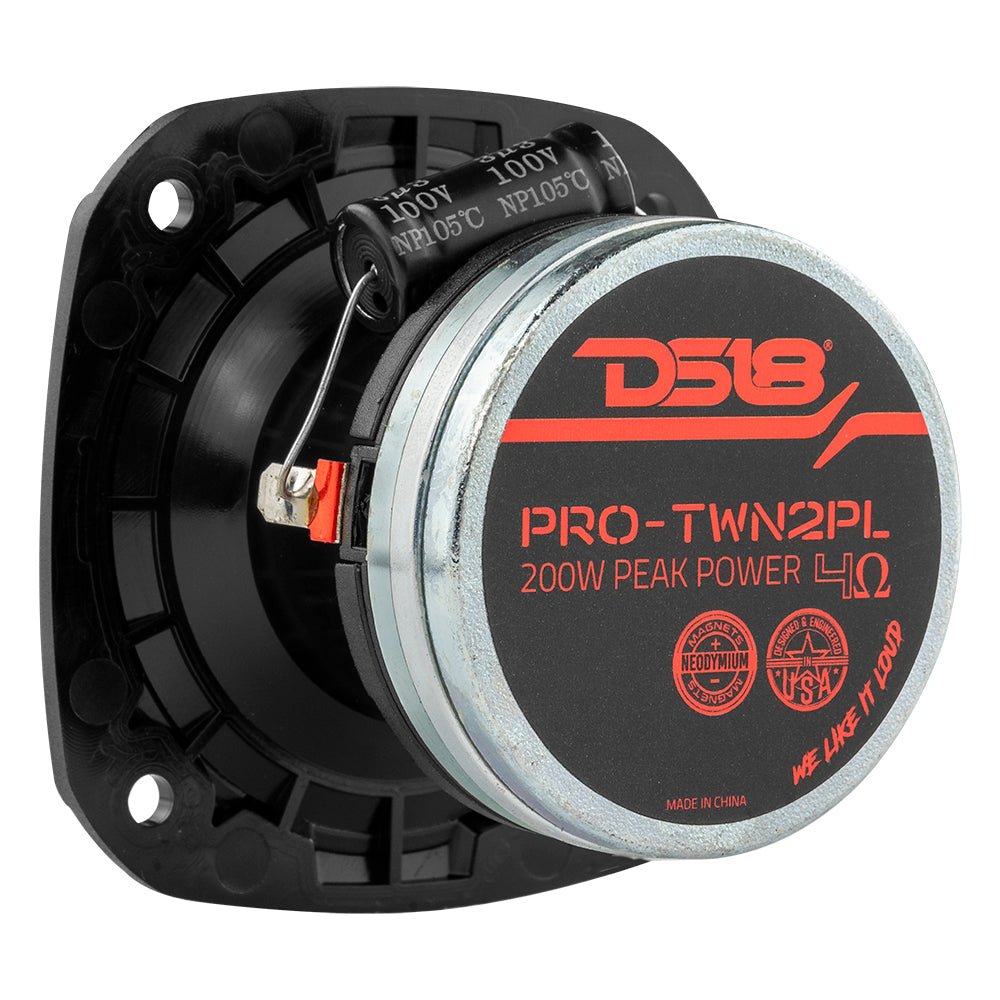

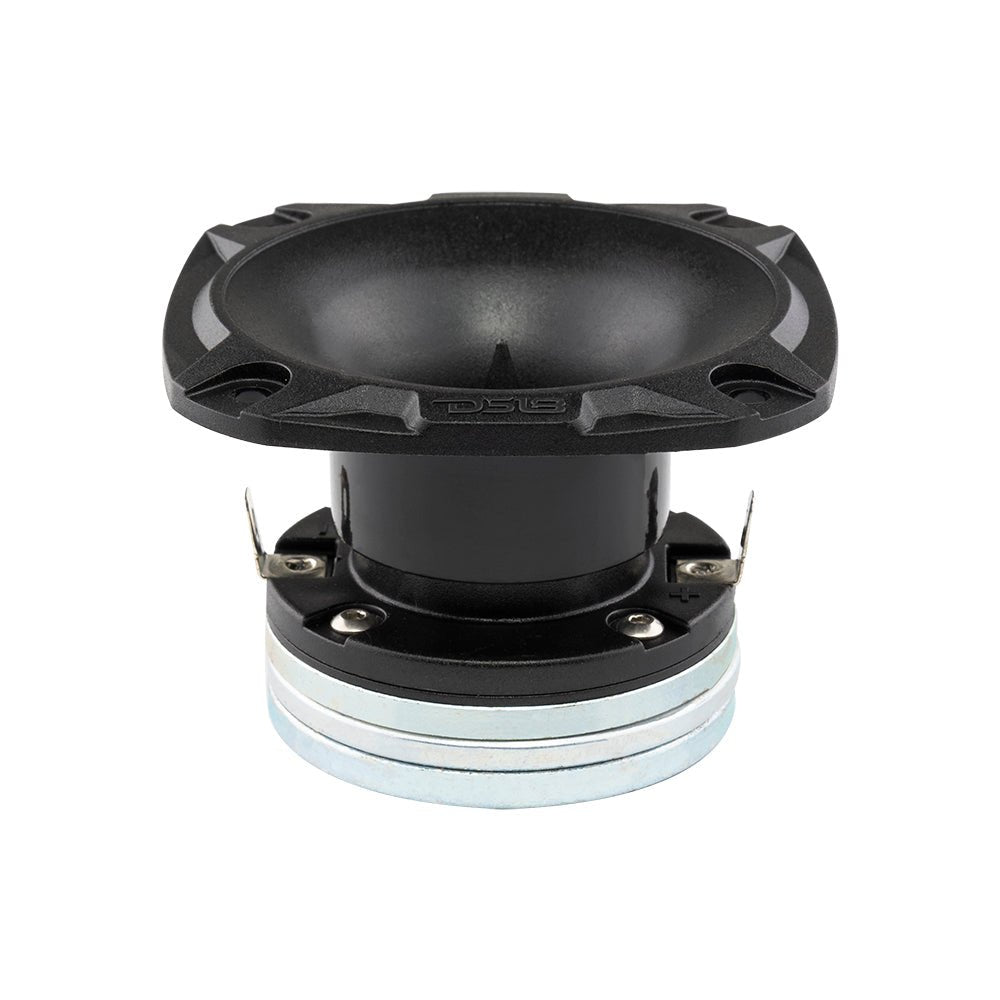

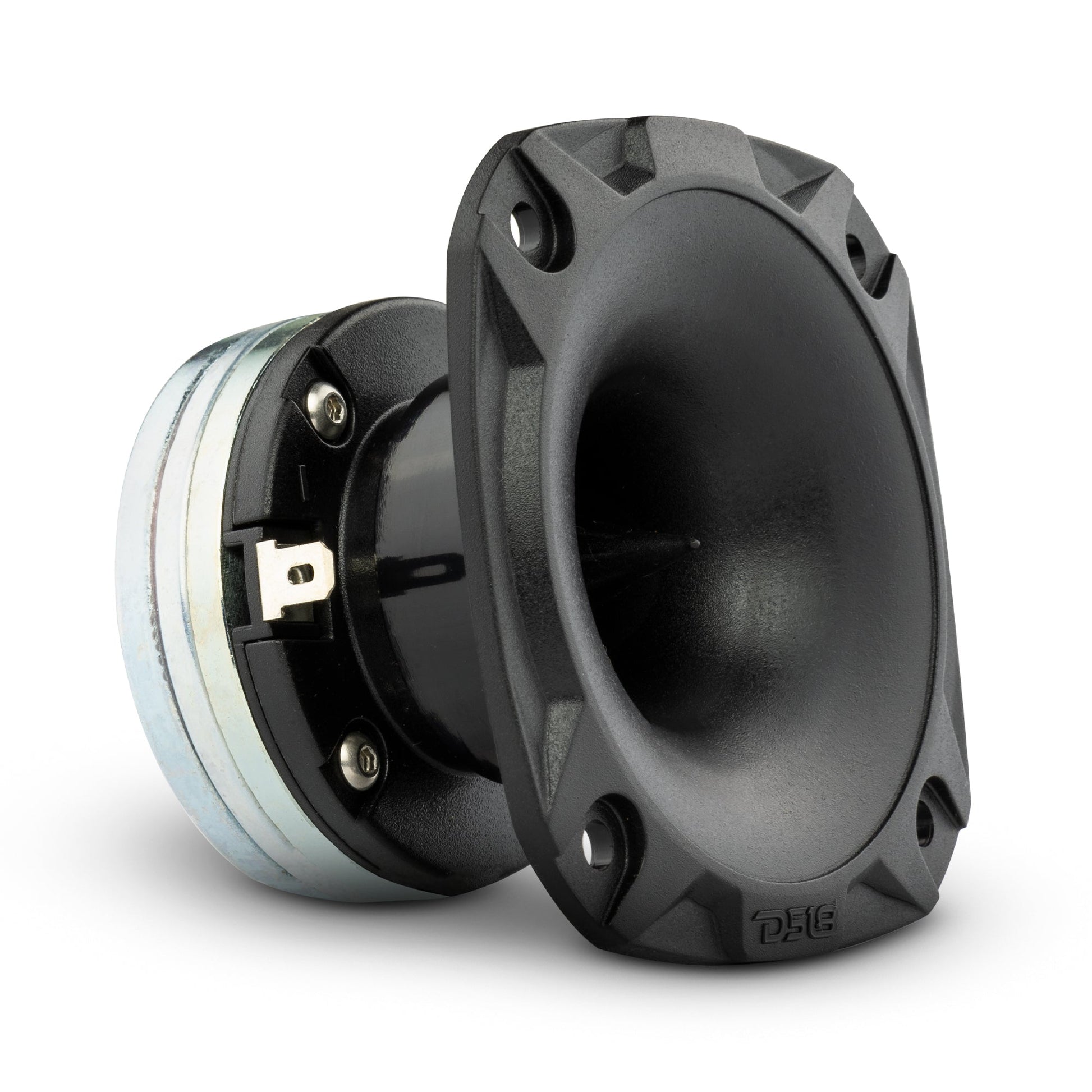

DS18 PRO-TWN2PL 3" High Compression Super Bullet Tweeter With 1" Polyester Voice Coil and Neodymium Magnet
The PRO TWN series brings Pro Audio to a bright new level of elegance, clarity, and loudness.
These speakers are designed specifically for the audio enthusiast that wants unparalleled volumes with amazing sound quality all while absorbing the power used with amazing efficiency.
This allows it to play extreme volumes with authority for extended periods of time. The PRO-TWN2PL has a beautiful black face with strong black on black frame and backed up by Neodymium powered motor to make for an extremely loud, light, and efficient super tweeter.
This 4-Ohms Super tweeter handles 50 watts AES handling and 100 Program watts, ensuring screaming loud mid and high range frequencies be acute and clear.
Key Features
- 3" Overall Diameter Bullet Black on Black Pro-Audio Neodymium Super tweeter.
- AES Power Handling: 50W
- Program Power Handling: 100W
- Peak Power Handling: 200W
- Frequency Response: 1.5KHz- 20KHz
- Voice Coil Diameter: 1"
- Voice Coil Material: Aluminum
- Impedance: 4-Ohm
- Sensitivity: 108dB
- Magnet Weight: 2 Oz
- Magnet Material: Neodymium
- Mounting Depth: 1.87"
- Recommended High Pass: 2KHz
Great For:
- Car Audio
- Pro Audio
- Motorcycles
- Home Studio
- Hi-Fi Installation
- Surround Sound
- Bookshelf Speakers
- Stunt Walls
- DIY Projects
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 3" / 77.2mm |
| Nominal Impedance | 4 Ohm |
| AES Power Handling | 50W |
| Program Power Handling | 100W |
| Peak Power Handling | 200W |
| Sensitivity (1w/1m) | 108dB |
| Frequency Response | 1.5KHz-20KHz |
| Recommended Hi Pass Crossover | 2KHz |
| Pair or Single | Single |
| MOTOR | |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | Aluminum |
| Diaphragm Material | Polyester |
| Magnet Material | Neodymium |
| Magnet Weight | 2 Oz |
| Body Material | ABS |
| Body Color / Finish | Black Matte |

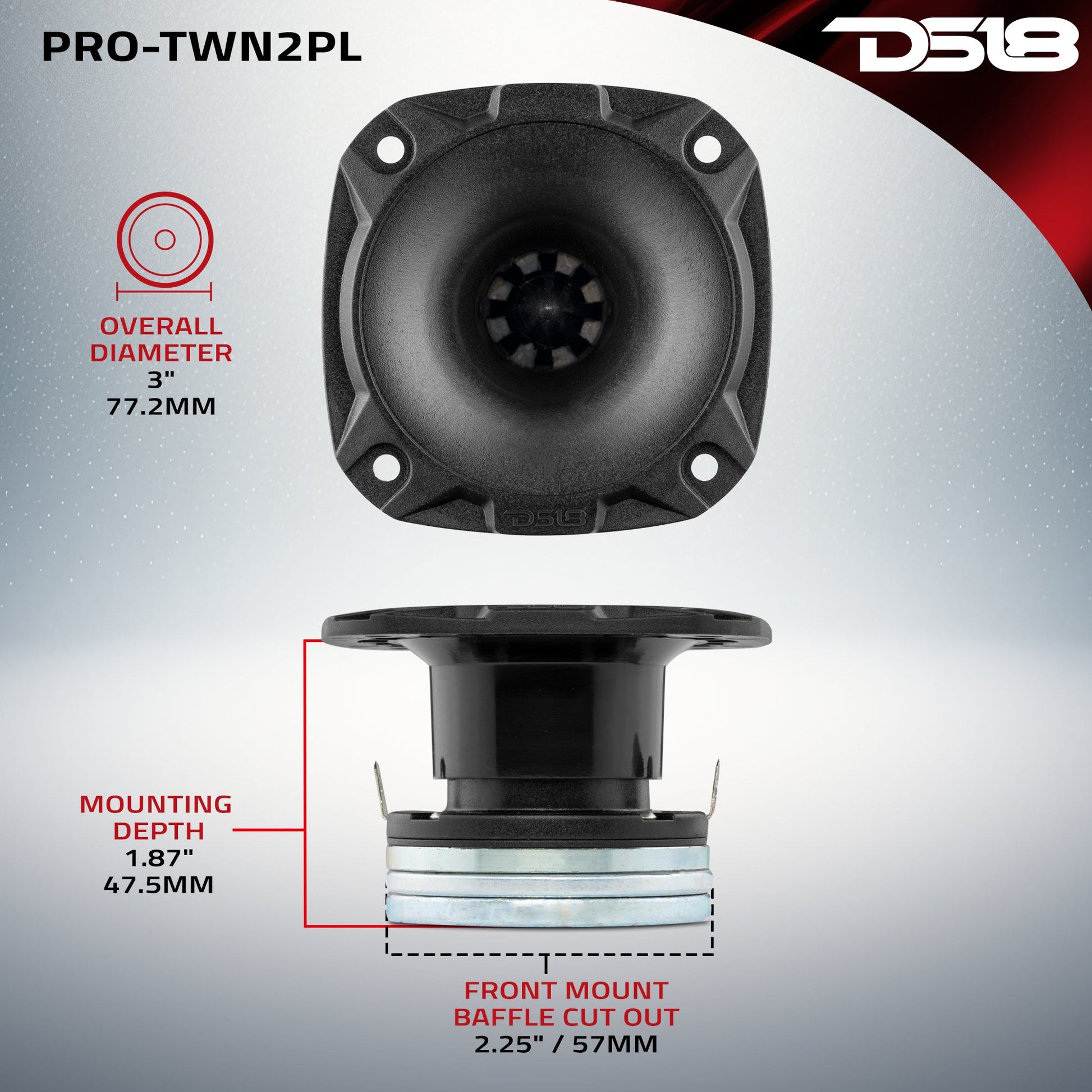

| MEASUREMENT | |
| Overall Diameter | 3" / 77.2mm |
| Overall Depth | 2" / 52.5mm |
| Front Mount Baffle Cutout | 2.25" / 57mm |
| Mounting Depth | 1.87" / 47.5mm |
| Motor Diameter | 2.2" / 56mm |
Setup Tips From Audio Sellerz
- Never run a tweeter full range. Use a high-pass filter or crossover set to the manufacturer recommendation.
- Aim tweeters toward the listening position when you can. Small angle changes make a big difference in how they sound.
