DC Audio
250.4 Class D 4-Channel Amplifier
250.4 Class D 4-Channel Amplifier
Couldn't load pickup availability
250.4 Class D 4-Channel Amplifier
Sold by AudioSellerz.com
Use the DC Audio 250.4 Class D 4-Channel Amplifier when comparing DC Audio multi-channel amplifier options for a speaker-focused system. This page keeps the original output ratings, electrical requirements, dimensions, filters, and included features together so the amplifier can be matched to the actual build instead of selected by a model name alone.
A speaker amplifier should be selected around the speakers it will power, their impedance, the number of channels needed, the intended crossover points, and the available electrical support. Matching those details helps the amplifier, speakers, wiring, and source signal work together as one system.
Original Product Details

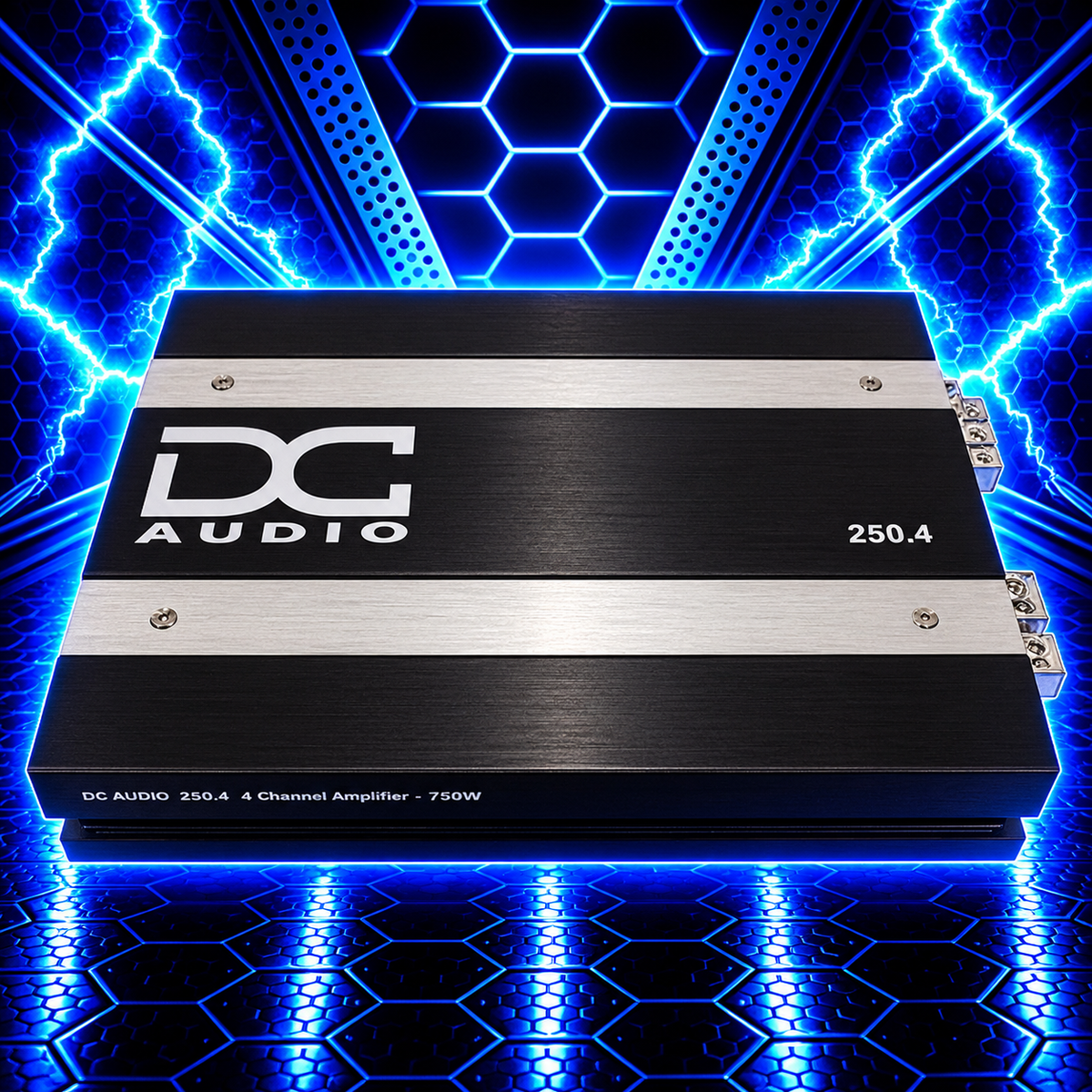

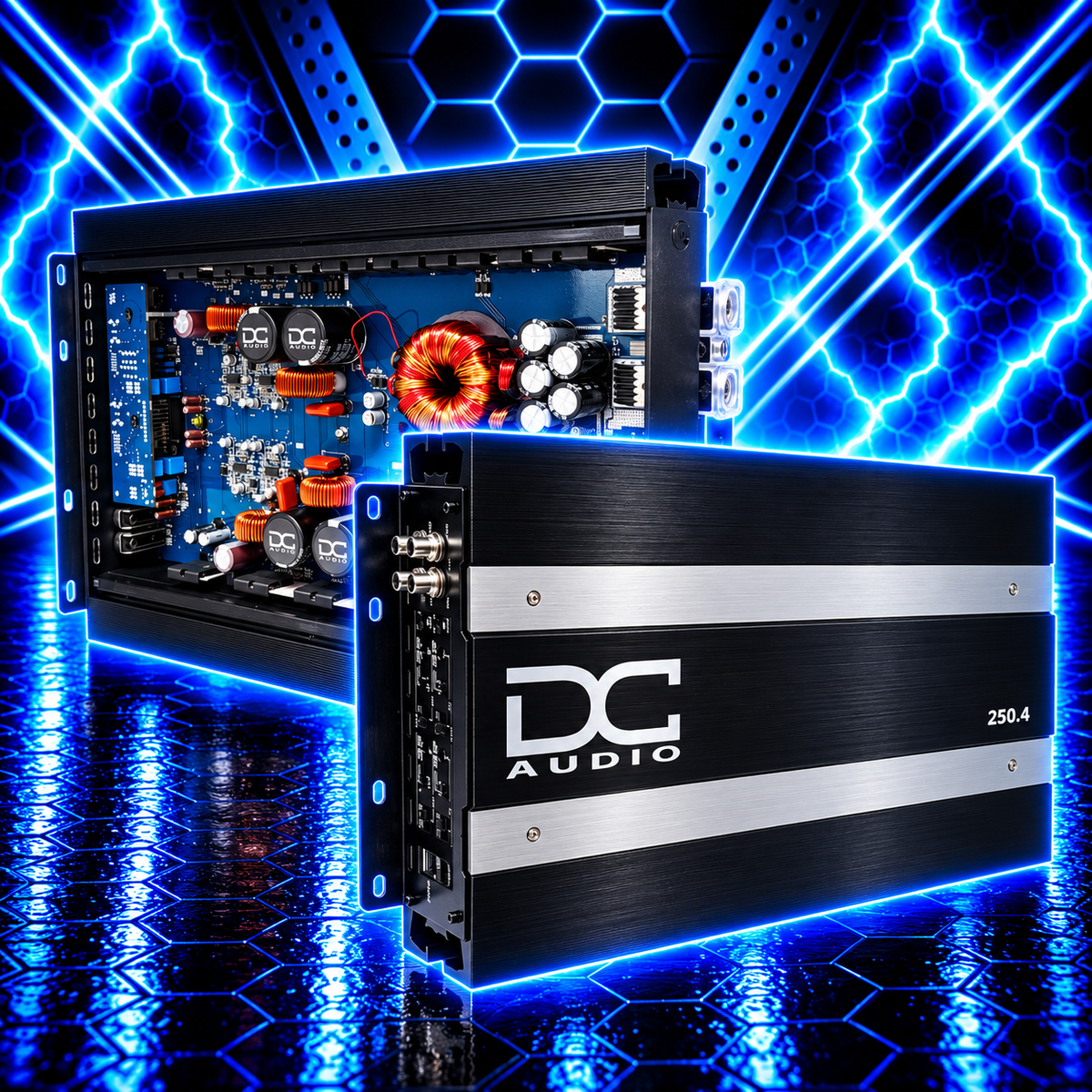

DC Audio 250 x 4 Amplifier
The 250.4 competition series amplifier is a 250 watts per channel @ 4 ohms or 400 watts per channel @ 2 ohms. It is not 1 ohm stable. We know a lot of our customers love their low end ground pounders but want their mids and highs to keep up. That's why we offer such a large 4 channel amp.
Output Power (RMS):
4 ohm 250Wx4 @ 14.4 Volts
2 ohm 400Wx4 @ 14.4 Volts
4 ohm mono 850Wx2 @ 14.4 Volts
1700 watts total power
Key Features:
- Variable high pass filter
- Variable low pass filter
- Power / Protect / Clip status Leds

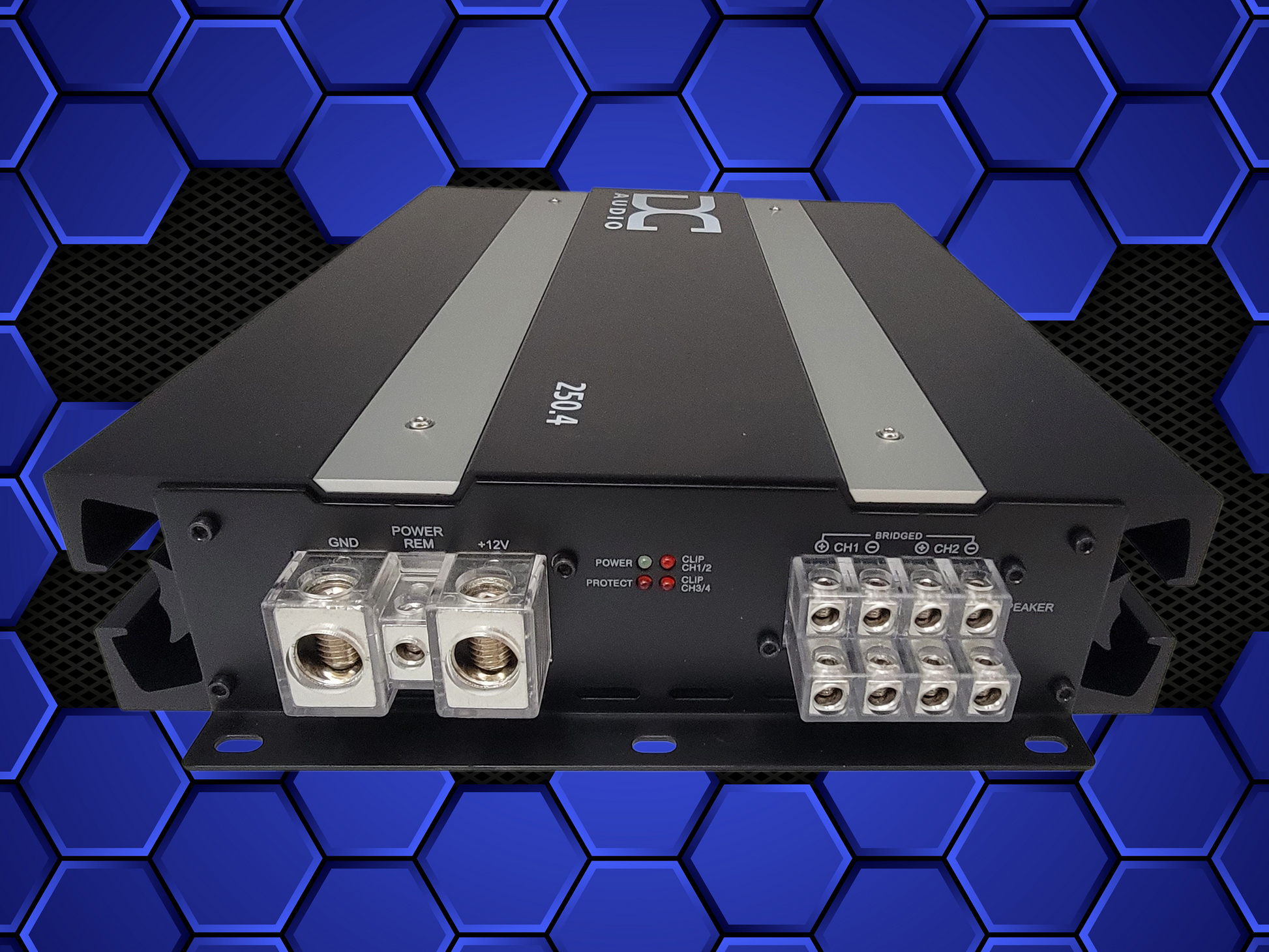

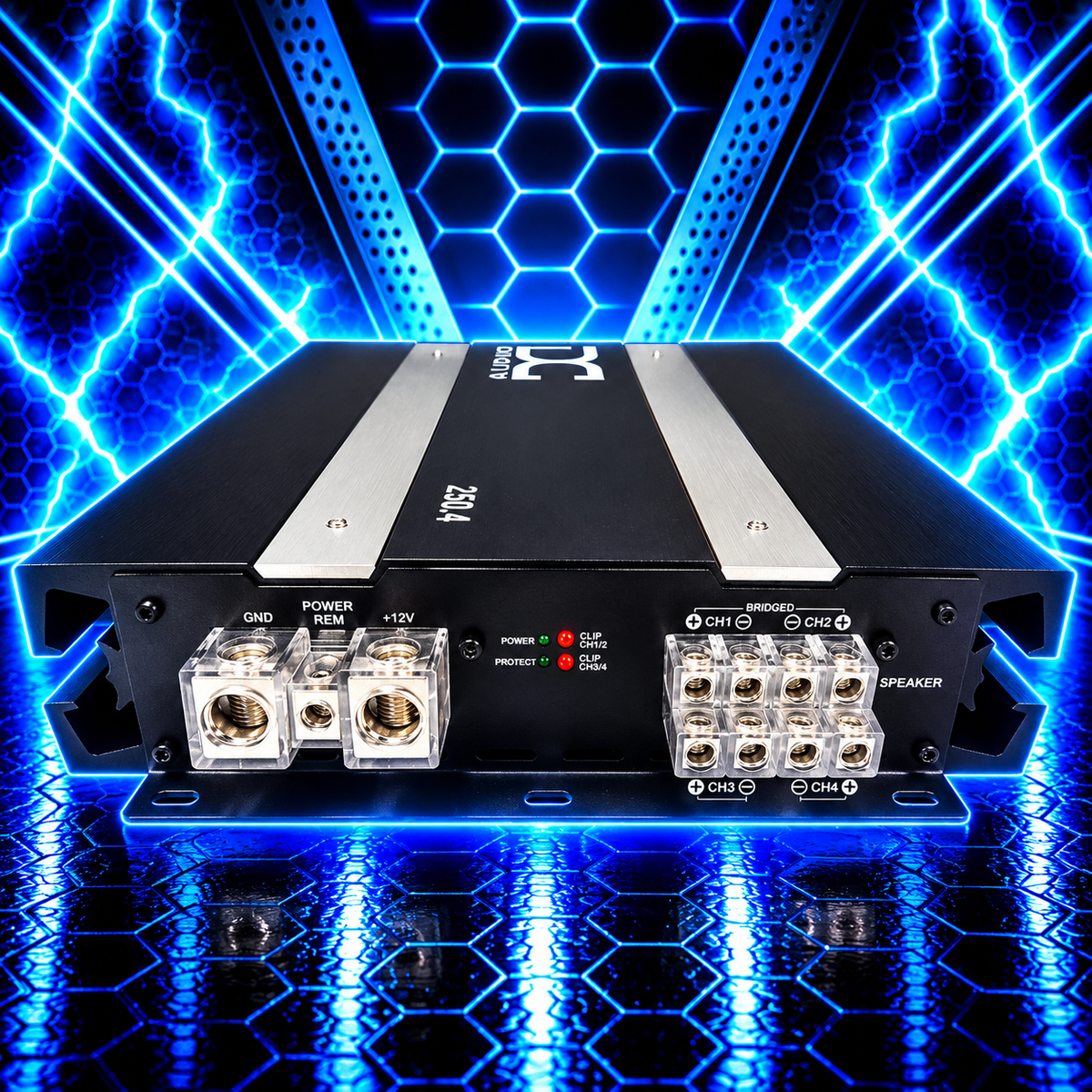

- 8awg Speaker Connections
- 1/0 awg Power / Ground inputs
- Class D

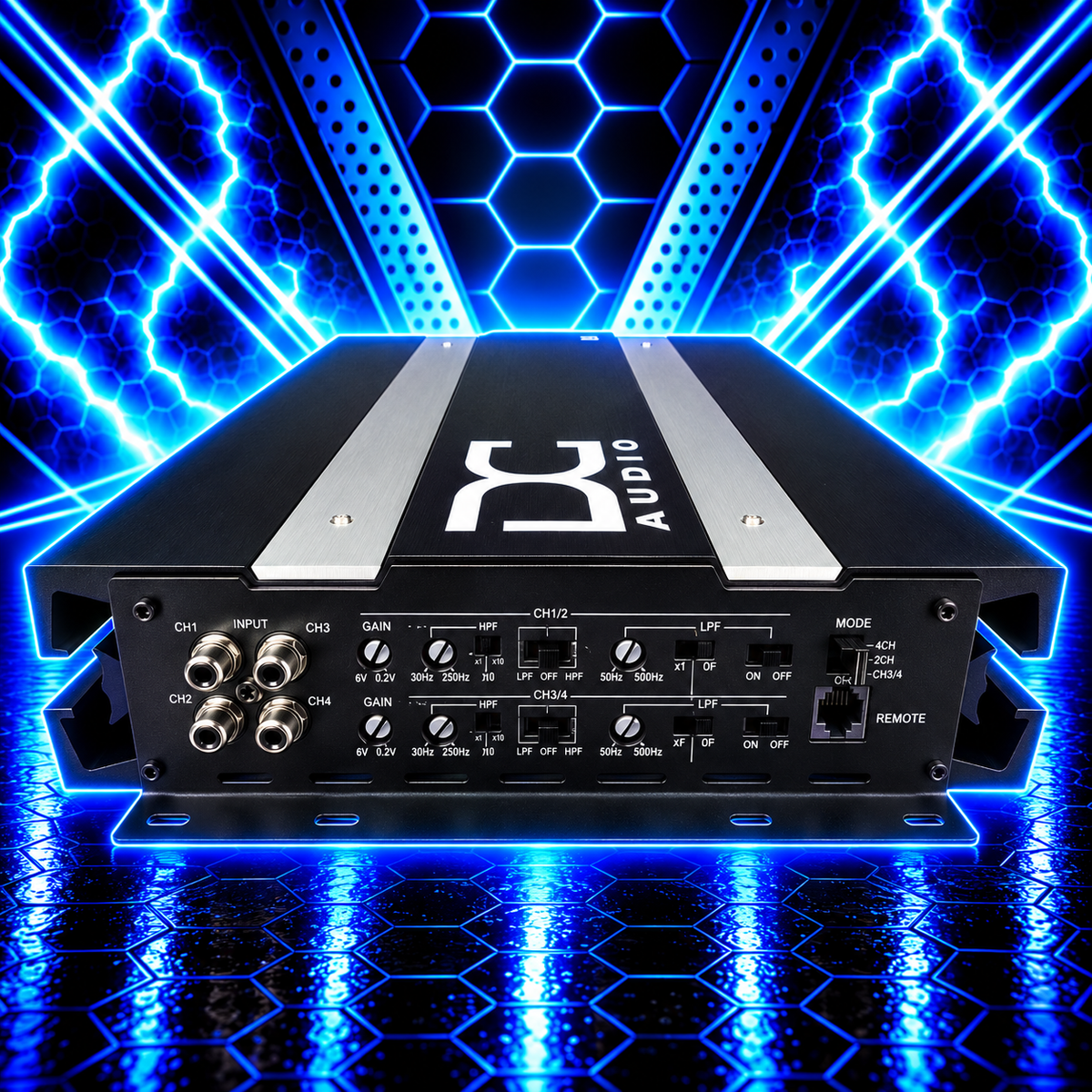

Full Specs:
| DC Amp Model: | 250.4 |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 20Hz~20KHz |
| 12dB / Octave Crossover | YES |

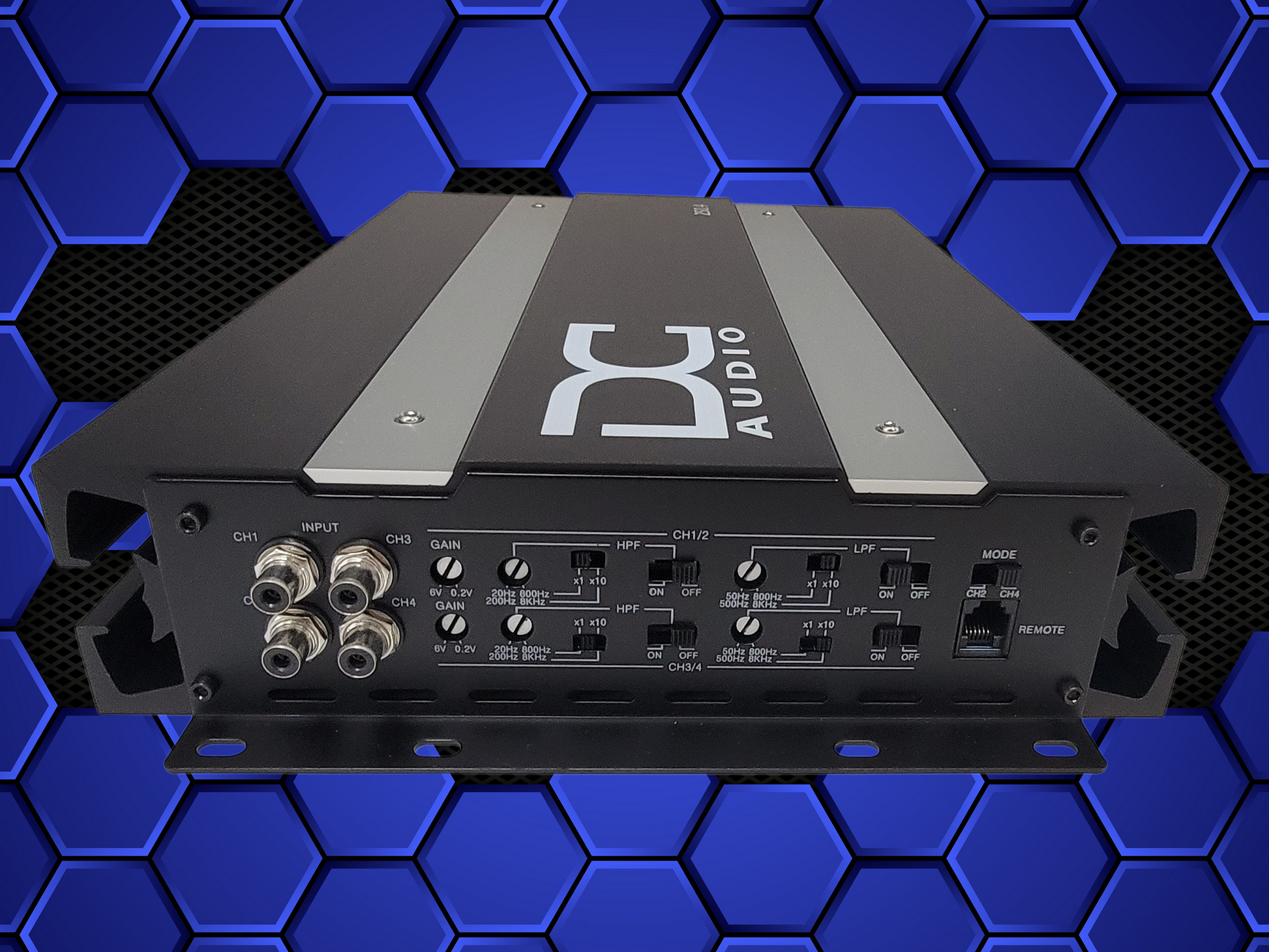

| High Pass | 20(200)Hz - 800(8K)Hz, x10 muliply |
| Low Pass | 50(500)Hz - 800(8K)Hz, x10 muliply |
| Crossover Selector Switch | HPF / FULL / LP / BP |

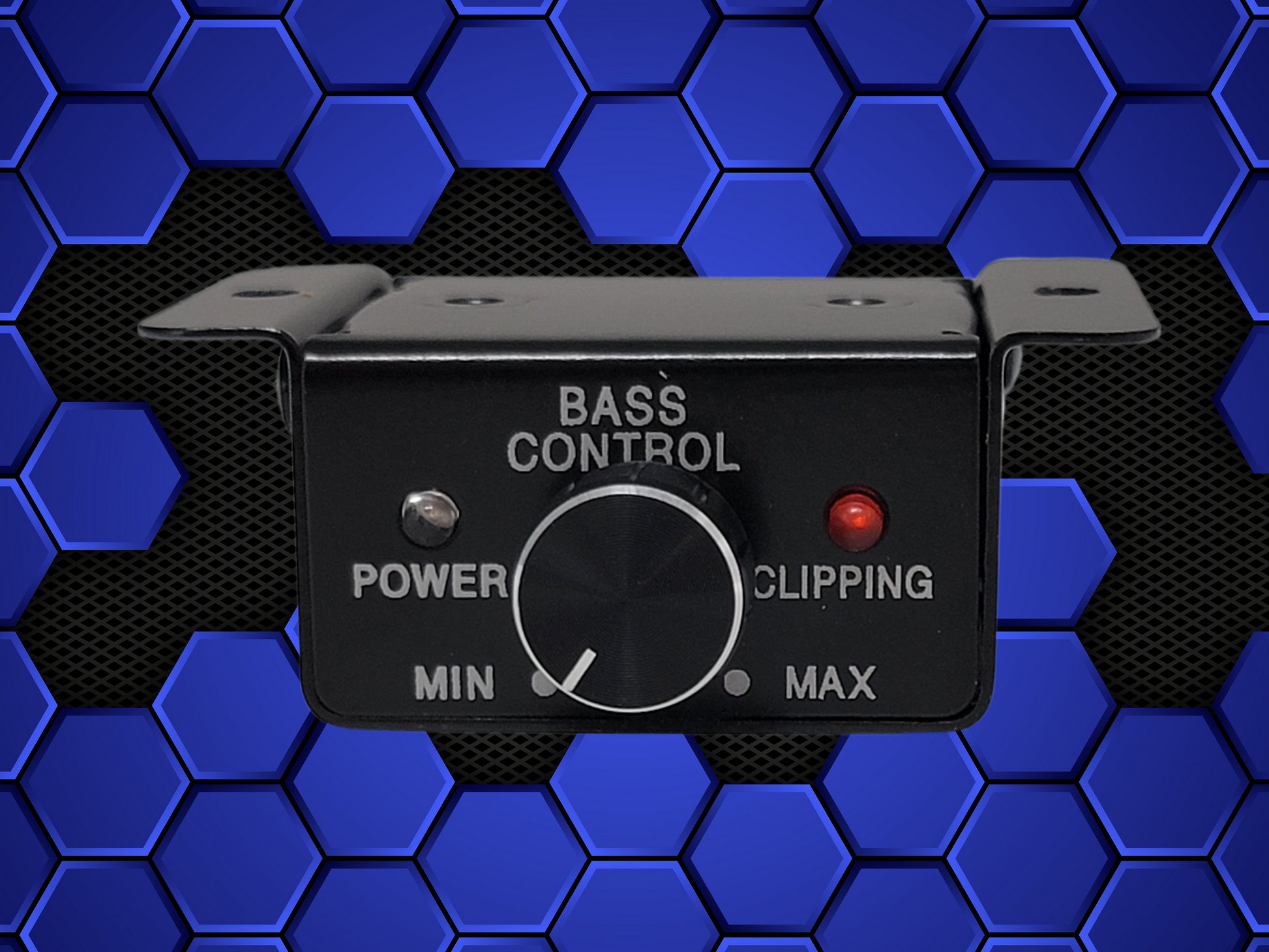

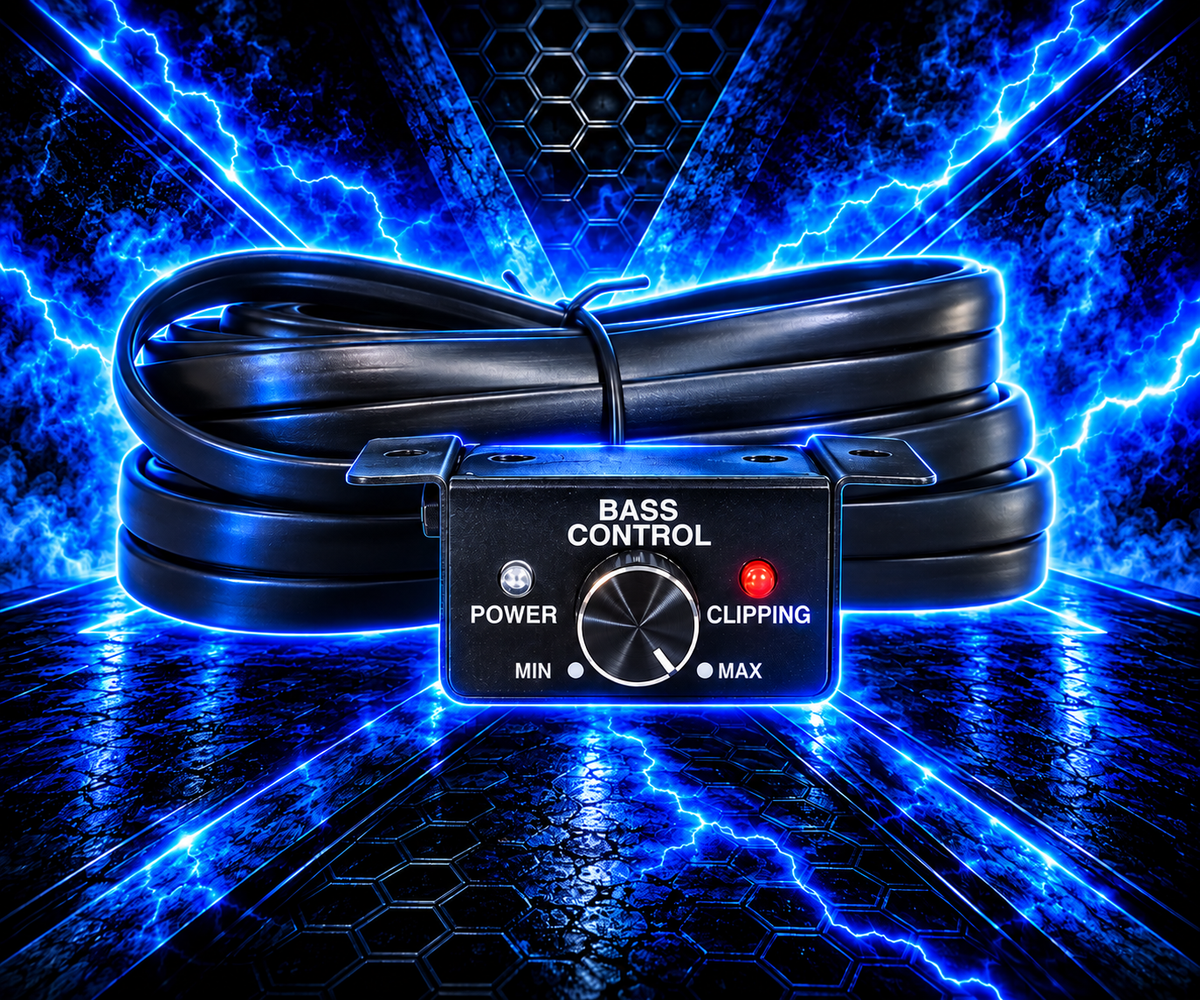

| Remote Control | YES With Clipping Light |
| Signal to Noise Ratio | dB95 |
| Damping Factor | 130< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 200 amp |
| LED Status Lights | Power and Protect / Clipping |
| Heatsink Length | 13.78"/350mm |
| Heatsink Width | 9.38"/66mm |
| Heatsink Height | 2.35"/59.6mm |
Build a Complete DC Audio Speaker System
Browse more DC Audio amplifiers and the full DC Audio collection at Audio Sellerz. For the rest of the front-stage or mids-and-highs build, compare DC Audio speakers and additional 4-channel car audio amplifiers.
Before tuning the system, read the car audio speaker tuning guide and the amplifier gain-setting guide. These guides explain speaker crossover planning, gain adjustment, distortion control, and the supporting setup that helps an amplified speaker system work correctly.
Confirm the Exact Product Before Ordering
Use the product title and selected variant as the starting point, then review every original specification, compatibility note, dimension, quantity, build-time notice, shipping limitation, and other condition provided above. Confirm the equipment and installation requirements before placing the order.
