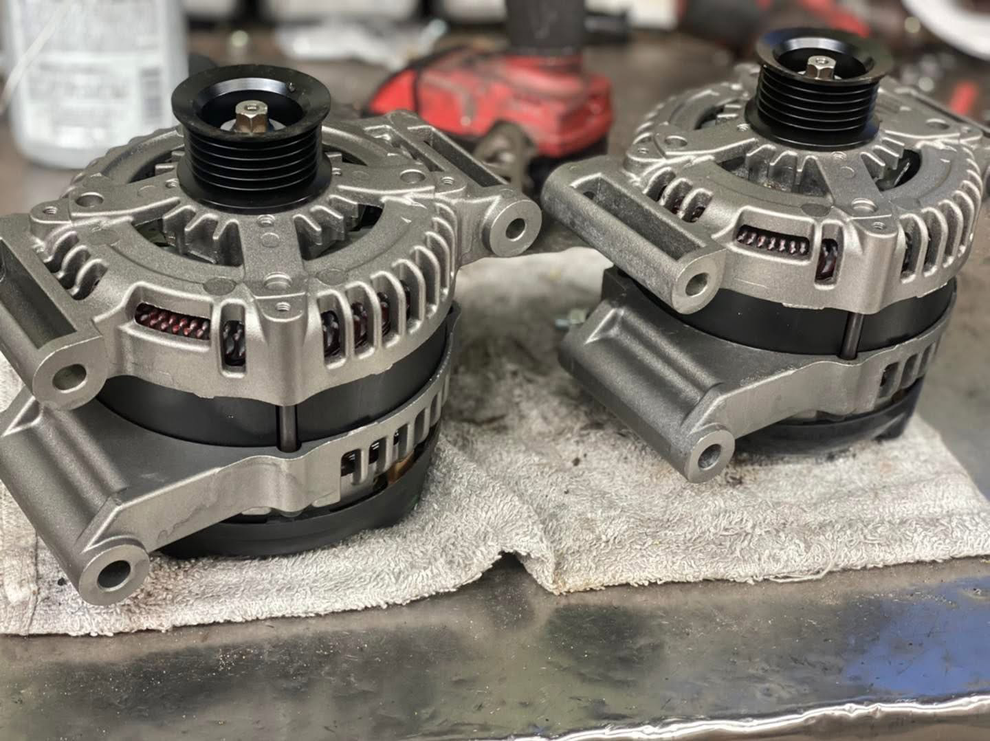

2010-2017 Chevy Equinox 2.4L Brand X High Output Alternator
2010-2017 Chevy Equinox 2.4L Brand X High Output Alternator
Couldn't load pickup availability
2010-2017 Chevy Equinox 2.4L Brand X High Output Alternator
Sold by AudioSellerz.com.
Important Before Ordering:
This high output alternator is sold in the standard factory color unless custom powder coating is selected before checkout. Product photos may show a custom color or finish for example purposes only. If you do not select custom powder coating, your alternator will be built and shipped in the standard factory finish.
This alternator is hand-built, bench tested, and shipped after production is complete. Average build time is typically 2-4 weeks before shipment. Because each alternator is built to order for your vehicle and application, it does not ship immediately after purchase.
Please make sure all vehicle information, amperage options, plug type, and any custom options are selected correctly before placing your order.
If you are upgrading the electrical system in your 2010-2017 Chevy Equinox 2.4L, this Brand X High Output Alternator gives you a wide range of charging options built around your vehicle and your power goals. Whether you are trying to support a stronger daily driver, a serious car audio setup, or a system with more electrical demand than stock can handle, this listing gives you multiple case sizes and amperage options so you can choose the alternator that fits your build the right way.
This application includes Small Case and custom Large Case options, along with the newer XL case lineup for customers who want the strongest idle output available. The 180 amp and 200 amp models are a great starting point if you need a solid charging upgrade without stepping too far beyond a mild setup. From there, the Small Case lineup moves into 250 amp, 275 amp, 300 amp, 320 amp, and 350 amp options for builds that need more charging headroom.
Idle output matters, especially if your vehicle spends time at stoplights, in traffic, or demoing at lower RPM. The 180 amp and 200 amp options offer 150+ amps at idle. The 250 amp through 320 amp Small Case units idle around 170-180 amps at engine running temperature. The 350 amp Small Case requires 800+ engine idle RPM and at least a 7" crank pulley, and with that setup you will see 180+ amps at idle.
If you need more durability and stronger idle output, the custom Large Case hairpin options step things up even further. These units are available from 250 amp up to 400 amp and offer 200+ amps at idle, making them a strong fit for harder-use builds and heavier electrical demand. For customers who want the strongest idle performance in this lineup, the newest XL case options are the top choice. The 300XL, 425XL, and 475XL models offer around 240-250 amps at idle depending on idle RPM, making them the best options here for high-demand systems that need serious charging support at lower engine speeds.
If you are shopping for a high output alternator for a 2010-2017 Chevy Equinox 2.4L, a Brand X alternator for car audio, or a custom charging upgrade with real amperage choices and strong idle performance, this is a strong fit for the job.
Important Installation Notice
A Big 3 upgrade is required when installing a high output alternator. Factory wiring is not designed to support the increased current demand of a high amp alternator or heavy duty alternator upgrade. Failing to upgrade the charging and ground wiring can create excessive heat, voltage drop, and alternator damage, including rectifier failure. Damage caused by improper wiring or failure to complete the Big 3 upgrade is not covered.
Need a Big 3 upgrade kit?
Shop our Big 3 kits here:
https://audiosellerz.com/collections/big-3-kits
Want to learn why a Big 3 upgrade matters?
Read our guide here:
https://audiosellerz.com/blogs/audio-sellerz-blogs/big-3-upgrade-high-output-alternator-car-audio
Need custom powder coating for your alternator?
Add the custom powder coat option directly from the Brand X collection page before placing your order. If you do not see the powder coat color you want, please go to https://www.prismaticpowders.com/ find the color you want that is currently in stock, and then send us the direct link through the website before ordering so we can confirm availability for your custom alternator.
Important Product Information
Brand X high output alternators are hand-built in Ohio and bench tested before shipment. Every unit is built for your specific vehicle and application. If you are upgrading to an aftermarket alternator for car audio or performance use, proper wiring and installation are essential.
Each new unit includes an output sheet, voltage operating range, and installation directions. Every high output car alternator is tested before it ships to help ensure proper performance.
All alternators are supplied in their standard factory color unless custom powder coating is requested. Please note that the alternator shown in product photos may feature a custom color and may not be the exact color you receive unless that finish is specifically requested.
Warranty Information
All new units include a lifetime warranty on labor for repair and rebuild service. The customer is responsible for the cost of any parts needed for the repair or rebuild.
Important Ordering Information
Because each alternator is custom-built to order, average build time is typically 2–4 weeks before shipment.
By placing your order, you acknowledge and agree to the following:
-
All sales are final
-
Orders cannot be canceled, changed, or modified once placed
-
No refunds will be issued under any circumstances
-
Your alternator will ship as soon as production is complete
Thank you for your patience and for supporting custom-built products at Audio Sellerz.
