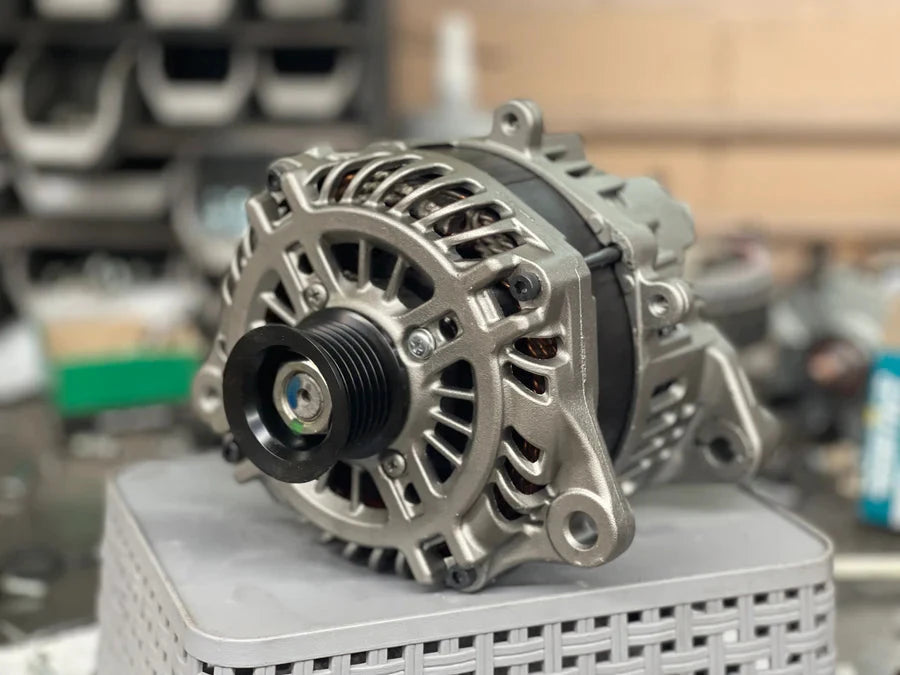

2004-2019 Nissan Titan Armada Infiniti Q Series 5.6L Engine Brand X High Output Alternator

2004-2019 Nissan Titan Armada Infiniti Q Series 5.6L Engine Brand X High Output Alternator

Sold by AudioSellerz.com

If you need a serious charging upgrade for your 2004-2019 Nissan Titan, Armada, or Infiniti Q Series SUV with the 5.6L engine, this Brand X high output alternator is built to deliver the extra current needed for car audio, added accessories, and higher electrical demand. This is a strong option for shoppers who want direct fit charging performance with multiple amp choices depending on how aggressive the setup is.

This alternator is available in 180 amp, 240 amp, 270 amp, 325 amp, and 400 amp plug and play options in both 3 pin and 2 pin square plug variants, along with 430 amp and 540 amp externally regulated options. The 180-270 amp versions are rated at 160+ amps at idle rpm, the 300+ amp plug and play versions are rated at 200+ amps at idle rpm, and the 430+ amp externally regulated versions are rated at 230+ amps at idle rpm.

All units use the output stud at the rear of the alternator instead of the side. Fitment remains the same as stock, but some vehicles that originally had the stud out the side may require a Big 3 upgrade and factory power wire replacement from the fuse box. The rear stud setup allows a longer stud to be used so you can fit more wire, which is normal for this alternator design.

You can also add a voltage knob for adjustable voltage on the plug and play units. For shoppers wanting the easiest install, the bolt-on, plug-in versions are the most straightforward choice. The 430 amp and 540 amp options are externally regulated only, require a separate external regulator to control voltage output, and are not recommended for novice installers.

Important Installation Notice
A Big 3 upgrade is required when installing a high output alternator. Factory wiring is not designed to support the increased current demand of a high amp alternator or heavy duty alternator upgrade. Failing to upgrade the charging and ground wiring can create excessive heat, voltage drop, and alternator damage, including rectifier failure. Damage caused by improper wiring or failure to complete the Big 3 upgrade is not covered.

Need a Big 3 upgrade kit?
Shop our Big 3 kits here:
https://audiosellerz.com/collections/big-3-kits

Want to learn why a Big 3 upgrade matters?
Read our guide here:
https://audiosellerz.com/blogs/audio-sellerz-blogs/big-3-upgrade-high-output-alternator-car-audio

Need custom powder coating for your alternator?

Add the custom powder coat option directly from the Brand X collection page before placing your order. If you do not see the powder coat color you want, please go to https://www.prismaticpowders.com/, find the color you want that is currently in stock, and then send us the direct link through the website before ordering so we can confirm availability for your custom alternator.

Important Product Information
Brand X high output alternators are hand-built in Ohio and bench tested before shipment. Every unit is built for your specific vehicle and application. If you are upgrading to an aftermarket alternator for car audio or performance use, proper wiring and installation are essential.

Each new unit includes an output sheet, voltage operating range, and installation directions. Every high output car alternator is tested before it ships to help ensure proper performance.

All alternators are supplied in their standard factory color unless custom powder coating is requested. Please note that the alternator shown in product photos may feature a custom color and may not be the exact color you receive unless that finish is specifically requested.

Warranty Information
All new units include a lifetime warranty on labor for repair and rebuild service. The customer is responsible for the cost of any parts needed for the repair or rebuild.

Important Ordering Information
Because each alternator is custom-built to order, average build time is typically 2–4 weeks before shipment.

By placing your order, you acknowledge and agree to the following:

• All sales are final

• Orders cannot be canceled, changed, or modified once placed

• No refunds will be issued under any circumstances

• Your alternator will ship as soon as production is complete

Thank you for your patience and for supporting custom-built products at Audio Sellerz.
