DS18
2" Throat Bolt On Neodymium Driver with Spacer, 2" Throat Titanium Voice Coil 640 Watts and PRO-HA52/BK Horn 680 Watts 118dB 8-Ohm Mounting Depth 5.22" Throat
2" Throat Bolt On Neodymium Driver with Spacer, 2" Throat Titanium Voice Coil 640 Watts and PRO-HA52/BK Horn 680 Watts 118dB 8-Ohm Mounting Depth 5.22" Throat
Couldn't load pickup availability
2" Throat Bolt On Neodymium Driver with Spacer, 2" Throat Titanium Voice Coil 640 Watts and PRO-HA52/BK Horn 680 Watts 118dB 8-Ohm Mounting Depth 5.22" Throat
Sold by AudioSellerz.com
SKU: PRO-DKN1XS
2" Throat Bolt On Neodymium Driver with Spacer, 2" Throat Titanium Voice Coil 640 Watts and PRO-HA52/BK Horn 680 Watts 118dB 8-Ohm Mounting Depth 5.22" Throat is a DS18 speaker upgrade from DS18 built for louder mids and highs, door speaker upgrades, custom panels, motorcycles, Jeeps, marine systems, and powersports builds. This description helps shoppers looking for DS18 speakers, DS18 car audio speakers, DS18 Pro audio speakers, DS18 midrange speakers, loud door speakers understand where it fits in a real audio system.
Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.
Audio Sellerz System Match Notes
- Check mounting depth, impedance, RMS power, amplifier match, crossover settings, and the install location before ordering.
- For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
- If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.

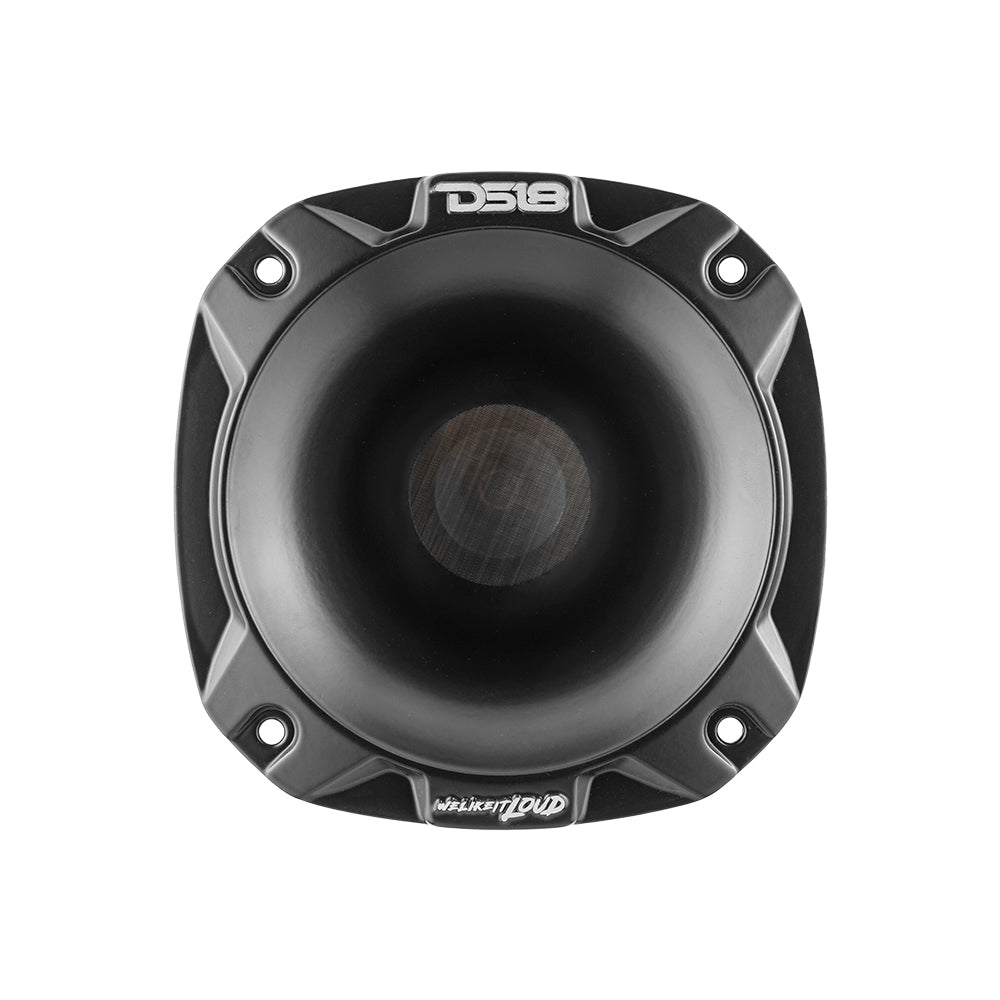

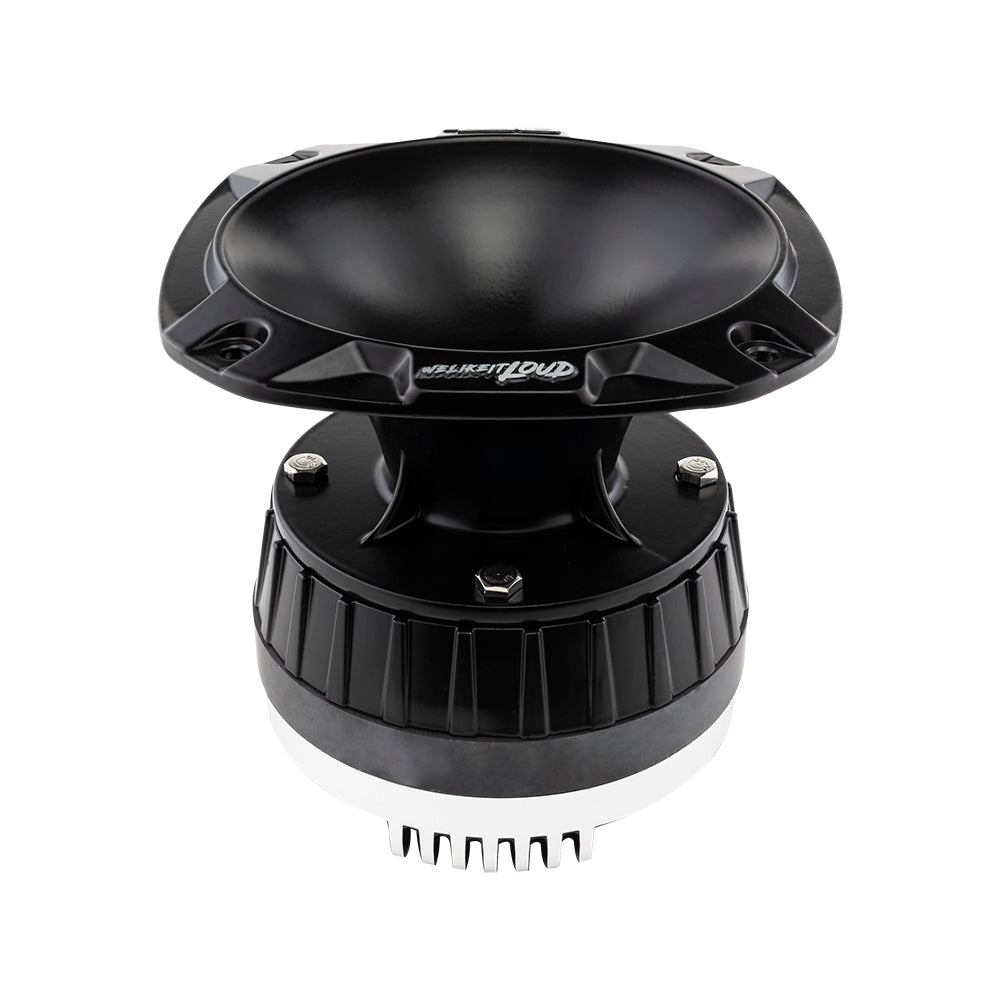

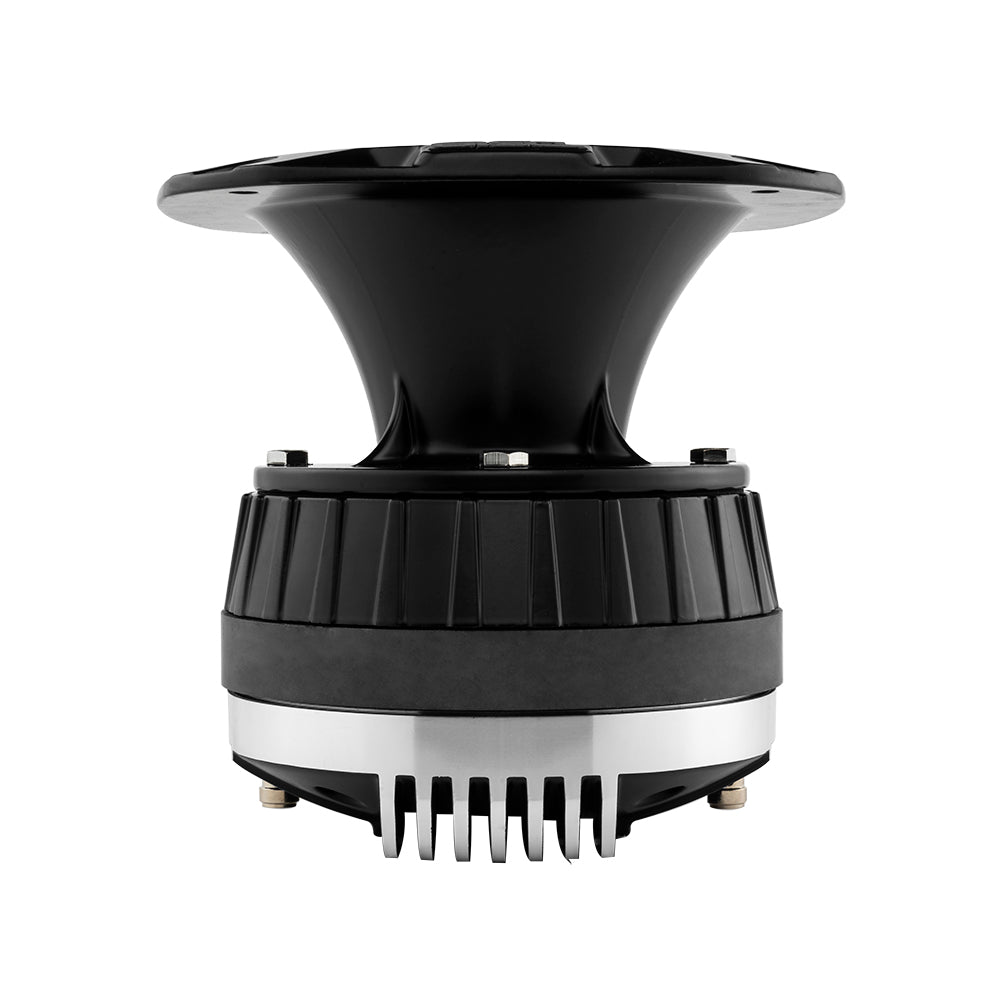

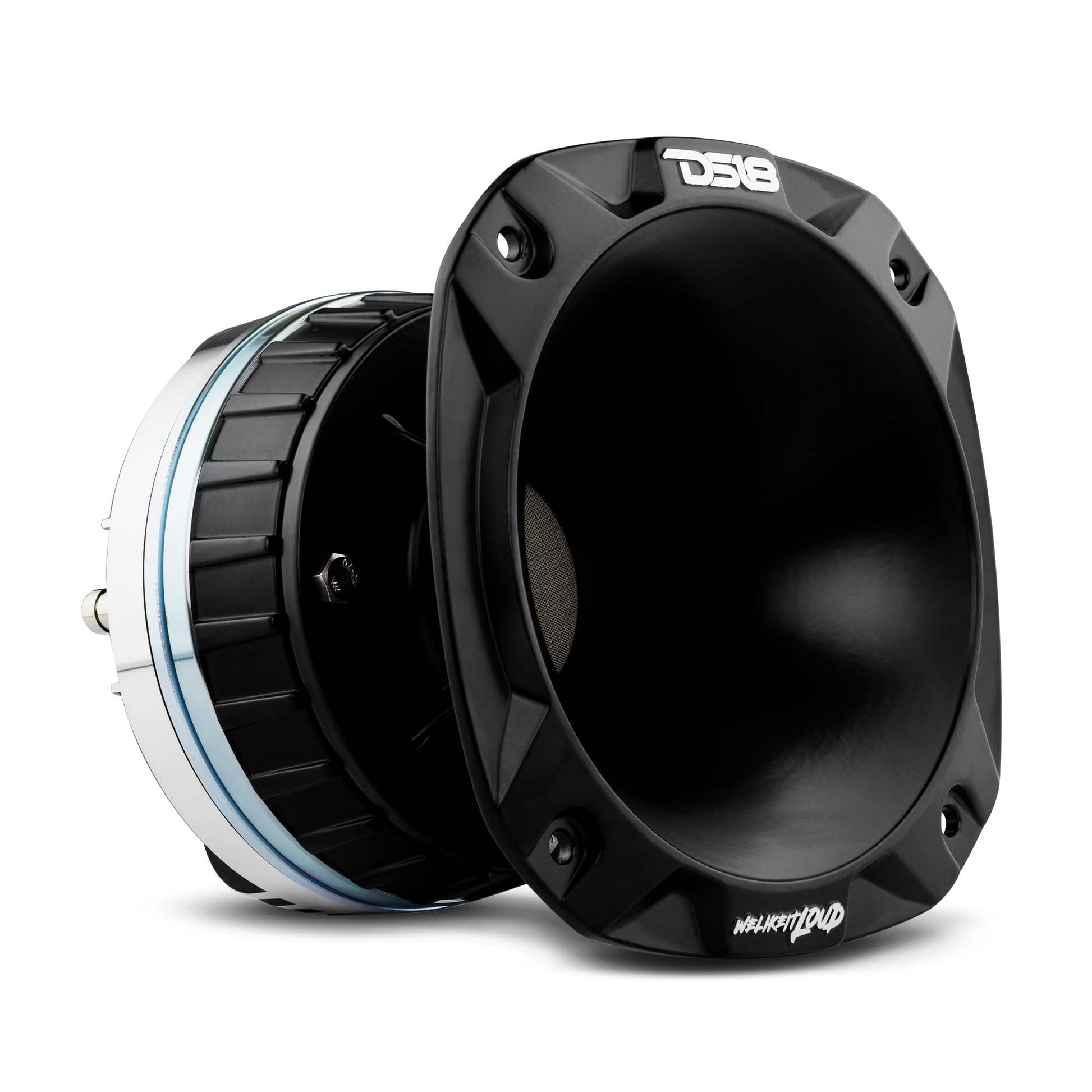

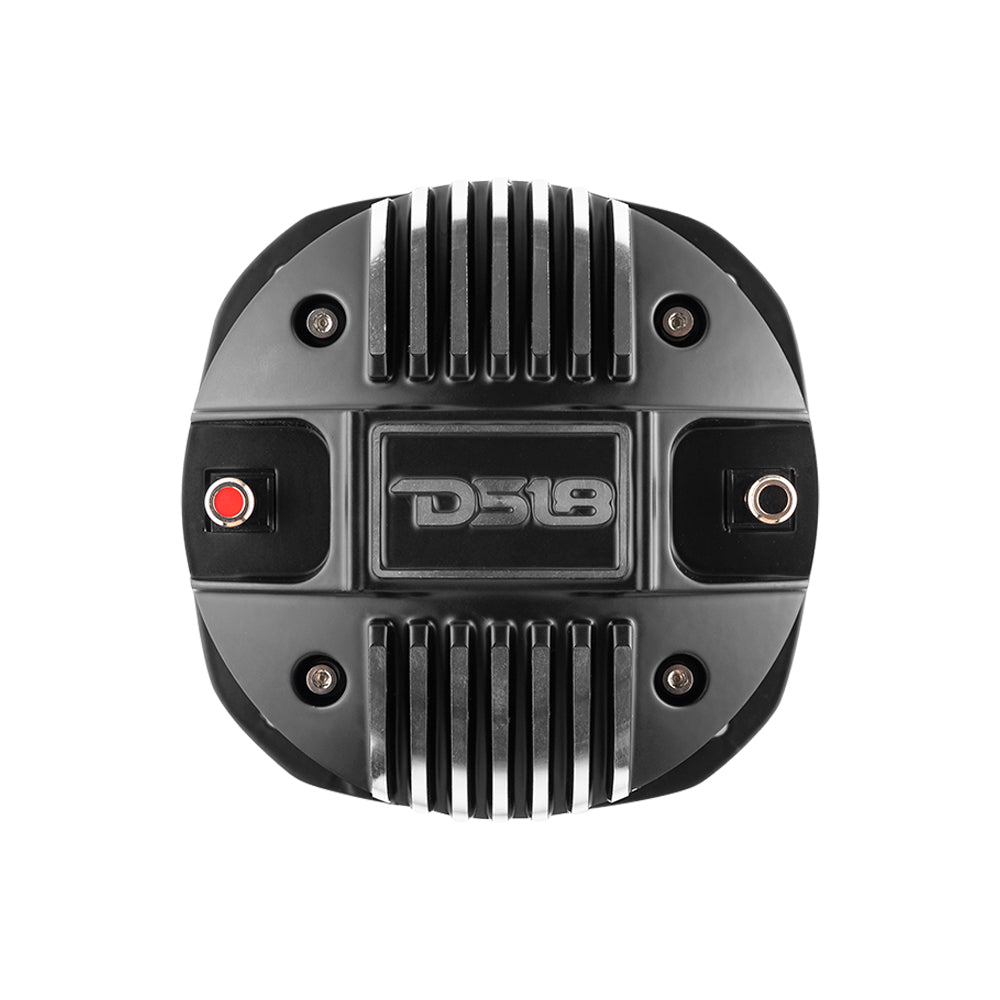

DS18 PRO-DKN1XS 2" Throat Bolt On Neodymium Driver with Spacer, 2" Throat Titanium Voice Coil 640 Watts and PRO-HA52/BK Horn 680 Watts 118dB 8-Ohm Mounting Depth 5.22" Throat
The DKN1S includes the DS18 DKN1XS neodymium driver plus our newly redesigned shorty throat so you only need 5.2 inches mounting depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency and the included spacer amplifies the DB sensitivity. With an AES power handling of 170w and peak at 680w you will be sure to draw everyone's attention to your audio!
Highlights
- DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.
- Aluminum "Shorty" throat with brushed DS18 logos for an amazing look and great fitment.
- DKN1 Driver with an AES rating of 170 watts and Peak of 680w for super loud and vibrant highs with a Neodymium 8 ohms voice coil.
- 5.2 inch mounting depth and 5.5 inches total mounting depth so you don't need a large amount of mounting depth like other traditional driver and throat combinations.
Technical Details
| Throat Diameter | 2"/50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| Peak Power Handling | 680W |
| Program Power Handling | 340W |
| AES Power Handling | 170W |
| Sensitivity (1w/1m) | 118 dB |
| Frequency Response | 630Hz - 18KHz |
| Recommended HI Pass Crossover | 900 Hz |
| Motor: | |
| Voice Coil Diameter | 2"/51mm |
| Voice Coil Former Materia | Kapton |
| Winding Materia | CCA |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet size | 4 mm Thick x 134 mm Diameter |
| Measurements: | |
| Overall Diameter | 7"/180 mm |
| Overall Depth | 5.5"/141.8 mm |
| Bolt Pattern/Type | 5.5 mm hole - 6.3"/161 mm Diameter |
| Mounting Depth | 5.2"/132.8mm |
| Mounting Hole Diameter | 5.7"/145mm |
