2" Driver Short Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA52/BK)
2" Driver Short Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA52/BK)
Couldn't load pickup availability
2" Driver Short Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA52/BK)
Sold by AudioSellerz.com
SKU: PRO-DKH1S
2" Driver Short Horn Kit 320 Watts 2" Titanium 8-Ohm Vc (PRO-D1+PRO-HA52/BK) is a DS18 audio package from DS18 built for complete system upgrades, speaker upgrades, subwoofer packages, and easier car audio build planning. This description helps shoppers looking for DS18 package, DS18 audio system, car audio package, speaker and amp package, subwoofer package understand where it fits in a real audio system.
Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.
Audio Sellerz System Match Notes
- Confirm vehicle fitment, speaker size, amp power, wiring needs, and electrical support before ordering a package.
- For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
- If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.

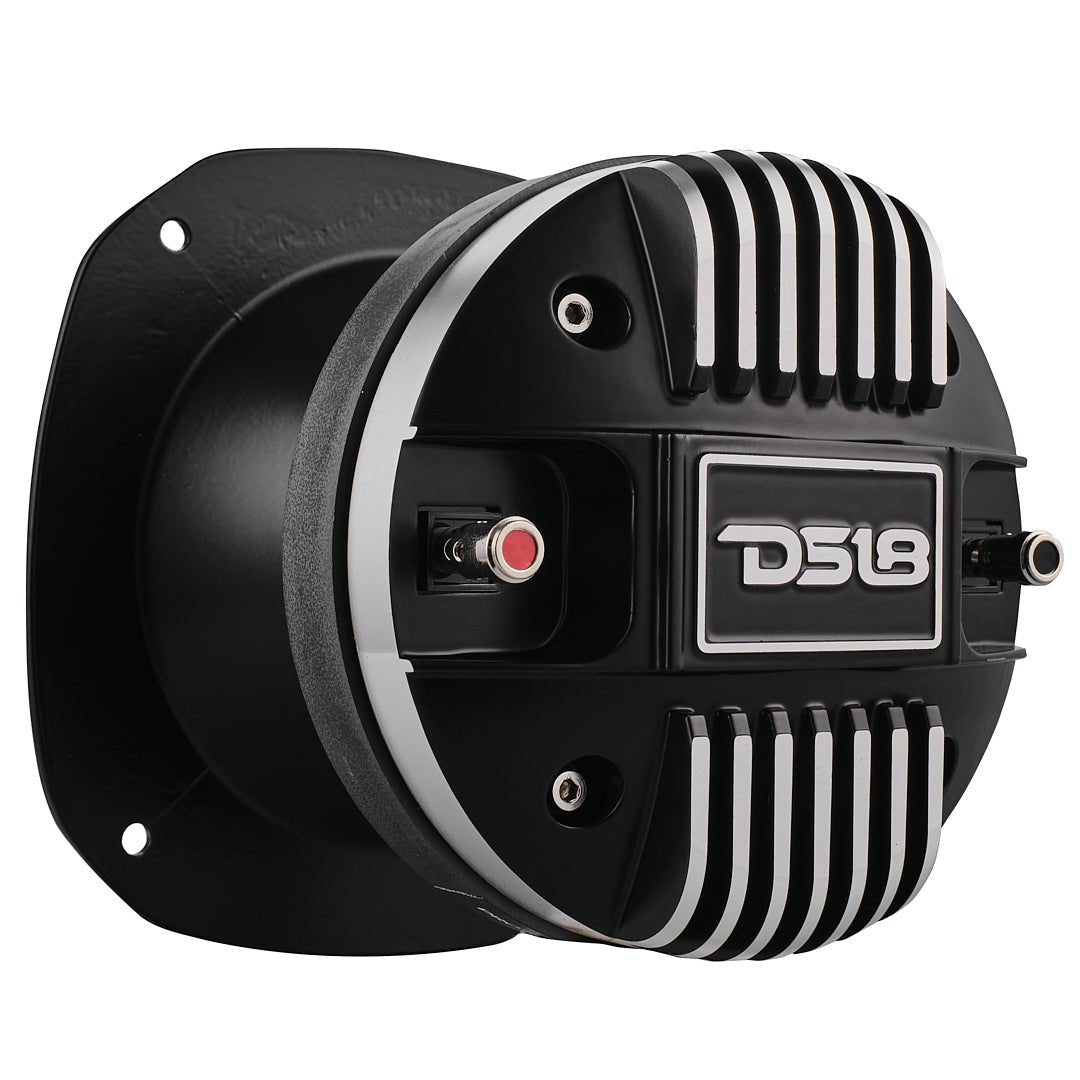

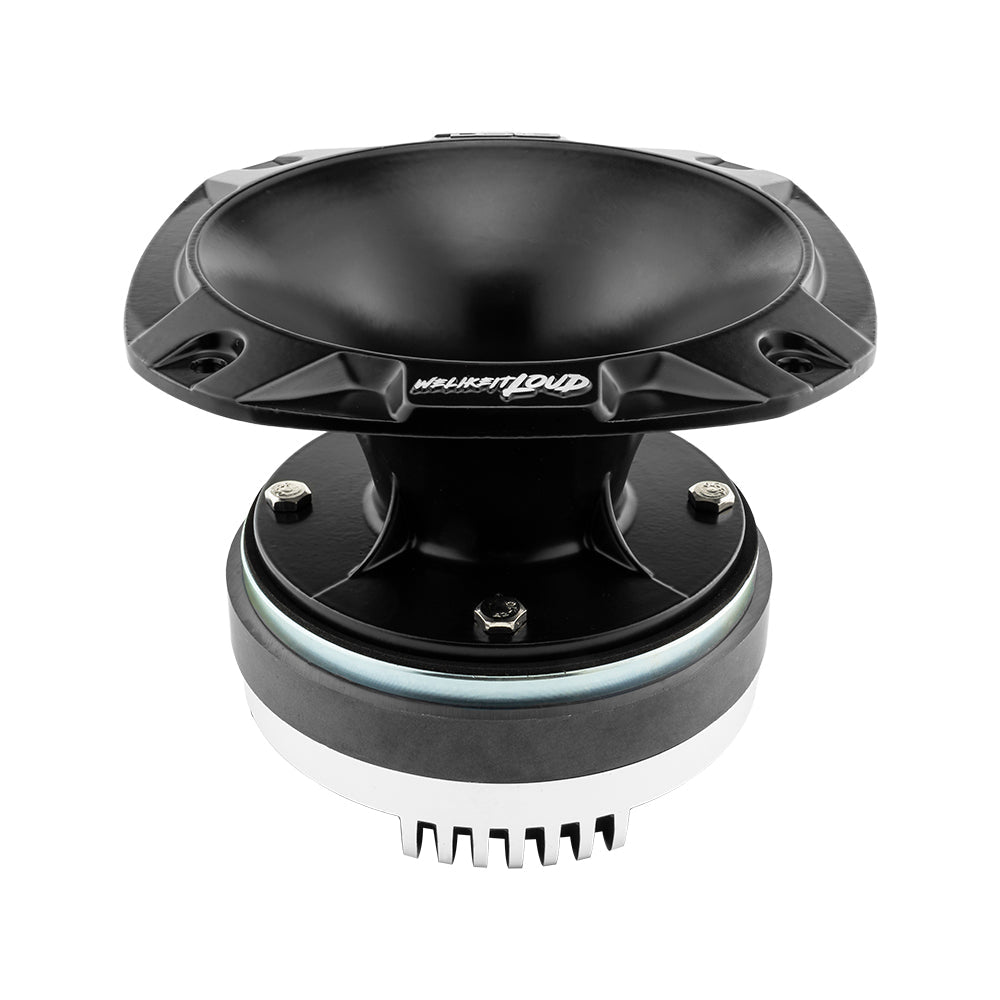

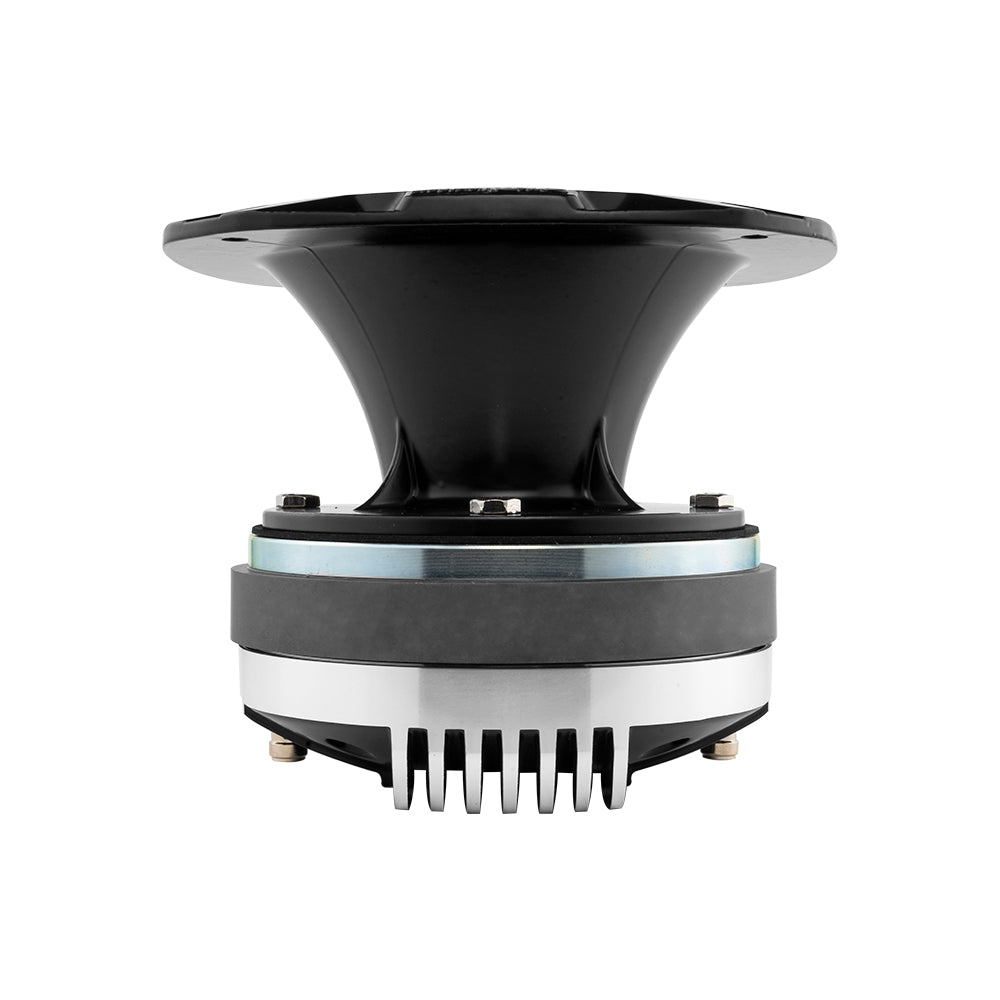

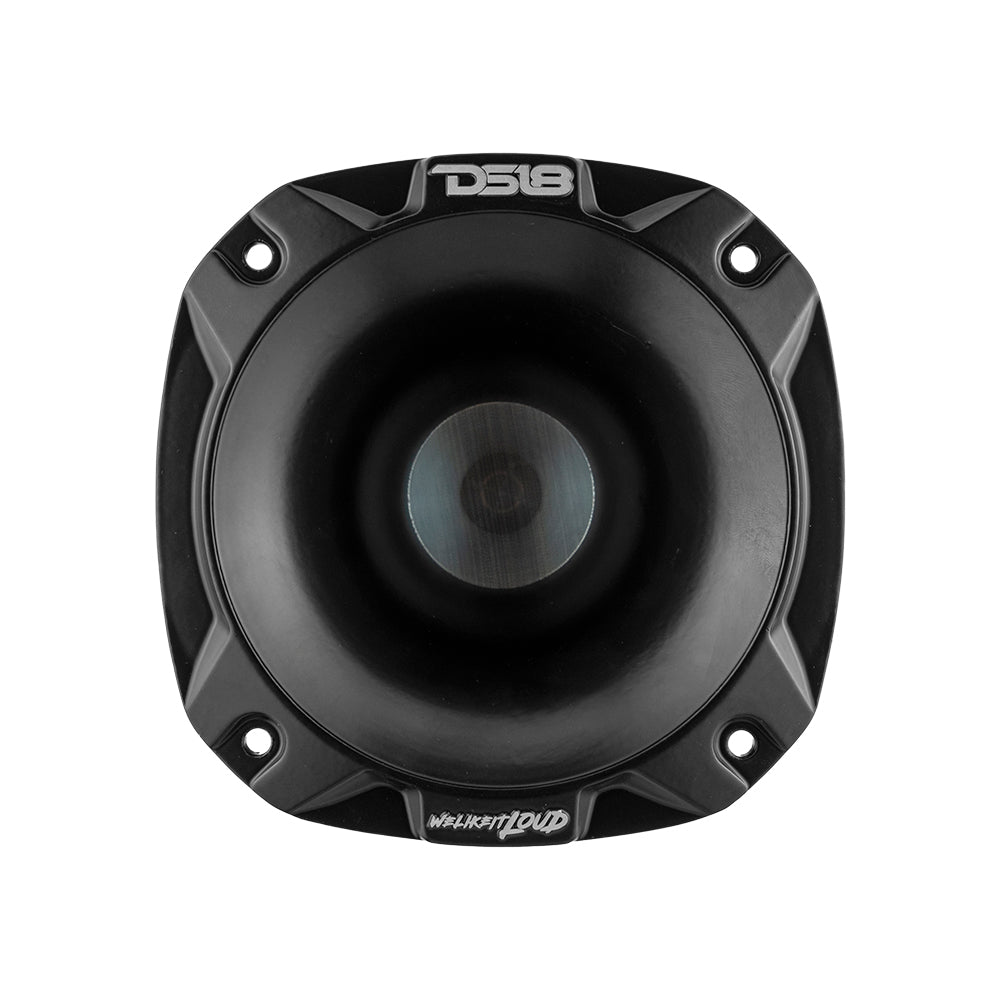

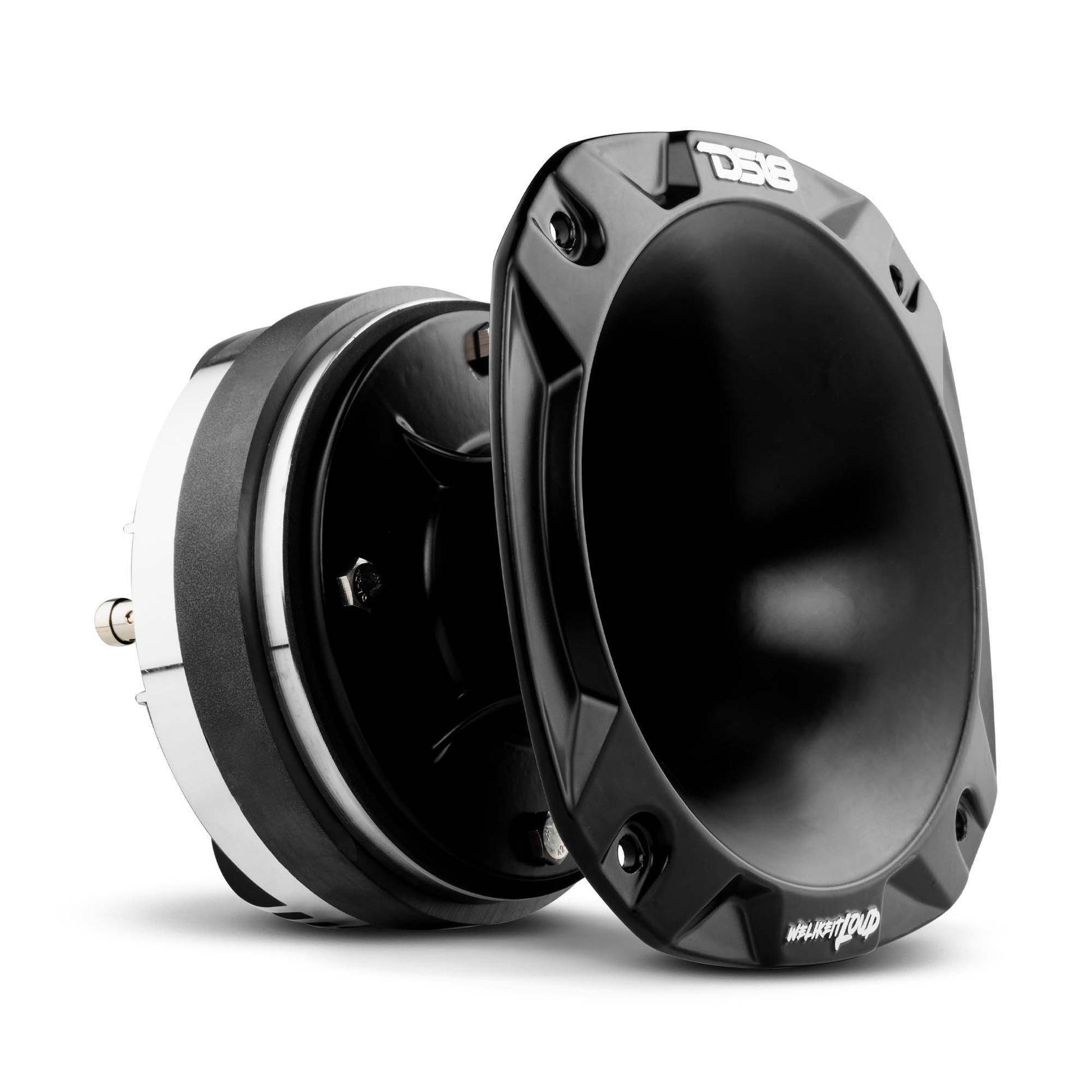

DS18 PRO-DKH1S 2"Bolt On Throat Compression Driver 2" Throat Titanium VC and PRO-HA52/BK Horn 640 Watts 110 Db 8 ohm Mounting Depth 4.9"
The DKH1S includes the DS18 DKH1 driver plus our newly redesigned shorty throat so you only need 4.9 inches mounting depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency. With an AES power handling of 160w and Peak at 640w you will be sure to draw everyone's attention to your audio!
Highlights
- Aluminum "Shorty" throat with brushed DS18 logos for an amazing look and great fitment.
- DKH1 Driver with an AES rating of 160 watts and Peak of 640w for super loud and vibrant highs with a Titanium 8 ohms voice coil.
- 4.9 inch mounting depth and 5.3 inches total mounting depth so you don't need a large amount of mounting depth like other traditional driver and throat combinations.
Technical Details
| Throat Diameter | 2"/50.8mm |
| Installation Type | Bolt-on |
| Nominal Impedance | 8 Ohms |
| Program Power Handling | 320W |
| Peak Power Handling | 640W |
| AES Power Handling | 160W |
| Sensitivity | 111dB |
| Frequency Response | 630Hz-20KHz |
| Recommended HI Pass Crossover | 900 Hz |
| Motor | |
| Voice Coil Diameter | 2.03"/51mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCA |
| Diaphragm Material | Titanium |
| Magnet Material | Ferrite |
| Magnet Weight | 35oz |
| Measurements | |
| Overall Diameter | 7"/180mm |
| Overall Depth | 5.3"/134.7mm |
| Bolt Pattern/Type | 5.5mm hole-6.3"/161 mm Diameter |
| Mounting Depth | 4.9"/125.8mm |
| Mounting Hole Diameter | 5.7"/145mmm |
