DS18
2-Channel Line Output Converter with Digital Bass Enhancer
2-Channel Line Output Converter with Digital Bass Enhancer
Couldn't load pickup availability
2-Channel Line Output Converter with Digital Bass Enhancer
Sold by AudioSellerz.com
The DS18 2CLC is a line output converter from DS18. Processing and control is where a good system becomes a great sounding one.
DS18 Product Details
DS18 2CLC 2 Channel Line Output Converter with Digital Bass Enhancer
DS18's two channel line output converter now comes with a convenient and easy to use digital bass enhancer. This device is great if you are wanting to add an external amplifier and subwoofer to your existing factory system for booming bass without having to replace your radio.
Highlights
- Two channel level input converts your signal from your factory amps to enhance your bass output with an external sub and amp.
- Easy to tune with main level, bass, and bass enhancer knobs to reach your perfect bass frequencies that you are targeting.
- Bass enhancer that brings out even more bass where there once was very little, you will get more output.
Technical Details
| Maximum Speaker Level Input | 400 watts per channel |
| Maximum Preamp Output | 9V rms |
| Dash Level Remote Control | +0db / - 19 dB |
| Frequency response | 10Hz-100kHz; + 1dB |
| Total Harmonic Distortion | 0.01% |
| Signal To Noise Ratio | >110dB |
| Input Impedance | 20K Ohms |
| Output Impedance | 150 Ohms |
| Power Draw | 150mA |
| Recommended Fuse Rating | 1 amp |
| Features | |
| Speaker Level Input | 2 channels |
| Bass Enhancer | With adjustable control of bass roll-off |
| Selectable Auto ON | Signal Sensing or remote in |
| Remote Output | Up to 150mA |
| Dual Amplifier Outputs | Main/ Bass output |
| Level Matching Controls | Main/ Bass output Level knob |

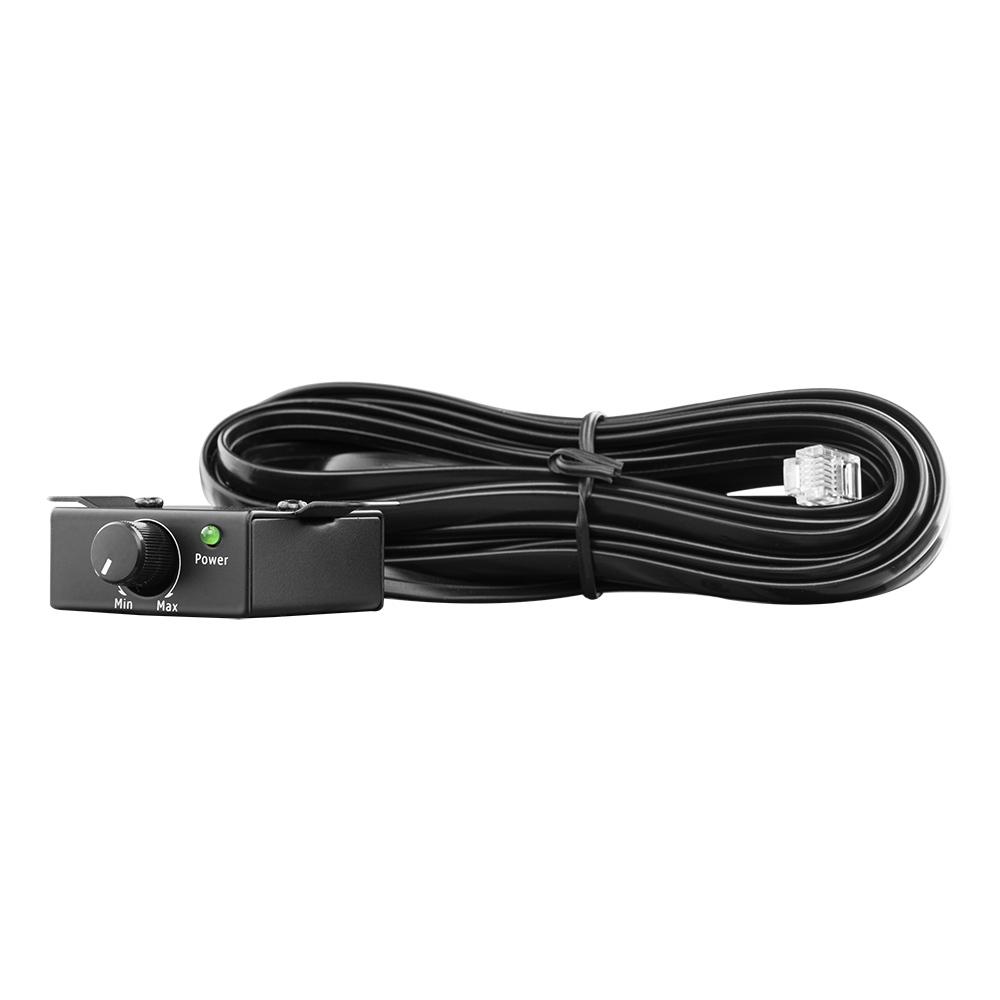

| Dash Remote Level Control | Included |
| LED Indicators | Power Clipping |
| Measurements | |
| Overall Lengh | 6.18" |
| Overall Wide | 3.22" |
| Overall Height | 1.25" |
| Heatsink Length | 539" |
| Gross Sible Unit Weight | 11 oz |
Setup Tips From Audio Sellerz
- Connect it to factory speaker outputs that carry the full-range signal you want to amplify.
- Set the converter's output level so the amplifier gains do not have to be turned all the way up.
- Run the RCA cables away from power wire to avoid picking up noise.
