DS18
12" Loaded Amplified Shallow Subwoofer Enclosure 350 Watts Rms
12" Loaded Amplified Shallow Subwoofer Enclosure 350 Watts Rms
Couldn't load pickup availability
12" Loaded Amplified Shallow Subwoofer Enclosure 350 Watts Rms
Sold by AudioSellerz.com

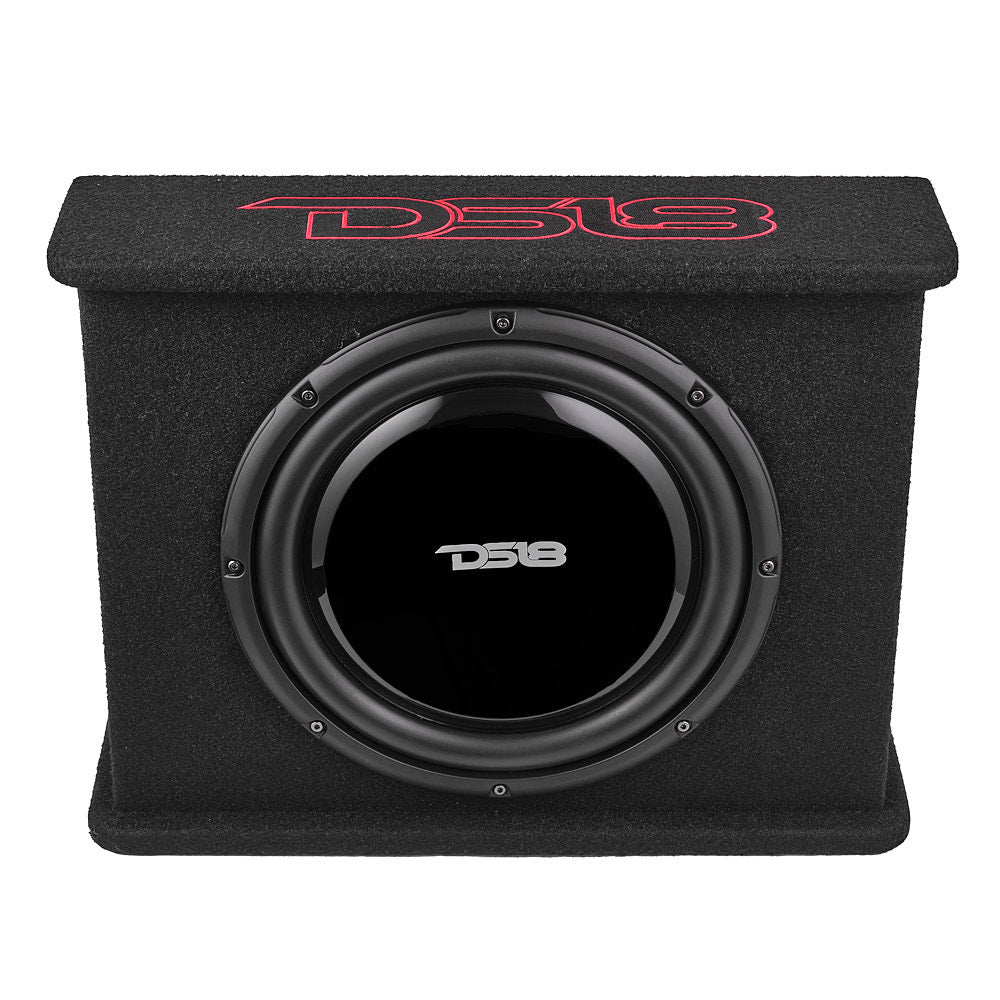

The DS18 SB12A is a 12" loaded subwoofer enclosure from DS18 rated at 350W RMS. The box has as much to do with how bass sounds as the sub itself.
DS18 Product Details
DS18 SB12A 12" Amplified Car Subwoofer Shallow Enclosure 700 Watts
Subwoofers are a must have for any audio system. Some audio enthusiasts don't have a lot of room for big subs, for example, in single cab trucks. Now we have a option for people craving great bass but don't have much space for it.
The SB12A is a slim 12 inch subwoofer in a sealed box that is powered by a powerful, built in 350w RMS amplifier that is sure to get the bass thumping hard in the minimal space that you have available available in your vehicle.
Highlights
- Strong slim 12 inch sub that is sure to bring pounding bass where there is not much space.
- Compact sealed box made of .6 inch MDF with included built in 350w RMS 700w max high power amplifier.

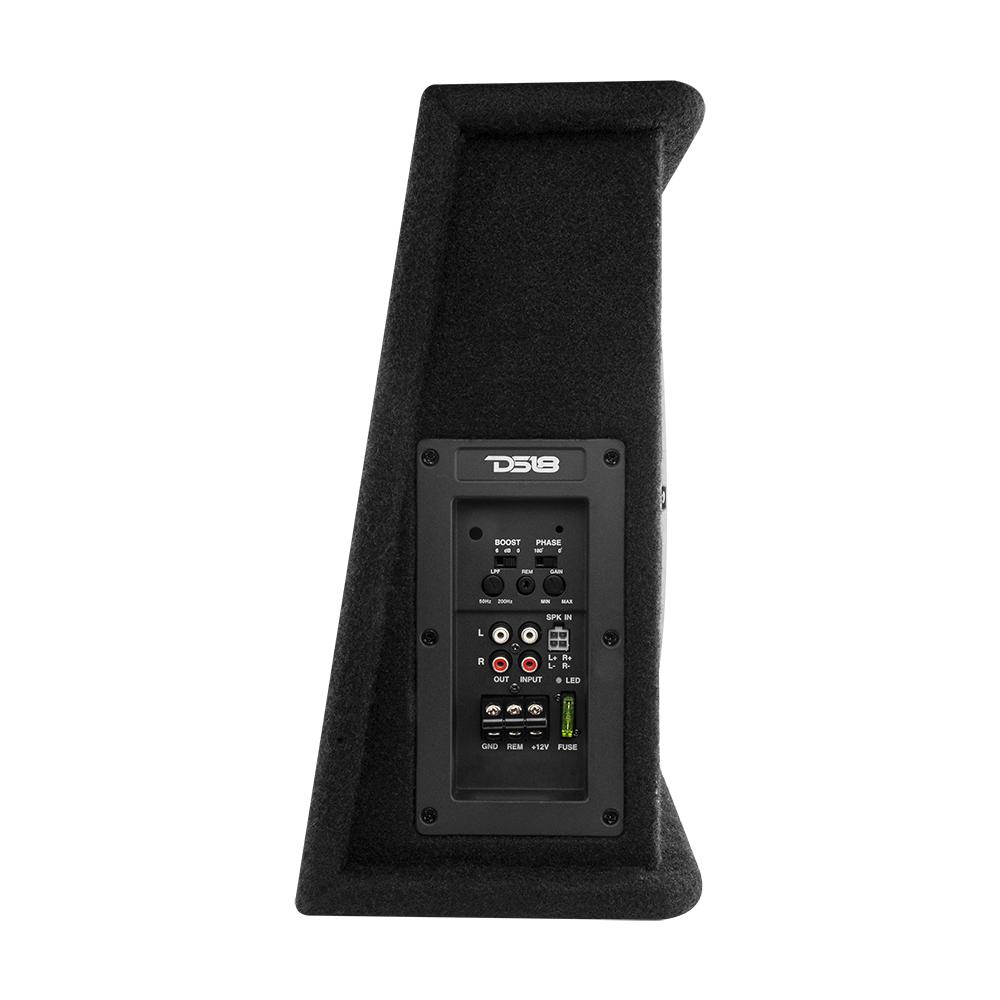

- Easy to hook up and integrate with any system with the use of high level inputs or RCA jacks, whichever is easiest for you!
Technical Details
| BOX SPECIFICATIONS | |
| Internal Volume | 16L / 0.56ft3 |
| Load Configuration | Parallel In |
| Box Type | Sealed Box |
| Box Material | 0.59" MDF |
| Finish Material | Non-Woven fabric |
| (-3dB) Dropping Point | 45Hz |
| MEASUREMENT | |
| Height | 14.96" / 380mm |
| Width | 19.3" / 490mm |
| Depth 1 | 4.92" / 125mm |
| Depth 2 | 7.4" / 188mm |
| SPECIFICATIONS | |
| Speaker Size | 12" / 312mm |
| Total Impedance | 2 ohms |
| RMS Power Handling | 350W |
| MAX Power Handling | 700W |
| Sensitivity (1w/1m) | 87dB |
| Frequency Response | 30-250Hz |
| MOTOR | |
| Voice Coil Diameter | 1.75" / 44.43mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | EISV |
| Cone Material | IPP |
| Surround Material | Rubber |
| Basket Material | SPCC |
| Magnet Material | Ferrite |
| Magnet Weight | 50 Oz |
| AMPLIFIER | |
| Amplifier Class | Digital |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 CH |
| Minimum Impedance | 2 Ohms |
| Signal to Noise Ratio | 75 dB |
| Efficiency @ 4 ohms | 75% |
| Total Harmonic Distortion (T.H.D) | 0.30% |
| Low Level Input Range | 0.1-0.6 V |
| High Level Input Range | Yes |
| Selectable X-Over | LPF Fixed |
| X-Over Filter Range | 51 - 200 Hz |
| Bass Boost Range | 0-6 dB |
| Bass Boost Frequency | 50Hz |
| Phase Selector | 0-180° |
| Led Indicator | Power - Protection |
| Power Input Terminal Size | 8 GA |
| Fuse Size | 30 A |

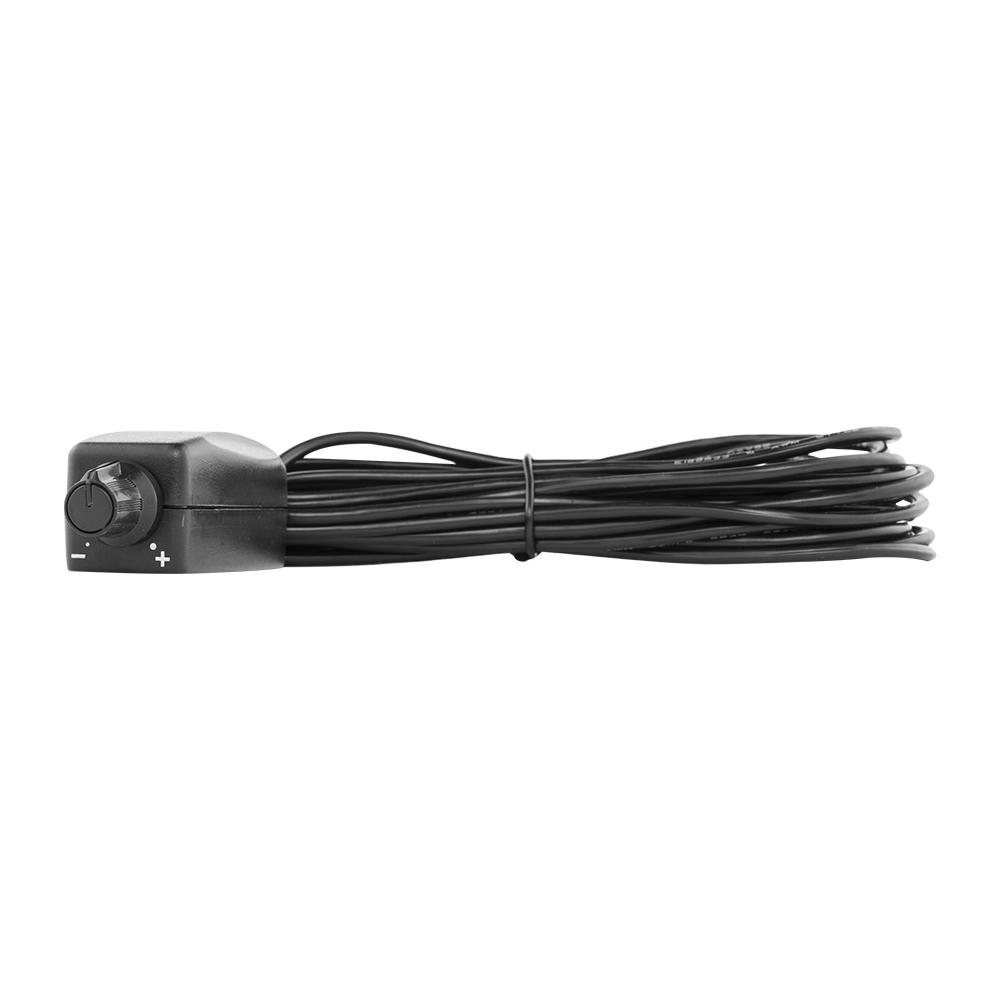

| Remote Level Control | Yes |
| Thermal Protection | Yes (75°C / 167°F) |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (<8v,>16v) |
Setup Tips From Audio Sellerz
- This enclosure is listed as loaded, so the subwoofer is installed. Check the impedance and power in the details to match the amp.
- Measure the space where the box will go before you order. Most fitment problems come from not measuring first.
- Seal the terminal cup and any gaps so the box performs the way it was designed.
