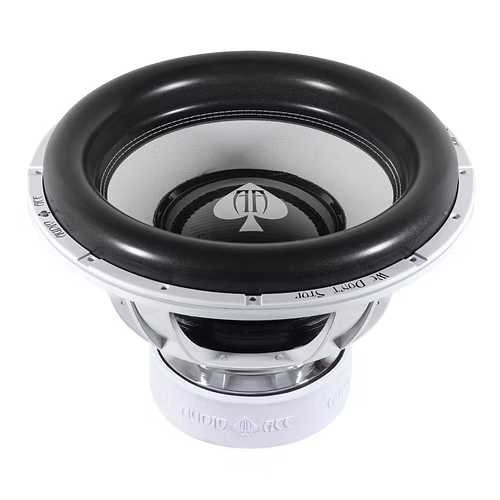

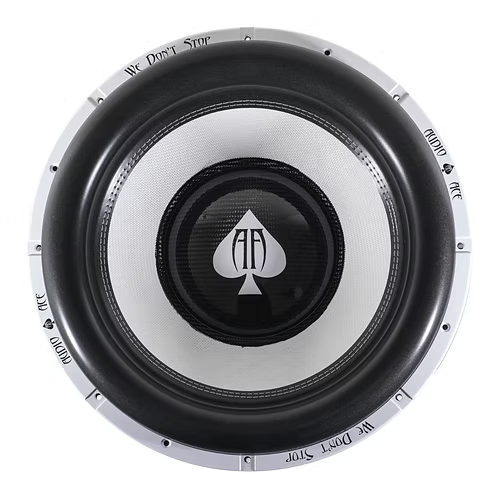

Audio Ace Jester 18 with Dyeable Cone

Audio Ace Jester 18 with Dyeable Cone

Regular price $609.00 USD
Regular price Sale price $609.00 USD
Sale Sold out
Shipping calculated at checkout.

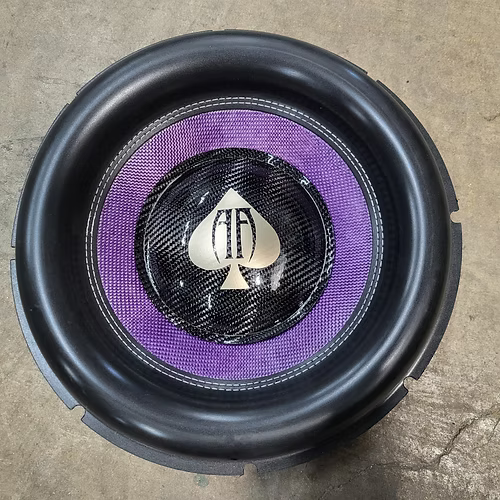

Cone Color
Dust Cap Logo Color

Built with the goal of achieving a high level of SQ/SPL. The Jester is rated at 3,000 RMS. Designed with fairly low FS and a strong motor structure allows the Jester to be versatile enough to sound great across a wide range of music. Whether you are looking to be one of the loudest vehicles in your town, or just wanting to enjoy the bass in your daily driver at EXTREME sound levels, the Jester is a great choice!

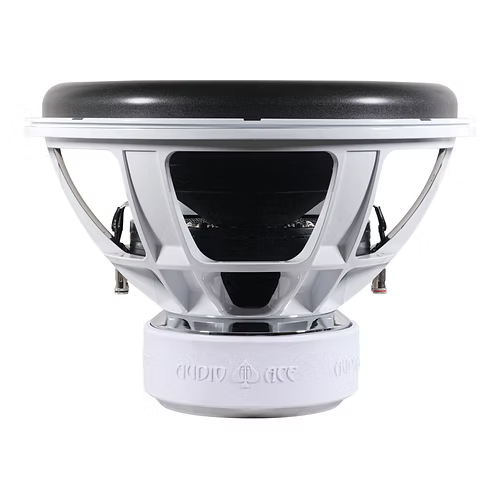

Heavy Duty Die Cast Aluminum Basket

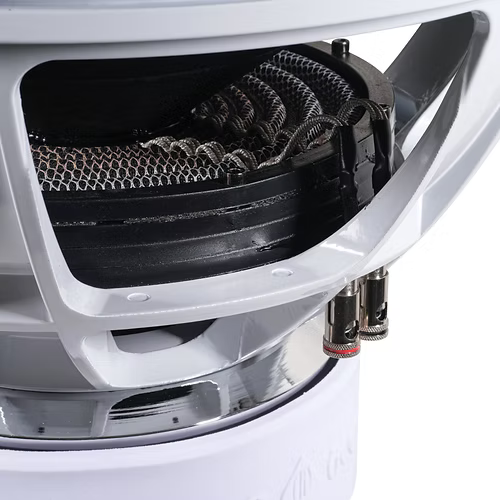

3" BACCAW 4 Layer Coil

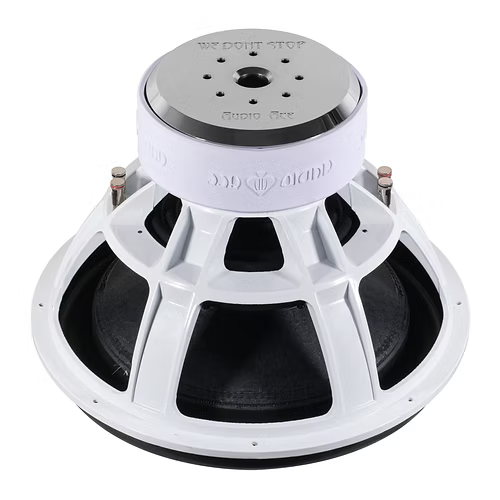

300 oz Magnet Structure

4 Layer 10" Spider Suspension



Cutout 16.85in

Depth 11.10 in



Electrical Parameters



Re 3.53

Le 3.462

L2 7.958

R2 15.78

Cmes 933.61

Lces 31.84

Res 35.07

Fs 29.2

Mechanical Parameters (using laser)

Mms 703.831

Mmd (Sd) 658.596

Rms 21.495

Cms .042

Kms 23.68

Bl 27.457

Lambda .008

Loss Factors

Qtp .569

Qms 6.006

Qes .605

Qts .550

Misc Parameters

Vas 81.8396

n0 .323

Lm 87.30

Lnom 87.83

rmse Z 7.61

rmse Hx 7.87



Box Recommendation

4.75-5.5 cubic foot ported

14-16 square inches of port per cubic foot

28-36hz tuning

Optimal for ported 4th and 6th order applications

Not recommended for sealed applications
