DS18
8" Neodymium Coaxial Hybrid Mid-Bass Water resistant Carbon Fiber Cone Loudspeaker with Built-in Driver 400 Watts Rms 8-Ohm
8" Neodymium Coaxial Hybrid Mid-Bass Water resistant Carbon Fiber Cone Loudspeaker with Built-in Driver 400 Watts Rms 8-Ohm
Couldn't load pickup availability
8" Neodymium Coaxial Hybrid Mid-Bass Water resistant Carbon Fiber Cone Loudspeaker with Built-in Driver 400 Watts Rms 8-Ohm
Sold by AudioSellerz.com
SKU: 8HD800NCFD-8
8" Neodymium Coaxial Hybrid Mid-Bass Water resistant Carbon Fiber Cone Loudspeaker with Built-in Driver 400 Watts Rms 8-Ohm is a DS18 audio processor from DS18 built for system tuning, signal control, crossover setup, equalization, and cleaner full-system audio builds. This description helps shoppers looking for DS18 motorcycle audio, DS18 8 inch speakers, DS18 DSP, car audio processor, audio equalizer, digital sound processor, system tuning understand where it fits in a real audio system.
Audio Sellerz focuses on the full build, not just one part. Match this DS18 product with the right vehicle, mounting space, amplifier power, wiring, fuse protection, enclosure needs, and electrical support so the system plays cleaner, louder, and more reliably.
Audio Sellerz System Match Notes
- Use clean signal routing and proper tuning so the speakers, subwoofers, and amplifiers work together.
- For amplified audio systems, make sure the power wire, ground, fuse protection, and voltage support match the equipment.
- If you are building a complete DS18 setup, plan the speakers, subwoofers, amplifiers, wiring, and electrical support together before ordering.
DS18 8HD800NCFD-8 8" Water Resistant Carbon Fiber Mid-Bass With Built in Coaxial Hybrid Driver Neodymium Magnet 800 Watts
Get intense volume and unmatched durability with DS18’s 8HD800NCFD-8; the newest addition to our line of hybrid loudspeakers with built in compression horn driver!
DS18’s high powered hybrid pro audio speaker combines the extreme volume of our 8” mid-ranges with built-in high wattage compression drivers for the full range of frequencies on every session.
The driver produces the high range frequencies with a much higher intensity that only a pro audio driver can provide! This makes these speakers louder than any coaxial, paired with an insane driver with the vocal power of two. The Driver is backed up by a powerful carbon fiber 8-inch midrange loudspeaker that will for sure fill out the complete frequency range giving you extremely loud Mids, Voice, and Highs with extreme loudness and crystal clarity.
Add these speakers to any build! The water-resistant carbon fiber cone these speakers come equipped with protect them from elemental damage resulting from moisture and allow them to be installed in almost any build!
Get the best of both worlds combined into one pro audio hybrid speaker with the 8HD800NCFD-8!
Highlights
- Hybrid design combines high wattage midrange and driver together in one beautiful frame.
- High volume 8" midrange and 3" driver rated at 400w RMS and 800 Max for crazy loud volume in a full range of frequencies.
- Midrange speaker is 8 ohms and driver is 8 ohms
- Water resistant carbon fiber cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too
- High quality design including Diecast aluminum painted black basket with DS18 molded into the frame and high quality push terminals
Great For
- Motorcycle Audio
- Boat Audio
- Car Audio
- Stunt Walls





Technical Details
| GENERAL SPECIFICATIONS | |
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance (Woofer / Driver) | 8 Ohms |
| RMS Power Handling (Combined) | 400W |
| MAX Power Handling (Combined) | 800W |
| Sensitivity (1w/1m) (Combined) | 105dB |
| Frequency Response (Combined) | 40Hz-20KHz |
| Number of Ways | 2 |
| Sold in Pair or Single | Singles |
| Grill Included | No |
| WOOFER SPECIFICATIONS | |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 96.5dB |
| Frequency Response | 40Hz-10KHz |
| Recommended Band-Pass Crossover | 80Hz-900Hz |
| Voice Coil Diameter | 2.6" / 66mm |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCAW |
| Cone Material | Water Resistant Carbon Fiber |
| Surround Material | Treated Cloth |
| Basket Material | Die Cast Aluminum |
| Basket Color/Finish | Black Sandblasted |
| Magnet Material | Neodymium |
| Magnet Size | 145x8mm |
| DRIVER SPECIFICATIONS | |
| AES Power handling | 150W |
| Program Power Handling | 300W |
| Sensitivity (1w/1m) | 100.5dB |
| Frequency Response | 315Hz-20KHz |
| Recommended Hi Pass Crossover | 900Hz |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former Material | KAPTON |
| Winding Material | CCA |
| Diaphragm Material | Titanium with Polymer Edge |
| Magnet Material | Neodymium |
| Horn Diameter | 4.13" / 105mm |

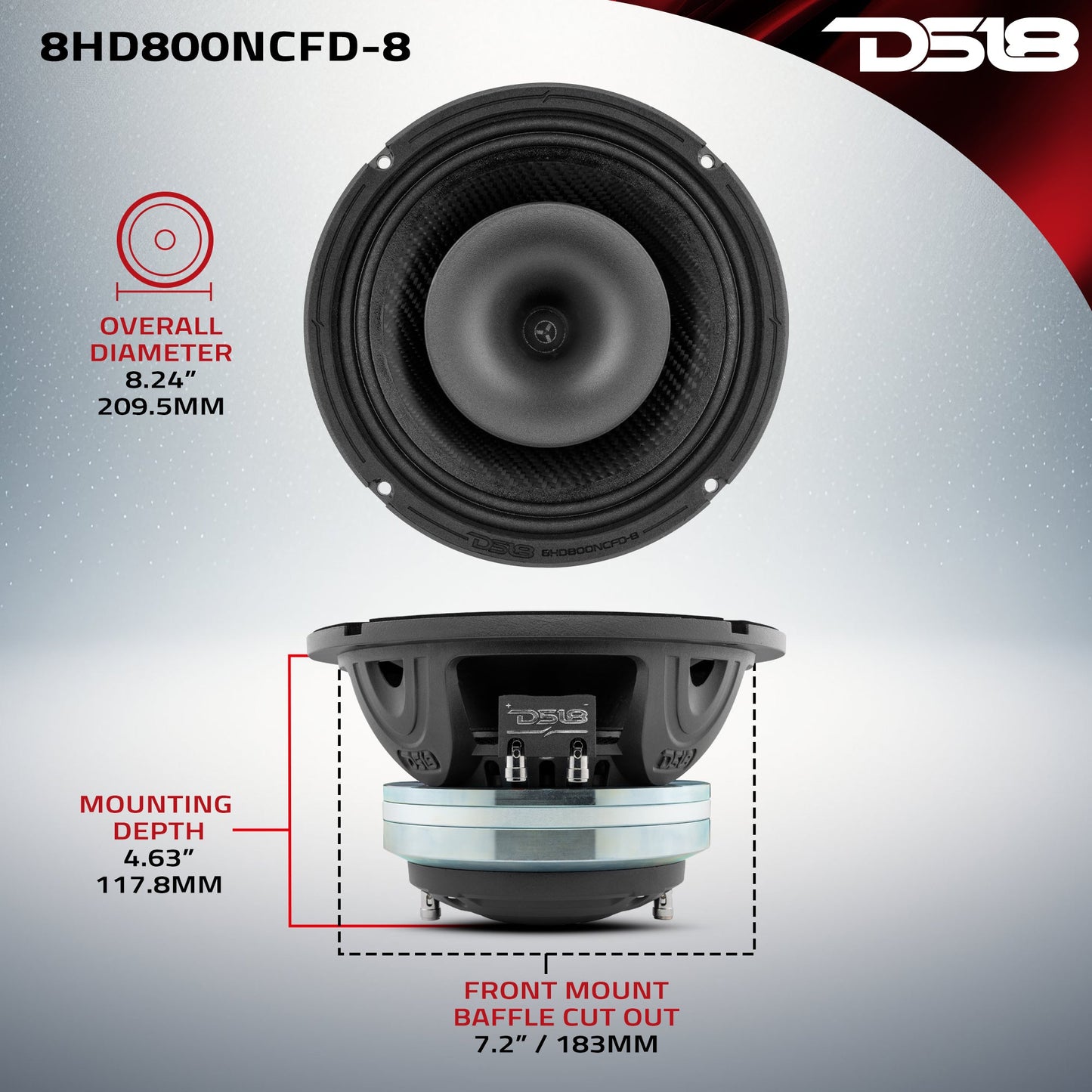

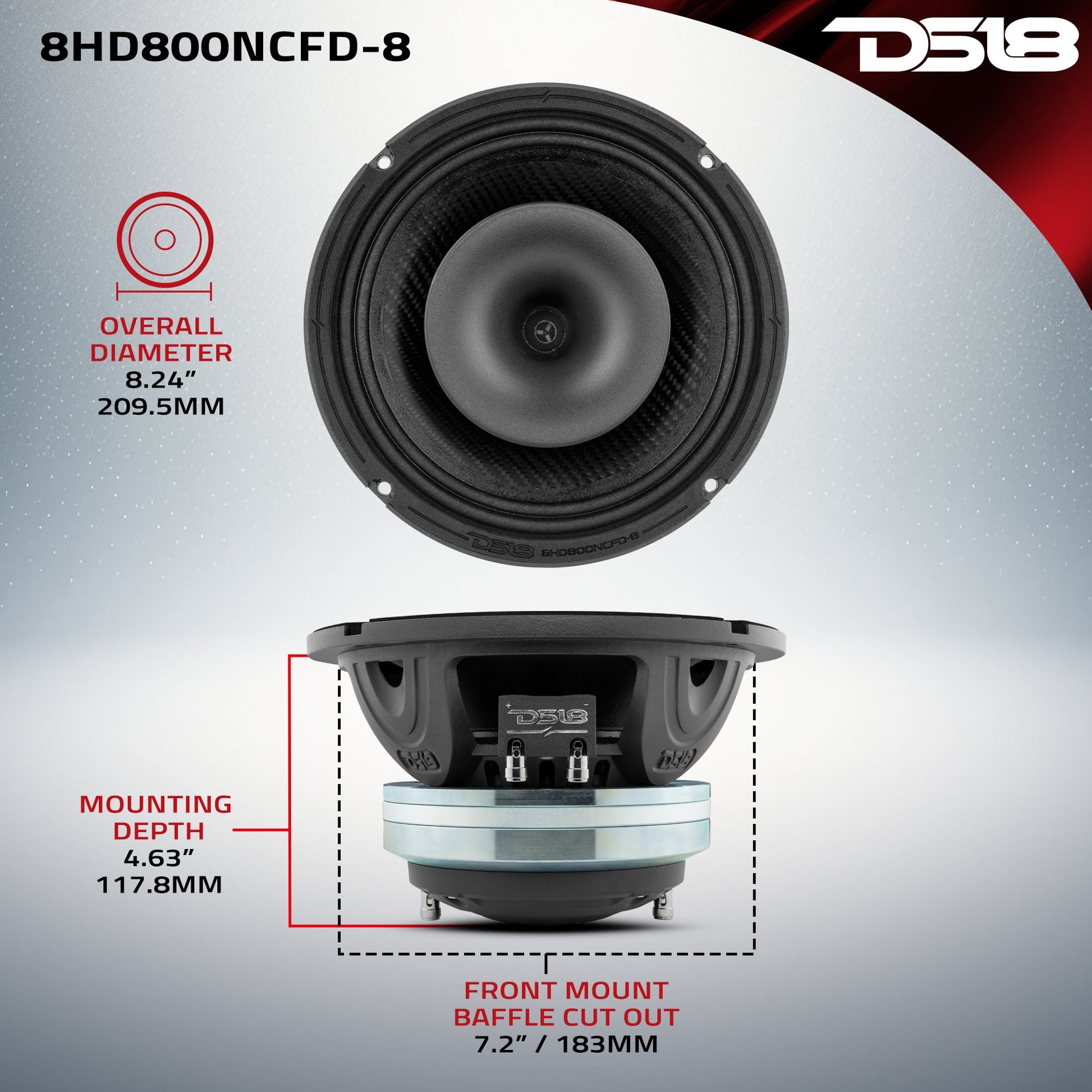

| SPEAKER MEASUREMENT | |
| Overall Diameter | 8.24" / 209.5mm |
| Overall Depth | 5" / 127.8mm |
| Front Mount Baffle Cutout | 7.2" / 183mm |
| Mounting Depth | 4.63" / 117.8mm |
| Motor Diameter | 5.7" / 145mm |
