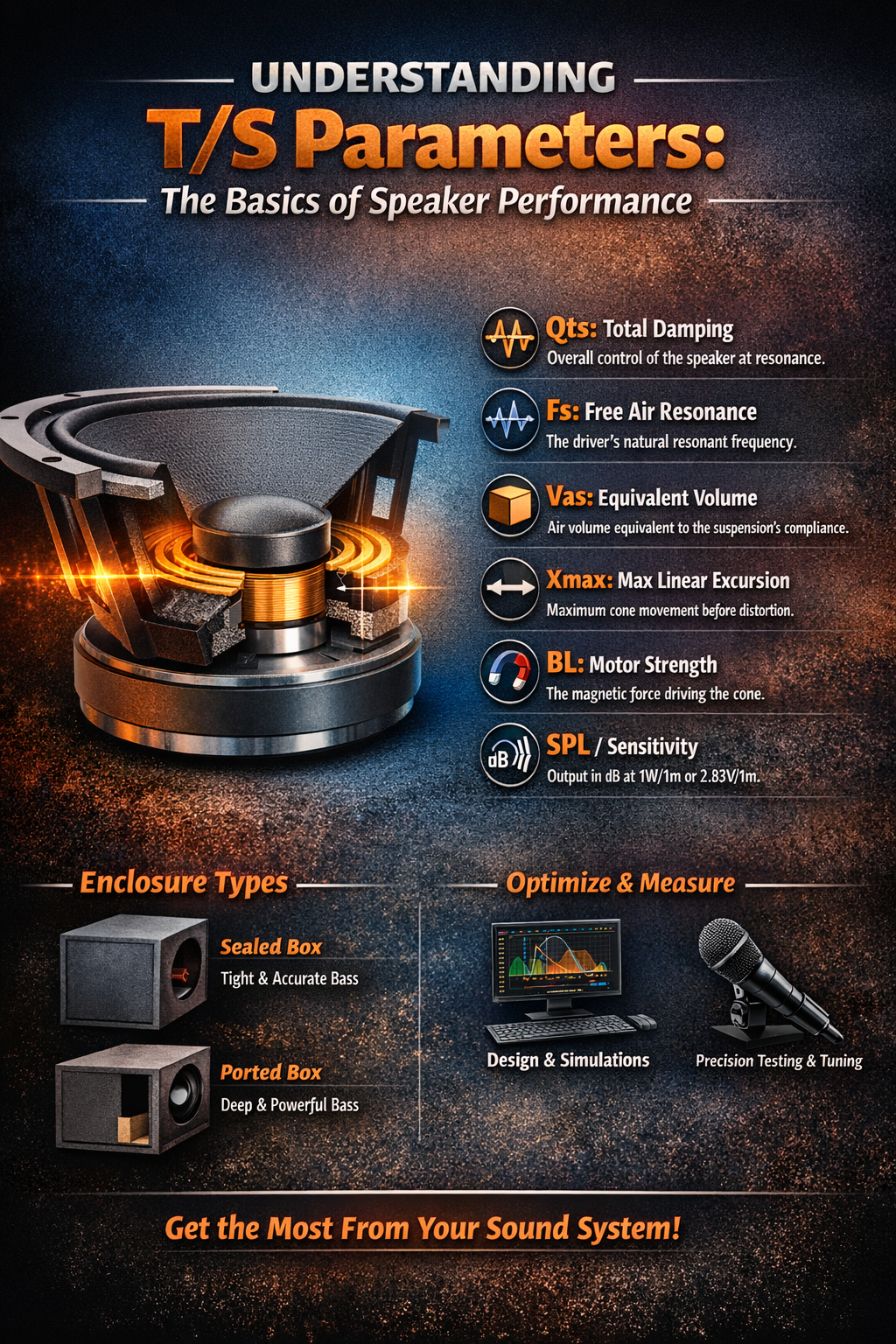

The Basics of Speaker Performance And Understanding T/S Parameters:

Introduction to speaker performance

If you’re building a system that sounds right (not just loud), you’ve got to understand what actually controls a speaker’s movement. The voice coil turns amplifier power into cone motion, and its DC resistance (Re) and inductance (Le) affect how the driver loads the amp and how response changes with frequency.

Then you’ve got the motor (magnet + gap) and suspension (spider + surround). Together they determine how tightly the cone stays under control, how low it naturally wants to play, and how much clean output you can get before distortion.

That’s where Thiele/Small (T/S) parameters come in. They’re the measurements that help predict how a driver behaves — and what kind of enclosure will let it perform at its best.

---

Understanding T/S Parameters (explained in plain English)

1) Qes (Electrical Q)

What it means: how much electrical damping/control the motor and voice coil provide at resonance (Fs).
Lower Qes generally means stronger electrical control.

Real-world note: many Q calculations assume zero amplifier output impedance — real amps aren’t exactly zero, so “system control” can shift slightly depending on the amp.

2) Qms (Mechanical Q)

What it means: how much mechanical damping/loss comes from the suspension and moving assembly at Fs.
Higher Qms = less mechanical loss (it “rings” longer). Lower Qms = more mechanical damping.

3) Qts (Total Q)

What it means: the total Q of the driver at Fs including mechanical + electrical loss mechanisms.
This is one of the best “quick-glance” clues for enclosure direction, but it’s still a guideline — not a guarantee.

4) Vas (Compliance Equivalent Volume)

What it means: the volume of air that has the same “springiness” (compliance) as the driver’s suspension.
General rule: higher Vas usually points toward needing a larger enclosure, because the suspension behaves “looser.”

5) Fs (Free-air resonance frequency)

What it means: the driver’s resonance frequency in free air.
Lower Fs often supports deeper bass potential, but below Fs the driver becomes much less efficient — and pushing far below Fs can stress/damage the driver depending on setup.

6) Mms (Moving mass)

What it means: effective moving mass of the cone/coil assembly (and related air load).
Higher Mms tends to lower Fs, but usually takes more energy to move.

7) Cms (Compliance)

What it means: how easily the suspension moves (springiness).
Key relationship: Cms is proportional to Vas — more compliant suspension generally means higher Vas.

8) Rms (Mechanical resistance / losses)

What it means: mechanical resistance from suspension losses.
It’s basically part of “how much the mechanical system resists motion.”

9) Re (DC resistance)

What it means: the DC resistance of the voice coil.

10) BL (Force factor)

What it means: motor strength (how much force the motor can generate per amp).
Higher BL often means more control, but “better” depends on cone size and design goals — it’s not a one-number contest.

11) Sd (Cone area)

What it means: effective diaphragm surface area.

12) Le (Voice coil inductance)

What it means: coil inductance (typically measured at 1,000 Hz). As frequency rises, inductance contributes to impedance rise above Re.

13) Xmax (Max linear excursion)

What it means: peak linear displacement the cone can travel while remaining in the usable magnetic field (staying “clean”).

14) Pe (Thermally limited power handling)

What it means: the thermally-limited maximum electrical input power (heat limit).

---

Enclosures (important correction)

A box doesn’t just “hold” a speaker — it changes the system behavior.

• Qts is a driver spec measured in free air.

• In a sealed enclosure, the trapped air acts like an air spring, changing the system Q (commonly called Qtc).

So: sealed-box air effects belong to system Q (Qtc), not the driver’s Qts.

---

Sensitivity / SPL (wording corrected)

You’ll see sensitivity shown as:

• dB 1W/1m, or

• dB 2.83V/1m (very common today).

2.83V is used because it equals 1W into 8 ohm, but real speaker impedance varies with frequency — so voltage-based sensitivity can be a more consistent reference.
