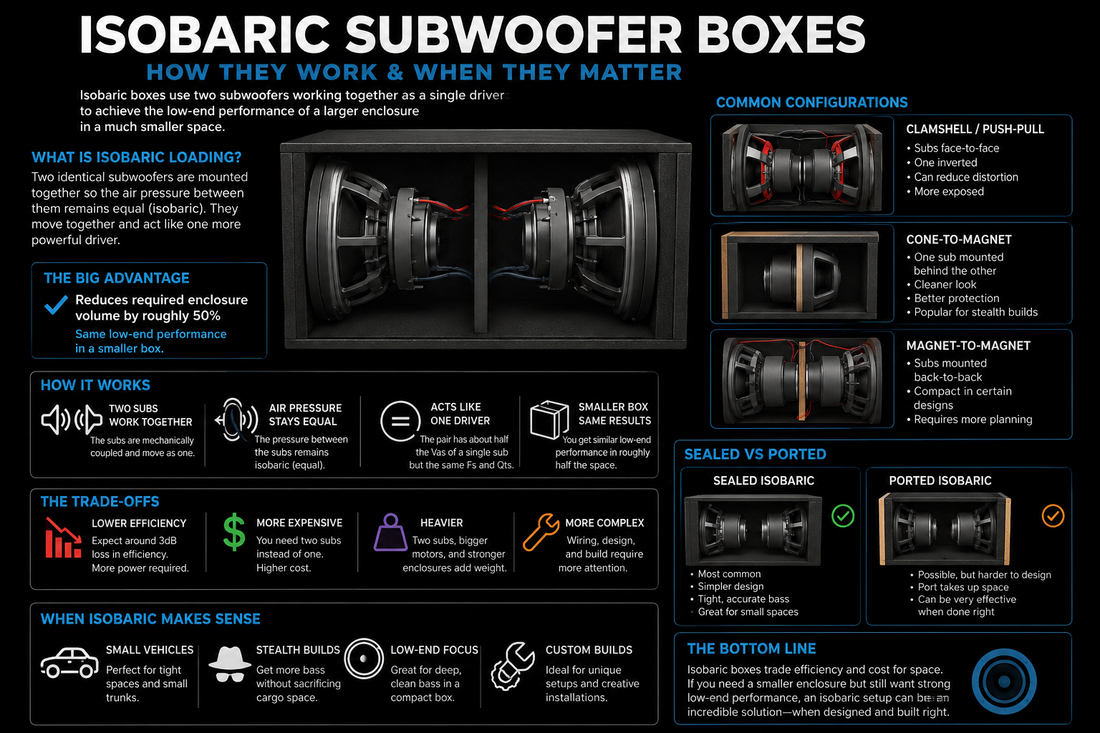

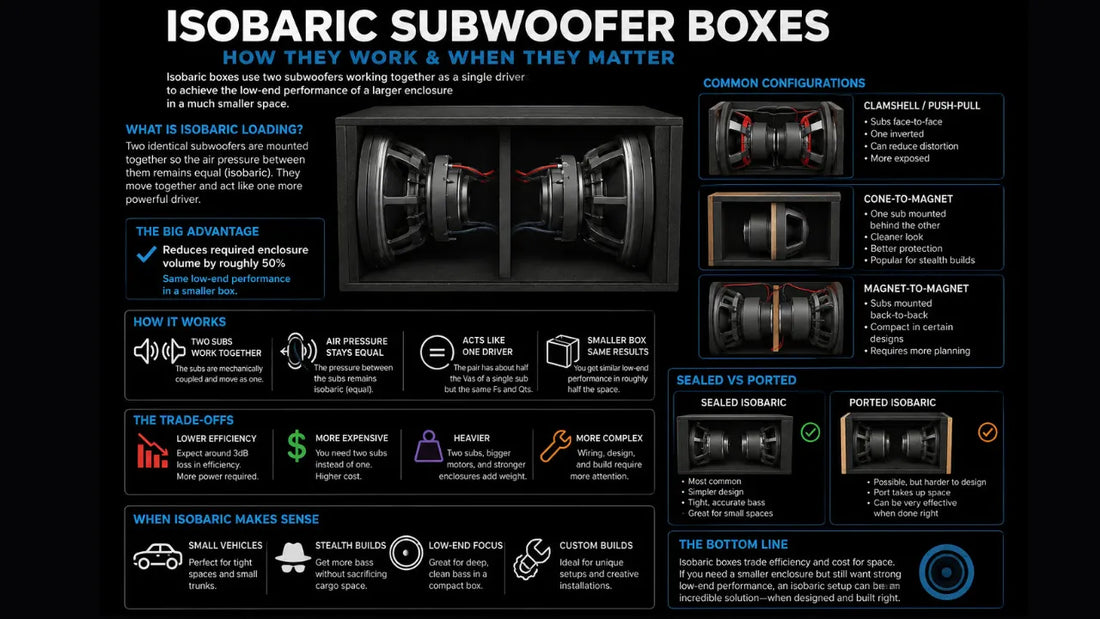

Isobaric Subwoofer Boxes: What They Are, How They Work, and When They Make Sense

If you have been around car audio long enough, you have probably heard somebody talk about an isobaric subwoofer box. Some people love them. Some people think they are a waste of money. Some people have seen wild clamshell builds online and think isobaric automatically means louder.

The truth is a little different.

An isobaric subwoofer box is not magic. It is not automatically louder. It is not the best choice for every build. But when used for the right reason, it can be a very smart enclosure design.

The main purpose of an isobaric subwoofer enclosure is simple:

It lets you use a smaller box while keeping low-frequency performance similar to a larger enclosure.

That is the big idea.

Instead of using one subwoofer in a normal-sized enclosure, an isobaric design uses two matching subwoofers working together as one driver. The two subs are mounted so they share a small chamber of air between them. When designed correctly, they move together and act like one stronger, more controlled subwoofer system.

This can be useful in tight spaces, custom builds, stealth installs, single cab trucks, small trunks, and vehicles where box space is the biggest problem.

But there are tradeoffs.

You need two subwoofers instead of one. You usually lose efficiency. Wiring has to be done correctly. The enclosure has to be built correctly. And in many modern builds, a regular ported or sealed box may still be the better choice.

Let’s break it all down.

What Does Isobaric Mean?

The word isobaric basically means equal pressure.

In a subwoofer enclosure, isobaric loading means two subwoofers are coupled together so the air pressure between them stays relatively consistent as they move.

Instead of both subwoofers playing separately into the vehicle, they work together as a pair. One subwoofer is usually the main radiating driver, while the second subwoofer helps control movement from behind or inside the enclosure.

The result is that the pair behaves more like one compound driver.

In simple terms:

Two subs act like one sub that can work in a smaller box.

That is why people use isobaric loading.

The Main Benefit: Smaller Box Size

The biggest reason to build an isobaric subwoofer box is enclosure size.

In many cases, an isobaric design can reduce the needed airspace by roughly 50% compared to a standard enclosure for one of those same drivers.

For example, if a subwoofer normally wants 2 cubic feet sealed, an isobaric pair may be able to work in around 1 cubic foot sealed while keeping similar low-frequency behavior.

That is not a perfect rule for every subwoofer or every box, but it explains the concept.

This is why isobaric boxes were more popular years ago, especially when many subwoofers needed larger enclosures. Today, a lot of modern subs are already designed to work in smaller boxes, so isobaric designs are less common.

But they still have a place.

If your vehicle does not have much room, and you want deeper bass than the available box space would normally allow, isobaric loading can be a creative solution.

Is Isobaric Louder?

Usually, no.

This is one of the biggest misunderstandings.

An isobaric box is not normally used to get louder. It is used to get similar low-frequency performance from a smaller enclosure.

If you have room for a proper traditional enclosure, that will usually be more efficient and often louder for the money.

With isobaric loading, you are using two subwoofers to do the acoustic work of one radiating driver. That means you are spending more money and using more equipment mainly to save space.

So the real question is not:

“Is isobaric louder?”

The better question is:

“Do I need to save box space badly enough to justify using two subs?”

If the answer is yes, isobaric can make sense.

If the answer is no, a standard sealed or ported box is usually the better move.

How an Isobaric Subwoofer Box Works

In a normal enclosure, one subwoofer works against the air inside the box. The suspension of the subwoofer and the air inside the enclosure both affect how the cone moves.

In an isobaric design, two identical subwoofers are mechanically coupled together. The small airspace between them acts like a link between the two cones.

When wired and mounted correctly, both subs move together. The motor force is increased, the effective compliance changes, and the pair can operate in a smaller enclosure.

From a practical car audio standpoint, here is what matters:

The box can be smaller.
The subs need to be matched.
The wiring direction matters.
The sealed chamber between the subs needs to be strong and airtight.
The design must be planned, not guessed.

This is not the type of box where you randomly throw two subs together and hope it works.

Common Types of Isobaric Subwoofer Boxes

There are several ways to build an isobaric enclosure. The main differences come down to how the subwoofers are mounted.

1. Clamshell Isobaric Box

A clamshell design mounts two subwoofers face-to-face.

This is one of the most recognizable isobaric designs because you can often see both subs. One subwoofer may be mounted normally, while the other is inverted so the cones face each other.

This design is popular in custom builds because it looks aggressive and shows off the equipment.

Benefits:

It can save enclosure space.
It can look very impressive.
It can help reduce certain types of distortion when done as a push-pull setup.
It gives the build a custom look.

Downsides:

One woofer may be exposed.
It can take up extra physical space outside the box.
It can be easier to damage the exposed subwoofer.
It may not be the cleanest option for every vehicle.

A clamshell isobaric box can be awesome when the install is built around it. But it is not always the most practical setup for a daily driver.

2. Cone-to-Magnet Isobaric Box

In this style, one subwoofer is mounted behind the other. The front sub plays into the vehicle or into the main enclosure path, while the rear sub is mounted behind it.

This can keep the second subwoofer hidden inside the enclosure.

Benefits:

Cleaner look.
Better protection for the second subwoofer.
Less exposed equipment.
Good for stealth installs.

Downsides:

Harder to service.
Requires careful spacing.
The internal subwoofer still needs room for motor clearance and cooling.
The chamber between the subs must be sealed properly.

This style is less flashy but can be very clean when built correctly.

3. Magnet-to-Magnet Isobaric Box

This version places the two subwoofers back-to-back, usually with the motors facing each other.

It can work well in certain custom designs, but it requires careful planning because the motor structures take up space and need clearance.

Benefits:

Can be compact in certain layouts.
Can support push-pull operation.
Can help reduce some mechanical distortion.

Downsides:

Can be harder to package.
Motor clearance can become a problem.
Not always easy to build around.

4. Push-Pull Isobaric Box

Push-pull isobaric is one of the more interesting versions.

In a push-pull setup, one subwoofer is mounted normally and the other is inverted. The wiring is done so both cones move in the correct acoustic direction together.

The advantage is that the mechanical non-linearities of one driver can partially cancel the other. This can reduce certain types of distortion, especially even-order distortion.

In real-world terms, that can mean cleaner bass when the design is done correctly.

But again, it does not automatically mean louder.

Push-pull isobaric is usually about compact size and cleaner behavior, not huge SPL gains.

Sealed Isobaric vs Ported Isobaric

Isobaric loading can be used in sealed or ported enclosures, but sealed is usually simpler.

Sealed Isobaric Boxes

A sealed isobaric box is the most straightforward version.

It is compact, controlled, and easier to design compared to a ported isobaric setup. If someone is experimenting with isobaric loading for the first time, sealed is usually the safer path.

Benefits:

Simpler design.
Smaller enclosure.
Good cone control.
Predictable sound.
Good for tight-space daily builds.

Downsides:

Not as efficient as ported.
May not get as loud on the same power.
Requires two subs for output that may be similar to one properly boxed sub.

Sealed isobaric can work very well for people who want controlled bass in a small space.

Ported Isobaric Boxes

A ported isobaric box is possible, but it is more complicated.

Ported enclosures already require careful airspace, port area, port length, and tuning. When you add isobaric loading, the design becomes even more sensitive.

The box may be smaller, but the port can still take up space. In some cases, the port length needed can make the box harder to package than expected.

Benefits:

Can save box volume compared to a standard ported design.
Can play lower than a small traditional sealed box.
Can work well in custom applications.

Downsides:

Harder to design.
Port length can become an issue.
Easy to mess up if guessed.
Not always worth the extra cost and complexity.

For most people, a normal ported box is easier, louder, and more cost-effective if there is enough space available.

The Efficiency Tradeoff

This is the part many people miss.

An isobaric design usually gives up efficiency.

That means for the same power, the system may not be as loud as two subwoofers each playing in their own properly sized enclosure.

You are using two drivers, but only one side of the compound system is really radiating into the listening space in the same way a normal subwoofer would.

That is why isobaric is a space-saving design, not a maximum-output design.

If your goal is to get as loud as possible, and you have room for a normal enclosure, isobaric is usually not the best answer.

If your goal is to get strong low-end bass in a smaller box, then it starts to make more sense.

Power Handling: Does Isobaric Handle More Power?

In one sense, yes, because you are using two subwoofers instead of one.

The pair can share the workload, and each woofer has its own motor, coil, suspension, and thermal capacity.

But this does not mean you should blindly double the power and expect everything to be fine.

The subs still need clean power. The box still needs to be designed correctly. The amplifier needs to match the final ohm load. Electrical support still matters. And if the subs are being pushed below tuning or beyond mechanical limits, they can still fail.

More equipment does not fix a bad design.

If you are building a serious bass setup, make sure the amp, wiring, electrical, enclosure, and tuning all work together.

Helpful internal links to include:

Car Audio Amplifiers:
https://audiosellerz.com/collections/amplifiers

Car Audio Wire:
https://audiosellerz.com/collections/wire

Big 3 Kits:
https://audiosellerz.com/collections/big-3-kits

Brand X Alternators:
https://audiosellerz.com/collections/brand-x

Advanced Electric Batteries:
https://audiosellerz.com/collections/advanced-electric

Wiring an Isobaric Subwoofer Setup

Wiring is extremely important in an isobaric setup.

Depending on how the subs are mounted, one subwoofer may need reversed polarity so both cones move together correctly.

This is especially common when one woofer is inverted.

The goal is not just to wire the subs so they make noise. The goal is to wire them so the cones move in the correct relationship to each other.

If the wiring is wrong, the subs can fight each other. That can reduce output, create heat, cause unloading, and potentially damage equipment.

Before final assembly, always test cone movement with a low-voltage signal or proper test method to confirm both woofers are moving the way the design requires.

Also pay attention to final impedance.

For example, two dual 2 ohm subwoofers can be wired in different ways depending on the amplifier. Two dual 4 ohm subwoofers give different options. The final ohm load must match what the amplifier can safely run.

Never assume.

Plan the wiring before the box is built.

Do You Need Matching Subwoofers?

Yes.

For an isobaric setup, the two subwoofers should be identical.

Same model.
Same impedance.
Same coil configuration.
Same suspension behavior.
Same condition.
Same break-in state if possible.

Mixing different subs in an isobaric design is not recommended.

If one sub has different motor strength, suspension stiffness, cone mass, or travel limits, the pair will not behave as intended. One woofer may end up doing more work than the other, which defeats the purpose and can create problems.

Isobaric boxes depend on both drivers working together.

Use matching subs.

Does Isobaric Reduce Distortion?

It can, depending on the layout.

Push-pull isobaric designs can help reduce certain types of distortion because one driver is mounted opposite the other. As one driver’s suspension or motor behavior becomes non-linear in one direction, the opposite-mounted driver can help balance some of that behavior.

That does not mean every isobaric box is automatically cleaner.

The enclosure still needs to be strong. The subs still need to be matched. The wiring has to be correct. The amplifier signal needs to be clean. The system still needs to be tuned properly.

But yes, one of the real benefits of certain isobaric layouts is lower distortion potential.

For sound quality builds, that can be attractive.

Isobaric Boxes in Car Audio

In car audio, isobaric boxes are usually used when space is limited.

That might include:

Single cab trucks.
Small hatchbacks.
Compact trunks.
Behind-seat builds.
Stealth installs.
Vehicles where cargo space matters.
Custom show builds where the design itself is part of the look.

In a large SUV or trunk build where there is plenty of space, isobaric usually becomes harder to justify.

Why use two subs in a compact compound setup when those same two subs could each have their own proper airspace and make more output?

That is the tradeoff.

Isobaric makes the most sense when space is the problem.

Isobaric Boxes for SPL

For pure SPL, isobaric is usually not the first choice.

SPL builds usually care about maximum pressure, efficiency, cone area, power, port design, cabin loading, and enclosure optimization.

Since isobaric loading gives up efficiency in exchange for smaller airspace, it is not usually the best path for peak numbers.

That does not mean an isobaric build cannot get loud.

It absolutely can.

But if the goal is chasing the biggest meter number, a traditional design with more cone area actively radiating into the cabin will usually make more sense.

Isobaric Boxes for Daily Bass

For daily bass, isobaric can be more interesting.

A daily setup is not always about chasing the highest number. Sometimes the goal is strong low-end output, usable cargo space, clean sound, and a box that fits the vehicle properly.

That is where isobaric can shine.

If the build needs a smaller enclosure but still wants a deeper bass feel, an isobaric sealed or carefully designed ported setup can be a cool option.

For someone who wants bass that sounds bigger than the box looks, isobaric can be a fun design path.

Isobaric Boxes for Sound Quality

Sound quality builders may like isobaric loading because of the potential for lower distortion and strong low-frequency extension from a compact enclosure.

A sealed push-pull isobaric design can be very controlled and clean when built correctly.

But sound quality still depends on the full system.

That includes:

Subwoofer choice.
Box design.
Crossover settings.
Time alignment.
Phase.
Vehicle acoustics.
Amplifier tuning.
Signal quality.
Install quality.

The box is only one part of the system.

A poorly tuned isobaric box will not outperform a properly designed traditional enclosure just because it is isobaric.

The Downsides of Isobaric Subwoofer Boxes

Isobaric boxes are cool, but they are not perfect.

Here are the main downsides.

1. You Need Twice the Subwoofers

This is the biggest cost issue.

If you are using two subs to get the output behavior of one compact system, you have to ask whether the space savings are worth the price.

Sometimes they are.

Sometimes they are not.

2. Lower Efficiency

An isobaric setup usually loses efficiency compared to using the same two subs separately.

That means you may need more power to reach the same output level.

More power also means more electrical demand.

If your electrical system is weak, adding more equipment can create voltage drop, heat, clipping, and reliability problems.

3. More Weight

Two subwoofers are heavier than one.

If you are using large motors, heavy baskets, thick MDF or birch, and a strong enclosure, the weight adds up fast.

For a small vehicle, that matters.

4. More Complicated Box Design

A standard sealed or ported box is easier to design and build.

An isobaric box needs proper spacing, sealing, wiring, and layout.

The coupling chamber between the subs needs to be right. The box must be strong. Any air leaks can hurt performance.

5. Cooling Can Be More Difficult

Depending on the layout, one subwoofer may be buried inside the enclosure or trapped in a tight space.

That can make cooling more difficult.

Subwoofers create heat. Voice coils need to shed heat. Motors and vents need room to breathe.

If the design blocks cooling paths, power handling may suffer.

6. Service Can Be a Pain

If the inside subwoofer has a problem, getting to it may require removing the outside sub, opening the enclosure, or taking apart part of the build.

That may not sound like a big deal until something goes wrong.

When an Isobaric Box Makes Sense

An isobaric subwoofer box can make sense when:

You have very limited space.
You want deeper bass from a smaller enclosure.
You are doing a custom or stealth build.
You already have matching subs.
You care more about box size than maximum efficiency.
You understand the design tradeoffs.
You are willing to spend more to save space.

This is the type of enclosure that should be chosen for a reason.

Not because it looks cool.
Not because someone online said it was louder.
Not because you want to use extra subs.

Use isobaric when the space-saving benefit matters.

When You Should Avoid Isobaric

A regular subwoofer box may be better if:

You have enough room for the correct enclosure.
You want maximum loudness for the money.
You are trying to keep the build simple.
You do not want to buy extra subs.
You want easier cooling.
You want easier service.
You are building for SPL.
You are not confident in the design.

There is nothing wrong with choosing a standard box.

In many cases, a properly designed traditional enclosure will outperform a poorly planned isobaric setup.

Isobaric vs Regular Sealed Box

A regular sealed box is simple, reliable, and predictable.

An isobaric sealed box can be smaller, but it requires two subs.

If space is not a problem, the regular sealed box is usually the better value.

If space is tight, isobaric sealed can be worth considering.

Isobaric vs Regular Ported Box

A regular ported box will usually be louder and more efficient when it has enough space.

An isobaric ported box can save airspace, but the port still needs room. This is where people sometimes get surprised.

The enclosure may need less internal volume for the drivers, but the port length and port area can still take up a lot of space.

That means a ported isobaric box is not always as small in the real world as people expect.

Isobaric vs Bandpass Box

A bandpass box is a completely different style of enclosure.

Bandpass designs use chambers to control output through a ported section. They can be loud in a specific frequency range but require careful design.

An isobaric setup can be used inside certain bandpass designs, but that becomes even more advanced.

For most daily car audio builds, keep it simple unless the box builder really knows what they are doing.

Is Isobaric Worth It Today?

Sometimes.

Years ago, isobaric designs were more appealing because many subwoofers needed larger enclosures. Today, there are plenty of modern subs that can perform well in smaller boxes.

That means isobaric is no longer the obvious answer for every tight-space build.

But it still has value.

If you are building something custom, have limited room, want a unique design, and understand the tradeoffs, isobaric can be a very cool option.

It is not outdated. It is just specialized.

Real-World Example

Let’s say you have a small truck and only have room for a compact enclosure behind the seat.

A single 12" subwoofer in the space available may not have enough airspace to play the way you want. A regular ported box may be too large. A standard sealed box may fit, but low-end output may not be where you want it.

An isobaric sealed pair could let you use two matching 12" subs in a smaller enclosure and still get a stronger low-frequency feel than the tiny box would normally allow.

That is a good use case.

Now let’s say you have a large SUV with room for a full-size ported enclosure.

In that case, using those same two subs in a normal ported box would usually make more sense. You would likely get more output and better efficiency.

That is why vehicle space matters so much.

Box Build Quality Matters

An isobaric enclosure needs to be built strong.

The box should be rigid, sealed properly, and designed around the subs being used.

Important build details include:

Strong baffle.
Proper subwoofer spacing.
Good bracing.
Airtight coupling chamber.
Correct mounting hardware.
Proper wire routing.
Enough motor clearance.
Enough cooling clearance.
Clean service access if possible.

Small mistakes can create big problems.

A leak between the chambers can hurt performance. A loose subwoofer can create noise. Incorrect polarity can make the subs fight each other. Poor bracing can waste energy.

This is not a box style to rush.

Should You Build an Isobaric Box Yourself?

If you are experienced with enclosure design, woodworking, subwoofer specs, and wiring, then yes, it can be a fun project.

If you are new to car audio, it may be better to start with a standard sealed or ported box first.

Isobaric boxes require more planning than most people expect.

You need to understand:

Subwoofer parameters.
Enclosure volume.
Driver displacement.
Wiring.
Phase.
Polarity.
Mounting orientation.
Port design if ported.
Vehicle space limitations.

If that sounds overwhelming, get help from someone who builds boxes regularly.

Final Thoughts: Isobaric Is About Space, Not Magic

An isobaric subwoofer box can be a great solution when space is limited and you still want strong low-frequency performance.

But it is not a shortcut to being louder.

The real benefit is enclosure size.

You are trading extra subwoofer cost, extra weight, extra complexity, and some efficiency for a smaller box.

For the right build, that tradeoff can be worth it.

For the wrong build, it can be a waste.

If you have enough room for a proper traditional enclosure, that is usually the smarter choice. But if space is tight and the design is done correctly, an isobaric subwoofer box can be one of the coolest and most creative ways to get serious bass from a compact setup.

At AudioSellerz.com, we are all about helping you choose the right setup for your vehicle, your goals, and your budget. Whether you need subwoofers, amplifiers, wire, electrical upgrades, or a custom enclosure plan, the goal is always the same: build it right the first time.

Shop subwoofers:
https://audiosellerz.com/collections/subwoofers

Shop subwoofer boxes:
https://audiosellerz.com/collections/subwoofer-boxes

Shop amplifiers:
https://audiosellerz.com/collections/amplifiers

Shop wire:
https://audiosellerz.com/collections/wire

Shop Big 3 kits:
https://audiosellerz.com/collections/big-3-kits

Shop Brand X alternators:
https://audiosellerz.com/collections/brand-x

Shop Advanced Electric batteries:
https://audiosellerz.com/collections/advanced-electric
