American Bass Falcon Series Speaker 8”

American Bass Falcon 8” Speaker – 300W RMS, 4 ohm

Sold by AudioSellerz.com.

The American Bass Falcon 8” is a high-efficiency pro-style speaker built to get loud and clear in doors, walls, and front stages. With a 300 watt RMS / 600 watt max rating, a 1.5” voice coil, and 98.5 dB sensitivity, the Falcon 8 easily keeps up with strong sub stages while still delivering vocals and instruments with punch and detail. Its wide 105 Hz – 18,000 Hz frequency response lets you run it as a strong midrange or even a mid-high in aggressive pro audio builds.

Key Features

• Power Handling

• 300 watts RMS
• 600 watts max
• Size & Impedance

• 8” nominal diameter
• 4 ohm
• Output & Response

• Sensitivity: 98.5 dB
• Frequency response: 105 Hz – 18,000 Hz
• Motor & Build

• High grade ferrite magnet
• 1.5” voice coil
• CCAW voice coil wire
• Paper cone with cloth surround

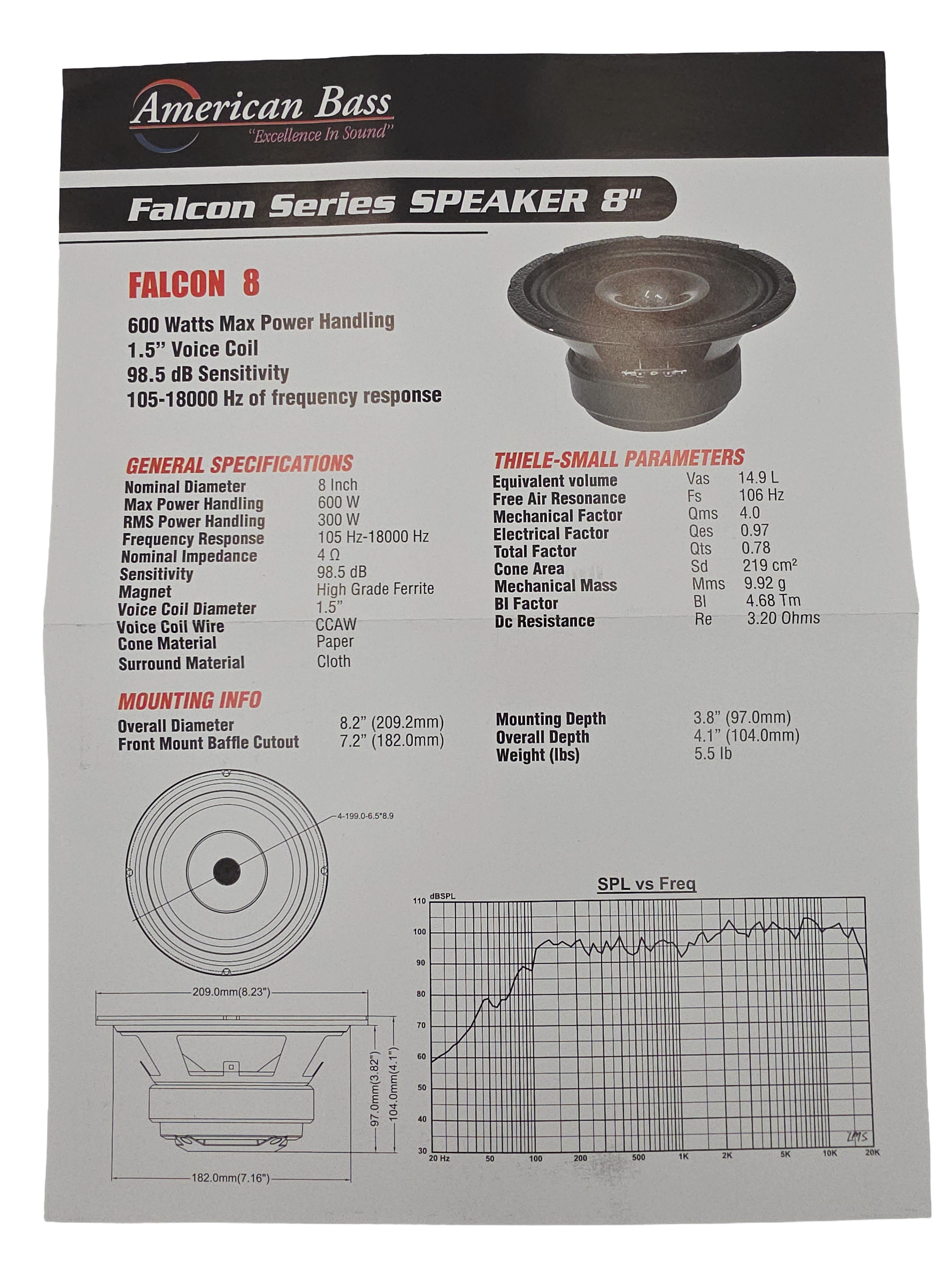

• Thiele/Small Parameters

• Equivalent Volume Vas: 14.9 L
• Free Air Resonance Fs: 106 Hz
• Mechanical Factor Qms: 4.0
• Electrical Factor Qes: 0.97
• Total Factor Qts: 0.78
• Cone Area Sd: 219 cm²
• Mechanical Mass Mms: 9.92 g
• BI Factor Bl: 4.68 Tm
• Dc Resistance Re: 3.20 ohms

Mounting Information

• Overall diameter: 8.2” (209.2 mm)
• Front baffle cutout: 7.2” (182.0 mm)
• Mounting depth: 3.8” (97.0 mm)
• Overall depth: 4.1” (104.0 mm)
• Weight: 5.5 lb

The American Bass Falcon 8” is a great choice for loud door builds, pro-audio front stages, or any setup that needs strong, efficient midrange you can actually hear over big bass—backed and shipped by AudioSellerz.com.
