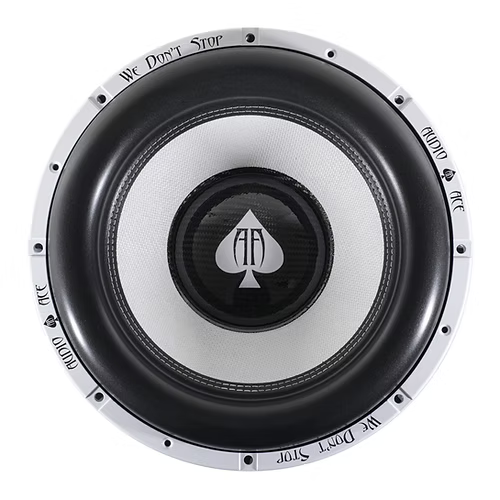

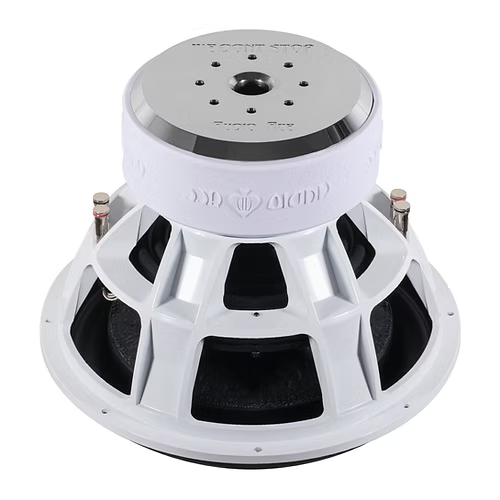

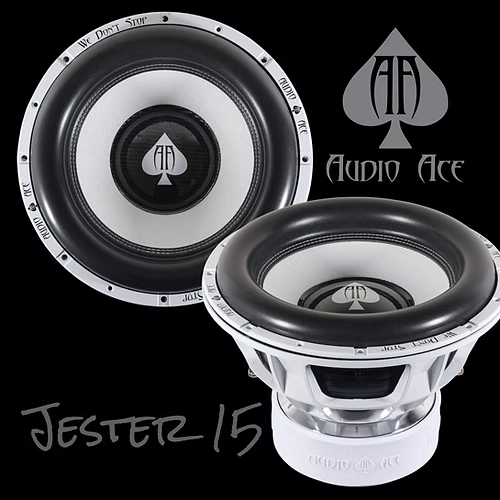

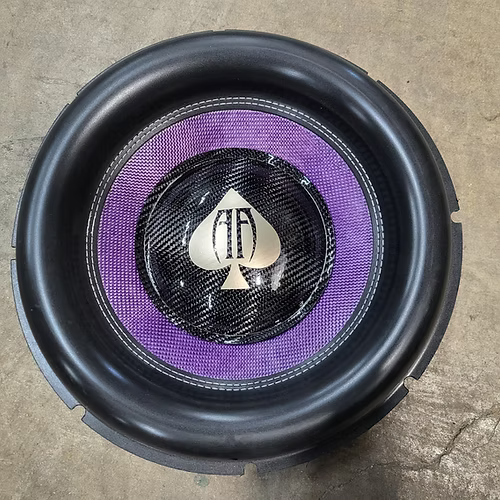

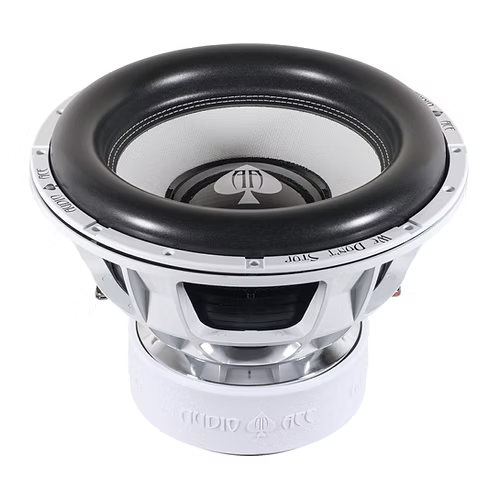

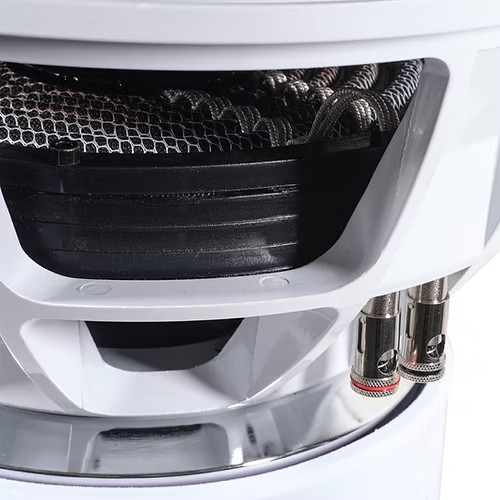

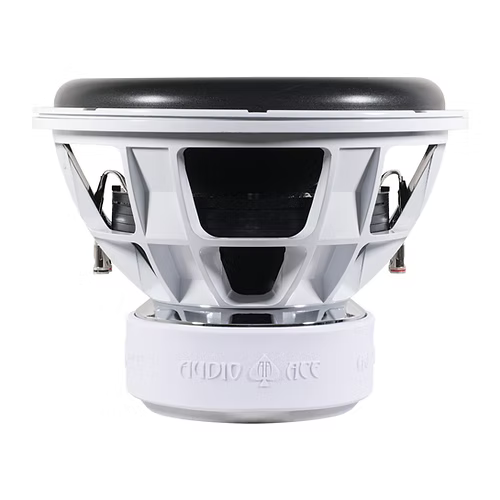

Audio Ace Jester 15 with Dyeable Cone

Built with the goal of achieving a high level of SQ/SPL. The Jester is rated at 3,000 RMS. Designed with fairly low FS and a strong motor structure allows the Jester to be versatile enough to sound great across a wide range of music. Whether you are looking to be one of the loudest vehicles in your town, or just wanting to enjoy the bass in your daily driver at EXTREME sound levels, the Jester is a great choice!

Heavy Duty Die Cast Aluminum Basket

3" BACCAW 4 Layer Coil

300 oz Magnet Structure

4 Layer 10" Spider Suspension

3,000 RMS

Cutout 14.331in

Depth 10.07 in

Electrical Parameters

Re 3.52

Le 3.341

L2 8.625

R2 17.07

Cmes 681.46

Lces 32.71

Res 37.19

Fs 33.7

Mechanical Parameters (Using Laser)

Mms 551.552

Mmd 527.404

Rms 21.762

Cms .040

Kms 24.75

Bl 28.449

Lambda .043

Loss Factors

Qtp .488

Qms 5.368

Qes .508

Qts .464

Misc Parameters

Vas 33.8589

n0 .245

Lm 86.10

Lnom 86.65

rmse Z 7.59

rmse Hx 5.04

Sd 769.45

Box Recommendation

3-4 cubic foot ported

14-16 square inches of port per cubic foot

28-36hz tuning

Optimal in ported 4th and 6th order applications

Not recommended for sealed applications
