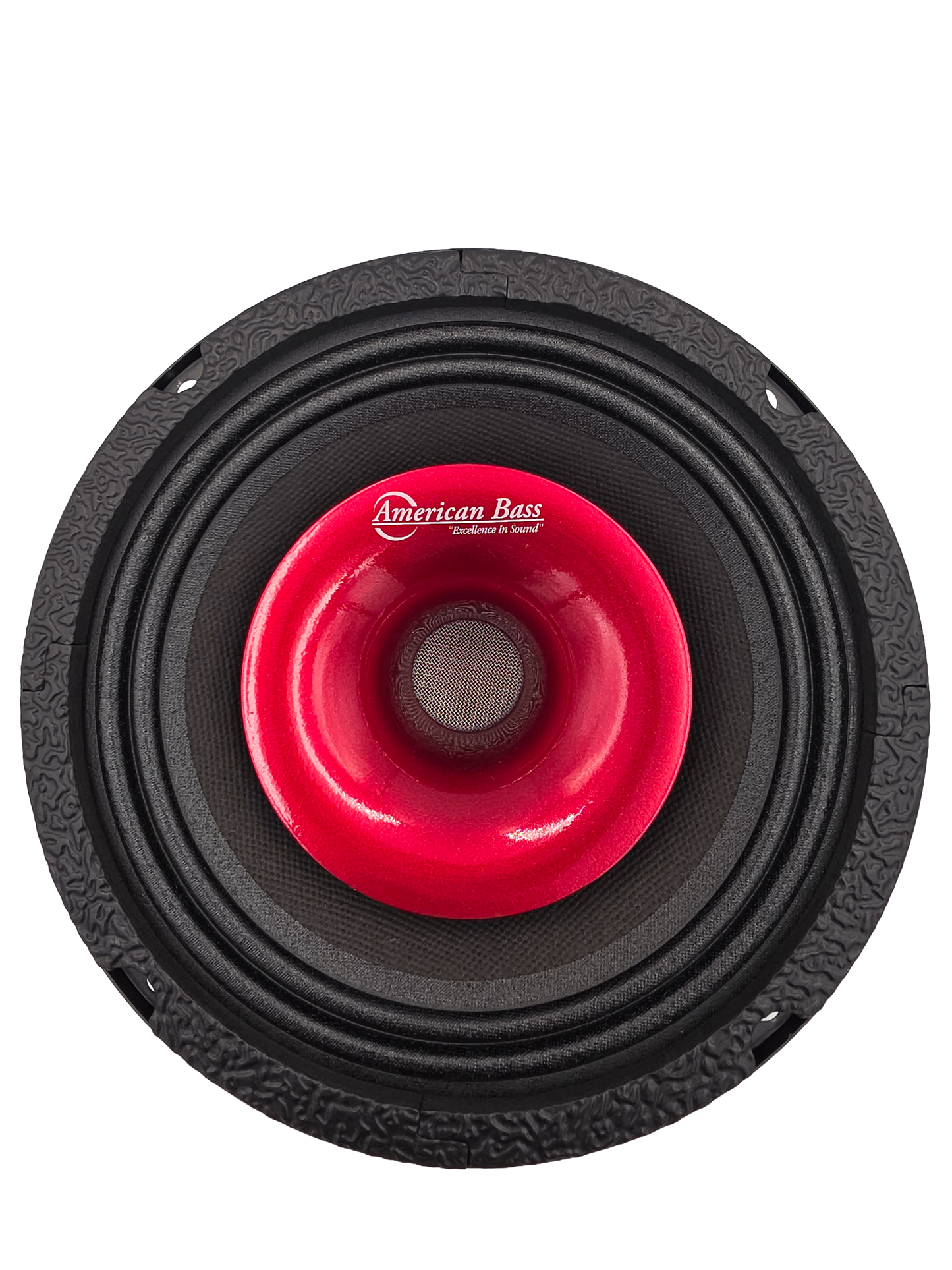

American Bass Falcon Series Speaker 6.5”
American Bass Falcon Series Speaker 6.5”
Couldn't load pickup availability

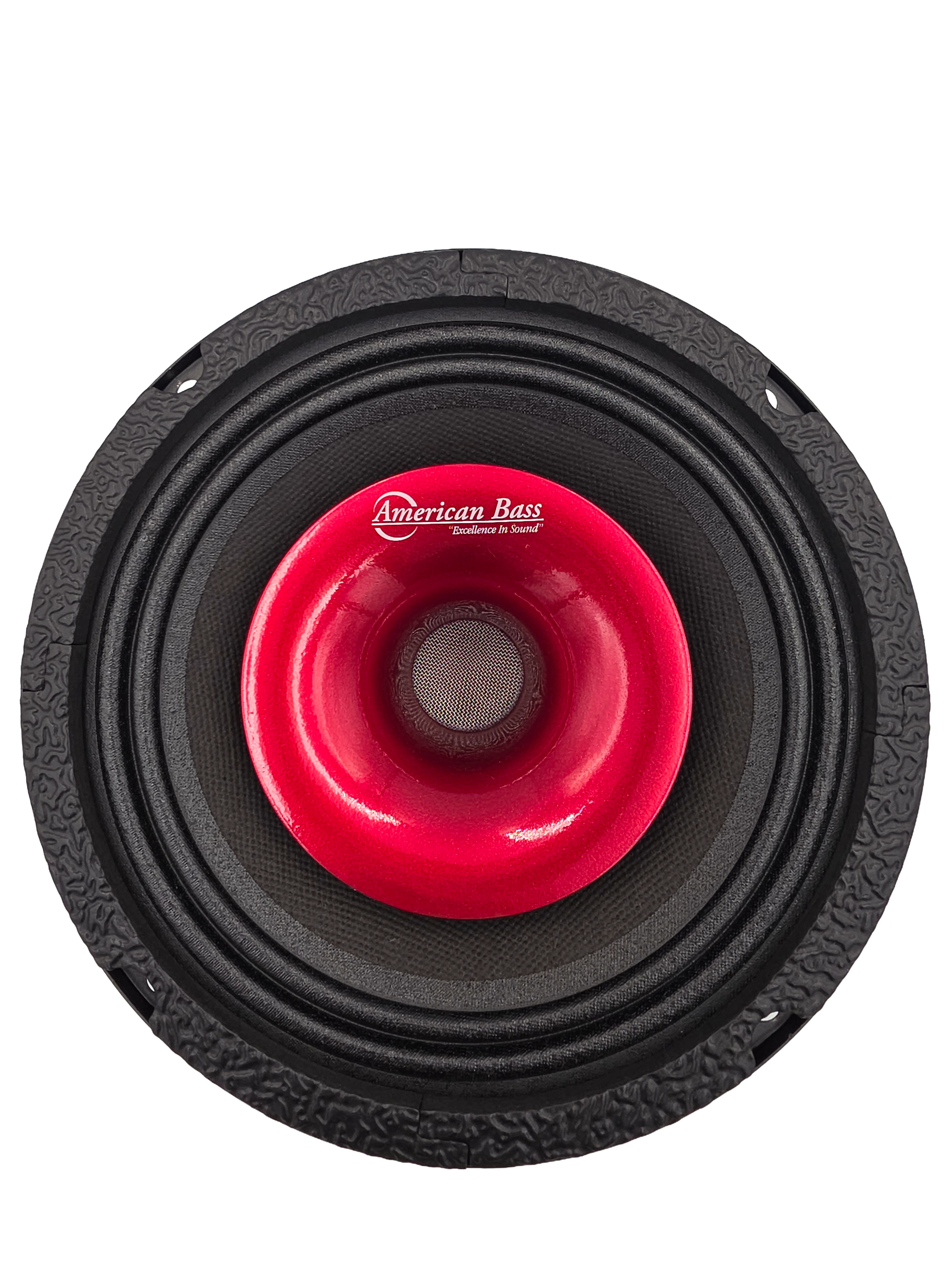

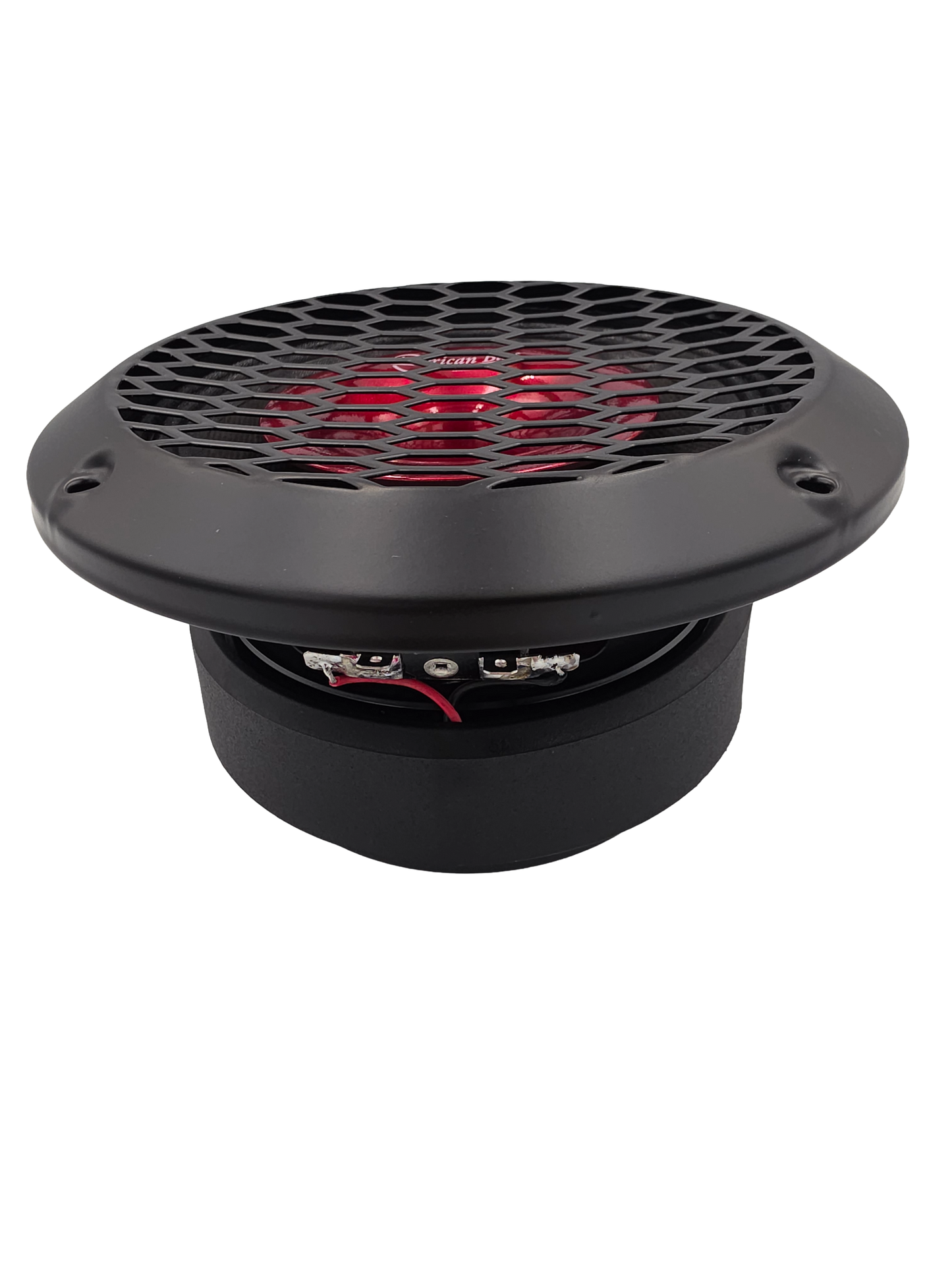

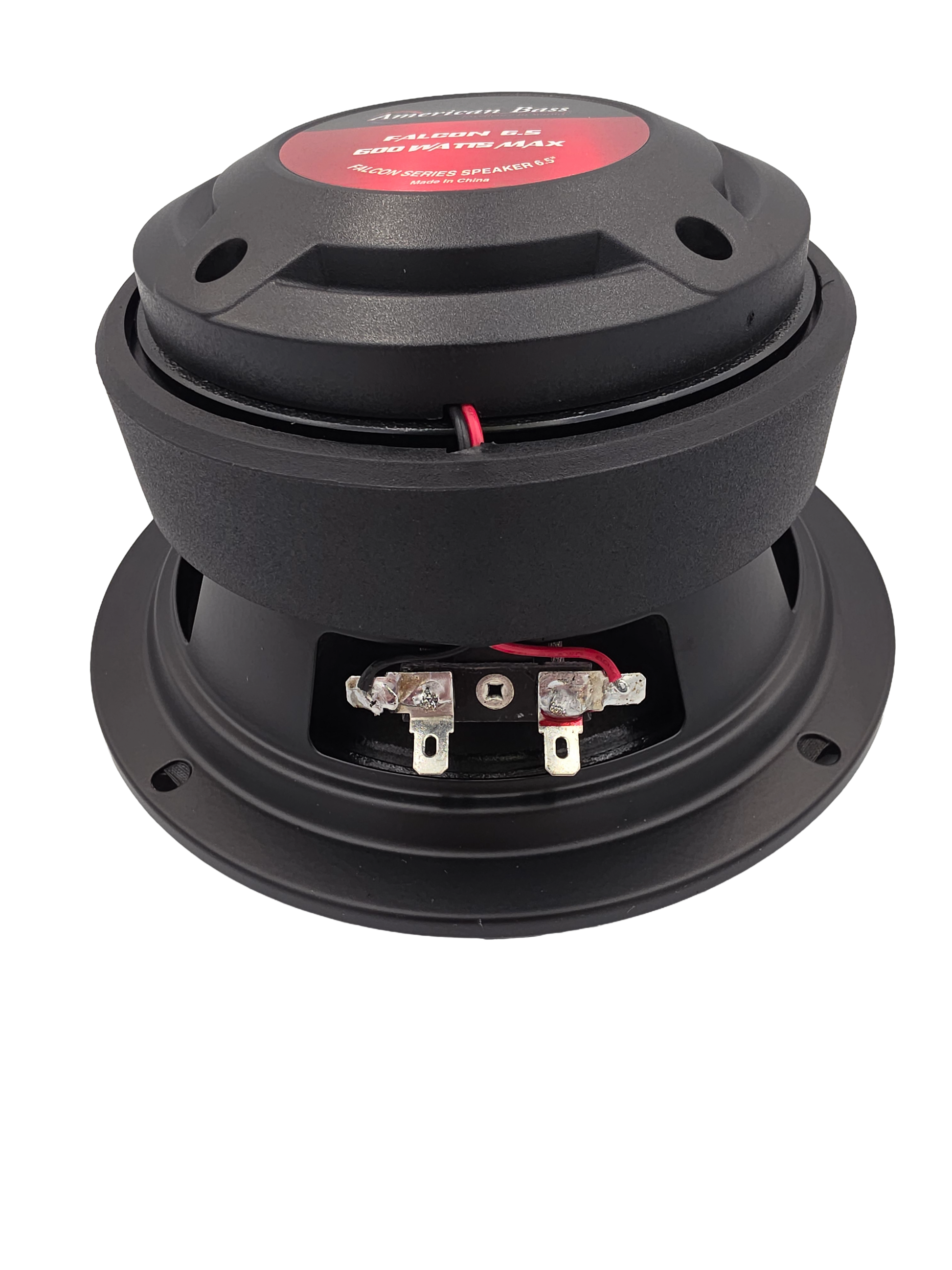

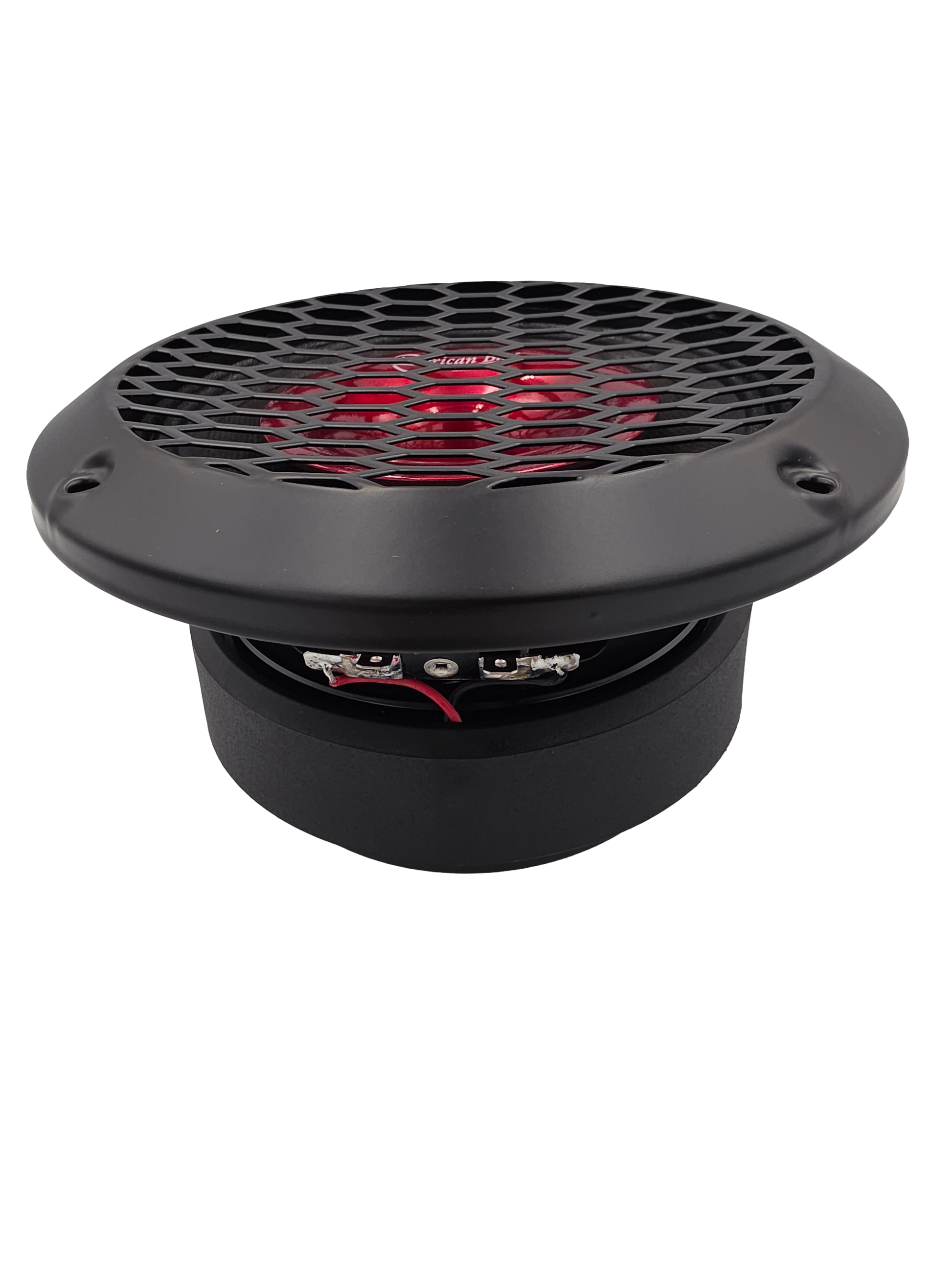

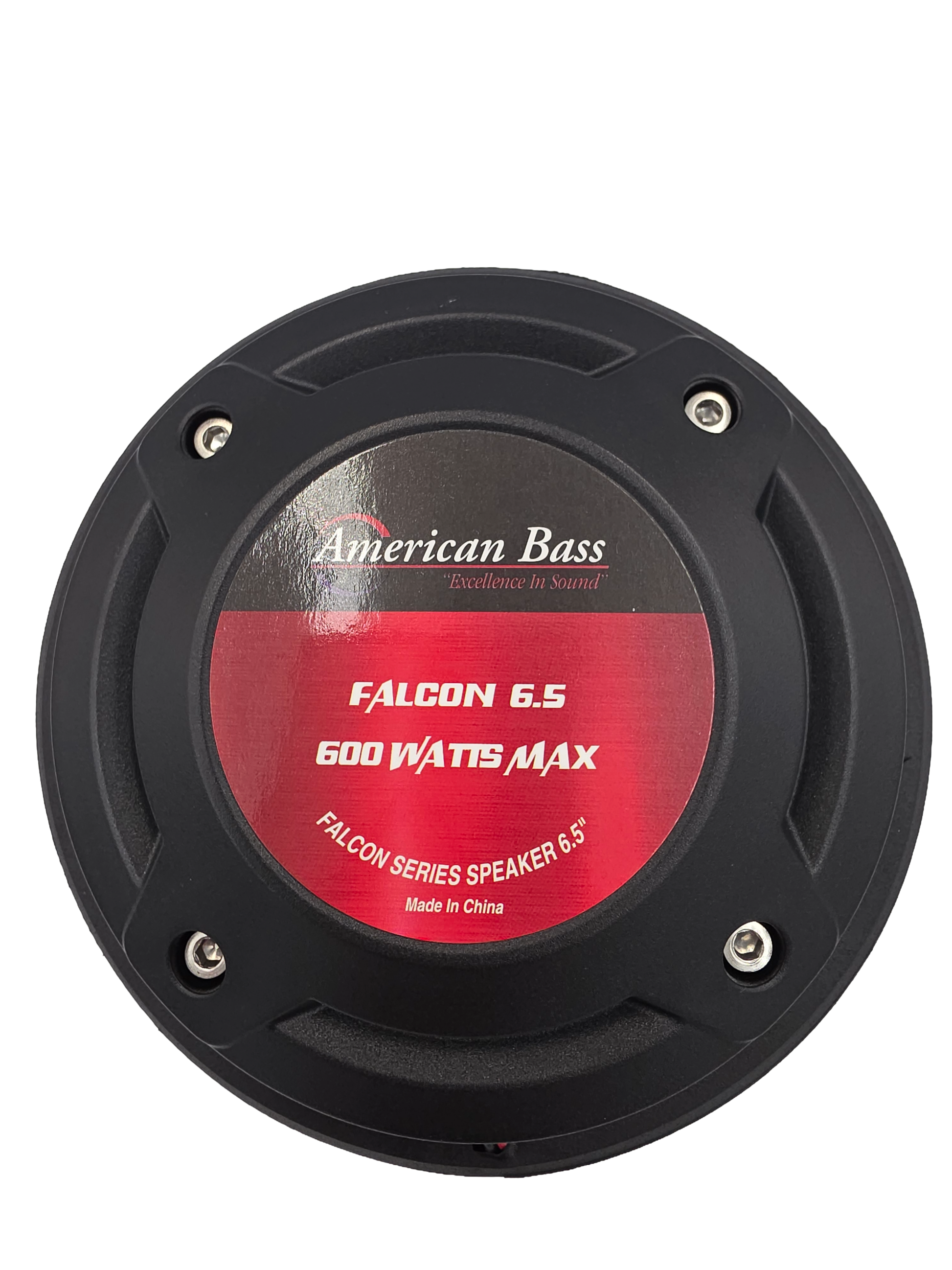

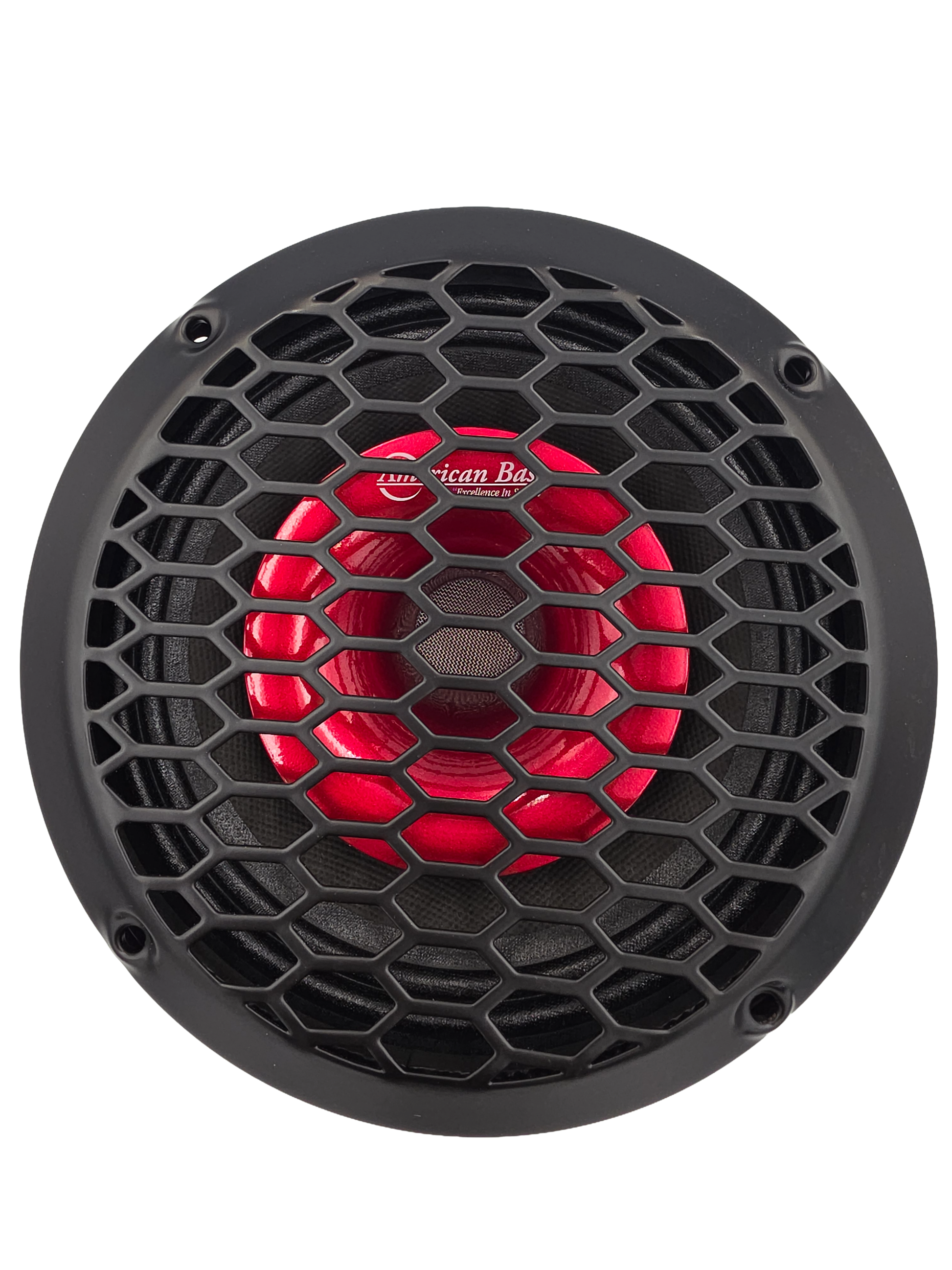

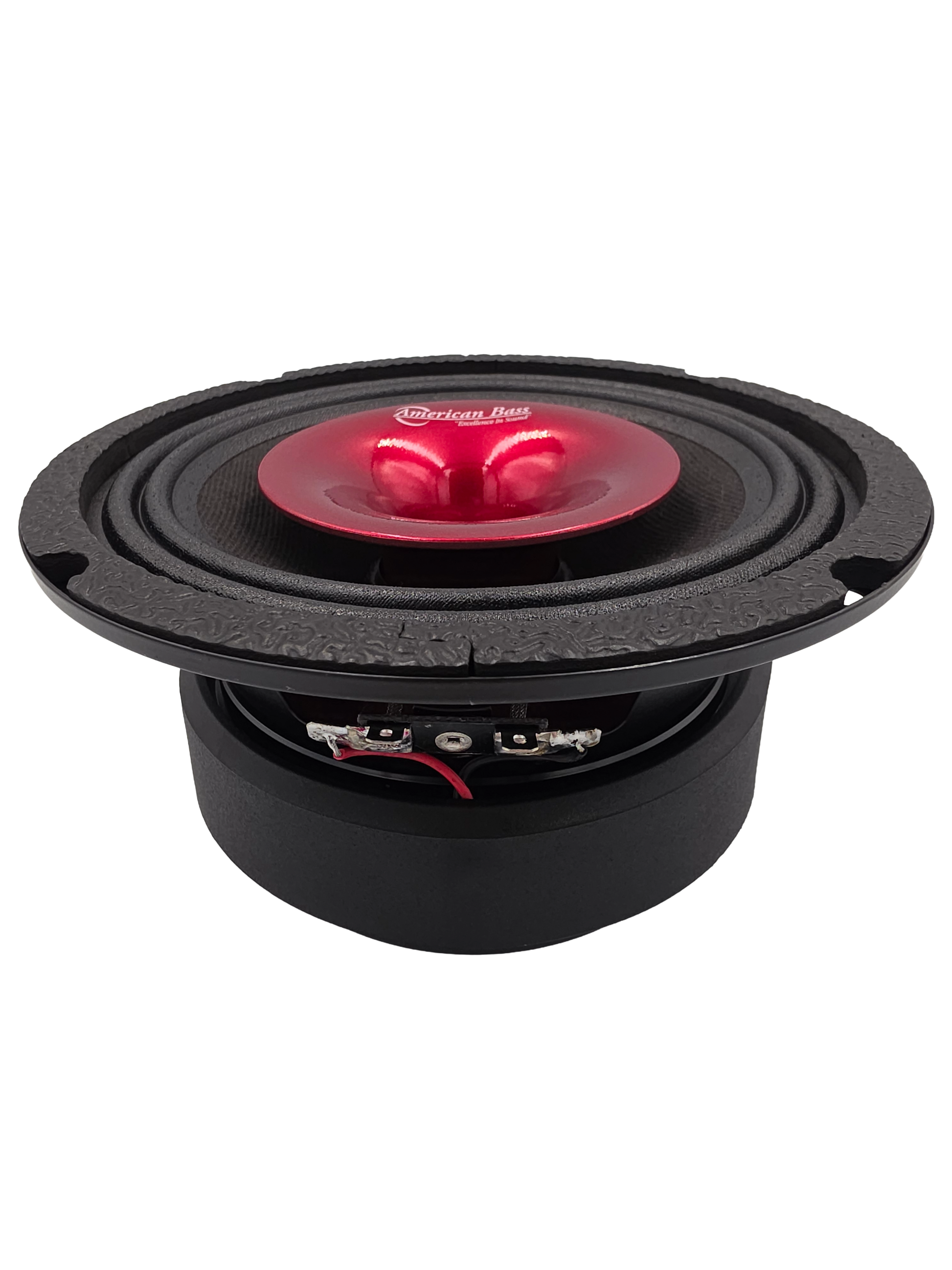

American Bass Falcon 6.5” Speaker – 300W RMS, 4 ohm
Sold by AudioSellerz.com.
The American Bass Falcon 6.5” is a pro-style midrange built to get loud, stay clear, and keep up with real substage power. With 300 watts RMS / 600 watts max, a 1.5” voice coil, and 97 dB sensitivity, this driver is perfect for aggressive door builds, front stages, and pro-audio style systems where you want vocals and instruments to jump out of the mix. Its 150 Hz – 18,000 Hz frequency response lets you use it as a strong mid or mid-high in multi-way setups.
Key Features
- Power Handling
- 300 watts RMS
- 600 watts max
- Size & Impedance
- 6.5” nominal diameter
- 4 ohm
- Output & Response
- Sensitivity: 97 dB
- Frequency response: 150 Hz – 18,000 Hz
- Motor & Build
- High grade ferrite magnet
- 1.5” voice coil
- CCAW voice coil wire
- Paper cone with cloth surround

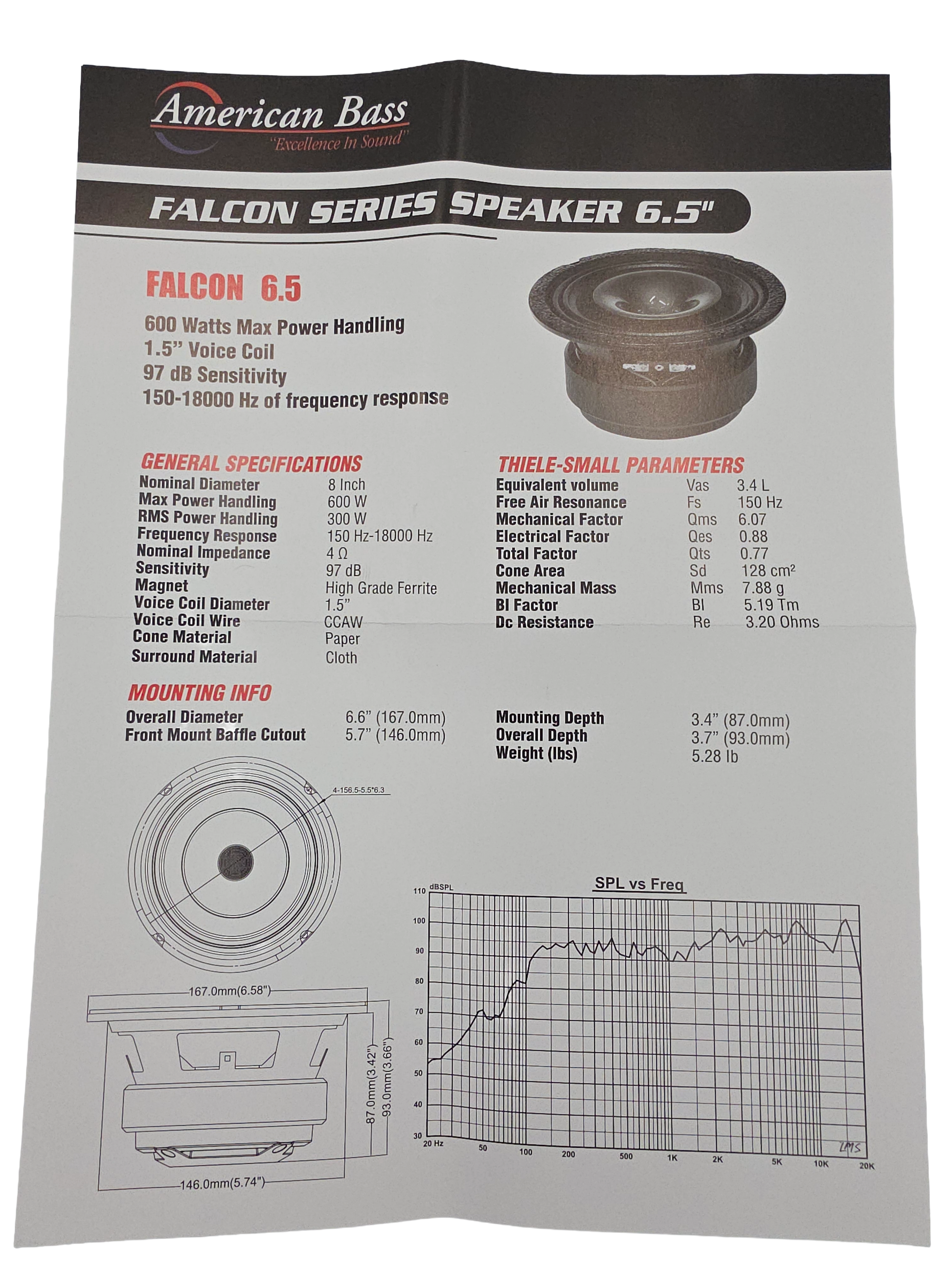

- Thiele/Small Parameters
- Equivalent volume Vas: 3.4 L
- Free Air Resonance Fs: 150 Hz
- Mechanical Factor Qms: 6.07
- Electrical Factor Qes: 0.88
- Total Factor Qts: 0.77
- Cone Area Sd: 128 cm²
- Mechanical Mass Mms: 7.88 g
- BI Factor Bl: 5.19 Tm
- Dc Resistance Re: 3.20 ohms
Mounting Information
- Overall diameter: 6.6” (167.0 mm)
- Front baffle cutout: 5.7” (146.0 mm)
- Mounting depth: 3.4” (87.0 mm)
- Overall depth: 3.7” (93.0 mm)
- Weight: 5.28 lb
The American Bass Falcon 6.5” is a killer option for loud, efficient door speakers or front-stage mids that won’t get buried under big bass—ready to ship from AudioSellerz.com.
