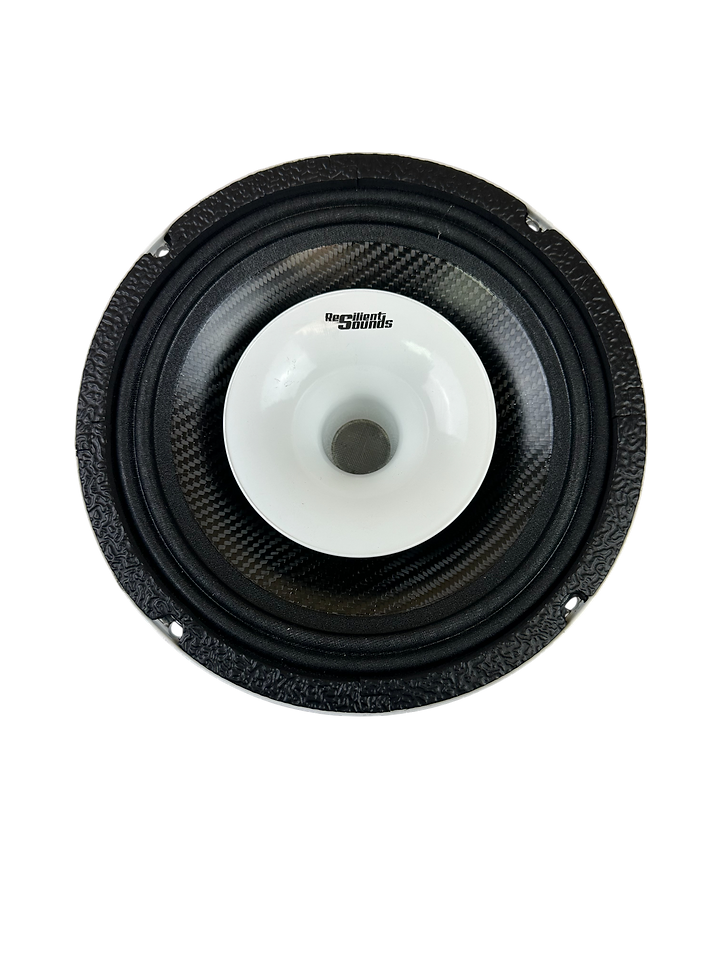

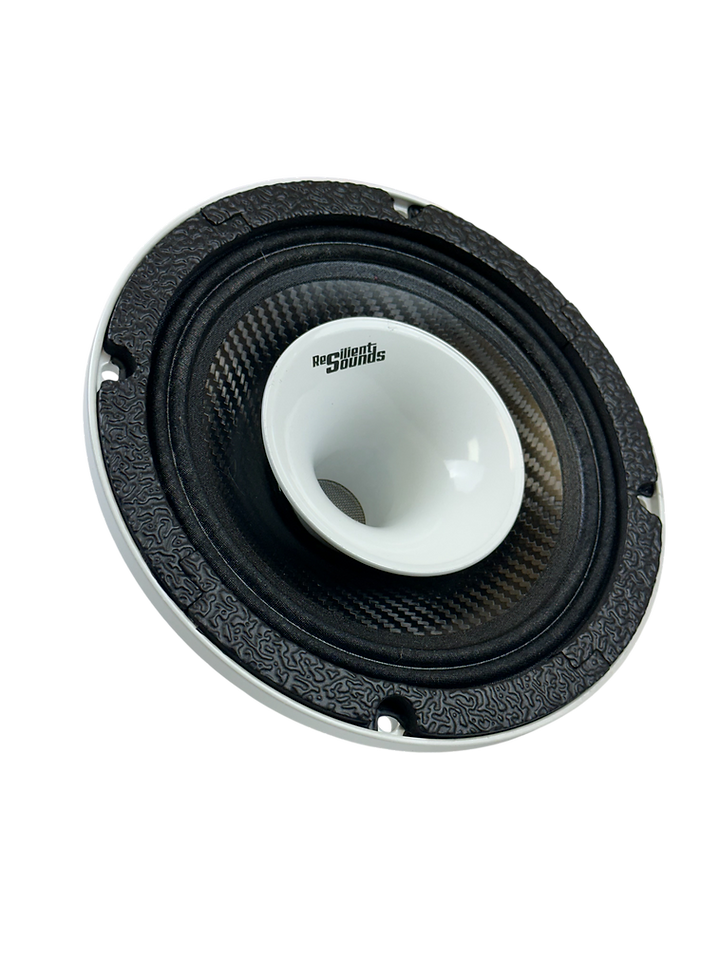

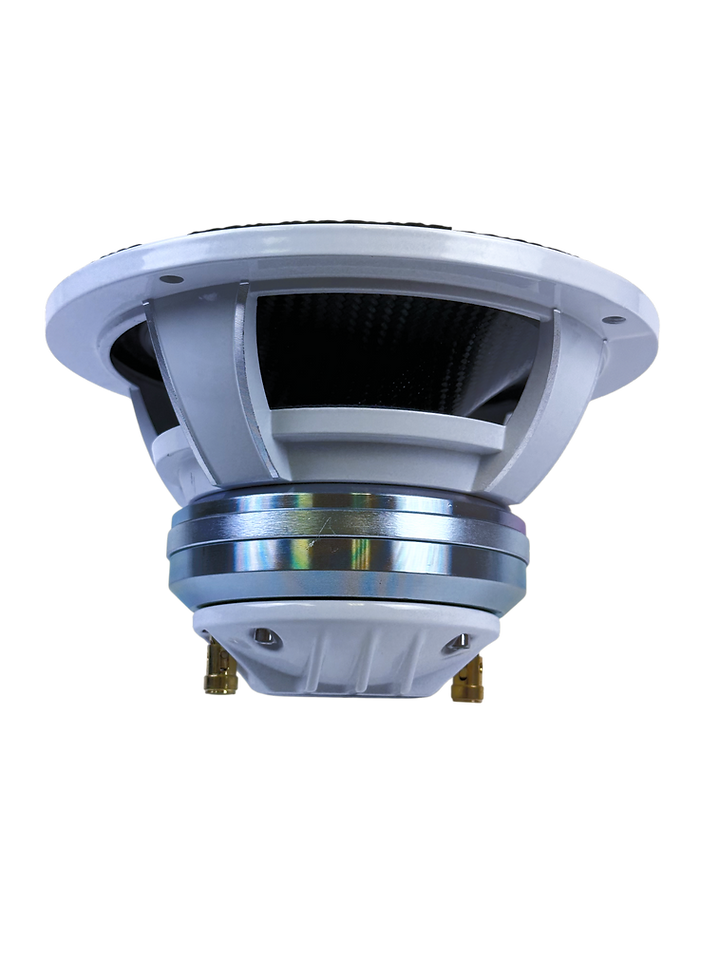

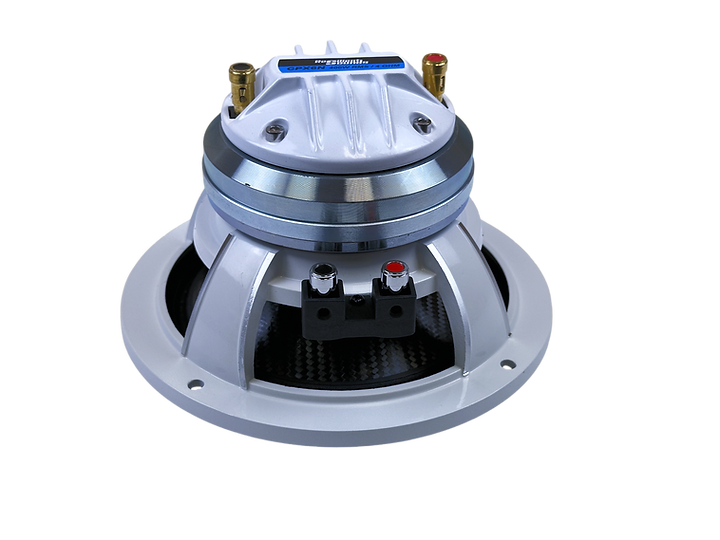

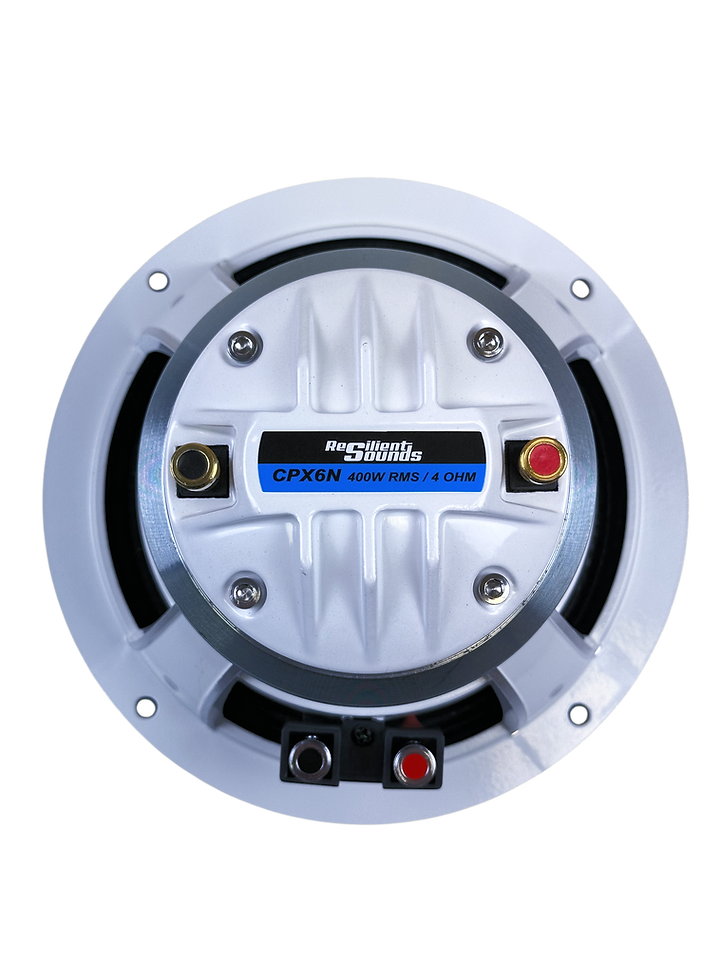

Resilient Sounds CPX6N NEO 6.5" Pro Audio Hybrid Loudspeaker with Horn 400W RMS

Resilient Sounds CPX6N — 6.5” Neodymium Pro Audio Hybrid Loudspeaker w/ Horn (400W RMS, 4 ohm) —

Single

Built for extreme projection and clarity. The CPX6N combines a lightweight neodymium motor, 2” high-temp voice coil, and a horn-loaded front to deliver competition-grade mids with huge efficiency. Whether you’re chasing trophies or upgrading a daily, this driver brings clean volume and razor-sharp presence.

Key Features

• High output, clean sound: 400W RMS / 800W max with 100 dB sensitivity (1W/1m)
• Neo motor: Stronger magnetic force with lower weight for faster transient response
• Wide usable range: 130 Hz–20 kHz covers punchy midbass through crisp vocal presence
• Thermal headroom: 2” CCAW voice coil on high-temp former for long play sessions
• Horn-loaded hybrid design: Enhanced projection and intelligibility in loud environments
• Rigid, weather-minded cone: Water-resistant carbon fiber for durability and accuracy
• Vented motor & aluminum basket: Improved airflow, reduced compression, and strength
• Compact fit: 3.70” mounting depth for tight doors and pods
• Sold individually (add two for a pair)

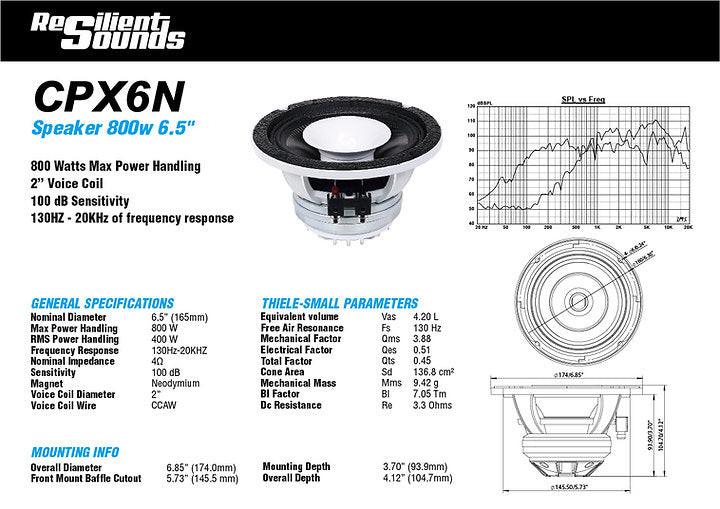

General Specifications

• Size: 6.5”
• Impedance: 4 ohm
• Power Handling: 400W RMS / 800W max
• Sensitivity: 100 dB (1W/1m)
• Frequency Response: 130 Hz – 20 kHz
• Voice Coil: 2” CCAW
• Magnet Type: Neodymium

Thiele/Small (Design Reference)

• Fs: 130 Hz • Vas: 4.20 L
• Qms: 3.88 • Qes: 0.51 • Qts: 0.45
• Sd: 136.8 cm² • Mms: 9.42 g
• BL: 7.05 Tm • Re: 3.3 ohm

Dimensions & Mounting

• Overall Diameter: 6.85” (174.0 mm)
• Front Baffle Cutout: 5.73” (145.5 mm)
• Mounting Depth: 3.70” (93.9 mm)
• Overall Depth: 4.12” (104.7 mm)

Tuning Tips

Start with a high-pass filter around 150–200 Hz (use a steeper slope if you’re feeding serious power) and level-match to adjacent drivers. Secure mounting and proper wiring are critical—this driver gets loud and will reveal weak links.

What’s in the box: (1) CPX6N 6.5” loudspeaker

Sold individually. Add two for a pair.
