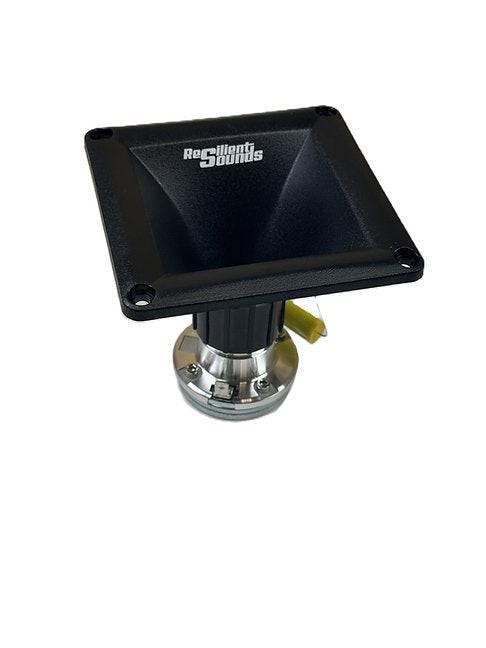

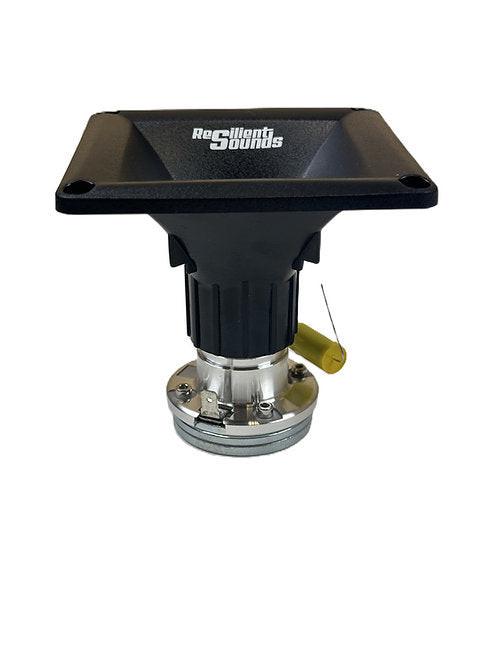

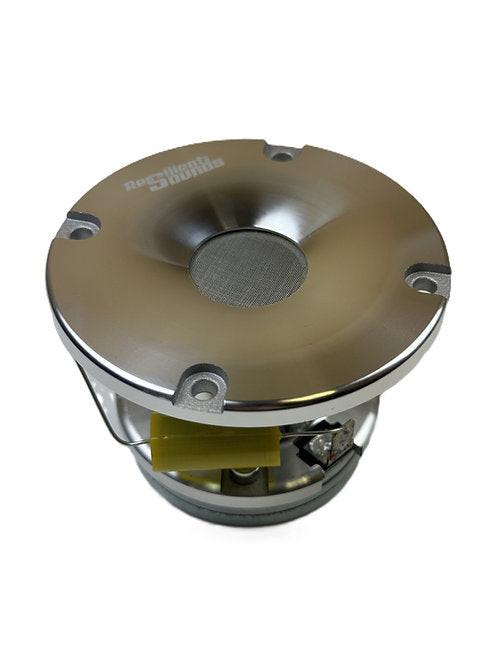

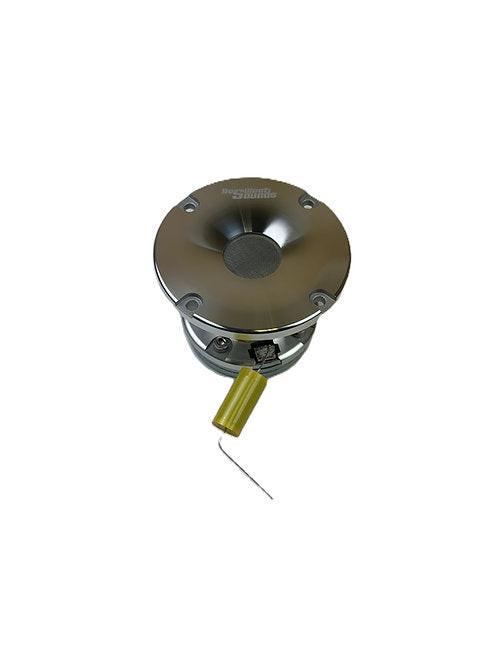

Resilient Sounds HPN1 Neo Horn Driver – 75W RMS 4 Ohm (Single)
Resilient Sounds HPN1 Neo Horn Driver – 75W RMS 4 Ohm (Single)
Couldn't load pickup availability
Resilient Sounds HPN1 Neo Horn Driver – 75W RMS 4 Ohm (Single)
Sold by AudioSellerz.com

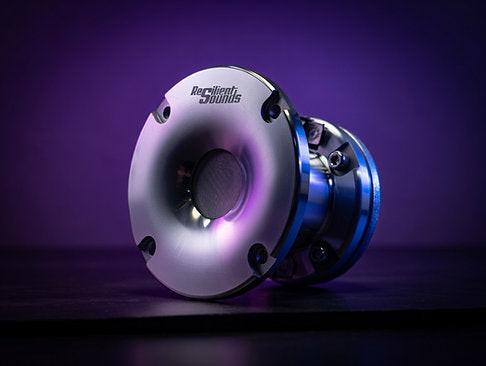

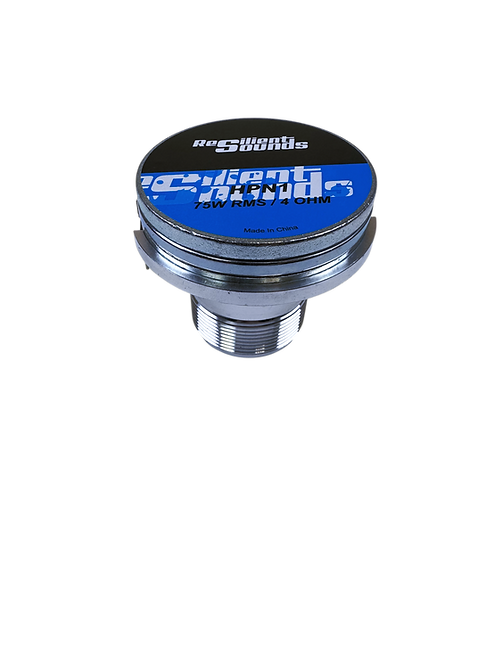

The Resilient Sounds HPN1 Neo Horn Driver is built for high-output vocal and high-frequency performance in serious car audio systems. Compact, efficient, and loud, this 1" neo horn driver handles 75 watts RMS / 150 watts max with a very strong 110 dB sensitivity, so it gets loud on relatively low power while staying clear from 2 kHz to 20 kHz.

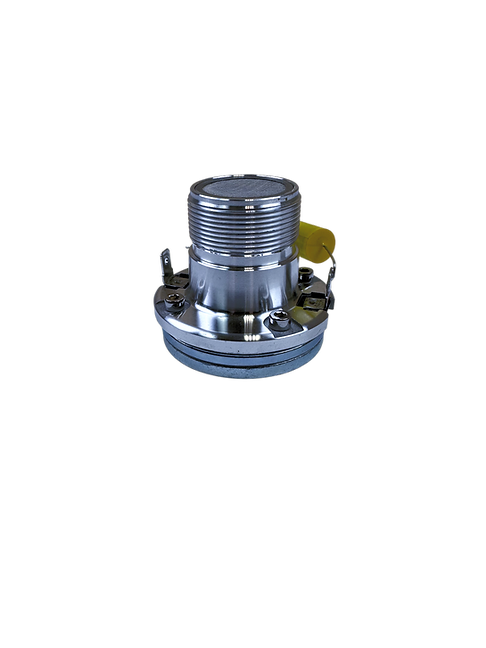

Using a 1 inch CCAW voice coil and a neodymium (neo) magnet, the HPN1 keeps weight and size down while still delivering punchy, detailed highs. Its shallow 0.67 inch mounting depth makes it easy to fit in A-pillars, door pods, dash pods, and tight pro-audio style builds.
If you’re building a loud vocal stage to keep up with big subs, or upgrading from basic bullet tweeters, the HPN1 gives you efficient, controlled horn performance in a small package.

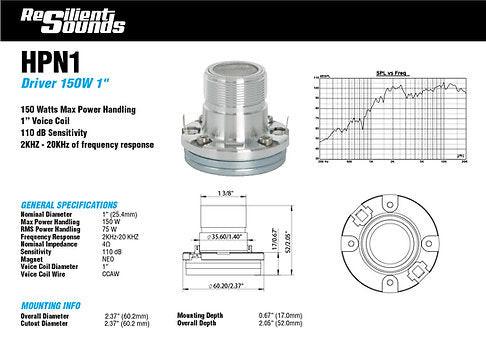

Key Features
-
Power Handling: 75W RMS / 150W max
-
Impedance: 4 ohm
-
Sensitivity: 110 dB (1W/1m) – very efficient, gets loud with less power
-
Frequency Response: 2,000 Hz – 20,000 Hz
-
Voice Coil Diameter: 1" (25.4 mm)
-
Voice Coil Wire: CCAW
-
Magnet Type: Neodymium (neo)
-
Nominal Diameter: 1" (25.4 mm)
-
Sold As: Single horn driver
Mounting Information
-
Overall Diameter: 2.37" (60.2 mm)
-
Cutout Diameter: 2.37" (60.2 mm)
-

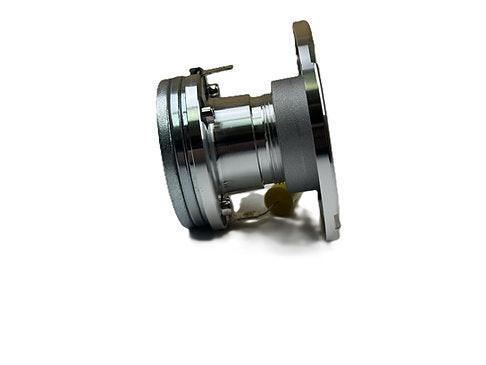

Mounting Depth: 0.67" (17.0 mm)
-
Overall Depth: 2.05" (52.0 mm)
Great For
-
Pro audio–style car audio builds
-
Loud vocal front stages
-
Demo vehicles and show builds
-
Matching with Resilient Sounds mids and subwoofers
Set up with proper crossovers and gain, the HPN1 Neo Horn Driver delivers sharp, clean highs that stay present even in bass-heavy systems.
