Subwoofer Wiring Diagrams: How to Find Your Final Ohm Load (DVC + SVC

March 4, 2026

If you’ve ever asked “What ohm load will this wiring be?” you’re in the right place.

This guide is built for real installs — daily drivers, demo builds, and everything in between. We’ll break down SVC vs DVC, series vs parallel, and the most common wiring outcomes so you can hit the ohm load your amplifier actually wants.

Shop wiring + install accessories (Audio Sellerz):
Wiring kits: https://audiosellerz.com/search?q=wiring+kit
Distribution blocks: https://audiosellerz.com/search?q=distribution+block
Fuse holders / fuses: https://audiosellerz.com/search?q=fuse+holder
Ring terminals / connectors: https://audiosellerz.com/search?q=ring+terminal

Dealers — we’ve got people ready to help you. Super fast, affordable shipping, and real support when you need it. We want to help you grow. Get started at AudioResellerz.com.

What “ohm load” means (and why it matters)

Your amplifier doesn’t “see” how many subs you have — it “sees” the final ohm load.

Lower ohm load (example: 1 ohm) = amp works harder and can make more power (if it’s designed for it)
Higher ohm load (example: 4 ohm) = amp works easier and usually runs cooler

Important: Running below what your amp is stable for is how you end up with protect mode, heat, clipping, and smoked outputs.

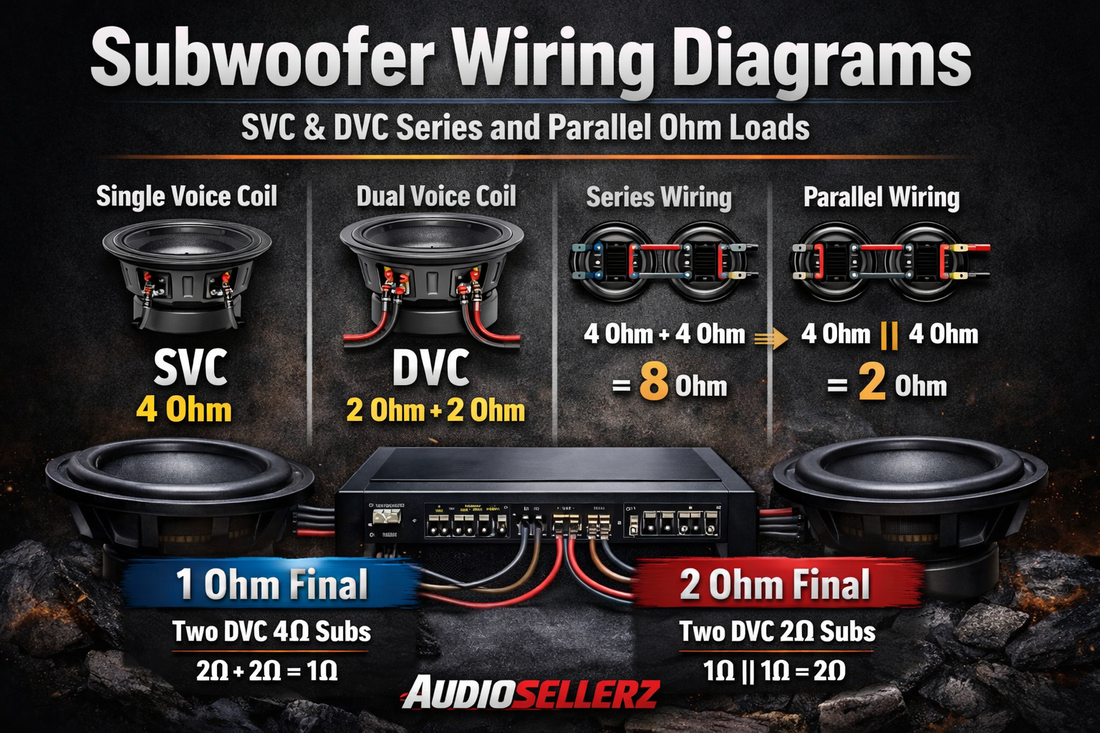

SVC vs DVC subs (this is where most confusion starts)

SVC = Single Voice Coil

One set of terminals on the sub
One coil inside
Example: SVC 4 ohm sub

DVC = Dual Voice Coil

Two sets of terminals on the sub
Two coils inside
Example: DVC 2 ohm sub (two 2 ohm coils)

DVC gives you more wiring options because you can wire coils in series or parallel before combining multiple subs.

Series vs parallel wiring (simple rules)

Series wiring adds ohms

Series = R1 + R2 + R3…

Example: two 4 ohm loads in series
4 ohm + 4 ohm = 8 ohm

Parallel wiring lowers ohms

Two equal loads in parallel is easy:

two 4 ohm in parallel = 2 ohm
two 2 ohm in parallel = 1 ohm
two 1 ohm in parallel = 0.5 ohm

Quick chart: coil wiring outcomes (single DVC sub)

DVC 2 ohm sub

coils in series = 4 ohm
coils in parallel = 1 ohm

DVC 4 ohm sub

coils in series = 8 ohm
coils in parallel = 2 ohm

This solves most “final ohm load” questions by itself.

Wiring 1 subwoofer (common setups)

1 sub, SVC 4 ohm

Final load is 4 ohm.

1 sub, DVC 2 ohm

Want 1 ohm? wire coils parallel
Want 4 ohm? wire coils series

1 sub, DVC 4 ohm

Want 2 ohm? wire coils parallel
Want 8 ohm? wire coils series

Shop subs / amps:
Subwoofers: https://audiosellerz.com/search?q=subwoofer
Amplifiers: https://audiosellerz.com/search?q=amplifier

Wiring 2 subwoofers (most common outcomes)

Two DVC 4 ohm subs (popular for 1 ohm final)

Common finals:

1 ohm (each sub coils parallel = 2 ohm, then subs parallel = 1 ohm)
4 ohm (each sub coils parallel = 2 ohm, then subs series = 4 ohm)
4 ohm (each sub coils series = 8 ohm, then subs parallel = 4 ohm)

Two DVC 2 ohm subs (watch your target load)

Common finals:

0.5 ohm (each sub coils parallel = 1 ohm, then subs parallel = 0.5 ohm)
2 ohm (each sub coils parallel = 1 ohm, then subs series = 2 ohm)
2 ohm (each sub coils series = 4 ohm, then subs parallel = 2 ohm)

Heads up: With two DVC 2 ohm subs, a clean 1 ohm final usually isn’t the typical outcome using basic series/parallel. If you’re chasing 1 ohm, you usually want two DVC 4 ohm subs or a different sub count.

Wiring 4 subwoofers (keep it organized)

Four subs is where people accidentally end up at 0.5 ohm (or lower) and don’t realize it until the amp gets angry.

Best practice:

Wire each sub’s coils first (DVC series or parallel)
Pair subs into groups of two
Combine the pairs for your final load

If you’re running big power, your electrical has to be locked in:
Brand X alternators: https://audiosellerz.com/search?q=Brand+X+alternator
Advanced Electric batteries: https://audiosellerz.com/search?q=Advanced+Electric+battery
Big 3 / power wire upgrades: https://audiosellerz.com/search?q=big+3

How to confirm your final ohm load with a meter

Meters read DC resistance, not true impedance, so readings are usually a little lower than the rated ohm load.

Example: a “1 ohm final” setup might show around 0.7–0.9 on a meter (varies)

Steps:

Disconnect speaker leads from the amp
Set meter to resistance (ohm)
Measure at the end of the speaker wire that goes to the amp
If the number looks way off, stop and re-check wiring

Common wiring mistakes that cook gear

Mixing series/parallel randomly between subs (one sub ends up different)
Loose set screws at the amp/terminals (heat + voltage drop)
Under-sized wire for the power level (voltage drop = clipping)
Final load too low for amp stability
Bad ground (paint, thin metal, too long)

Shop install essentials:
OFC wire: https://audiosellerz.com/search?q=OFC+wire
Fuse gear: https://audiosellerz.com/search?q=fuse+block
Speaker wire: https://audiosellerz.com/search?q=speaker+wire

FAQ: Subwoofer wiring & ohm loads

What does “DVC 2 ohm” mean?

Two coils inside the sub, and each coil is 2 ohm. Your final load depends on series vs parallel wiring.

Does a lower ohm load always make it louder?

Not always. It can allow more power, but it also increases heat and electrical demand. A stable 2 ohm setup can outperform a struggling 1 ohm setup.

Why does my meter read lower than expected?

Meters read DC resistance, so it’s normal to see a bit lower than rated impedance.

Should I run 0.5 ohm?

Only if the amp is designed for it and your electrical system can support it. If you’re unsure, go 1 ohm or 2 ohm for reliability.

Closing CTA

If you want, send us what subs you have (SVC/DVC + coil ohm) and what amp you’re running — we’ll help you pick a wiring plan that makes sense for your goal.
