4th Order Bandpass Box Design Guide: Ratios, Tuning & Port Area

A 4th order bandpass box can produce serious bass when the enclosure is designed around the actual subwoofer, vehicle and goal of the system. But a good 4th order box design is more involved than taking a random sealed chamber, adding a larger ported chamber and hoping it gets loud.

The sealed chamber, ported chamber, chamber ratio, tuning frequency, port area, port length, woofer displacement, vehicle acoustics and available amplifier power all interact.

That is why two 12-inch subwoofers can need completely different 4th order bandpass designs even though the subs are the same diameter.

This guide explains how a 4th order bandpass enclosure works, what ratios like 1:1, 2:1 and 3:1 actually mean, how tuning and port area change the response, how to choose a subwoofer, and what needs to be considered when building around 10-inch, 12-inch, 15-inch or 18-inch subwoofers.

If you are still choosing equipment for your build, you can browse car audio subwoofers, monoblock amplifiers and subwoofer boxes and enclosures at Audio Sellerz.

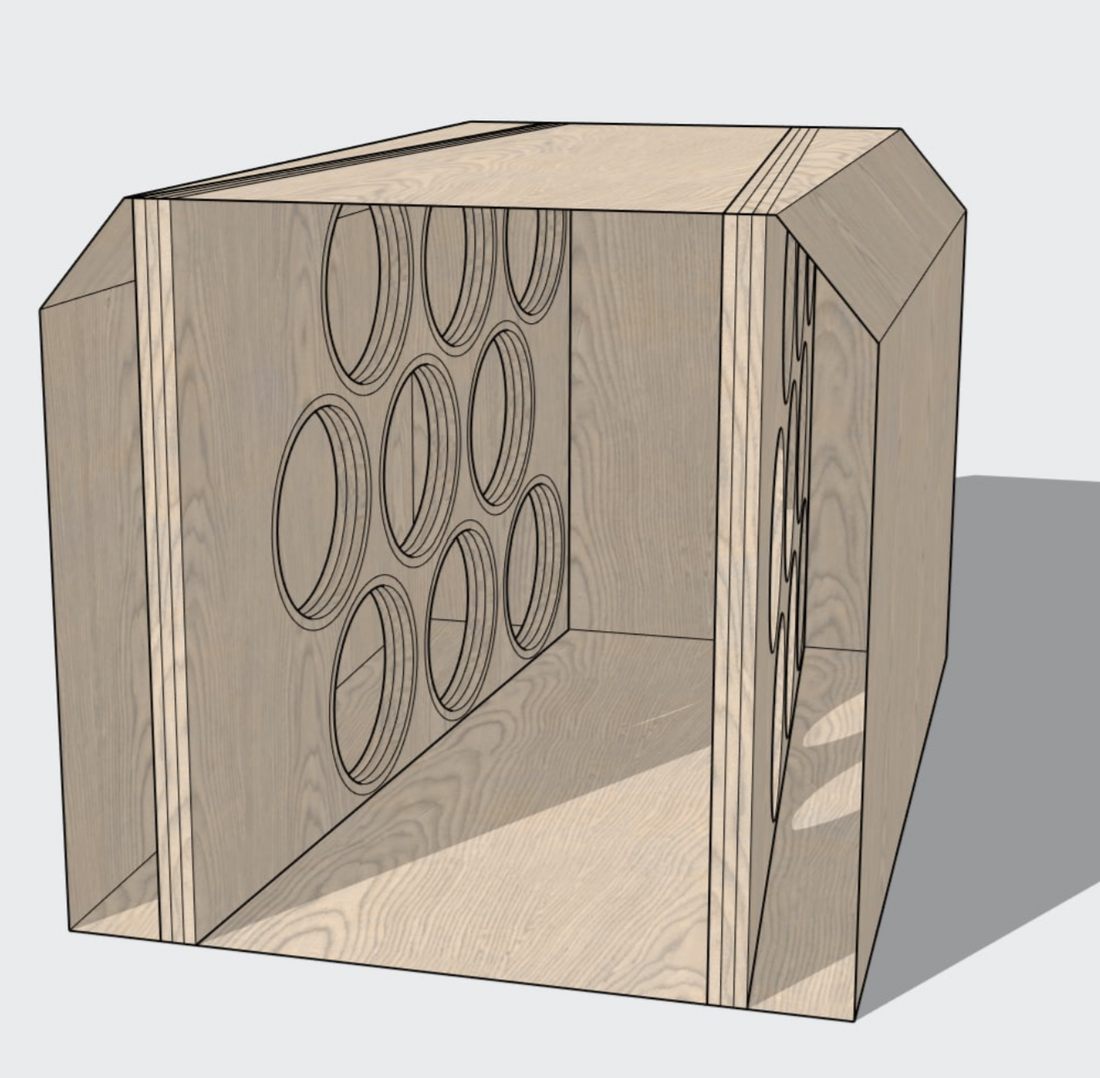

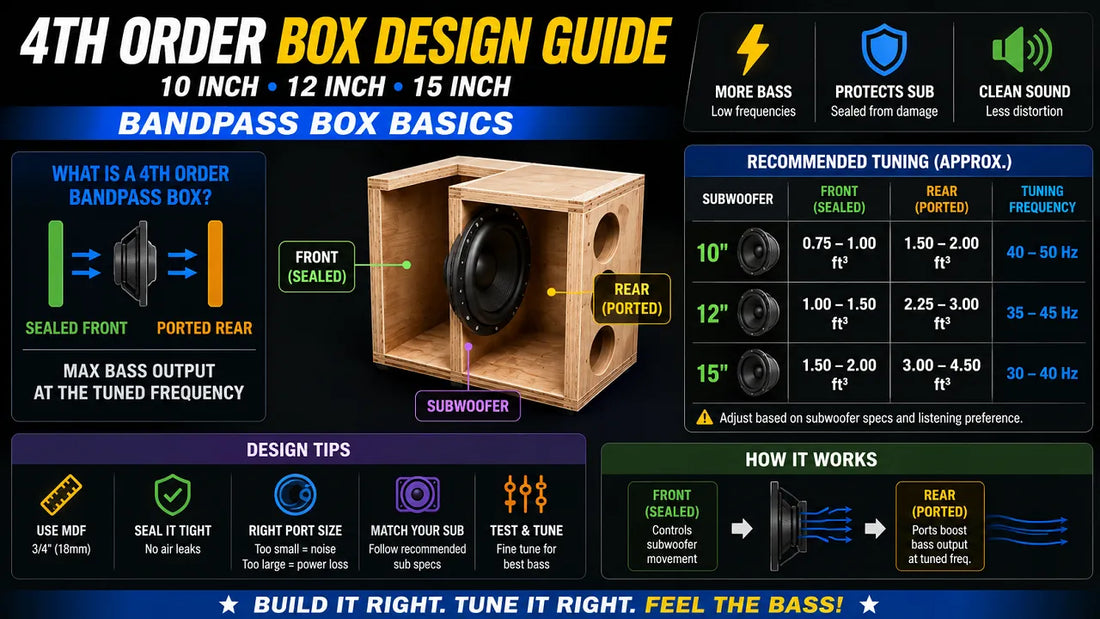

What Is a 4th Order Bandpass Box?

A 4th order bandpass box is a subwoofer enclosure that places the subwoofer between two separate chambers.

• One side of the subwoofer loads into a sealed chamber.
• The other side loads into a ported chamber.
• The usable bass output leaves the enclosure through the ported chamber.

This makes a 4th order enclosure different from a traditional sealed or ported subwoofer box.

In a normal sealed enclosure, the subwoofer radiates directly into the vehicle.

In a normal ported enclosure, the subwoofer and port both contribute to the system's output.

In a 4th order bandpass enclosure, the woofer is contained inside the enclosure and the ported chamber becomes the primary acoustic outlet into the vehicle.

This lets the enclosure shape the operating bandwidth more aggressively than a conventional box.

Why Is It Called a 4th Order Bandpass?

The term bandpass describes what the enclosure is designed to do: emphasize a usable band of frequencies while output falls away below and above that range.

The sealed rear chamber and tuned front chamber work together to create that bandpass behavior.

That is one reason a properly designed 4th order can produce very strong output through its intended range while a poorly designed one can become narrow, peaky or disappointing.

How Does a 4th Order Bandpass Box Work?

Think of the two chambers as doing different jobs.

The Sealed Chamber

The sealed chamber loads one side of the woofer and creates an air spring behind it.

Its volume affects:

• Woofer control
• Low-frequency behavior
• System resonance
• Transient response
• How hard the woofer has to work
• How the enclosure interacts with the ported chamber

The Ported Chamber

The ported chamber loads the other side of the woofer and vents acoustic output into the vehicle.

Its design affects:

• Output
• Efficiency
• Bandwidth
• Tuning
• Air velocity
• Port compression
• How strongly the enclosure peaks in a particular frequency range

A good 4th order box design requires both chambers to work together. You cannot design the sealed side correctly, guess at the ported side and expect predictable results.

What Is a 4th Order Box Ratio?

The phrase 4th order box ratio normally refers to the relationship between the net volume of the ported chamber and the net volume of the sealed chamber.

For example, if the sealed chamber has 2 cubic feet of net airspace and the ported chamber has 4 cubic feet, the enclosure has approximately a 2:1 ported-to-sealed chamber ratio.

The important word is net.

When calculating chamber volume, account for anything that physically occupies space, including:

• Subwoofer displacement
• Port displacement
• Bracing
• Loading walls
• Internal supports

A box may have a certain gross physical volume but considerably less usable net airspace once everything inside it is accounted for.

1:1 vs 2:1 vs 3:1 4th Order Box Ratios

There is no universal best 4th order ratio.

Ratios are useful ways to describe the relationship between the two chambers, but they should not replace actual enclosure modeling.

1:1 4th Order Ratio

A 1:1 ratio means the ported chamber and sealed chamber have approximately equal net volume.

This can be a useful starting concept for some designs where overall size, bandwidth and a less aggressive chamber relationship are priorities.

It is not automatically the best daily-driver ratio, and it is not automatically worse than a larger ratio.

2:1 4th Order Ratio

A 2:1 design has a ported chamber roughly twice the net volume of the sealed chamber.

This is a common ratio people discuss because increasing front-chamber volume can change the efficiency, bandwidth and response shape of the enclosure.

However, a 2:1 box still needs to be modeled around the actual driver.

3:1 4th Order Ratio

A 3:1 design uses a considerably larger ported chamber relative to the sealed chamber.

Larger-ratio designs may be useful in systems built around strong output and efficiency, but they also:

• Require more space
• Need careful port design
• Can become more specialized in their response
• May not be appropriate for every woofer

Do not build a 3:1 enclosure simply because someone online said a larger ratio is louder.

The correct ratio depends on the woofer, chamber volumes, desired bandwidth, tuning, port design and vehicle.

Is a Bigger 4th Order Ratio Always Louder?

No.

A larger ported chamber can change efficiency and output characteristics, but chamber ratio is only one part of the design.

If the sealed chamber is wrong, the port is undersized, the tuning does not match the intended response, or the subwoofer does not behave well in the alignment, simply making the front chamber larger will not fix the enclosure.

A properly designed smaller-ratio enclosure can outperform a badly designed large-ratio enclosure.

How Do You Choose a Subwoofer for a 4th Order Bandpass Box?

Do not choose a subwoofer for a 4th order enclosure based only on cone diameter or RMS power.

The driver's mechanical and electrical characteristics matter.

Important specifications can include:

• Fs: the driver's free-air resonance
• Qts: overall electrical and mechanical damping
• Qes: electrical damping
• Vas: equivalent compliance volume
• Sd: effective cone area
• Xmax: usable linear excursion
• Voice-coil configuration
• Motor strength
• Recommended enclosure information from the manufacturer

These specifications help determine how a woofer behaves when loaded into a particular enclosure.

There are popular internet formulas that claim one single Qts number or Fs-to-Qes ratio determines whether a woofer belongs in a 4th order. Treat those as rough screening ideas rather than absolute rules.

The better method is to model the exact driver in the intended enclosure.

Why T/S Parameters Matter

Thiele-Small parameters give you information about how the subwoofer behaves mechanically and electrically.

They matter because a 4th order enclosure is not simply a box surrounding a woofer. The woofer is interacting with two different air volumes at the same time.

Changing either chamber changes the system.

That means copying dimensions from a box built for a completely different subwoofer can create a very different result.

Can Any Subwoofer Work in a 4th Order Box?

Not every subwoofer is an ideal choice for every 4th order alignment.

Some drivers may model better in:

• Sealed boxes
• Traditional ported boxes
• 4th order bandpass enclosures
• 6th order bandpass enclosures

Before committing to a large custom enclosure, check the manufacturer's specifications and model the woofer in the proposed design.

How to Design a 4th Order Bandpass Box

A strong design process starts before any wood gets cut.

Step 1: Define the Goal

Decide what you are actually trying to build.

Is this:

• A musical daily driver?
• A low-frequency demo build?
• An SPL-focused system?
• A trunk build?
• A truck blow-through?
• An SUV enclosure?
• A full 4th order wall?

The box should be designed around that goal.

Step 2: Choose the Actual Subwoofer

Get the manufacturer's specifications for the exact subwoofer model and impedance configuration.

Do not design around “two 12s” and decide what two 12s you are buying afterward.

Step 3: Determine the Available Vehicle Space

Measure the real usable space in the vehicle.

Account for:

• Trunk opening
• Wheel wells
• Seats
• Hatch clearance
• Amplifier placement
• Battery placement
• Port exit
• Service access

A theoretical enclosure that cannot physically enter the vehicle is not a useful design.

Step 4: Model the Sealed Chamber

The sealed chamber should be designed around the driver rather than selected from a universal chamber-ratio chart.

Changing sealed-chamber volume changes the air spring behind the woofer and therefore changes system behavior.

Step 5: Model the Ported Chamber

Now model the vented side of the enclosure and its relationship to the sealed chamber.

This is where chamber ratio begins to matter, but do not evaluate ratio by itself.

Step 6: Choose the Intended Tuning

The front chamber's port dimensions determine its acoustic tuning.

The target should be based on:

• Desired bandwidth
• Music
• Vehicle response
• Subwoofer characteristics
• Daily vs competition use

Step 7: Design Enough Port Area

The port has to move the air generated by the system without excessive velocity, noise or compression.

High-displacement subwoofers and high-power systems can require substantial port area.

Step 8: Account for Port Length and Displacement

The port itself takes up physical space inside the enclosure.

As port area increases, the required port length for a given tuning may also become significant.

Always calculate chamber volume using the final port design rather than calculating a chamber first and adding the port afterward.

Step 9: Add Bracing and Subwoofer Displacement

A large bandpass enclosure should be rigid.

Bracing, double baffles, loading walls and the subwoofer motors all reduce the remaining airspace.

Step 10: Model Again

After the physical layout is finished, recheck the enclosure using the actual final net volumes and port dimensions.

This catches design changes that happened during packaging.

How Do You Tune a 4th Order Bandpass Box?

There is no single “best 4th order tuning frequency.”

The correct tuning depends on the design goal and the response you want after the enclosure is installed in the vehicle.

A system designed for broad daily music may use a different alignment than an SPL enclosure designed around a narrow frequency range.

That is why copying a tuning number from somebody else's vehicle is risky.

The same enclosure can behave differently in:

• A sedan trunk
• A hatchback
• An SUV
• A pickup cab
• A wall build
• A blow-through

Daily Driver 4th Order Tuning

A daily-driver design normally needs usable bandwidth.

Getting one frequency extremely loud is not very useful if the enclosure sounds weak across the rest of the music you actually listen to.

For a daily system, prioritize:

• Useful low-frequency extension
• Reasonable bandwidth
• Smooth transition through the passband
• Controlled cone motion
• Low port noise
• Performance inside the actual vehicle

SPL-Focused 4th Order Tuning

An SPL-focused design can make very different compromises.

If the goal is maximum output through a more specific frequency range, bandwidth may become less important than peak efficiency.

That does not mean there is one universal “SPL tuning.” The vehicle's resonant behavior, woofer, enclosure size, meter location and competition goal all influence the final design.

Why Port Area Matters So Much

The port is one of the most important parts of a 4th order bandpass enclosure.

If the port is too restrictive, the enclosure may suffer from:

• Port noise
• High air velocity
• Compression
• Reduced output
• Unwanted turbulence

If the port becomes extremely large, packaging and port length can become difficult.

That is why port area should be modeled instead of chosen from a single “square inches per cubic foot” rule.

What Is Port Velocity?

Port velocity describes how quickly air is moving through the port.

As output and woofer displacement increase, port velocity can increase dramatically.

Modeling software can help show whether the proposed port has enough area for the expected output.

This becomes especially important with high-power 15-inch and 18-inch subwoofers or multi-sub systems.

Slot Port vs Aero Port in a 4th Order

Both slot ports and round/aero-style ports can be used successfully.

Slot Port

A slot port can be integrated into the enclosure structure and can provide large cross-sectional area when the box layout supports it.

Round or Aero Port

A properly sized round port can make tuning adjustments and port replacement easier in some builds.

The correct choice comes down to:

• Required port area
• Required length
• Available physical space
• Desired tuning flexibility
• Construction method

Does Port Direction Matter?

Yes, because the enclosure ultimately loads into the vehicle.

Port orientation can affect the way the system couples with the cabin, hatch, trunk opening or loading wall.

Do not assume that a port location that works in one vehicle will automatically be best in another.

Vehicle testing is valuable, especially when the enclosure is being built for serious output.

4th Order Box Design for a 10 Inch Subwoofer

A 10 inch 4th order box can work very well when the driver models correctly for the alignment.

A 10-inch system may make sense when:

• Vehicle space is limited
• You want a smaller enclosure
• You are building around one or two compact high-output subs
• You want strong bass without using a large 15- or 18-inch driver

Do not simply shrink a 12-inch or 15-inch design.

The 10-inch woofer's actual T/S parameters, displacement, excursion and recommended enclosure behavior should drive the design.

4th Order Box Design for a 12 Inch Subwoofer

A 12 inch 4th order bandpass box is one of the most practical combinations for car audio because there are so many subwoofer choices available in this size.

A 12-inch build can work in:

• Sedans
• Hatchbacks
• SUVs
• Pickup trucks
• Single-sub daily systems
• Dual-sub demo systems

But there is no universal 12-inch 4th order plan.

A 500-watt 12 and a high-excursion multi-thousand-watt 12 may need very different chambers and port systems.

4th Order Box Design for a 15 Inch Subwoofer

A 15 inch 4th order box requires more physical space and normally demands more attention to airflow.

The larger cone area and potential displacement mean the enclosure may need:

• More net chamber volume
• More port area
• More structural bracing
• A larger loading wall
• More amplifier power
• More electrical support

A strong 15-inch build can produce serious low-frequency output, but the enclosure has to fit both the subwoofer and the vehicle.

What About an 18 Inch 4th Order Box?

Although the original version of this guide focused mainly on 10s, 12s and 15s, 18-inch subwoofers absolutely deserve consideration.

An 18 inch 4th order bandpass enclosure can require significant chamber volume and port area.

This is where space planning becomes critical.

A large enclosure that forces an inadequate port or eliminates usable chamber volume is not automatically better than a properly designed smaller-subwoofer system.

Single Subwoofer vs Multiple Subs in a 4th Order

A 4th order design can use one subwoofer or multiple subwoofers.

Single-Sub 4th Order

A single-sub design is often easier to package and can allow more enclosure volume per driver.

Dual-Sub 4th Order

Two subs add cone area but also increase:

• Required chamber volume
• Total driver displacement
• Port requirements
• Amplifier demand
• Electrical demand

Three or Four Subwoofers

Larger multi-sub systems can work, but packaging becomes a major part of the engineering.

More subwoofers do not automatically make the enclosure more efficient if each driver is forced into an inappropriate chamber volume.

Keep Multiple Subs Loading Together

When using multiple drivers, try to create a symmetrical and predictable loading environment whenever the vehicle and enclosure allow it.

Pay attention to:

• Driver placement
• Loading-wall geometry
• Distance to the port
• Internal obstructions
• Bracing
• Airflow through the ported chamber

4th Order Box Wiring and Final Ohm Load

The enclosure design and electrical wiring have to work together.

If you are running multiple subwoofers or dual-voice-coil subs, calculate the final impedance before choosing the amplifier.

For example, two dual-voice-coil subwoofers can often be wired into several different final loads depending on the individual coil impedance and series/parallel configuration.

Use our subwoofer wiring diagrams and final ohm-load guide to plan the electrical side correctly.

Matching an Amplifier to a 4th Order Build

The amplifier should be matched to the subwoofers, final impedance and electrical system.

Do not choose the amplifier based on the enclosure ratio.

Consider:

• Total subwoofer RMS capability
• Final wired impedance
• Amplifier output at that impedance
• Electrical-system capability
• How the enclosure controls the woofer through its passband

If you need an amplifier for the build, browse monoblock car audio amplifiers.

How Should Amp Gain Be Set With a 4th Order Box?

The enclosure does not change the basic rule for gain:

Gain is used to match the amplifier's input sensitivity to the signal source. It is not a volume knob.

Do not compensate for a poorly designed enclosure by turning the gain or bass boost higher.

Once the system is wired and operating correctly, use our amp gain-setting guide for subwoofers, mids and highs.

Do You Need a Subsonic Filter With a 4th Order Box?

Filter setup should match the actual modeled response, woofer limits and intended operating range.

A bandpass enclosure does provide acoustic filtering, but that does not mean every system should run with every amplifier filter disabled.

Use the subwoofer manufacturer's limits and the modeled enclosure behavior when setting protection filters.

4th Order Box for a Daily Driver

A good daily 4th order should play the music you actually listen to.

For daily use, prioritize:

• Reasonable bandwidth
• Low-end extension
• Strong output without excessive peakiness
• Good port airflow
• Controlled cone movement
• Enough electrical support for extended listening

If an enclosure gets extremely loud on only a handful of frequencies but sounds empty everywhere else, it may not be a good daily design even if the meter likes it.

4th Order Wall vs Traditional 4th Order Box

Traditional 4th Order Box

A traditional enclosure can be built to fit inside a trunk, hatch, cargo area or pickup.

This keeps the build more removable and normally uses less of the vehicle.

4th Order Wall

A 4th order wall turns a much larger portion of the vehicle into the enclosure system.

Walls are common in serious demo and SPL builds where:

• Large chamber volume is required
• Many subwoofers are being used
• Large port area is needed
• Maximum cabin loading is part of the goal

A wall is a major fabrication project and should be treated as one.

4th Order Box in a Trunk

A trunk build introduces another challenge: getting the bass from the enclosure into the passenger compartment.

Enclosure orientation and port location can be just as important as chamber calculations.

Rear seats, trunk seals, factory openings and vehicle structure can all affect the final result.

4th Order Box in an SUV or Hatchback

SUV and hatchback builds provide a more open connection between the enclosure and passenger compartment.

They often offer more room for larger chambers and ports, but cabin loading still needs to be tested rather than assumed.

4th Order Bandpass Box for a Pickup Truck

Pickup trucks can use conventional in-cab enclosures or more involved blow-through designs.

Available cab space may limit chamber volume, which makes driver selection especially important.

A large-ratio design is not useful if there physically is not enough room to give the subwoofer the chamber and port area it requires.

4th Order Bandpass vs Sealed Box

A sealed enclosure is simpler, generally smaller and easier to predict.

A 4th order bandpass enclosure is more complicated but gives the designer more ability to shape output through a target range.

Choose sealed when simplicity, compact size and predictable response are priorities.

Consider a 4th order when you have the room and want a more purpose-built alignment with potentially strong efficiency through a targeted bandwidth.

4th Order Bandpass vs Ported Box

A traditional ported enclosure is usually simpler to design and build than a 4th order.

That makes ported boxes excellent for a huge number of daily car audio systems.

A 4th order becomes more attractive when:

• You want to isolate the subwoofers inside the enclosure
• You want to shape a specific operating bandwidth
• You have enough room for two chambers
• The subwoofer models well in the alignment
• You are willing to spend more time designing and testing

If you simply want a strong daily bass system, do not assume that moving from a ported enclosure to a 4th order automatically makes the system better.

4th Order vs 6th Order Bandpass Box

This is one of the most important comparisons when planning a bandpass build.

A 4th order bandpass uses:

• One sealed chamber
• One ported chamber

A 6th order bandpass normally uses:

• Two ported chambers
• Two tunings that interact with the driver and each other

A 6th order design gives the builder additional control over the response but also adds another layer of complexity.

A 4th order is not automatically better for sound quality, and a 6th order is not automatically louder. The correct choice depends on the woofer, space, target bandwidth and overall build goal.

For a full explanation, read our 6th order bandpass box guide for daily drivers.

Can You Use a 4th Order Bandpass Box Calculator?

A calculator can be useful for preliminary dimensions and tuning calculations, but it should not be treated as a complete enclosure designer.

A calculator may help with:

• Internal volume
• Port length
• Port area
• Basic dimensional planning

What it may not tell you is whether the actual subwoofer behaves well in that alignment or how the finished enclosure will interact with the vehicle.

For serious 4th order design, combine calculations with loudspeaker modeling software and real-world testing.

Gross Volume vs Net Volume

This mistake can destroy an otherwise good design.

Gross volume is the physical internal volume before displacement.

Net volume is the usable airspace after subtracting components that occupy space.

Remember to account for:

• Subwoofer baskets and motors
• Port structure
• Bracing
• Double baffles
• Internal loading structures

Why Strong Bracing Matters

A large 4th order enclosure can have substantial panel area.

Panels that flex waste energy and can create unwanted vibration.

Use appropriate material thickness, internal bracing and strong joints for the size and power level of the build.

The goal is for the subwoofer and port to move the air — not the enclosure walls.

Should You Use Polyfill in a 4th Order Box?

Damping material can change the behavior of a sealed chamber, but it should not be used as a substitute for designing enough physical airspace.

If damping material is used, treat it as part of the modeled design rather than stuffing the chamber until the enclosure seems larger.

Common 4th Order Bandpass Box Design Mistakes

1. Copying a Random Online Design

A box built for another subwoofer may be completely wrong for yours.

2. Choosing a Ratio Before Choosing the Subwoofer

The woofer should help determine the enclosure — not the other way around.

3. Treating 2:1 or 3:1 as a Magic Formula

Ratio describes the chambers. It does not completely design them.

4. Ignoring Port Area

A large high-power 4th order with an inadequate port can suffer from severe airflow problems.

5. Forgetting Port Displacement

A big port can occupy a lot of chamber volume.

6. Forgetting Subwoofer Displacement

Large motors can take up substantial space inside the sealed chamber.

7. Ignoring the Vehicle

The finished system plays inside a car or truck, not inside enclosure-design software.

8. Designing for Peak Output When You Want Daily Music

A narrow output monster may not be enjoyable for a wide range of music.

9. Using Too Little Bracing

Large panels need structural support.

10. Wiring Below the Amplifier's Safe Impedance

A good box cannot protect an amplifier from an unsafe electrical load.

11. Using Undersized Power Wire

A high-power enclosure still depends on the amplifier receiving adequate voltage and current.

Use our car audio wire size and AWG amp guide when planning the electrical side of the system.

12. Assuming More Power Fixes a Bad Box

More amplifier power does not correct poor chamber sizing, bad tuning or insufficient port area.

How to Test a 4th Order After It Is Built

Do not consider the design finished simply because the enclosure is assembled.

Test the system.

Useful things to evaluate include:

• Frequency response
• Port noise
• Woofer control
• Amplifier voltage
• Enclosure leaks
• Panel vibration
• Vehicle loading
• Output at different frequencies

If you have access to measurement equipment, an impedance sweep and in-vehicle frequency-response measurement can provide useful information about what the finished enclosure is actually doing.

Can You Change the Tuning After the Box Is Built?

Sometimes.

Designs using removable or replaceable ports give you more tuning flexibility than a completely permanent internal port.

If testing and tuning are part of the goal, design that adjustability into the enclosure from the beginning.

Frequently Asked Questions About 4th Order Bandpass Boxes

What is a 4th order bandpass box?

A 4th order bandpass enclosure uses one sealed chamber and one ported chamber with the subwoofer mounted between them. Bass output enters the vehicle primarily through the ported chamber.

What is the best ratio for a 4th order box?

There is no universal best ratio. 1:1, 2:1 and 3:1 describe different relationships between ported and sealed chamber volume, but the correct design depends on the specific woofer, tuning, port area, desired bandwidth and vehicle.

Is a 2:1 ratio good for a 4th order?

A 2:1 ported-to-sealed ratio can be a useful design starting point for some subwoofers, but it should still be modeled around the actual driver rather than treated as a guaranteed formula.

Is a 3:1 4th order louder than a 2:1?

Not automatically. A larger front chamber can change efficiency and response, but the result depends on the complete alignment. A properly designed 2:1 can outperform a poorly designed 3:1.

How do you tune a 4th order bandpass box?

The ported chamber is tuned using its chamber volume, port cross-sectional area and port length. The target tuning should be selected as part of the complete modeled alignment rather than copied from a universal frequency recommendation.

What frequency should I tune my 4th order box to?

There is no single correct frequency. Daily-driver, low-frequency demo and SPL designs can have very different goals. The subwoofer, vehicle response and intended bandwidth should determine the target.

What subs are best for a 4th order box?

The best choice is a subwoofer whose T/S parameters and physical capabilities model well in the intended alignment. Do not select a driver from cone size or RMS power alone.

Can I put any 12 inch subwoofer in the same 4th order box?

No. Two 12-inch subwoofers can have very different motor strength, suspension, displacement and T/S parameters and may require completely different enclosure volumes.

Can you run two subs in a 4th order box?

Yes. Dual-sub and larger multi-sub 4th order systems are common, but chamber volume, port requirements, driver displacement, amplifier power and final impedance all need to be recalculated for the complete system.

Can you build a 4th order with 10 inch subs?

Yes. A 10-inch subwoofer can work very well in a 4th order when the driver is suited to the alignment and the chambers are designed specifically for it.

Can you build a 4th order with 15 inch subs?

Yes. Fifteen-inch subs are common in high-output bandpass builds, but they typically require more enclosure volume and port area than smaller drivers.

Can an 18 inch subwoofer work in a 4th order?

Yes. An 18-inch 4th order can produce serious output, but space, chamber volume, port area, bracing and electrical support become increasingly important.

Is a 4th order louder than a ported box?

It can provide strong efficiency through its intended passband, but it is not automatically louder in every vehicle or across every frequency. The quality of the design matters more than the enclosure label.

Is a 4th order good for daily music?

Yes, when it is designed for useful bandwidth rather than only a narrow peak. A daily 4th order should be modeled around the music, vehicle and desired low-frequency response.

Is a 4th order better than a 6th order?

Neither is universally better. A 4th order uses one sealed and one ported chamber. A 6th order uses two ported chambers and is more complex to design. Choose according to the woofer, vehicle, available space and system goal.

Do I need a huge amp for a 4th order?

No. Amplifier power should be matched to the subwoofer system and final impedance. The enclosure type does not automatically require a certain wattage.

Does a 4th order need more space than a ported box?

Often it does because the design requires separate sealed and ported chambers. The exact difference depends on the driver and enclosure alignment.

Can I use a 4th order box calculator?

Yes, but use calculators for dimensional and tuning assistance rather than relying on them to determine whether the complete alignment is suitable for your specific subwoofer and vehicle.

Plan the Complete Bass System

The enclosure is one part of the system.

A serious subwoofer build also needs the correct:

• Subwoofers
• Amplifier
• Final impedance
• Power wire
• Ground wire
• Fuse protection
• Battery support
• Charging support
• Gain and crossover settings

Use these Audio Sellerz resources while planning the build:

• Shop car audio subwoofers
• Shop subwoofer boxes and enclosures
• Shop monoblock amplifiers
• Shop car audio power and ground wire
• Subwoofer wiring diagrams and ohm-load guide
• How to set amplifier gain correctly
• Car audio wire size and OFC vs CCA guide
• 6th order bandpass box guide

Final Answer: What Makes a Good 4th Order Box Design?

A good 4th order bandpass box is designed around the actual subwoofer and the actual vehicle.

Do not begin with a random ratio or tuning frequency.

Begin with:

1. The exact subwoofer
2. The system goal
3. The available vehicle space
4. The sealed-chamber requirements
5. The ported-chamber requirements
6. The desired bandwidth
7. Adequate port area
8. Accurate net chamber volumes
9. The correct amplifier and final impedance
10. Real-world testing after the enclosure is installed

A 1:1, 2:1 or 3:1 ratio can describe part of the enclosure, but the ratio does not design the box for you.

The best 4th order enclosure is the one where the woofer, chambers, port, amplifier, electrical system and vehicle all work together.

If you are still choosing equipment, start with subwoofers available from Audio Sellerz and monoblock amplifiers, then design the enclosure around the equipment you actually plan to use.

Need Help With Your Car Audio Build?

Audio Sellerz LLC is located at 3132 Wadsworth Rd, Norton, OH 44203.

The easiest way to reach us is through the live chat bubble on AudioSellerz.com. You can also email support@audiosellerz.com or call 440-782-1789.

Follow Audio Sellerz

Follow Audio Sellerz for car audio builds, subwoofer box information, amplifier setups, electrical upgrades, product demonstrations and new equipment.

Facebook | Instagram | YouTube
