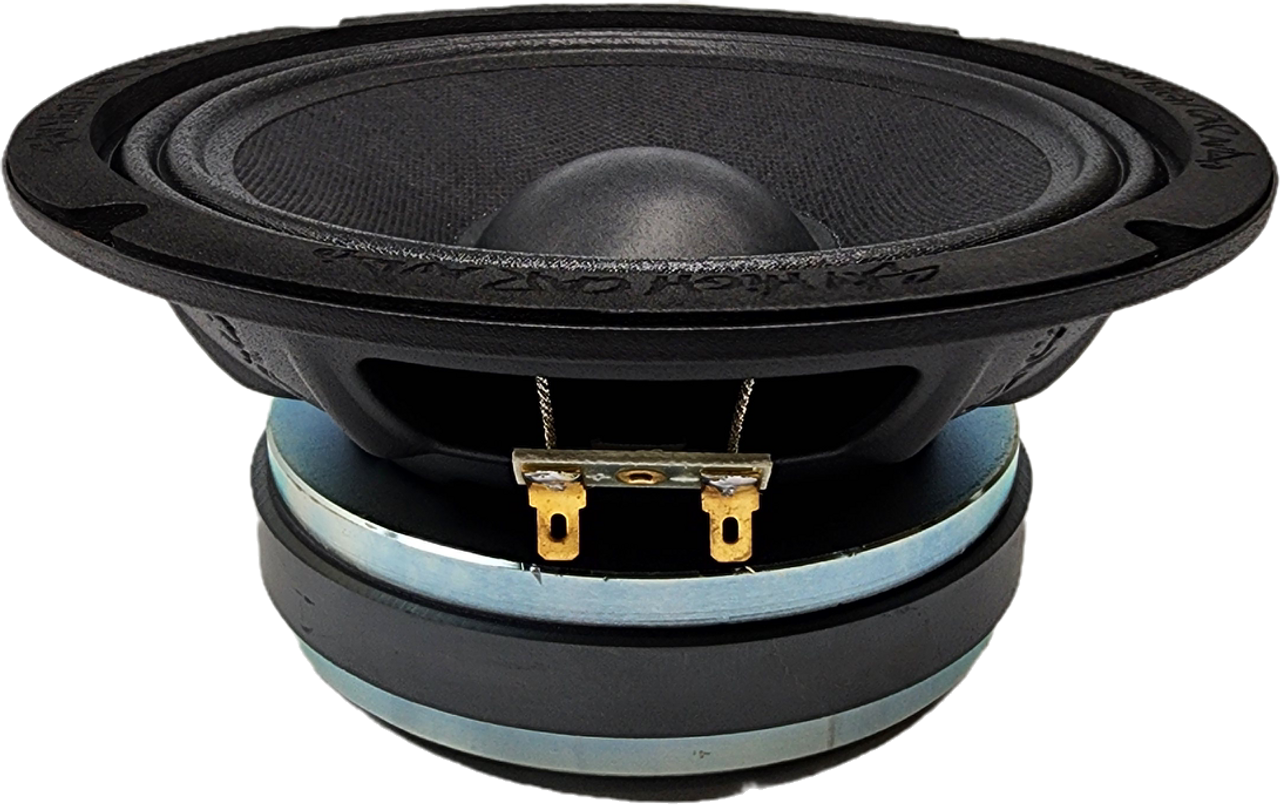

SHCA Pro Audio MB64 6.5" Mid-Bass Loudspeaker with 1.5" Voice Coil (Single)

Compact footprint, big punch. The MB64 delivers clean, dynamic mid-bass that adds weight to drums, basslines, and vocals—perfect for door pods or front-stage upgrades in pro-audio style builds.

Key Features

• Powerful & efficient: 150W RMS / 300W peak, 96 dB (1W/1m) for strong output on modest power
• True mid-bass tuning: 80 Hz – 6 kHz response for tight impact and natural body
• Premium motor & coil: 1.5″ CCAW voice coil on Kapton former for heat resistance and reliability
• Built to last: Paper cone & dust cap, cloth surround, satin-black steel basket
• Ferrite motor: 20 oz magnet provides consistent control and punch

Performance Notes

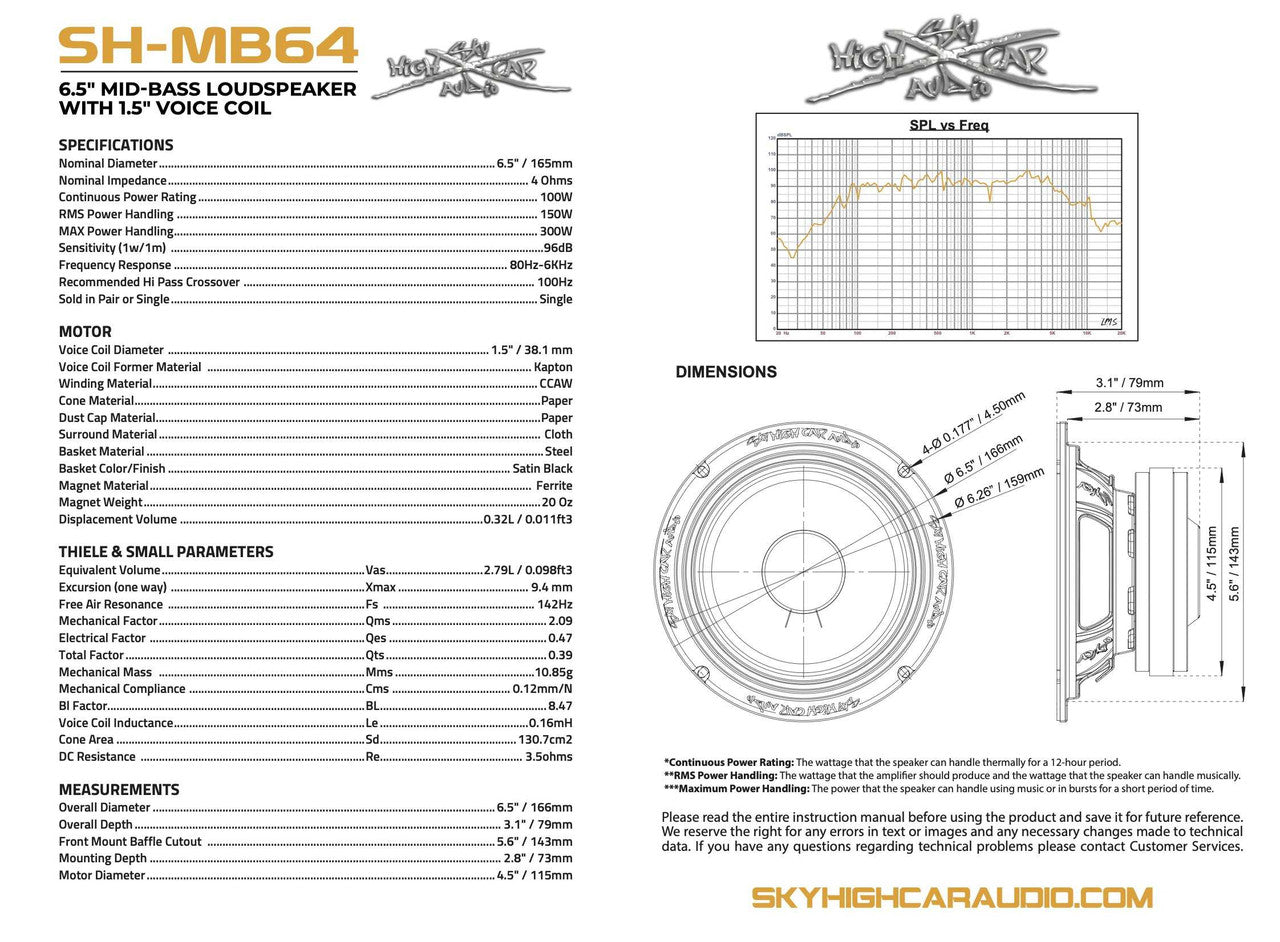

• Thiele/Small: Fs 142 Hz, Vas 2.79 L, Qts 0.39, BL 8.47, Xmax 9.4 mm
• Start with a high-pass filter appropriate to your power and enclosure (many builds begin around 100–150 Hz) and fine-tune by ear.

Dimensions & Mounting

• Overall diameter: 6.5″
• Cutout: 5.6″
• Mounting depth: 2.8″
• Overall depth: 3.1″

What’s in the Box

• (1) MB64 6.5″ Mid-Bass Loudspeaker

Sold individually. Add two for a pair.
